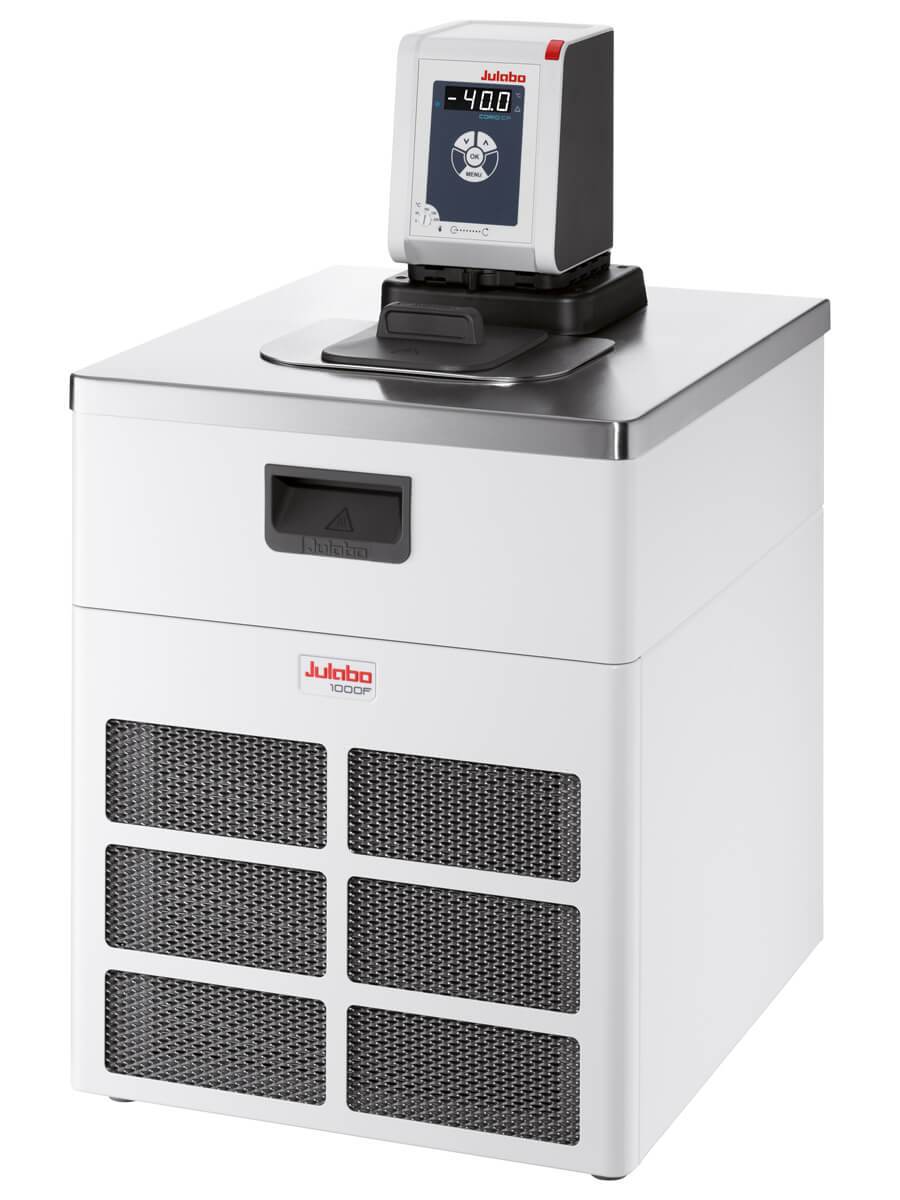

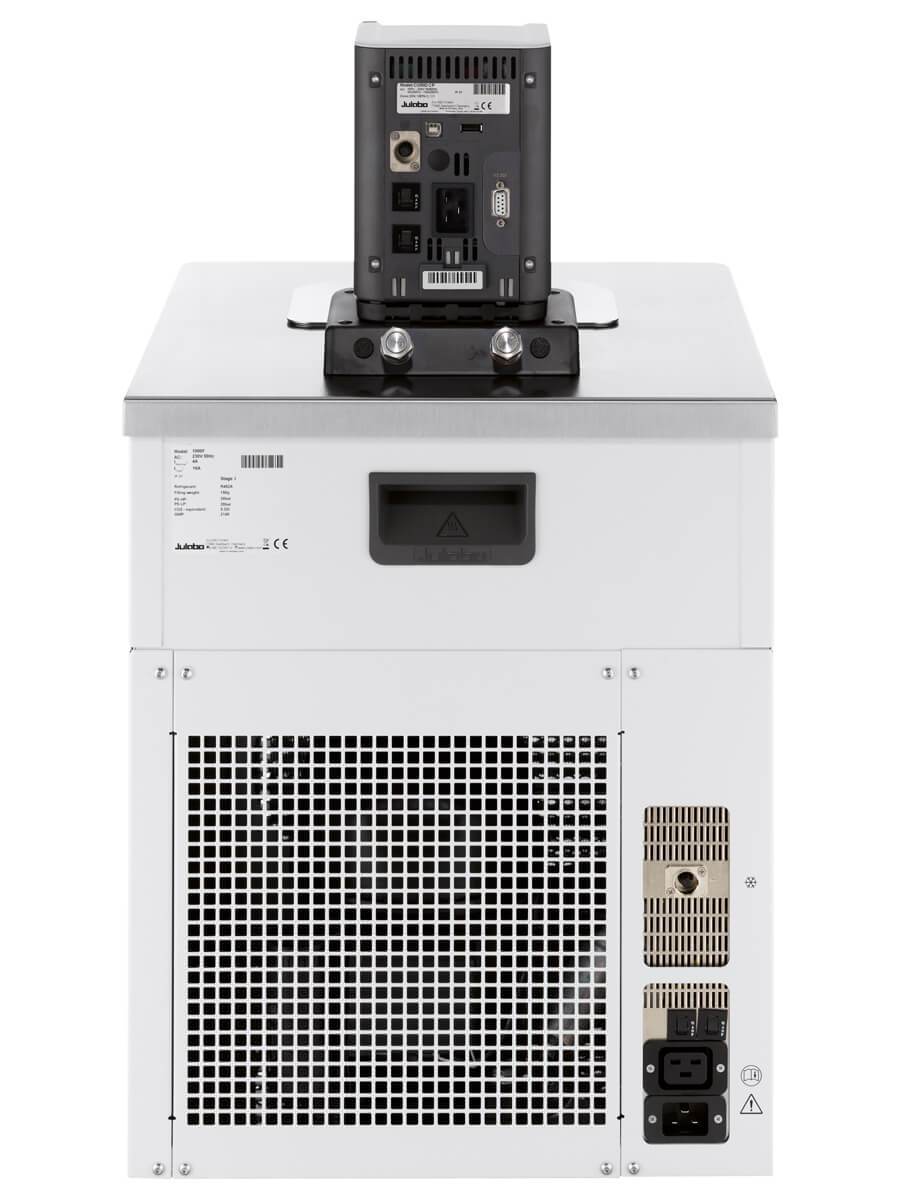

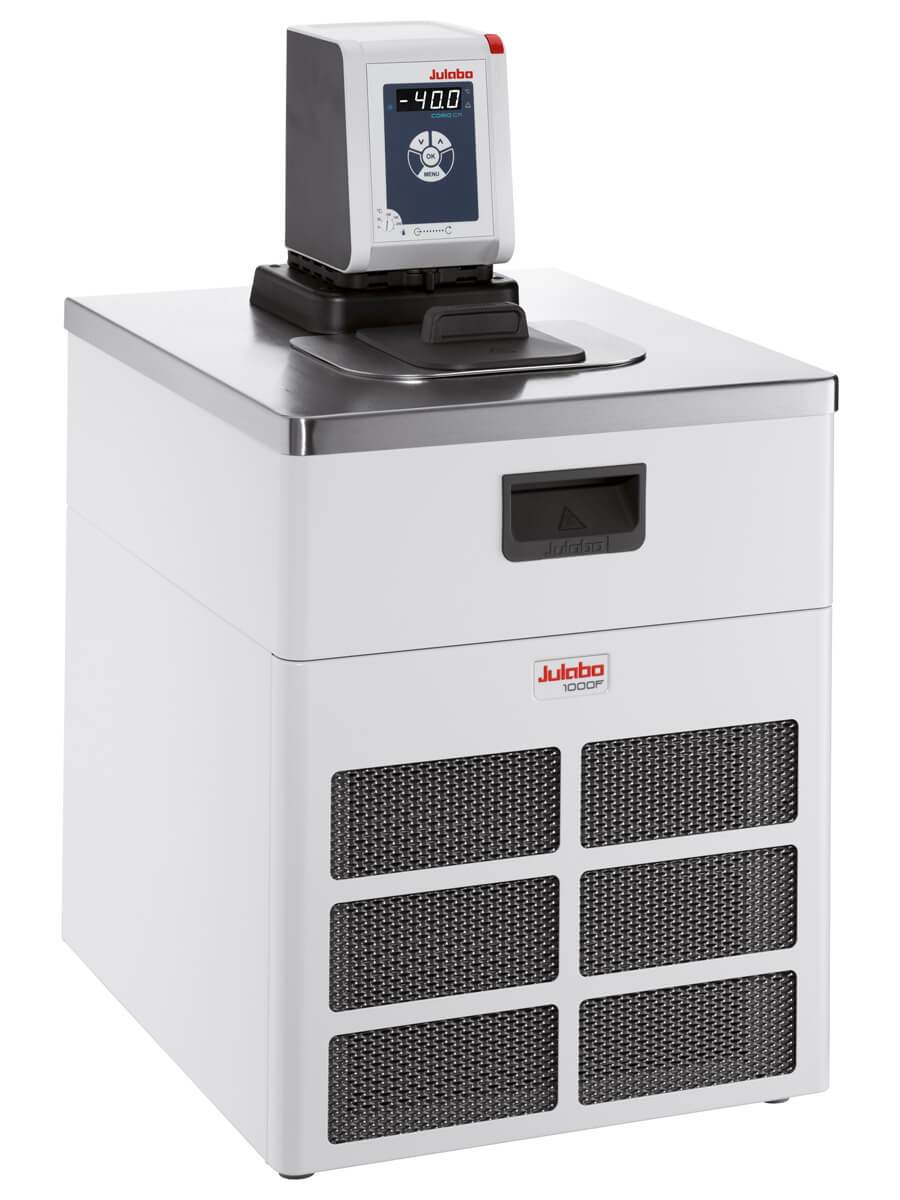

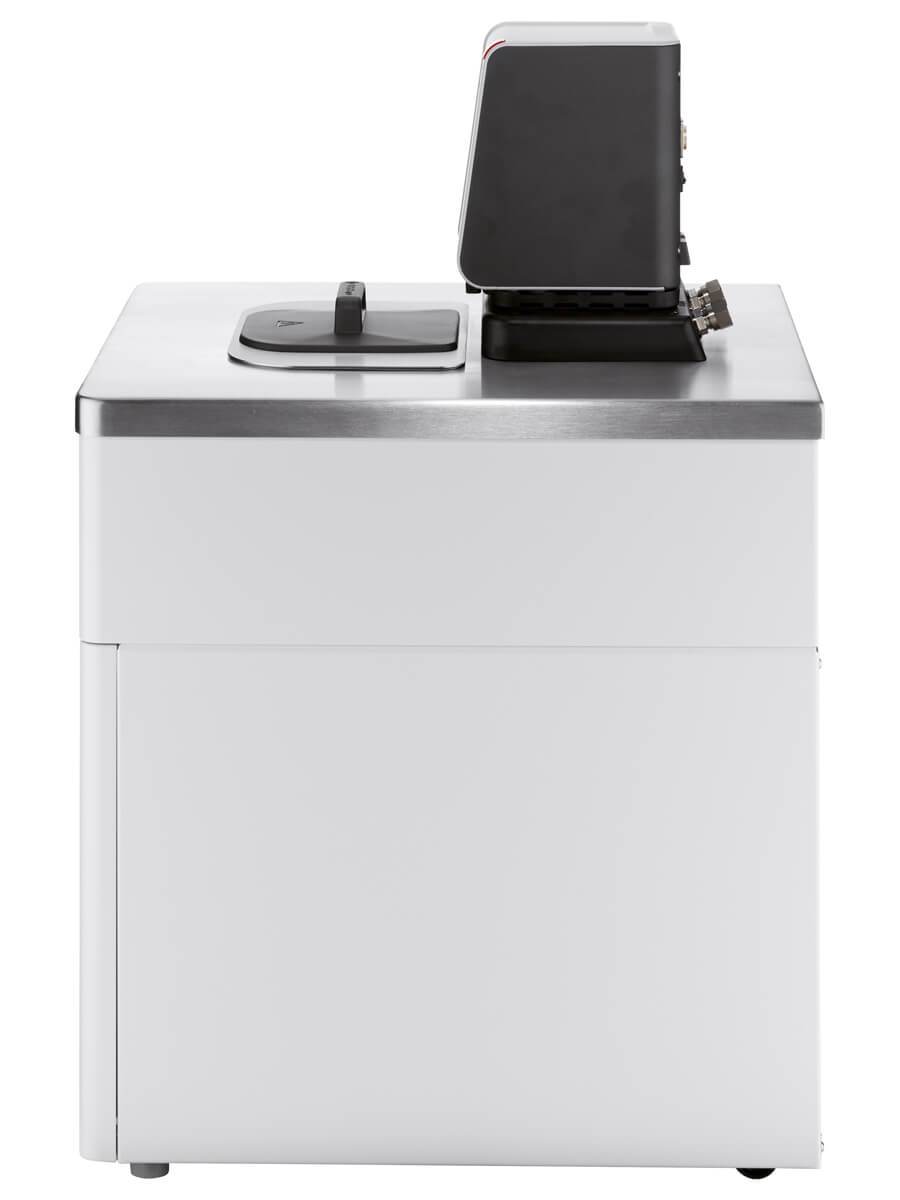

Julabo CORIO CP-1000F

Power Lab Supply 1SKU: 9013707.02
No reviews

Ooptions Available: CORIO CP-1000F 115V/60Hz
Price:
Sale price$14,463.26 USD
Description

Julabo CORIO CP-1000F

Call for lead time


Refrigerated Circulators from the CORIO CP range are suitable for applications with a temperature range up to +200°C. The enhanced pump performance ensures they are suitable for easy temperature control tasks in combination with external applications.

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)



Key Benefits:

  • Models for internal and external applications
  • Bright, white, easy to read display
  • Very quiet
  • Easy pump change-over (internal and external circulation)
  • External pump connections (M16x1)
  • USB & RS232 connection
  • Space-saving cooling coil design yields more usable space in the bath tank
  • Bath lid and drain tap included
  • Removable ventilation grid
  • Refrigeration unit without side vents
  • Class III (FL) according to DIN 12876-1





Technical Data
Order No. 9013707
Model series CORIO
Category Refrigerated - Heating Circulators
Working temperature range (°C) -50 ... +200
Temperature control PID
Temperature stability (°C) ±0.03
Setting / display resolution 0.01 – 0.1 °C
Temperature Display LED
Heating capacity (kW) 1
Cooling capacity (Medium Ethanol) °C 20 10 0 -10 -20 -30 -40
kW 1 1 0.9 0. 73 0.5 0.3 0.13
Pump capacity flow rate (l/min) 8 ... 27
Pump capacity flow pressure (psi) 1.5 ... 10.2
Bath opening / bath depth (W x L / D inch) 7.1 x 5.1 / 5.9
Pump connections M16x1
Barbed fittings diameter (inner dia. / mm) 8 / 12
Filling volume (liters) 5 ... 7.5
Refrigerant stage 1 R449a
Filling volume refrigerant stage 1 (g) 175
Ambient temperature 5...40 °C
Dimensions W x L x H (inch) 16.5 x 19.3 x 27.6
Weight (LBS) 113.5
Included with each unit 2 Schlaucholiven passend für Schlauch 8 und 12 mm l.W. (Pump enanschlüsse mit M16x1 Außengewinde)
Bath tank Stainless steel
Bath cover integrated
Cooling of compressor Air
