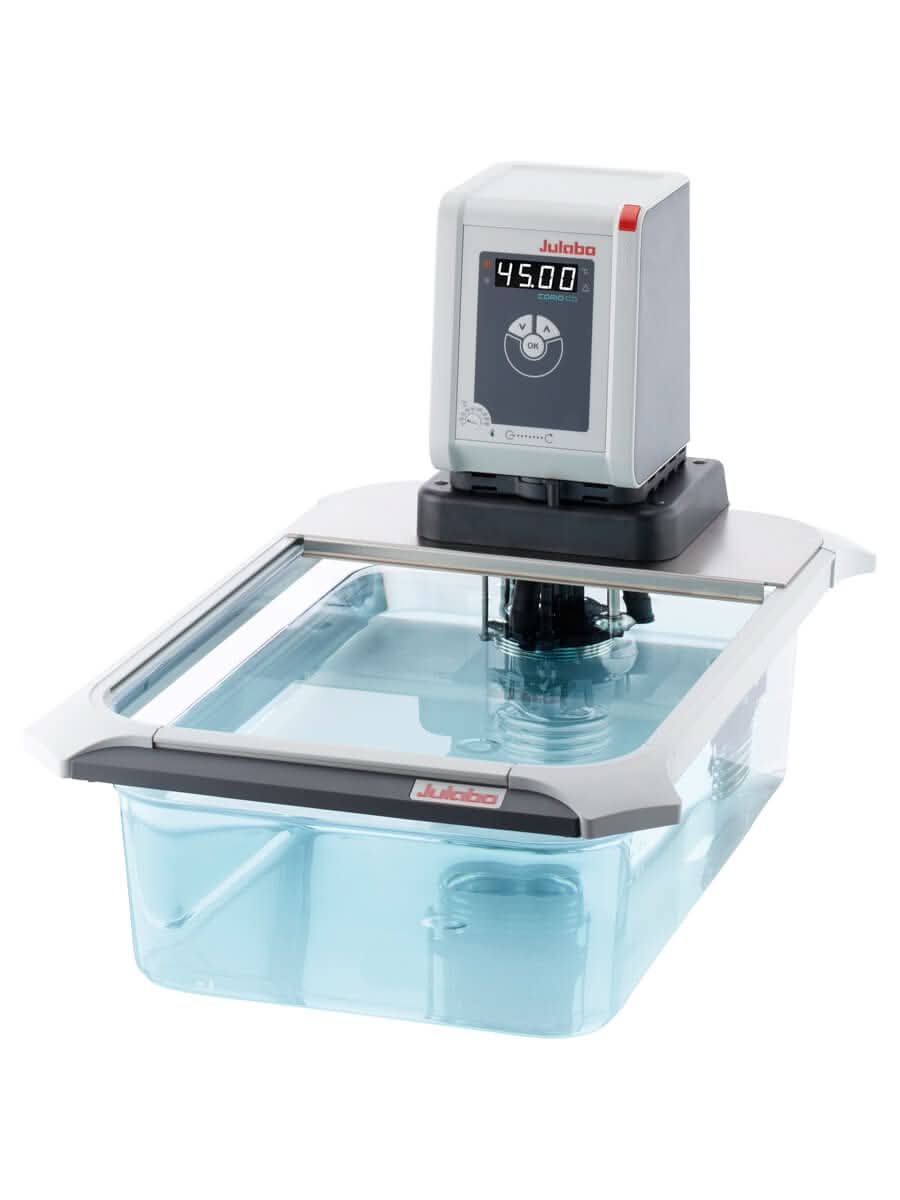

CORIOâ„¢ CD Immersion Heating Circulator Open Bath combinations with tranparent or stainless steel bath tanks for routine laboratory tasks. Units include bright LED display and easy operation.
The CORIO™ CD immersion circulator provides temperatures to 100 °C in plastic tanks and to 150 °C in stainless steel tanks. Integrated pump enables temperature incubation for internal or external bath applications. A lever below the display enables simple adjustment between internal and external flow. Pump capacity: 15 L/min; 5.1 PSI. The integrated USB port provide external PC communication for control / monitoring and data logging.
The CORIOâ„¢ CD has M16x1 male pump connections and comes with sets of 8 and 12 mm hose barbs.
- Voltage Version: 230V/60Hz
- Heating & Cooling: Heating
- Working Temp Range (°C): 20...100
- PCF Pressure (psi): 4.8
- PCF Rate (l/min): 16
- Working Temp Range (°C): 20...100
- Heating Capacity (kW): 2
- Cooling Capacity:
- Voltage Version: 230V/60Hz
- Power A: 10A
- Plug Type:
- Pump Connection: M16x1 male
- PCF Pressure (psi): 4.8
- PCF Rate (l/min): 16
- Bath Fill Volume (L): 14…19
- External Devices:
- Fluid Type: water, silicone
- Heating & Cooling: Heating
- Dimensions W x L x H (in): 15 x 22.9 x 15
- Weight (lbs): 17.7
- Models for internal and external applications
- Bright, white, easy to read display
- Very quiet
- Easy pump change-over between internal and external circulation
- USB connection
- Class III (FL) according to DIN 12876-1
