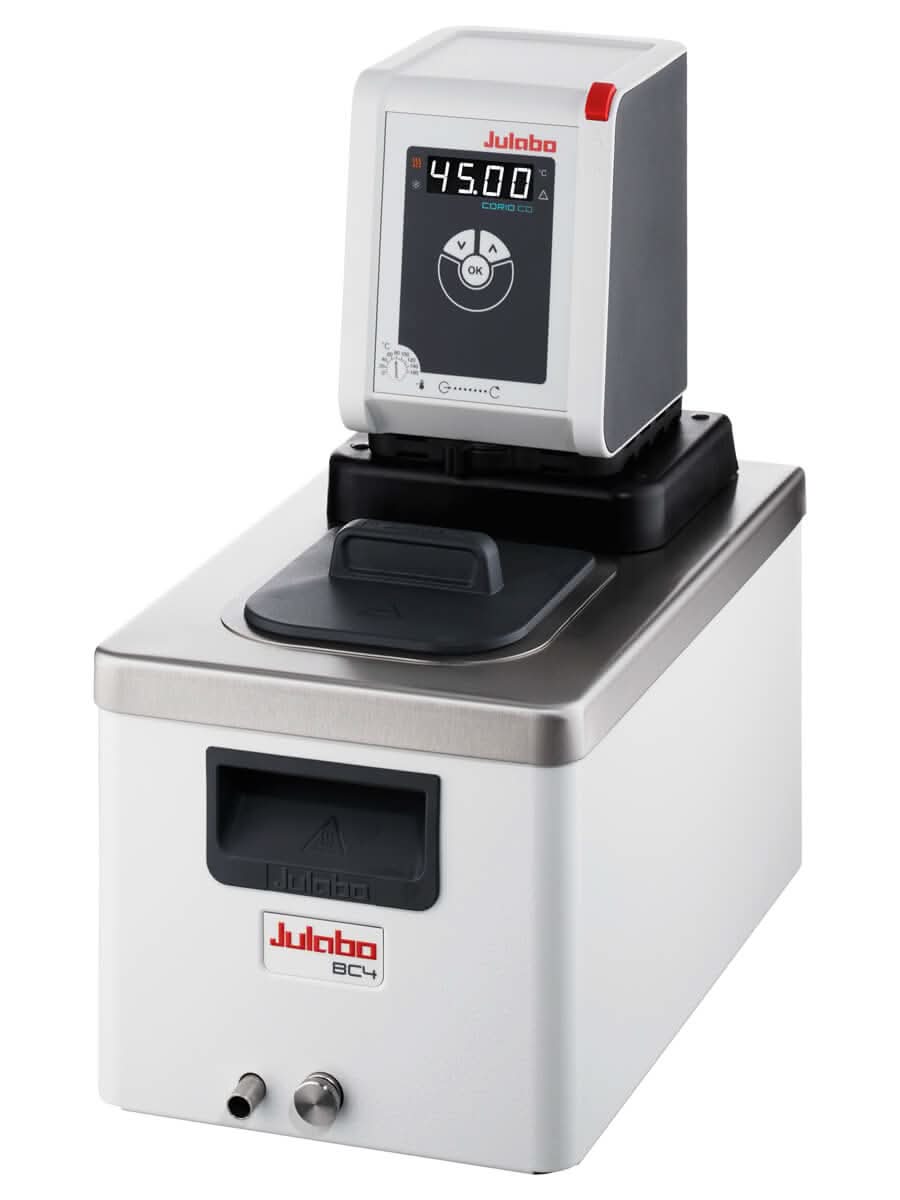

CORIOâ„¢ CD Heating Circulator combinations with stainless steel bath tanks for routine laboratory tasks. Units include bright LED display and easy operation.
CORIO™ CD immersion circulator provides temperatures from +20 to +150 °C . Integrated pump enables temperature incubation for internal or external bath applications. A lever below the display enables simple adjustment between internal and external flow. Pump capacity: 15 L/min; 5.1 PSI. The integrated USB port provide external PC communication for control / monitoring and data logging. The CORIO™ CD has M16x1 male pump connections and comes with sets of 8 and 12 mm hose barbs. Stainless steel tanks include drain port. For internal and external temperature applications. High quality stainless steel bath tanks with bath lid, drain tap and integrated cooling coil.
Product Specifications:- Voltage Version: 230V/60Hz
- Heating & Cooling: Heating
- Working Temp Range (°C): 20...150
- PCF Pressure (psi): 4.8
- PCF Rate (l/min): 16
- Working Temp Range (°C): 20...150
- Heating Capacity (kW): 2
- Cooling Capacity:
- Voltage Version: 230V/60Hz
- Power A: 10A
- Plug Type:
- Pump Connection: M16x1 male
- PCF Pressure (psi): 4.8
- PCF Rate (l/min): 16
- Bath Fill Volume (L): 3…4.5
- External Devices:
- Fluid Type: water, silicone
- Heating & Cooling: Heating
- Dimensions W x L x H (in): 9.1 x 16.2 x 16.6
- Weight (lbs): 19.4
- Models for internal and external applications
- Bright, white, easy to read display
- Very quiet
- Easy pump change-over between internal and external circulation
- USB connection
- High-quality bath tanks made of stainless steel with bath lid and drain tap
- Integrated cooling coil for counter-cooling
