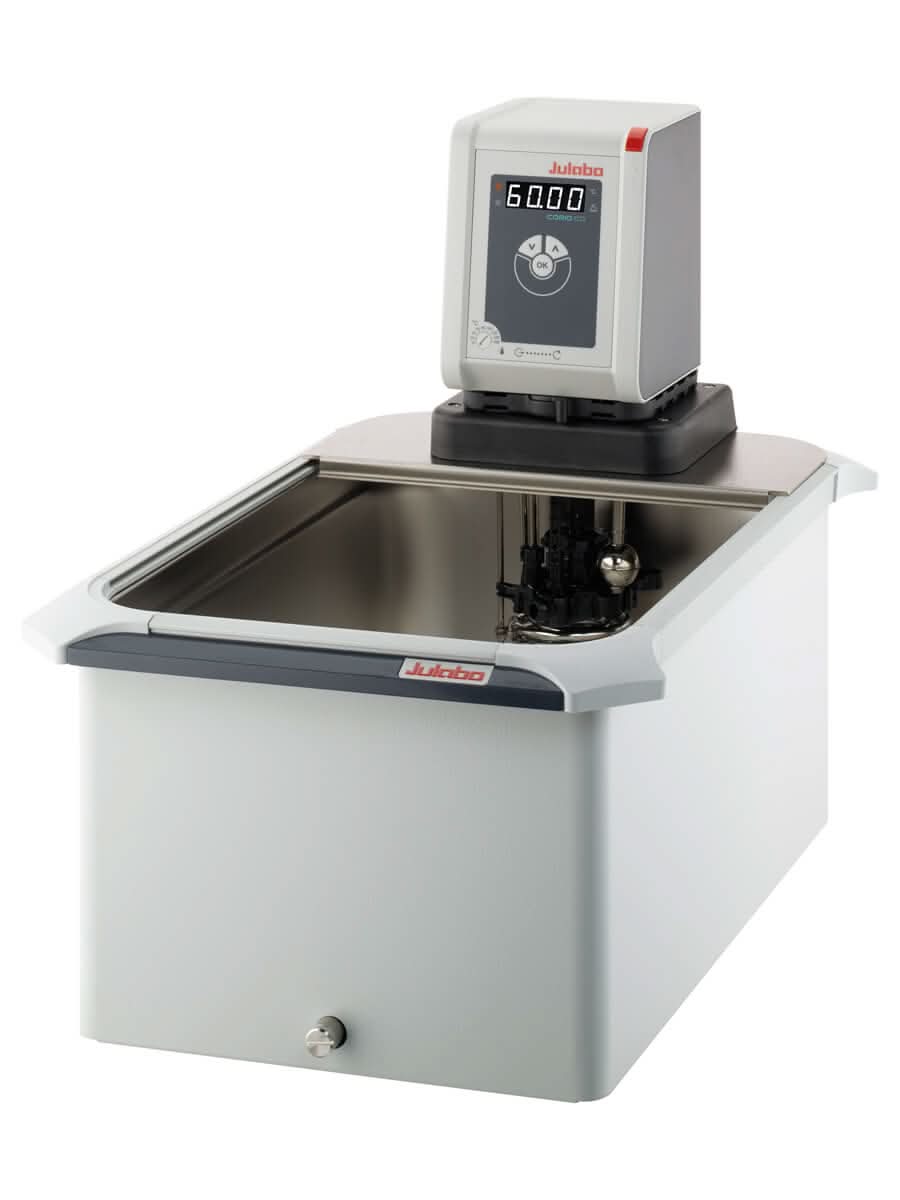

Julabo CORIO CD-B27

CORIO™ CD Immersion Heating Circulator Open Bath combinations with tranparent or stainless steel bath tanks for routine laboratory tasks. Units include bright LED display and easy operation.
The CORIO™ CD immersion circulator provides temperatures to 100 °C in plastic tanks and to 150 °C in stainless steel tanks. Integrated pump enables temperature incubation for internal or external bath applications. A lever below the display enables simple adjustment between internal and external flow. Pump capacity: 15 L/min; 5.1 PSI. The integrated USB port provide external PC communication for control / monitoring and data logging.
The CORIO™ CD has M16x1 male pump connections and comes with sets of 8 and 12 mm hose barbs. Stainless steel tanks from 13 – 39 L include drain port.

• Voltage Version: 230V/60Hz
• Heating & Cooling: Heating
• Working Temp Range (°C): 20...150
• PCF Pressure (psi): 4.8
• PCF Rate (l/min): 16
• Working Temp Range (°C): 20...150
• Heating Capacity (kW): 2
• Cooling Capacity:
• Voltage Version: 230V/60Hz
• Power A: 10A
• Plug Type:
• Pump Connection: M16x1 male
• PCF Pressure (psi): 4.8
• PCF Rate (l/min): 16
• Bath Fill Volume (L): 17…27
• External Devices:
• Fluid Type: water, silicone
• Heating & Cooling: Heating
• Dimensions W x L x H (in): 15 x 23 x 18.6
• Weight (lbs): 28.7

• Models for internal and external applications
• Bright, white, easy to read display
• Very quiet
• Easy pump change-over between internal and external circulation
• USB connection
• High-quality bath tanks made of stainless steel
• Integrated drain screw (except B5)
