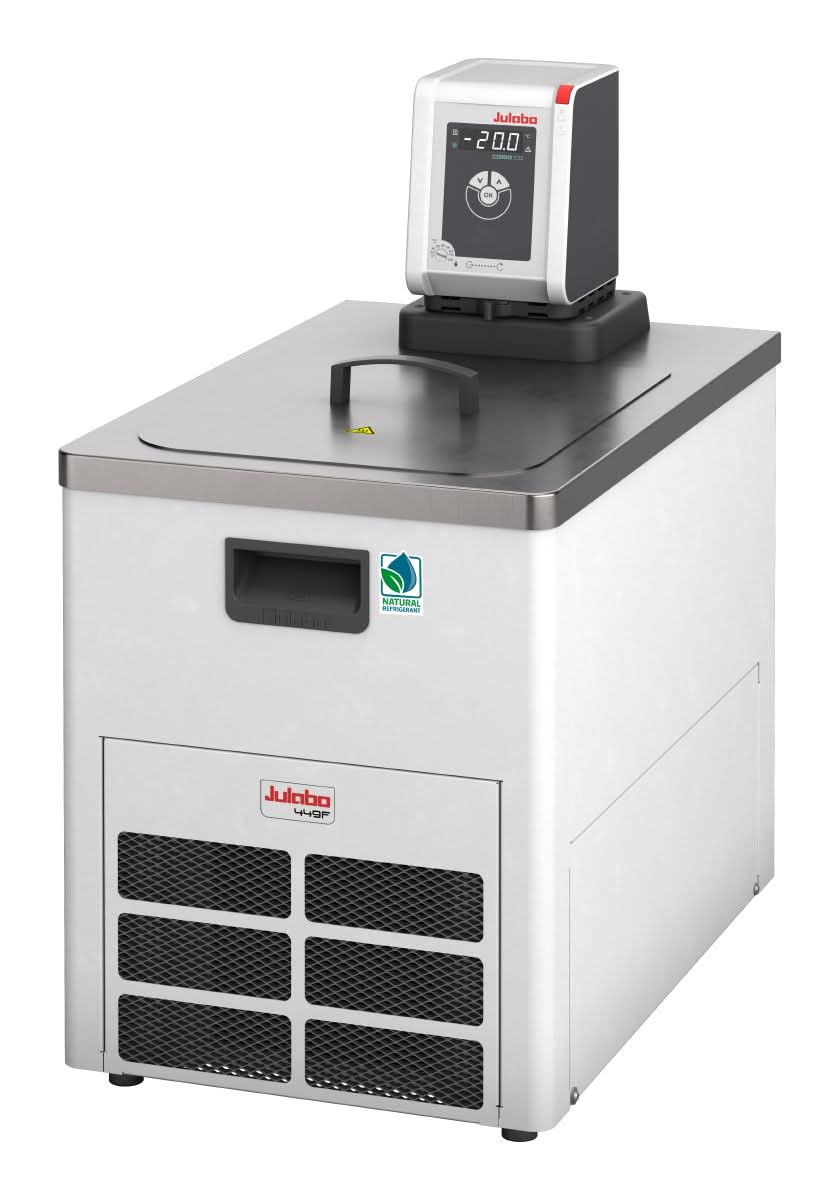

CORIO™ CD refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. The CORIO™ CD circulator incoporates easy change-over for control of fluid circulation internally or externally. Refrigeration combinations offer a low temperature range from -20 °C to -40 °C with an upper limit of 150 °C. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs.
USB connection for external PC control and data-logging. A space-saving cooling coil design yields more usable space in the bath tank. Bath lid and drain tap included.
PID temperature control provides ±0.03 °C stability. Centrifugal pump capacity of 15 L/min with pressure to 5.1 psi.
Stainless steel bath tank. Class III (FL) according to DIN 12876-1
- Voltage Version: 115V/60Hz230V/60Hz
- Refrigerant: R290
R290- Heating & Cooling: Both
Both- Working Temp Range (°C): -32...150
-32...150- PCF Pressure (psi): 4.8
4.8- PCF Rate (l/min): 16
16- Working Temp Range (°C): -32...150
-32...150- Heating Capacity (kW): 1
2- Voltage Version: 115V/60Hz
230V/60Hz- Power A: 12A
12A- Plug Type:
- Pump Connection: M16x1 male
M16x1 male- PCF Pressure (psi): 4.8
4.8- PCF Rate (l/min): 16
16- Bath Fill Volume (L): 21…30
21…30- External Devices: Remote Control
Remote Control- Fluid Type: water, water/glycol
water, water/glycol- Heating & Cooling: Both
Both- Dimensions W x L x H (in): 14.6 x 23.2 x 27.2
14.6 x 23.2 x 27.2- Weight (lbs): 87.1
87.1- Refrigerant: R290
R290 Key Benefits:- Models for internal and external applications
- Bright, white, easy to read display
- Very quiet
- Easy pump change-over (internal and external circulation)
- External pump connections (M16x1)
- USB connection
- Space-saving cooling coil design yields more usable space in the bath tank
- Bath lid and drain tap included
- Removable ventilation grid
- Refrigeration unit without side vents
- Class III (FL) according to DIN 12876-1
