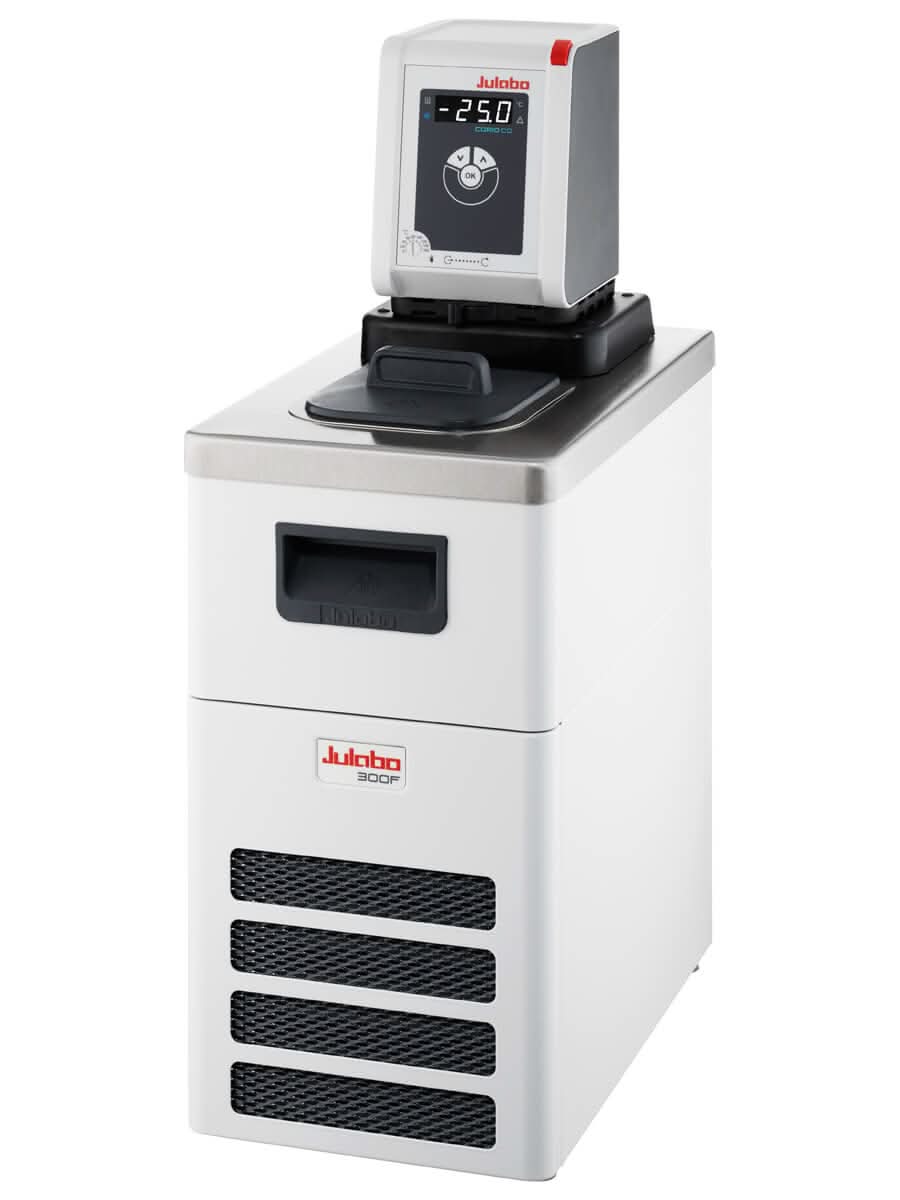

CORIO™ CD refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. The CORIO™ CD circulator incoporates easy change-over for control of fluid circulation internally or externally. Refrigeration combinations offer a low temperature range from -20 °C to -40 °C with an upper limit of 150 °C. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs.
USB connection for external PC control and data-logging. A space-saving cooling coil design yields more usable space in the bath tank. Bath lid and drain tap included.
PID temperature control provides ±0.03 °C stability. Centrifugal pump capacity of 15 L/min with pressure to 5.1 psi.
Stainless steel bath tank. Class III (FL) according to DIN 12876-1
- Heating & Cooling: Both
- Working Temp Range (°C): -25...150
- PCF Pressure (psi): 4.8
- PCF Rate (l/min): 16
- Working Temp Range (°C): -25...150
- Heating Capacity (kW): 2
- Power A: 12A
- Plug Type:
- Pump Connection: M16x1 male
- PCF Pressure (psi): 4.8
- PCF Rate (l/min): 16
- Bath Fill Volume (L): 3…4
- External Devices: Remote Control
- Fluid Type: water, silicone
- Heating & Cooling: Both
- Dimensions W x L x H (in): 9.5 x 16.6 x 26
- Weight (lbs): 61.8
- Models for internal and external applications
- Bright, white, easy to read display
- Very quiet
- Easy pump change-over (internal and external circulation)
- External pump connections (M16x1)
- USB connection
- Space-saving cooling coil design yields more usable space in the bath tank
- Bath lid and drain tap included
- Removable ventilation grid
- Refrigeration unit without side vents
- Class III (FL) according to DIN 12876-1
