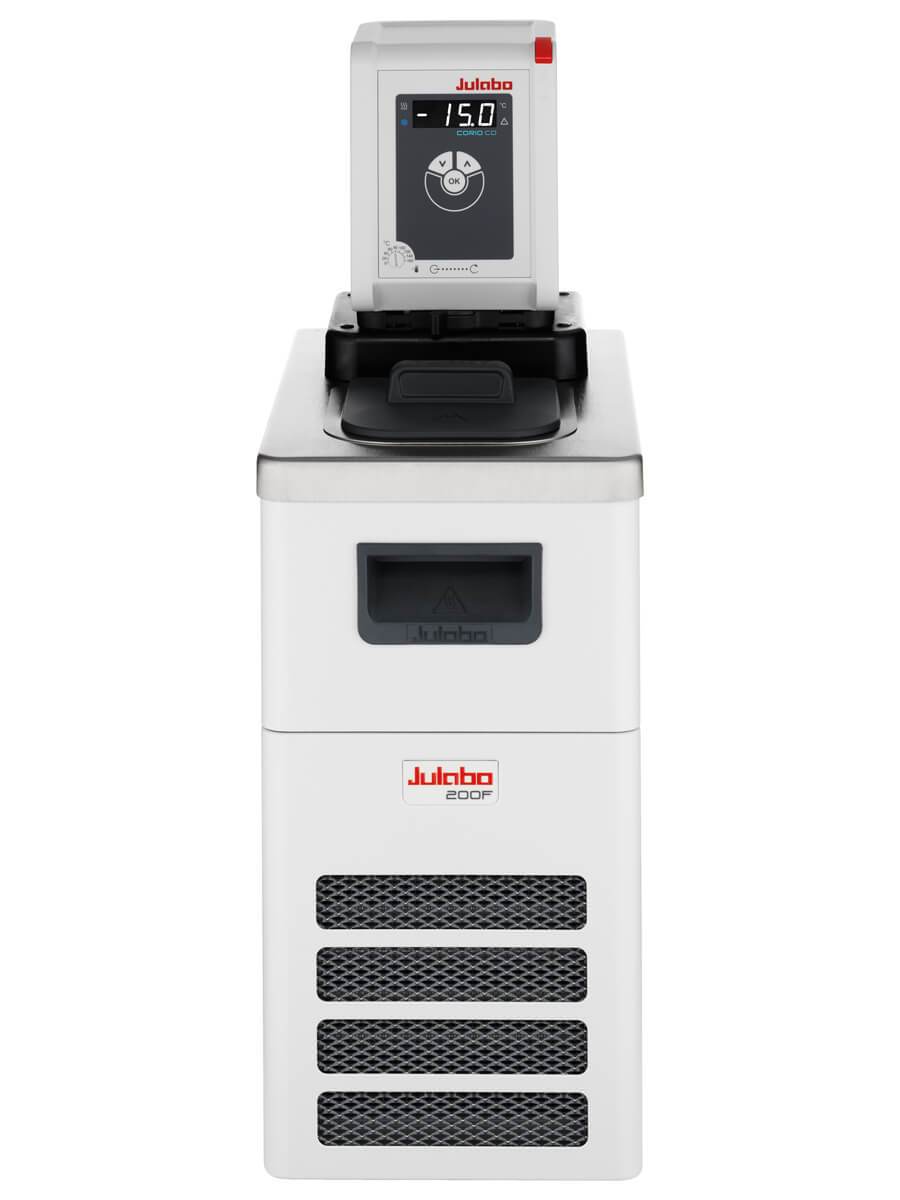

Julabo CORIO CD-200F
Call for lead time
Â
Refrigerated / Heating Circulators of the new CORIO™ series distinguish themselves with a great price-to-performance ratio. They are ideal for all standard tasks and routine work in laboratories and industry.
Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
Key Benefits:
- Models for internal and external applications
- Bright, white, easy to read display
- Very quiet
- Easy pump change-over (internal and external circulation)
- External pump connections (M16x1)
- USB connection
- Space-saving cooling coil design yields more usable space in the bath tank
- Bath lid and drain tap included
- Removable ventilation grid
- Refrigeration unit without side vents
- Class III (FL) according to DIN 12876-1
Â
| Specifications | |
|---|---|
| Order No. | 9012701 |
| Model series | CORIO |
| Category | Refrigerated - Heating Circulators |
| Working temperature range (°C) | -20 ... +150 |
| Temperature control | PID |
| Temperature stability (°C) | ±0.03 |
| Setting / display resolution | 0.01 – 0.1 °C |
| Temperature Display | LED |
| Heating capacity (kW) | 1 |
| Cooling capacity (Medium Ethanol) |
°C 20 0 -20 kW 0.22 0.17 0.06 |
| Pump capacity flow rate (l/min) | 15 |
| Pump capacity flow pressure (psi) | 5.08 |
| Bath opening / bath depth (W x L / D inch) | 5.1 x 5.9 / 5.9 |
| Pump connections | M16x1 |
| Barbed fittings diameter (inner dia. / mm) | 8 / 12 |
| Filling volume (liters) | 3 ... 4 |
| Refrigerant stage 1 | R134a |
| Filling volume refrigerant stage 1 (g) | 70 |
| Global Warming Potential for | 1430 |
| Carbon dioxide equivalent stage 1 (t) | 0.1 |
| Ambient temperature | 5...40 °C |
| Dimensions W x L x H (inch) | 9.1 x 15.4 x 25,6 |
| Weight (LBS) | 57.4 |
| Included with each unit | 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male) |
| Bath tank | Stainless steel |
| Bath cover | integrated |
| Cooling of compressor | Air |
