Description

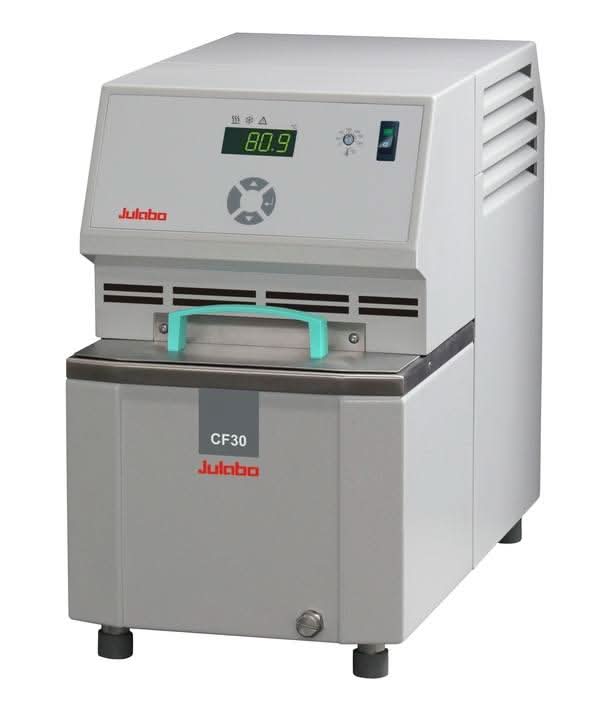

The Cryo-Compact refrigerated/heating circulators have a very small footprint which is ideal for placing on bench top or in a fume hood with limited space. Models feature M16x1 male pump connections for external temperature applications with 8 and 12 mm hose barbs.
The Economy CF30/CF40 models are ideal for routine applications with a working temperature range from -30(-40) to +150 °C with a pressure pump. Units feature a splash-proof keypad with LED temperature display, PID temperature control and RS232 interface for PC connection.
- Voltage Version: 230V/60Hz115V/60Hz
- Refrigerant: R134a
R134a- Heating & Cooling: Both
Both- Working Temp Range (°C): -30...150
-30...150- PCF Pressure (psi): 5.1
5.1- PCF Rate (l/min): 15
15- Working Temp Range (°C): -30...150
-30...150- Heating Capacity (kW): 2
1- Voltage Version: 230V/60Hz
115V/60Hz- Power A: 11A
13A- Plug Type:
- Pump Connection:
- PCF Pressure (psi): 5.1
5.1- PCF Rate (l/min): 15
15- Bath Fill Volume (L): 2…3.5
2…3.5- External Devices:
- Fluid Type: water, water/glycol
water, water/glycol- Heating & Cooling: Both
Both- Dimensions W x L x H (in): 9.4 x 18.1 x 15.7
9.4 x 18.1 x 15.7- Weight (lbs): 77
77- Refrigerant: R134a
R134a Key Benefits:- Ergonomic design and easy operation
- Small overall dimensions for lowest space requirement
- Splash-proof keypad
- Large, bright LED temperature display
- Precise PID temperature control
- RS232 interface for PC connection
- Adjustable high temperature cut-off
- Classification 3 according to DIN12876-1
- Pump connections for external temperature applications
- Bath opening for temperature control of small objects in the bath
- Front drain
