Description

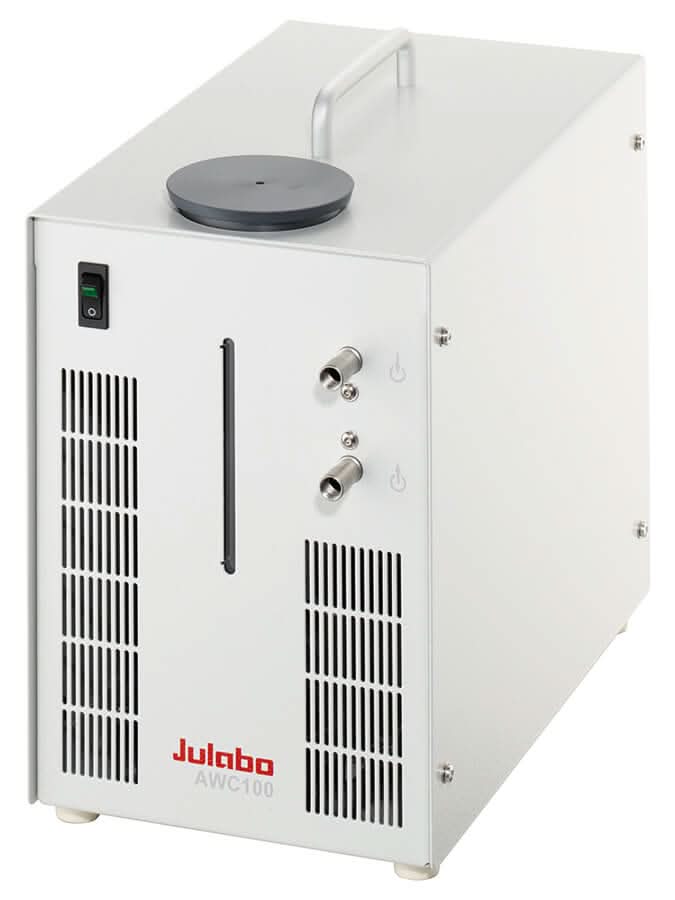

The AWC100, Air to Water Recirculating Cooler, is a compact solution, designed to remove small heat loads from external systems such as from Peltier-elements. The AWC100 features a compact footprint and is designed specifically for applications where cooling water can be above ambient and where temperature control is secondary. The ventilator speed can be increased by changing the switch for booster cooling on the rear of the unit. Stage 0: normal cooling capacity, virtually noiseless. Stage 1: higher cooling capacity, higher ventilator speed.
Product Specifications:- Voltage Version: 100V-230V/50-60Hz
- Heating & Cooling: Cooling
- Working Temp Range (°C): 20...40
- PCF Pressure (psi): 7.1
- PCF Rate (l/min): 3.5
- Working Temp Range (°C): 20...40
- Heating Capacity (kW):
- Cooling Capacity:
- Voltage Version: 100V-230V/50-60Hz
- Power A: 0.4A
- Plug Type:
- Pump Connection: M10x1 female
- PCF Pressure (psi): 7.1
- PCF Rate (l/min): 3.5
- Bath Fill Volume (L): 0.9
- External Devices:
- Fluid Type: water
- Heating & Cooling: Cooling
- Dimensions W x L x H (in): 8.3 x 14.2 x 12.6
- Weight (lbs): 24
- Hassle-free operation
- Small footprint
- Virtually noiseless
- Easy to use
- Economical
