Description

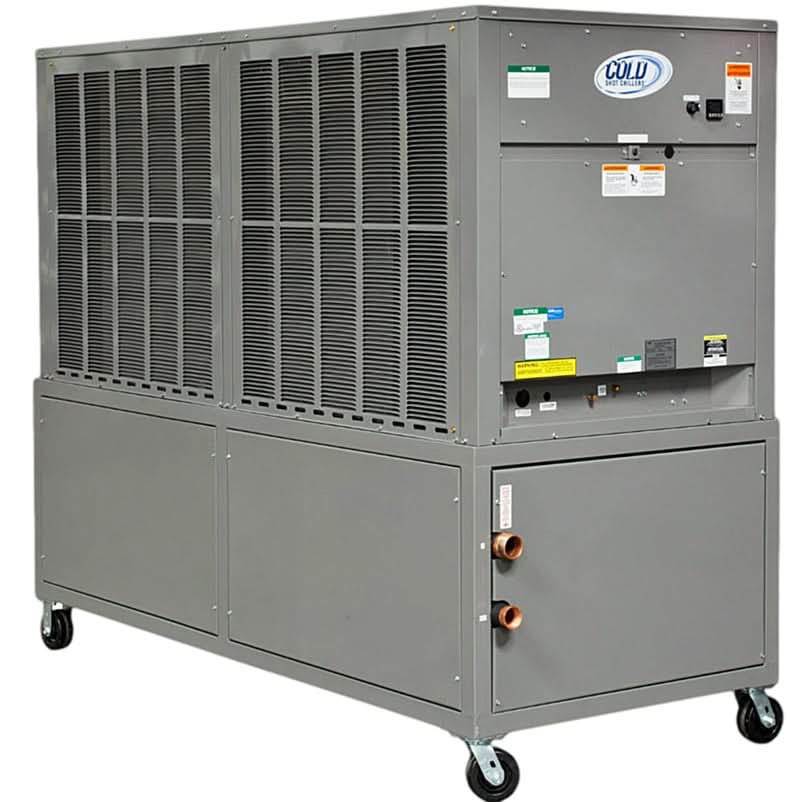

Single stage air-cooled industrial water chiller used for counter cooling water-cooled JULABO PRESTO systems. This portable unit can operate indoors or outdoors with ambient conditions from 4.4 °C to 35 °C / 40 °F to 95 °F; optional -17 °C to 35 °C / 0 °F to 95 °F. Stated cooling capacity with a set point of 10 °C (50 °F) of 70 kW in 35 °C (95 °F) ambient conditions.
Product Specifications:- Voltage Version: 230V/3PPE/60Hz460V/3PPE/60Hz
- Heating & Cooling: Cooling
Cooling- Working Temp Range (°C): -7...21
-7...21- PCF Pressure (psi): 30
30- PCF Rate (l/min): 360
360- Working Temp Range (°C): -7...21
-7...21- Heating Capacity (kW):
- Voltage Version: 230V/3PPE/60Hz
460V/3PPE/60Hz- Power A:
- Plug Type:
- Pump Connection: 2" MNPT
2" MNPT- PCF Pressure (psi): 30
30- PCF Rate (l/min): 360
360- Bath Fill Volume (L):
- External Devices:
- Fluid Type: water, water/glycol
water, water/glycol- Heating & Cooling: Cooling
Cooling- Dimensions W x L x H (in): 40 x 88 x 70
40 x 88 x 70- Weight (lbs): 2300
2300 Key Benefits:- Controls: Electronic programmed temperature controller with constant (set point & process) temperature readout.
- Refrigeration Components: Efficient scroll compressors, sight glass/moisture indicators, balanced port expansion valves, filter drier, pump down valves, fan cycling head pressure controls.
- Process Fluid Components: Bronze “Y” strainer with 20 mesh stainless steel screen. Pumps are stainless steel centrifugal. Tanks are insulated with shoe box lid, fill port, and level sight glass. Portable systems will include a bypass flow valve.
- Safety Controls: High and low refrigerant pressure, high and low fluid temperature, freeze, low water flow, overloads for compressor and fan motors, safety fuses or overloads for pump.
- Construction: Welded steel powder coated frame and full metal cabinet, copper piping connections. Warranty: One year parts / five year compressor.
