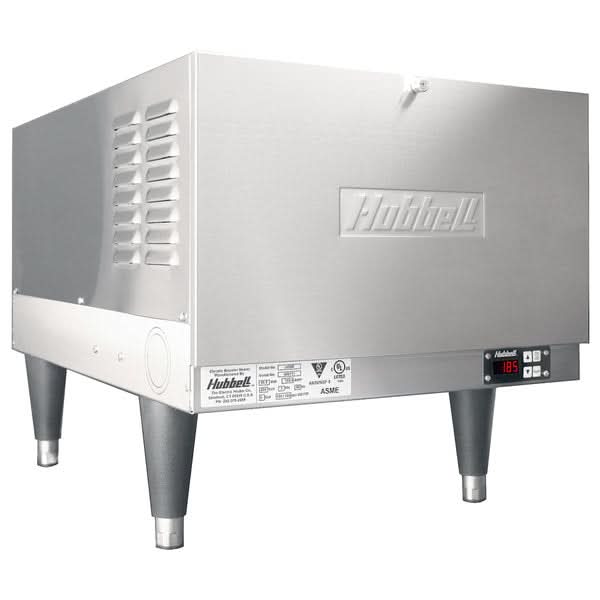

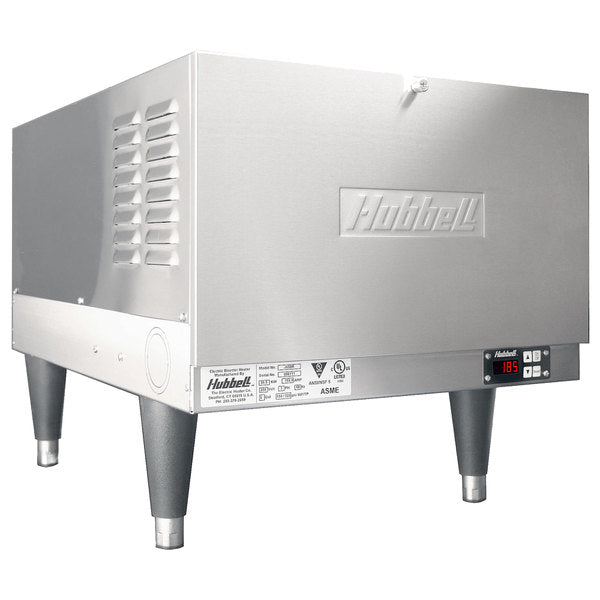

Hubbell Process Water Heater 240V 3P
Process Water Heater
- 6 Gallon Stainless Steel ASME Vessel
- 36 kW, 240 volt, 3 phaseÂ
Complete with electrical operating controls including the following: magnetic contactor, immersion elements, digital temperature controller with safety hi-temperature cut out, low water cut out, and an ASME rated combination temperature and pressure relief valve. Unit is factory assembled, insulated, jacketed, wired, and tested. Unit is ready for electrical and plumbing service connections.
This kit includes a stainless steel pump to continuously circulate water through a closed loop system, an expansion chamber may be needed. Professional installation of water lines by a certified plumber is recommended.Â
Water Heater Features
Industrial Grade Construction
- Stainless steel pressure vessel provides maximum service life
- ASME Section VIII stamped vessel ensures high quality construction
- Heavy duty construction withstands demanding industrial use
- Packaged with all electrical operating controls for efficient installation
- Small reserve capacity lowers peak power demand and reduces operating costs in systems with ON / OFF cyclical demand
Â
| Hubbell V636T Heater Specs | |
|---|---|
| Model | J636T |
| Voltage | 240V |
| Current Draw (A) | 87 |
| Heating Wattage (kW) | 36 |
| Storage Capacity (Gal) | 6 |
| Inlet / Outlet Connections | 3/4" MNPT |
Â
| Circulation Pump Specs | ||
|---|---|---|
| Option | Standard | High Power |
| Material | Stainless Steel | Stainless Steel |
| Power | 40 W | 1 HP |
| Max Head (Ft.) | 18 | 60 |
| Max Flow (GPM) | 15.8 | 90 |
| Max Water Temp (°C) | 110 | 149 |
| Voltage | 220VAC / 1ph |
120V AC/240V AC* |
| Current Draw (A) | .2 | Â Â Â 12.6/6.3 A |
| Max Ambient Temp (°C) | 40 | 40 |
| Connection Sizes | 1" FNPT |
1-1/4" FNPT Outlet 1-1/2" FNPT Inlet |
*The pump will not come with a power cord, it will need to be wired on site
