Description

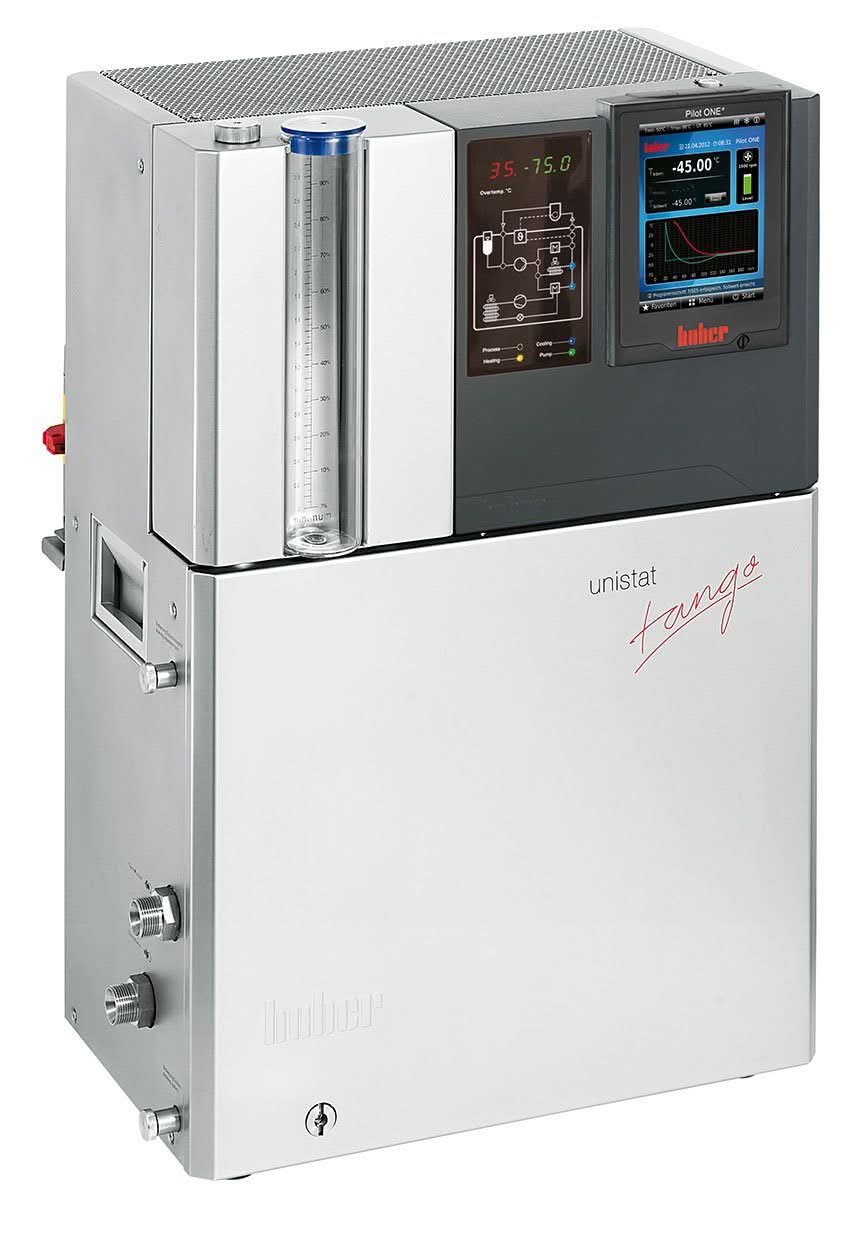

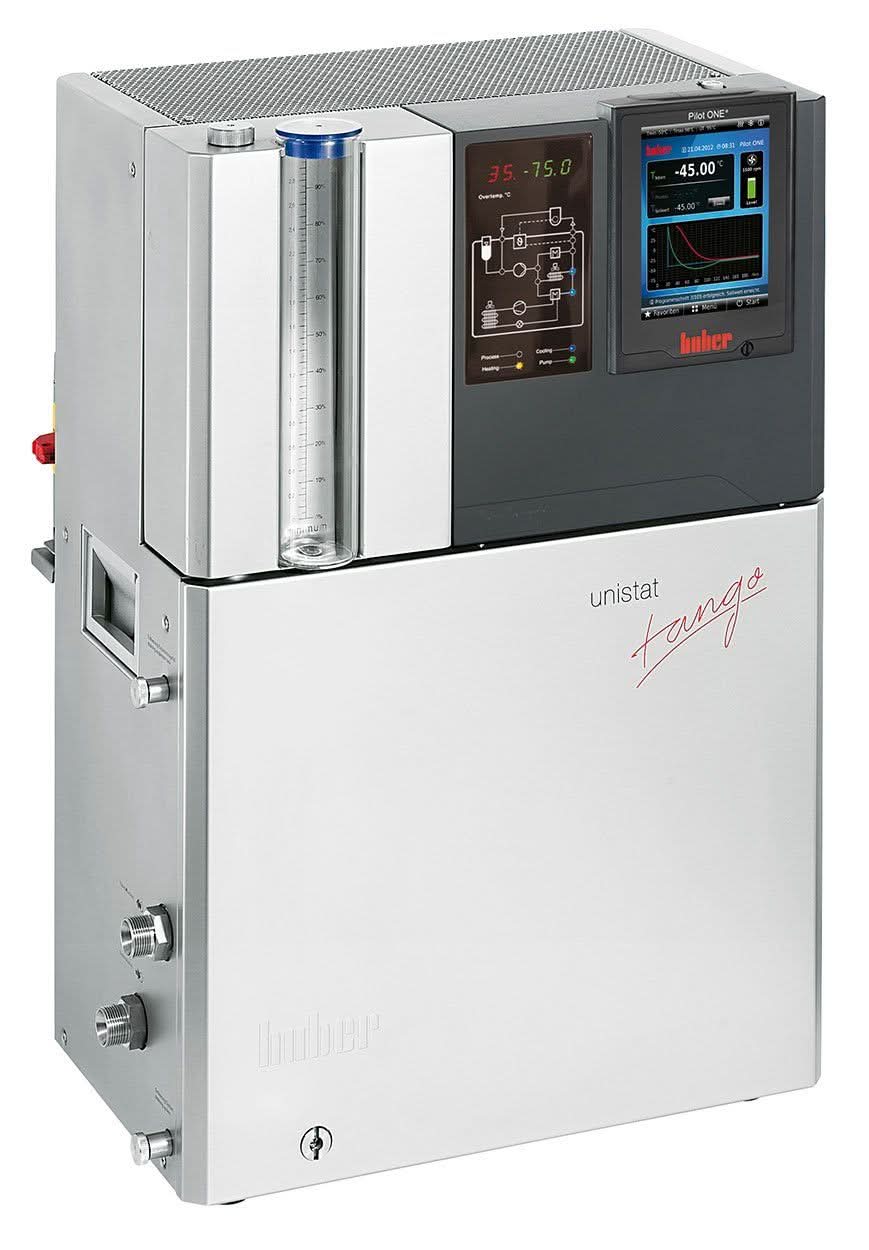

Huber Unistat Tango with Pilot ONE
(Please Note: There is 2-3 weeks Shipping lead time)
     Unistats are predestined for applications in process and chemical engineering, such as temperature control of reactors, autoclaves, Miniplant/Pilot systems, reactor blocks and calorimeters. Unistat temperature control systems with their unique thermodynamics provide highly accurate and reproducible results, guaranteeing the shortest heating and cooling times and a wide temperature range without fluid change. Environmentally and economically Unistats stand out, offering natural refrigerants and an efficient energy management system for reduced operating costs..Â
- Precise and reproducible temperature control results
- Fastest heating and cooling rates
- Wide temperature ranges with no fluid change

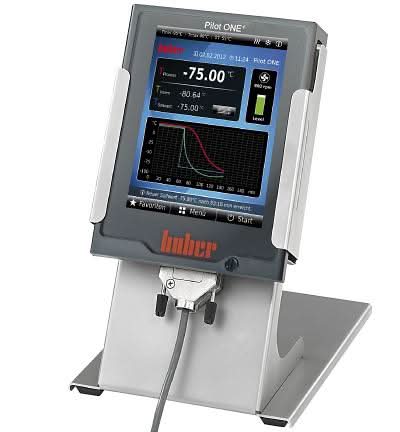

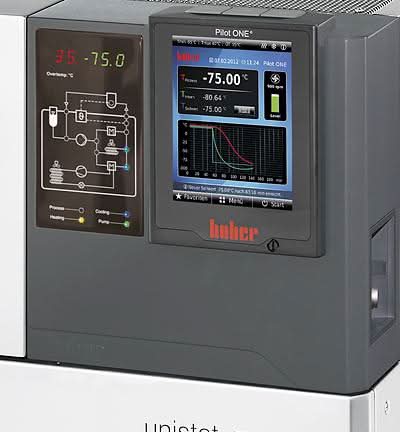

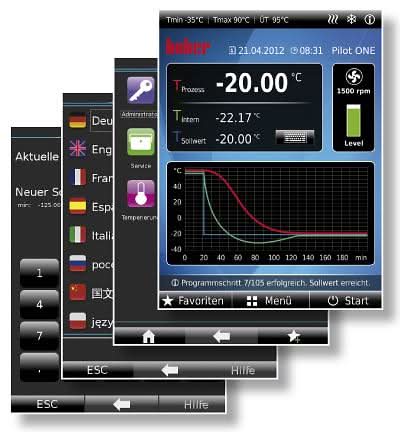

- Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
- Adaptive temperature control, self-optimising
- Efficient circulation pump
- 2 x USB (Host and Device), Ethernet and RS232 interfaces
- Efficient operation saves working time and operating costs
- Proven functionality for the process industry
- E-grade "Professional" included
Â
 Â
- Â
Â
| General Information & Temperature Controller | Unistat Tango | Unistat Tango w | Unistat Tango wl |
|---|---|---|---|
| Temperature range | -45...250 °C | -45...250 °C | -45...250 °C |
| Temperature stability | ±0.01 °C | ±0.01 | ±0.01 °C |
| Temperature control | TAC, self-optimizing (True Adaptive Control) | TAC, self-optimizing (True Adaptive Control) | TAC, self-optimizing (True Adaptive Control) |
| Display resolution | 0.01 °C | 0.01 °C | 0.01 °C |
| Alarm message | optical, acoustical | optical, acoustical | optical, acoustical |
| Controller | Pilot ONE (E-grade "Professional") | Pilot ONE (E-grade "Professional") | Pilot ONE (E-grade "Professional") |
| Safety class | III / FL | III / FL | III / FL |
| Protection class | IP20 | IP20 | IP20 |
| Dimensions (W x D x H) | 16.77 x 12.87 x 24.84 inches | 16.77 x 12.87 x 24.84 inches | 16.77 x 12.87 x 24.84 inches |
| Weight | 141.12 pounds | 119.07 pounds | 132.3 pounds |
| Heating / Cooling Capacity | |||
| Heating capacity | 3 kW | 3 kW | 3 kW |
| Cooling capacity | 250 200 100 0 -20 -40 °C 0,7 0,7 0,7 0,7 0,4 0,06 kW |
250 200 100 0 -20 -40 °C 0,7 0,7 0,7 0,7 0,4 0,06 kW |
250 200 100 0 -20 -40 °C 0,7 0,7 0,7 0,7 0,4 0,06 kW |
| Cooling machine | air-cooled | water-cooled | air- and water-cooled |
| Refrigerant | R1270 (0,15 kg) | R1270 (0,09 kg | R1270 (0,15 kg) |
| Circulation Pump | |||
| Pressure pump max. | 55 lpm ; 0.9 bar | 14.53 gpm ; 13.05 psi | 55 lpm ; 0.9 bar | 14.53 gpm ; 130.5 psi | 55 lpm ; 0.9 bar | 14.53 gpm ; 130.5 psi |
| Pump connection | M24x1,5 AG male | M24x1,5 AG male | M24x1,5 AG male |
| Permissible viscosity | 50 mm²/s | 50 mm²/s | |
| Connections | |||
| Pt100 connection | Pt100 | Pt100 | Pt100 |
| Analogue input | via optional Com.G@te | via optional Com.G@te | via optional Com.G@te |
| Analogue outpu | via optional Com.G@te | via optional Com.G@te | via optional Com.G@te |
| Digital interface | RS232, Ethernet, USB Device, USB Host | RS232, Ethernet, USB Device, USB Host | RS232, Ethernet, USB Device, USB Host |
| Operating Data | |||
| Permissible ambient temp. | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C |
| Noise level | 62 dB(A) | - | 62 dB(A) |
| Filling volume min. | 1.5 Liters | 0.4 gal | 1.5 Liters | 0.4 gal | 1.5 Liters | 0.4 gal |
| Volume of expansion | 2.8 Liters | 0.74 gal | 2.8 Liters | 0.74 gal | 2.8 Liters | 0.74 gal |
| Cooling water connection | - | G1/2 AG | G1/2 AG |
| Cooling water consumption | - | 24 l/h | 30 l/h |
| Cooling water differential pressure min. | - | 0,5 bar | 72.5 psi | 0,5 bar | 72.5 psi |
| Cooling water pressure max. | - | 6 bar | 87 psi | 6 bar | 87 psi |
| Power supply | 208V 2~ 60Hz | 208V 2~ 60Hz | 208V 2~ 60Hz |
| Current max | 18 A | 16,5 A | 17,5 A |
| Fusing | 20 A | 2x20 A | 2x20 A |
