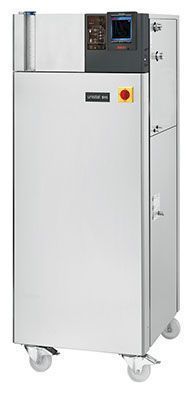

Across International HUBER Unistat 915w -90°C to 250°C with Pilot ONE

Power Lab Supply 2SKU: Huber-Unistat-915w100
No reviews

Accessory: No additional accessories
Crate fee (mandatory): Please Select
Delivery liftgate service: Please Select
Sale price$126,624.00 USD

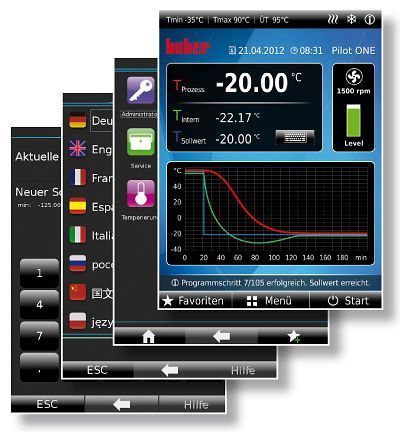

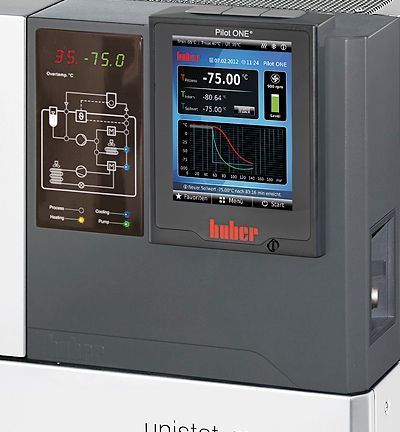

The new Huber multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative Pilot ONE controller with a 5.7 touchscreen colour display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time. Unistats are equipped with the most up-to-date pump technology for optimal heat transfer. The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature. Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management. Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.

Huber Unistat 915w features

  • Precise and reproducible temperature control results
  • Fastest heating and cooling rates
  • Wide temperature ranges with no fluid change
  • Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
  • Adaptive temperature control, self-optimising
  • Efficient circulation pump

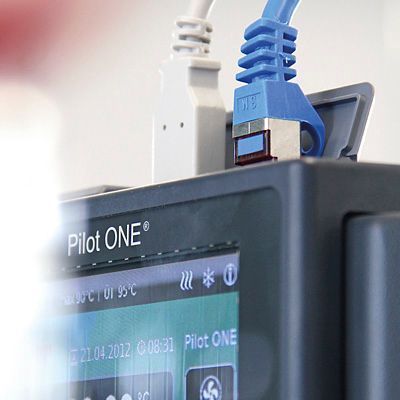

  • 2 x USB (Host and Device), Ethernet and RS232 interfaces
  • Efficient operation saves working time and operating costs
  • Proven functionality for the process industry
  • E-grade "Professional" included



Huber Unistat 915w adapters, tubing and fluid for Ai 200L stainless steel reactors for Winterization

  • P/N 6479 x 4 DW Therm (-90 to 200) 10L
  • P/N 6461 x 2 90 degree M30 X 1.5 (male) to M30 X 1.5 (female)
  • P/N 6427 x 2 Hose MT-350-2-M30x1,5 (f)
  • P/N 13255 x 2 M30 X 1.5 (male) to 1" NPT (male)

For additional CS200 to cool the Unistat 915w

  • P/N 16859 x 2 2 meter braided hose (G1" female)
  • P/N 10979 x 2 G 1" male to a G 3/4" female adapter



Huber Pilot ONE multi-touch controller

Heating / cooling capacityCirculation pumpConnectionsOperating data
General information & temperature controller
Temperature range -90...250C
Temperature stability 0,01C
Temperature control TAC, self-optimizing (True Adaptive Control)
Display resolution 0,01C
Alarm message optical, acoustical
Safety class III / FL
Protection class IP20
Dimensions(W x D x H) 630 x 704 x 1565mm
Weight 362kg
Heating capacity 6kW
Cooling capacity
250 200 100 0 -20 -40 -60 -80 -90 C
11 11 11 11 11 8 4 1,1 0,4 kW
Cooling machine water-cooled
Refrigerant1. stage R452A (2,9 kg)
Refrigerant2. stage R23 (1,23 kg)
Pressure pump max. 110 l/min;1,5 bar
Pump connection M30x1,5 AG male
Permissibleviscosity 50mm/s
Pt100 connection Pt100
Analogueinput via optional Com.G@te
Analogueoutput via optional Com.G@te
Digital interface RS232, Ethernet, USB Device, USB Host
Permissible ambient temp. 5...40C
Sound pressure level 64dB(A)
Filling volume min. 3,9Litres
Volume of expansion 6,5Litres
Cooling water connection G3/4 AG
Cooling water differential pressure min. 1bar
Cooling water pressure max. 6bar
Power supply 460V 3~ 60Hz
Standard Packages
Standard Package


 Part description


Part image

HUBER Unistat 915w -90°C to 250°C with Pilot ONE 1 pc

Mini-USB Cable 1 pc

E-Grade “Professional” (digital) 1 pc

User's manual 1 pc
