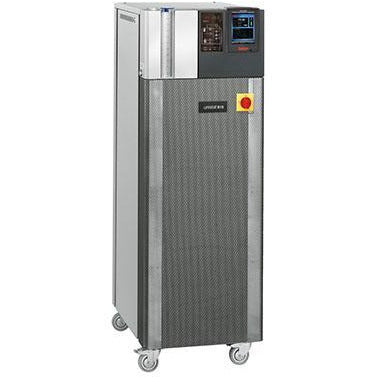

HUBER Unistat 815 Dynamic Temperature Control / Circulation Thermostat

Power Lab Supply 1SKU: 1053.0013.01

Voltage: 208v
UL/CSA Certification: No
Price:
Sale price$74,672.50 USD
Description

HUBER Unistat 815 Dynamic Temperature Control

(Please Note: There is a 2 - 3 weeks lead time)

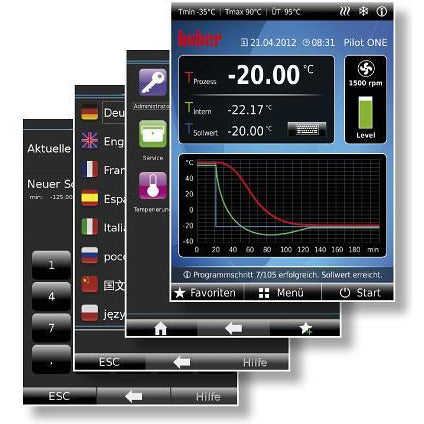

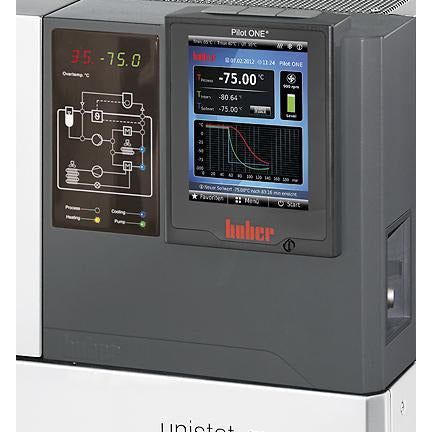

              Unistat Circulators are an ideal solution for fast and precise thermal control of externally connected applications. These systems offer rapid temperature change and a wide temperature range without having to change fluid. The new Pilot ONE controller features a navigation system with easily remembered icons and menus which are sorted by color to make routine work simpler. An amazing software guides you through your set up ensuring all the necessary settings are correct.







General Information & Temperature Controller Unistat 815
208V
Unistat 815
460V
Temperature range -85...250 °C -85...250
Temperature stability ±0.01 °C ±0.01
Temperature control TAC, self-optimizing (True Adaptive Control) TAC, self-optimizing (True Adaptive Control)
Alarm message optical, acoustical optical, acoustical
Controller Pilot ONE (E-grade "Professional") Pilot ONE (E-grade "Professional")
Safety class III / FL III / FL
Protection class IP20 IP20
Dimensions (W x D x H) 18.11 x 23.78 x 65.55 inches 18.11 x 23.78 x 57.68 inches
Weight 331 kg | 729.86 pounds 229 kg | 504.94 pounds
Heating / Cooling Capacity
Heating capacity 2 kW 2,6 kW
Cooling machine air-cooled air-cooled
Refrigerant 1. stage R452A (A1, H280) (1,8 kg) R452A (A1, H280) (1,8 kg)
Refrigerant 2. stage R23 (A1, H280) (0,39 kg) R23 (A1, H280) (0,39 kg)
Circulation Pump
Pressure pump max. 40 lpm ; 0.9 bar | 10.57 gpm ; 13.05 psi 40 lpm ; 0.9 bar | 10.57 gpm ; 13.05 psi
Pump connection M30x1,5 AG male M30x1,5 AG male
Permissible viscosity 50 mm²/s 50 mm²/s
Connections
Pt100 connection Pt100 Pt100
Digital interface RS232, Ethernet, USB Device, USB Host RS232, Ethernet, USB Device, USB Host
Analogue input via optional Com.G@te via optional Com.G@te
Analogue output via optional Com.G@te via optional Com.G@te
Operating Data
Old Sku 1014.0054.01 1014.0055.01
Permissible ambient temp. 5 to 40 °C 5 to 40 °C
Noise Level 64 dB(A) 64 dB(A)
Filling volume min. 3.8 Liters / 1 gal 3.8 Liters / 1 gal
Volume of expansion 3.3 Liters / 0.87 gal 3.3 Liters / 0.87 gal
Power supply 208V 3~ 60Hz 460V 3~ 60Hz
Current max 21,5 A 11 A
