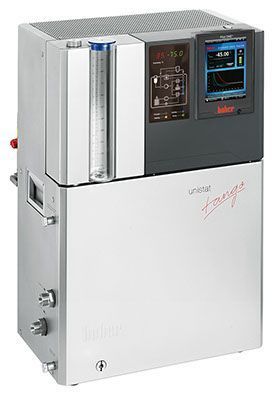

Across International HUBER Unistat 405 -45°C to 250°C with Pilot ONE

Power Lab Supply 2SKU: Huber-Unistat-40510
No reviews

Accessory: No additional accessories
Delivery liftgate service: Please Select
Sale price$28,752.00 USD

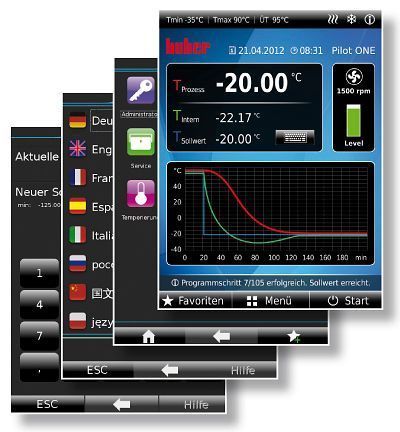

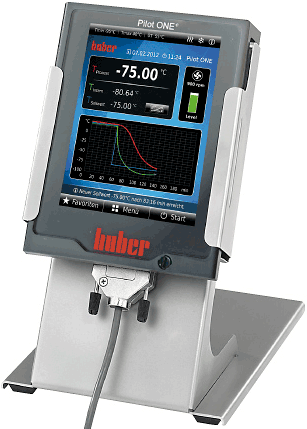

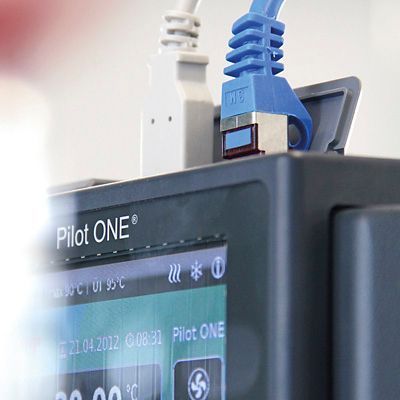

The new Huber multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative Pilot ONE controller with a 5.7 touchscreen colour display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time. Unistats are equipped with the most up-to-date pump technology for optimal heat transfer. The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature. Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management. Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.

Huber Unistat 405 features

  • Precise and reproducible temperature control results
  • Fastest heating and cooling rates
  • Wide temperature ranges with no fluid change
  • Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
  • Adaptive temperature control, self-optimising
  • Efficient circulation pump
  • 2 x USB (Host and Device), Ethernet and RS232 interfaces
  • Efficient operation saves working time and operating costs
  • Proven functionality for the process industry
  • E-grade "Professional" included



Huber Unistat 405 adapters, tubing, and fluid for Ai 50L glass reactors

  • P/N 9256 x 2 90 Adaptor M24x1,5female-M24x1,5male
  • P/N 9327 x 2 2m (-60 to 260) tubing
  • P/N 9825 x 2 M24 X 1.5 (male) to 3/4" NPT (male)
  • P/N 6165 x 1 M60 (-60 to 115) 5L
  • P/N 6166 x 2 M60 (-60 to 115) 10L


Huber Pilot ONE multi-touch controller

Heating / cooling capacityCirculation pumpConnectionsOperating data
General information & temperature controller
Temperature range -45...250C
Temperature stability 0.01C
Temperature control TAC, self-optimizing (True Adaptive Control)
Display resolution 0.01C
Alarm message optical, acoustical
Safety class III / FL
Protection class IP20
Dimensions(W x D x H) |16.77 x 12.87 x 24.84inches
Weight |127.89pounds
Heating capacity 3kW
Cooling capacity
250 200 100 0 -20 -40 C
1,1 1,1 1,1 1,1 0,6 0,15 kW
Cooling machine air-cooled
Refrigerant R1270 (0,15 kg)
Pressure pump max. |14.53gpm;13.05psi
Pump connection M24x1,5 AG male
Permissibleviscosity 50mm/s
Pt100 connection Pt100
Analogueinput via optional Com.G@te
Analogueoutput via optional Com.G@te
Digital interface RS232, Ethernet, USB Device, USB Host
Permissible ambient temp. 5...40C
Noise level 62dB(A)
Filling volume min. | 0.4 gal
Volume of expansion | 0.74gal
Power supply 208V 2~ 60Hz
Current max. 17A
Fusing 2x20 A
Standard Packages
Standard package


 Part description


Part image

HUBER Unistat 405 -45°C to 250°C with Pilot ONE 1 pc

Mini-USB Cable 1 pc

E-Grade “Professional” (digital) 1 pc

Adaptor M16x1 male to M24x1.5 female 2 pc

User's manual 1 pc
