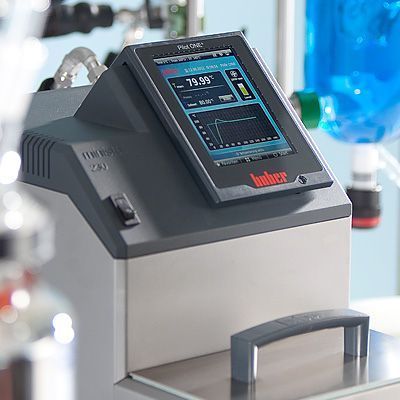

HUBER Ministat 230 -40°C to 200°C with Pilot ONE

Save $211.00 USD
Power Lab Supply 2SKU: Huber-Ministat-230
No reviews

Sale price$10,339.00 USD Regular price$10,550.00 USD

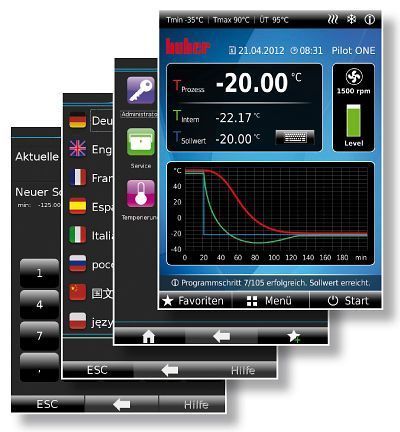

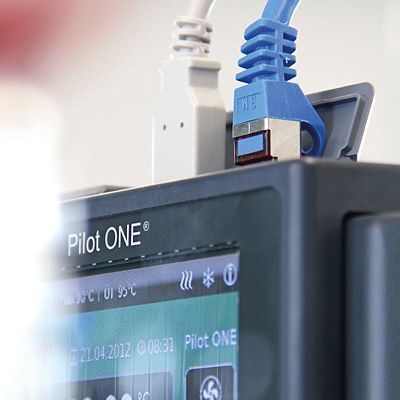

The new Huber multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

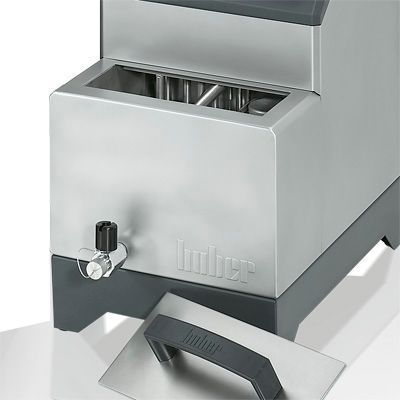

Huber Ministats are the smallest cooling circulator in the world. Their small dimensions allow Ministats to be placed in the smallest of spaces, for example in a laboratory fume cupboard or inside technical plant. Despite their minimal size the systems are extensively fitted out and offer sufficient performance for temperature control of photometers, refractometers, viscometers, distillation apparatus, reaction vessels and mini-plants. The main applications are using external applications however the bath opening allows objects to be thermoregulated directly in a thermostat bath. A powerful pressure/suction pump with an infinitely controlled rotational speed ensures optimal circulation. The maximum pressure can also be regulated by an optional pressure sensor, meaning that sensitive glass reactors and apparatus can reliably be protected from breakage. Additionally, Ministats offer the Pilot ONE controller as standard with a colour TFT display and comfortable operator guidance. Analogue connections according to NAMUR are available via the optional Com.G@te module allowing Ministats to integrate into plant and process control systems.

Huber Ministat features

  • Pilot ONE controller with Plug & Play technology
  • Precise temperature control
  • 5.7“ touchscreen and comfortable menu navigation
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • Powerful pressure/suction pump
  • Programmer with calendar and clock functions
  • 2-point calibration
  • RS232 interface and Pt100 connection
  • Natural refrigerant



Huber Ministat 230 adapters, tubing for Ai 10L glass reactors (no fluid)

  • P/N 6278 x 2 Adapter M16x1 m - M16x1 m
  • P/N 9610 x 2 2m (-50 to 200) f to f - tubing
  • P/N 11028 x 2 M16 X1 m - 3/4" NPT

Huber Ministat 230 adapters, tubing and fluid for Ai 10L glass reactors

  • P/N 6278 x 2 Adapter M16x1 m - M16x1 m
  • P/N 9610 x 2 2m (-50 to 200) f to f - tubing
  • P/N 11028 x 2 M16 X1 m - 3/4" NPT
  • P/N 6166 x 1 M60 (-60 to 115) 10L - fluid



Huber Pilot ONE multi-touch controller

Heating / cooling capacityCirculation pumpConnectionsOperating data
General information & temperature controller
Temperature range -40...200C
Temperature stability 0,02C
Temperature control TAC, self-optimizing (True Adaptive Control)
Safety class III / FL
Protection class IP20
Dimensions(W x D x H) 255 x 450 x 476mm
Weight 37kg
Heating capacity 1,5kW
Cooling capacity
100 20 0 -10 -20 -40 C
0,42 0,42 0,38 0,33 0,25 0,05 kW
Cooling machine air-cooled
Refrigerant R290 (0,099 kg)
Pressure pump max. 22 l/min;0,7 bar
Suction pump max. 16 l/min;0,4 bar
Pump connection M16x1 AG male
Permissibleviscosity 50mm/s
Pt100 connection Pt100
Digital interface RS232, Ethernet, USB Device, USB Host
Permissible ambient temp. 5...40C
Bath openingWxD/BD 170 x 85 / 135mm
Bath volume 3,2Litres
Filling volume min. 2,8Litres
Power supply 115V 1~ 60Hz
Current max. 14A
Fusing 16 A
Standard Packages
Standard package


 Part description


Part image

HUBER Ministat 230 -40°C to 200°C with Pilot ONE 1 pc

Adapter (12 mm diameter) 2 pc

Mini-USB Cable 1 pc

Blank Plugs for M16x1 2 pc

Sleeve Nuts Thread M16X1 2 pc

User's manual 1 pc
