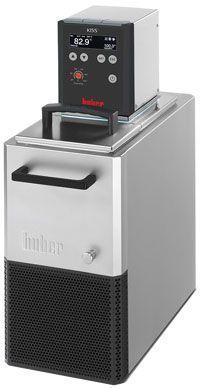

Across International HUBER KISS K6 -25C to 200°C 4.5L Refrigerated Heated Circulator

Power Lab Supply 2SKU: KISS-K601
No reviews

Delivery liftgate service: Please Select
Power option: 110V 60Hz
Price:
Sale price$6,307.20 USD
Description

The new Huber KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

Cooling bath thermostats with insulated cooling baths are an economic solution for thermoregulation of objects directly in the thermostat bath. The units are therefore suitable for a number of typical heating and cooling tasks such as sample temperature control, materials testing, quality control, analyses, etc. Cooling circulator operates with natural refrigerants and are therefore offer an environmentally friendly solution to temperature control. In addition, cooling circulators are fitted with automatic refrigeration capacity adjustment, reducing energy consumption and waste heat down to the absolute essential. With low level protection and adjustable over heating protection the units fulfil the requirements of Safety Class III/FL according to DIN 12876. The thermostats can also be used for externally attached applications using the pump connections at the rear.

Huber KISS K6 features

  • KISS temperature controller

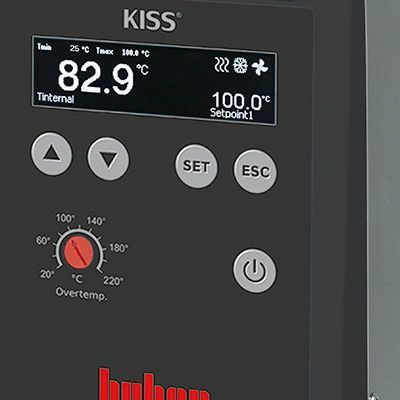

  • Bright, large OLED display
  • Simple operation with menu navigation
  • Simultaneous display of setpoint, Tmin, Tmax and actual temperature
  • Status displays for pump, cooling and heating
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • USB and RS232 interfaces
  • Autostart function for power failure
  • 3 colour versions available: grey (standard), blue, red
  • Natural refrigerant




Huber KISS cooling and heating circulators

Heating / cooling capacityCirculation pumpConnectionsOperating data
General information & temperature controller
Temperature range -25...200C
Temperature stability 0,05C
Temperature display OLED Display
Alarm message optical, acoustical
Controller
Safety class III / FL
Protection class IP20
Dimensions(W x D x H) 210 x 400 x 546mm
Weight 25kg
Heating capacity 2kW
Cooling capacity
20 0 -10 -20 C
0,2 0,15 0,1 0,05 kW
Cooling machine air-cooled
Refrigerant R290 (0,047 kg)
Pressure pump max. 14 l/min;0,25 bar
Suction pump max. 10,5 l/min;0,17 bar
Pump connection M16x1 AG male
Digital interface USB, RS232
Permissible ambient temp. 5...40C
Sound pressure level 57dB(A)
Bath openingWxD/BD 140 x 120 / 150mm
Bath volume 4,5Litres
Power supply 230V 1~ 50/60Hz
Current max. 10 + 1,35A
Standard Packages
Standard package



 Part description

 Quantity

Part image

HUBER KISS K6 -25C to 200°C 4.5L Refrigerated Heated Circulator 1 pc

Data Cable 1 pc

Blank Plug for M16x1 2 pc

Hose connector NW12, M16X1 2 PC

Connection tube Silicone 1 pc

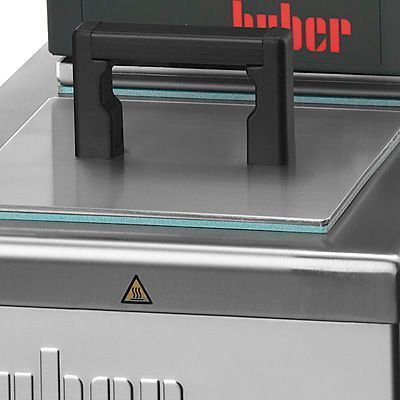

Bath Cover 1 pc

Sleeve Nut Threads M16X1.5 1 pc

Power Cord 1 pc

User's manual 1 pc
