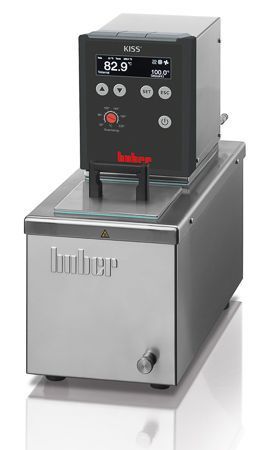

Across International HUBER KISS 205B 200°C 5L Capacity Heating Circulator

Save $79.80 USD
Power Lab Supply 2SKU: KISS-205B
No reviews

Sale price$3,910.20 USD Regular price$3,990.00 USD

The new Huber KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

Heating bath circulation thermostats with a stainless steel bath allow the temperature control of internal and external thermoregulation tasks. Items can be directly thermoregulated by placing them in a thermostat bath and the control of externally connected applications is also possible. The units are suitable for a number of typical temperature control tasks such as sample temperature control, materials testing, quality control, etc. The devices are fitted with overtemperature and low level protection in line with Safty Class III/FL according to DIN 12876. A powerful pressure/suction pump ensures optimal circulation and temperature homogeneity in the thermostat bath and also allows temperature control of externally connected applications.

Power: 200-240V 1~/2~50/60Hz

Huber KISS 205B features

  • KISS temperature controller

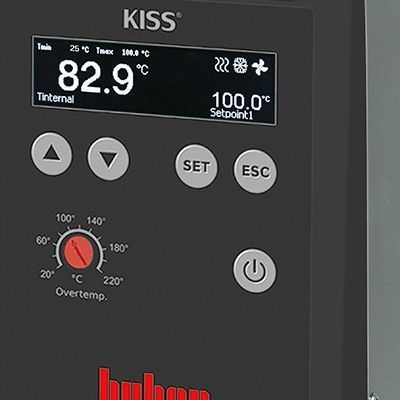

  • Bright, large OLED display
  • Simple operation with menu navigation
  • Simultaneous display of setpoint, Tmin, Tmax and actual temperature
  • Status displays for pump, cooling and heating
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • USB and RS232 interfaces
  • Autostart function for power failure
  • 3 colour versions available: grey (standard), blue, red


Huber KISS cooling and heating circulators

Heating / cooling capacityCirculation pumpConnectionsOperating data
General information & temperature controller
Temperature range (-30)45...200C
Temperature stability ±0.05C
Temperature display OLED Display
Alarm message optical, acoustical
Safety class III / FL
Protection class IP20
Dimensions(W x D x H) |7.01 x 13.27 x 13.98inches
Weight |19.84pounds
Heating capacity 1.5-2.1 kW
Pressure pump max. |3.7gpm;362.5psi
Suction pump max. |27.74gpm;246.5psi
Pump connection M16x1 AG male
Digital interface USB, RS232
Permissible ambient temp. 5...40C
Bath openingW x D / BD |4.13 x 3.54 / 5.91inches
Bath volume |1.32gal
Power supply 200-240V 1~/2~ 50/60Hz
Standard Packages
Standard package


 Part description


Part image

HUBER KISS 205B 200°C 5L Capacity Heating Circulator 1 pc

Mini-USB Cable 1 pc

Blank Plug for M16x1 2 pcs

NW12 Kiss 2 pcs

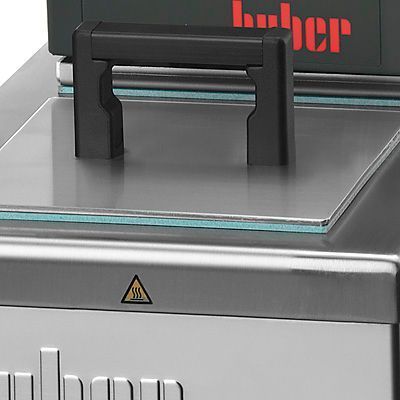

Bath Cover 1 pc

Sleeve Nut Threads M16X1.5 2 pc

Power Cord 1 pc

User's manual in a CD 1 pc
