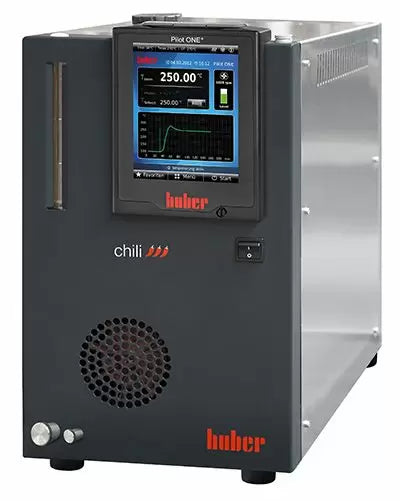

Across International HUBER Chili 65°C to 300°C with Pilot ONE

The economically Unistat technology provides minimized operating costs and efficient energy management. A further advantage is the extended life-time of the thermofluid. The hydraulically sealed systems prevent the formation of oil vapours and oxidation. Chili is the smallest heating thermostat in the Huber product range that is approved for use with Marlotherm as a thermofluid. For controlled cooling, an external cooling coil (unregulated) is available as an optional accessory. Due to ist technical properties and low purchase price, Chili is ideally suited for distillation tasks in botanical extraction, for example.

E-grade Explore turns a Unistat into a development tool for process and chemical engineering.

Huber Chili 1088 features

• Precise and reproducible temperature control results
• Wide temperature ranges with no fluid change
• Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
• Adaptive temperature control, self-optimizing
• 2 x USB (Host and Device), Ethernet, and RS232 interfaces
• Efficient operation saves working time and operating costs
• Proven functionality for the process industry
• E-grade "Professional" included
• For use with Marlotherm as thermofluid (closed systems)

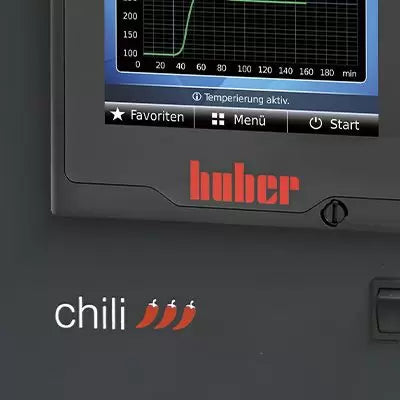

Huber Pilot ONE multi-touch controller

Heating / cooling capacity Circulation pump  Connections Operating data

General information & temperature controller
Temperature range	65...300 °C
Temperature stability	±0.02 °C
Temperature control	TAC, self-optimizing (True Adaptive Control)
Display resolution	0.01 °C
Alarm message	optical, acoustical
Controller
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	240 x 427 x 393 mm  |  9.45 x 16.81 x 15.47 inches
Weight	23 kg  |  50.72 pounds
Heating capacity	2,7 - 3  kW
Pressure pump max.	45 lpm ; 0.9 bar  |  11.89 gpm ; 13.05 psi

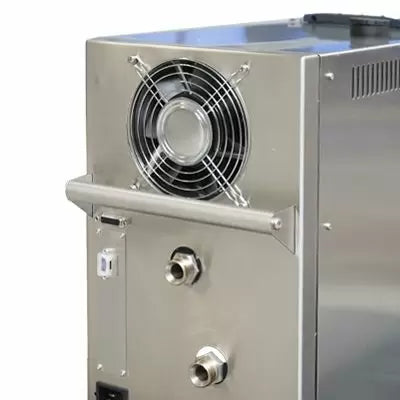

Pump connection	M24x1,5 AG male
Permissible viscosity	50 mm²/s
Pump speed adjustable	Yes
Pt100 connection	Pt100
Control input	0
Control output (potential-free)	0
Analogue input	via optional Com.G@te
Analogue output	via optional Com.G@te
Digital interface	RS232, Ethernet, USB Device, USB Host
Permissible ambient temp.	5...40 °C
Filling volume min.	1.45 Liters  |  0.38 gal
Volume of expansion	2 Liters  |  0.53 gal
Power supply	200-240V 1~/2~ 50/60Hz
Current max.	15,5 A
Fusing	16 A
