Across International HUBER -20C to 100C Minichiller 600-H Chiller/Heater OLED Display

Power Lab Supply 2SKU: Minichiller600H
No reviews

Title: Please Select
Sale price$9,360.00 USD

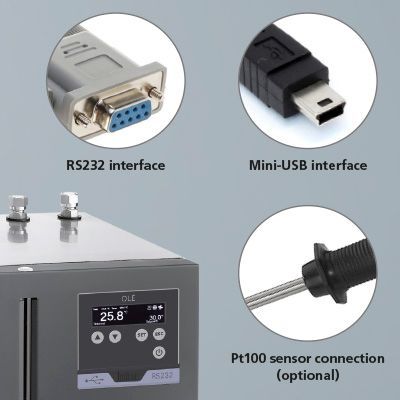

The new Huber OL controller combines state-of-the-art technology with simple operation. OL models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

The compact Minichillers are an economic and environmentally friendly cooling solution for many laboratory applications. A calculation of water and waste water costs shows that a Minichiller can save up to 48,000 litres of water in a working week and due to its low procurement price, return on investment is achieved within a very short time. The units have small footprints, only requiring 225 x 360 mm on the laboratory bench and are therefore suitable for cooling reactor blocks, vacuum pumps, rotary evaporators or heat exchangers. Minichillers allow stable application conditions due to constant values for temperature, pressure and throughflow quantities. They are also perfect for continuous operation at ambient temperatures up to 40C. Despite the economic purchase price the coolers are well equipped and have a large temperature indicator, fill level indicator, as well as status LEDs for the pump, cooling and heating. A 1 kW heater is optionally available with which the temperature range can be extended to +100C. Minichillers are available as bothair and water cooled models and use natural refrigerants.

Huber Minichiller features

  • Environmentally-friendly, economic cooling solution
  • High efficiency
  • Precise temperature control
  • Simple operation with menu navigation
  • Robust stainless construction
  • Reliable continuously operation with warning functions
  • Easy to fill and empty
  • Illuminated filling level indicator

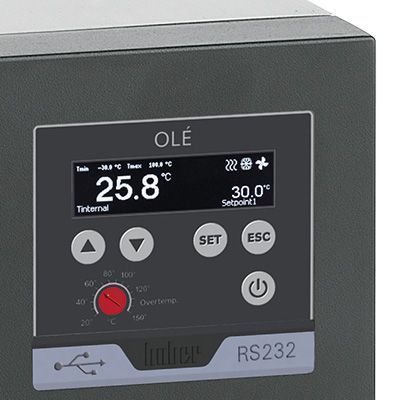

  • Bright, large OLED display
  • USB and RS232 interfaces
  • Natural refrigerant


Huber KISS cooling and heating circulators

Heating / cooling capacityCirculation pumpConnectionsOperating data
General information & temperature controller
Temperature range -20...100C
Temperature stability 0,5C
Temperature display OLED Display
Display resolution 0,1C
Alarm message optical, acoustical
Safety class III / FL
Protection class IP20
Dimensions(W x D x H) 280 x 490 x 424mm
Weight 35kg
Heating capacity 2kW
Cooling capacity
15 0 -10 -20 C
0,6 0,5 0,35 0,15 kW
Cooling machine air-cooled
Refrigerant R290 (0,085 kg)
Pressure pump max. 24 l/min;0,7 bar
Suction pump max. 18 l/min;0,4 bar
Pump connection M16x1 AG male
Digital interface USB, RS232
Permissible ambient temp. 5...40C
Sound pressure level 56dB(A)
Filling volume min. 2,8Litres
Volume of expansion 2,2Litres
Power supply 230V 1~ 50/60Hz
Current max. 12A
Fusing 16 A
Standard Packages
Standard package


 Part description


Part image

HUBER -20C to 100C Minichiller 600-H Chiller/Heater OLED Display 1 pc

Hose Connector NW12 2 pc

Blank Plug for M16x1 1 pc

Cover Expansion Vessel 1 pc

Sleeve Nuts Thread M16X1 2 pc

User's manual 1 pc
