Description

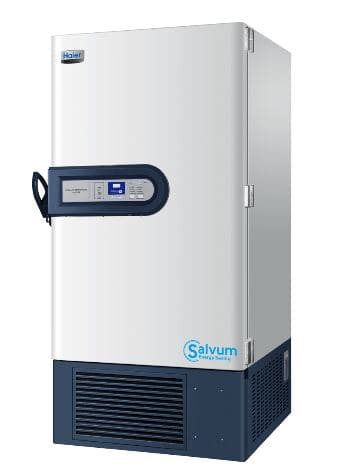

Haier Ultralow -86C freezer, Energy Star 828L (29f), 220V/60Hz
Â
Â
Â
 Haier Ultra-Low Temperature Freezers- Microprocessor-controlled system designed for controllable range of -40°C to -86°C for cabinet space with 1°C increment
- Large LED display for cabinet temperature, set temperature, ambient temperature, and input voltage
- Settable high temperature and low temperature alarms
- Automatic clean-filter alarm and sensor error alert
- Adjustable storage shelf height
- Can be connected with network, and remote alarm systems
- Optional temperature recorder, storage racks and storage boxes
Â
Â
Â
Field Proven Reliability
- Refrigeration system designed and manufactured with best known practice, and components with highest possible quality
- Reliability test performed and passed on all models including aging test on control electronics at 85°C and 85% humidity environment

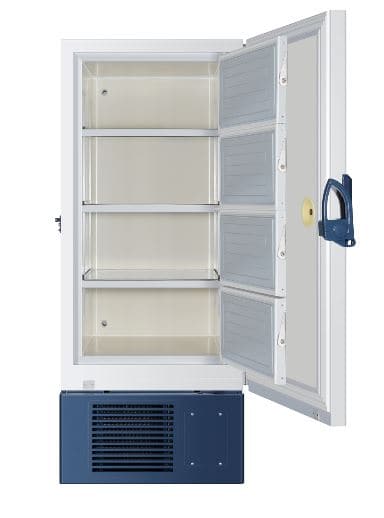

- Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber
- Specialized control system design for a well-balanced operation of cascade refrigeration system
Â
Â
Â
 Safety
- Equipped with a complete alarm system with optional remote network monitoring system
- UL and CE certified for application safety
- Malfunction alarms including high and low temperature, power outage, sensor errors, high voltage and low voltage, clean-filter, and extremely high ambient, door ajar feature standard on DW-86L486/728/828 models
- Capable of producing two types of alarm outputs: audible buzzer and visible flashing light
- Multiple built-in system protection features including user-settable protection code for controls, user settable delay to start, voltage compensation system, and protection against extreme high voltages
- USB port for temperature data downloading
- Safety padlock compatible on outer door
Â
Â
Â
 Installation and Application
- Wide range operating voltage system from 185V to 260V designed to allow units installed in areas with poor voltage condition
- Suitable for 10°C to 32°C Ambient temperature
- Input voltage and ambient temperature shown simultaneously for ease of monitoring environmental conditions
- Freezer design for global installations
- Robust door latch designed for secure door closing and compact casters for ease of maneuvering
Â
Â
Â
 Low Sound Level
- Specialized refrigeration system design using whisper quiet fan and compressors
- Freezer chassis designed to absorb vibration and sound
Â
Â
Â
 'J' Series Energy Saving Models Advanced Features (for models ending in 'J')
- Unique door seal and breaker design for the minimum loss of cold temperature during a door opening
- High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability
- Patented cabinet insulation system designed for optimal performance of cold storage temperature and minimal frost buildup
- Condensator can intelligently start-stop to reduce power consumption
- Unique design of independent insulated inner door systems for independent access of storage space to provide the maximum protection of stored samples and save energy
- Energy star rated
- Energy saving models: Hydrocarbon natural environment friendly refrigerants refrigeration system make super low energy consumption
Â
Â
Â
Model | DW-86L728J | |
---|---|---|
Technical Data | Cabinet Type | Upright |
Climate Class | N | |
Cooling Type | Direct Cooling | |
Defrost Mode | Direct Cooling | |
Refrigerant | HC | |
Noise Lever (dB) |
51.5 | |
Performance | Cooling performance (°C) |
-86 |
Temperature Range (°C) |
-40~-86 | |
Control | Controller | Microprocessor |
Display | LED | |
Electrical Data | Power Supply (V/Hz) | 220-240/50 |
Power | 1000 | |
Electrical Current (A) | 10 | |
Functions | High/Low Temperature | Y |
Remote Alarm | Y | |
Hot Condenser | Y | |
Power Failure | Y | |
Sensor Error | Y | |
Low Battery | Y | |
High Ambient temp | Y | |
Door Ajar | Y | |
Accessories | Caster | Y |
Foot | Y | |
Test Hole | Y/2 | |
Shelves/Inner Doors | 3/4 | |
Temperature Recorder | Optional | |
USB Interface | Y | |
Rs232?485 Interface | Optional | |
COâ‚‚ Backup System | Optional | |
LNâ‚‚ Backup System | Optional | |
Racks & Boxes | Optional | |
Dimensions | Capacity(L/Cu.Ft) | 828/29.2 |
Net/Gross Weight(approx) | 380/410(kg) | |
837.7/903.9(lbs) | ||
Interior Dimensions(W*D*H) | 870*716*1310(mm) | |
34.3*28.2*51.6(in) | ||
Exterior Dimensions(W*D*H) | 1145*980*1980(mm) | |
45.1*38.6*78.0(in) | ||
Packing Dimensions(W*D*H) | 1190*1045*2150(mm) | |
46.9*41.1*84.6(in) | ||
Container load (20'/40'/40'H | 8/20/20 | |
Others | Certificate | CE |
