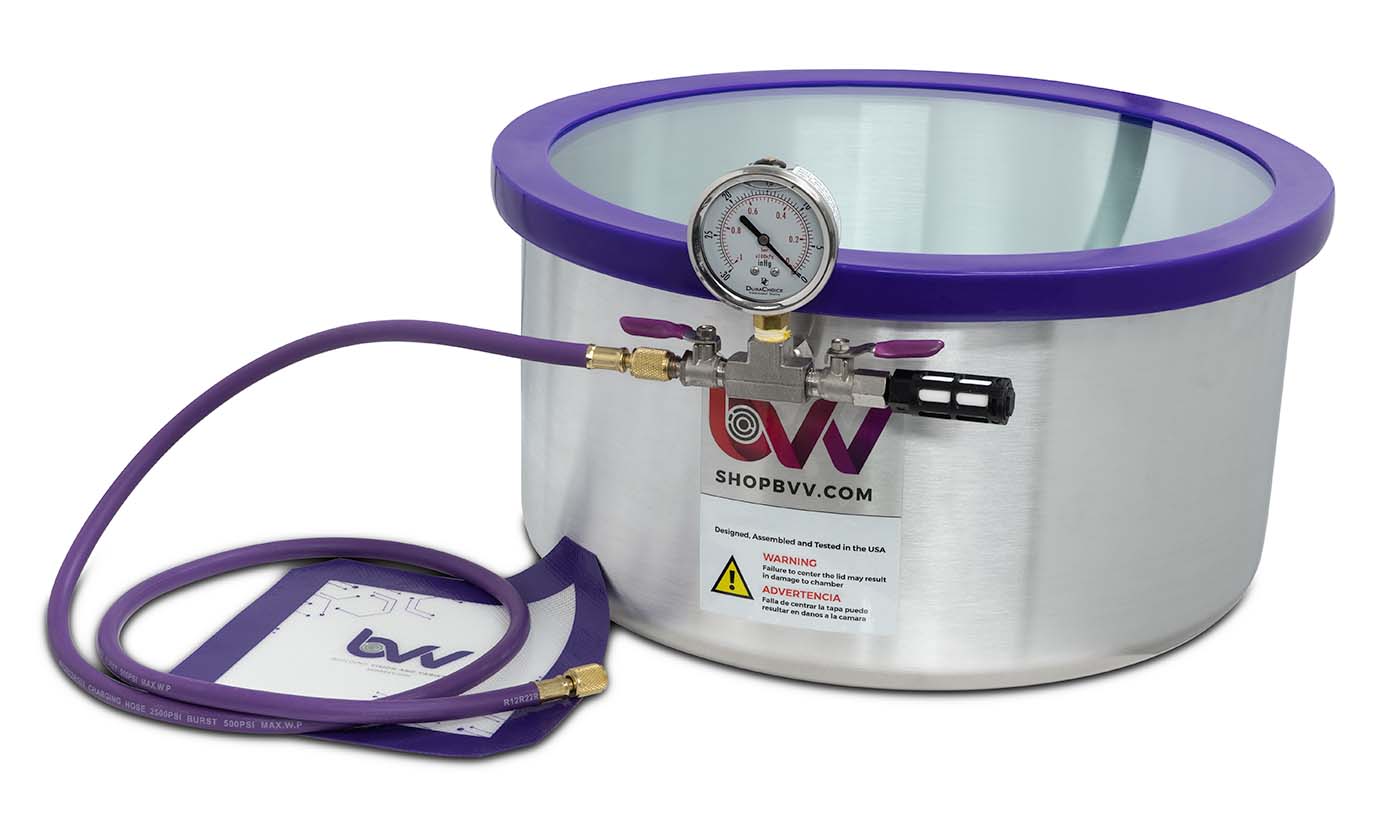

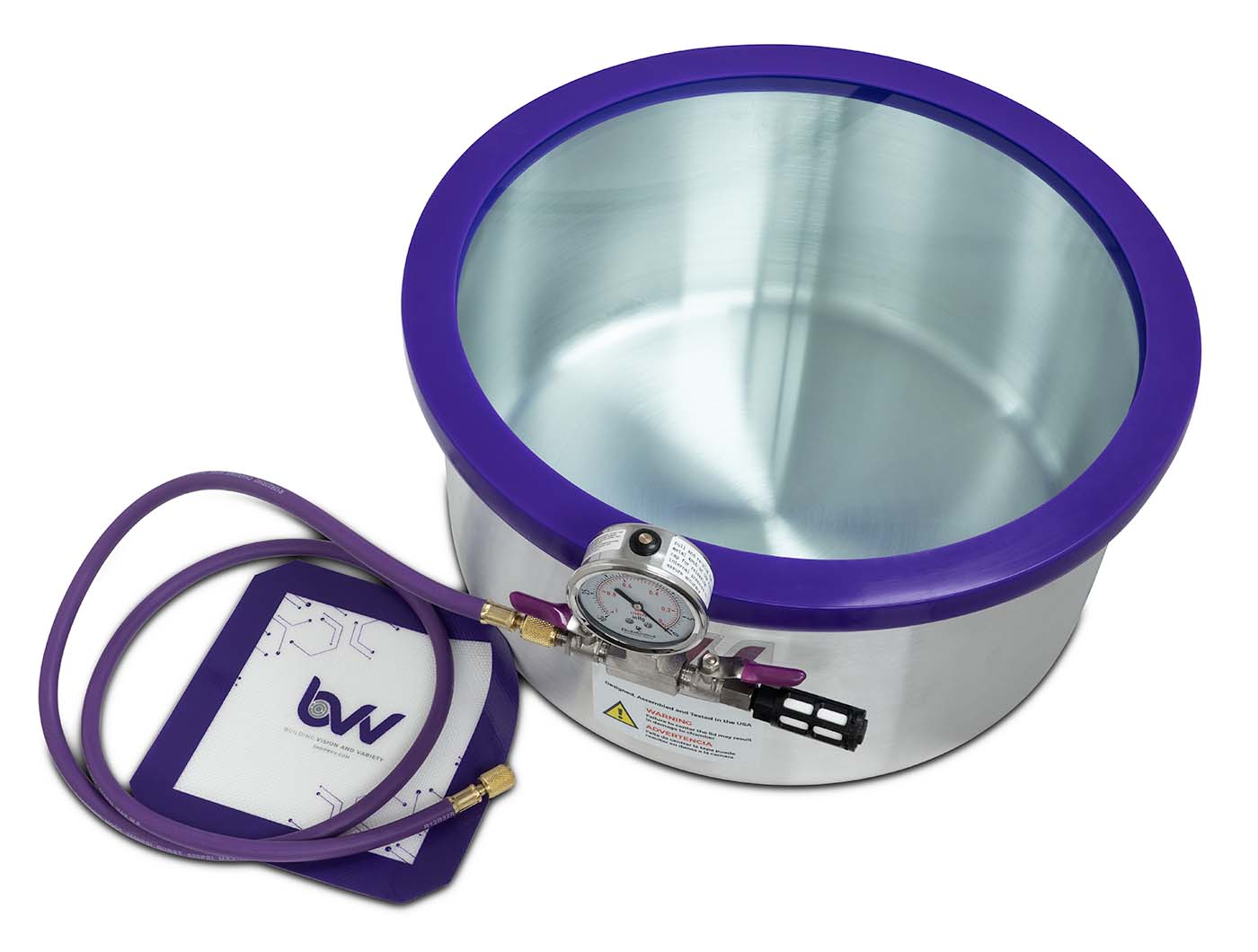

Glass Vac 7 Gallon Aluminum Vacuum & Degassing ChamberĀ
(Comes with 2Ā Year Limited Warranty)
This is a complete BestValueVacĀ® vacuum chamber setup designed built and 100% tested in Naperville, Illinois. With our unique patent pending gasket design (Utility Patent #9475627) this chamber is sure to last 10,000 uses with proper care and maintenance. The gasket itself is reversible (doubling the life of our system) allowing customers to instantly take it off and flip it over. Every chamber is tested prior to shipping to lose no more than 2.5Hg/24hrs. Glass Vac Vacuum Chambers are ideal for wood workers using the wood stabilization process because the glass lid will not deteriorate like acrylic or polycarbonate lids.
-Please Refer to these charts for vacuum specifications at altitude and conversions:
Key Features:
- Aluminum Vessel
- Chemically Inert Glass Lid
- Highly Durable and Reversible Silicone Gasket
- Glycerin filled vacuum gauge
- User friendly vacuum connections that fit most vacuum pumps on the market
- 50 Micron Air filter for reducing airborne contaminants when releasing the vacuum
- Silicone vacuum pad
- 5' of vacuum rated HVAC hose to pull a vacuum
- 3003 Grade Aluminum Body, lightweight and durable
- Precision lip edge at the top for the protection of silicone gasket
| Specification | |
|---|---|
| Chamber Material | 3004 Aluminum |
| Gasket Material | Silicone |
| Lid Material | Glass |
| Internal Dimensions (ID) | 8" Tall x 16" Diameter |
| Vacuum Gauge (Glycerin Filled) | InHG (0)-(-30) |
| Manifold Connections | 1/4" SAE and 1/4" FNPT |
| Temperature Rating | 150Ā°F (65Ā°C) |
| Additional Included Items | 5' Purple Vacuum Rated HVAC Hose Platinum Cured Silicone Pad Black 50 Micro Air Filter |
Ā
Compatibility Explanation:
- Polymer Lid VacuumĀ Chambers are not compatible with stabilization resin (i.e. Cactus Juiceā¢, Gator Venomā¢, Minwaxā¢ etc.), alcohol, ethanol, acetone and acrylic based monomers or polymers. The lid may only be cleaned with soapy water. Lids that are 5.75ā diameter are made of polycarbonate, all other polymer lids are made of acrylic. Ā
- Glass VacĀ vacuum chambers are compatible with all solvents and stabilization resins. The lid is made of tempered Soda-Lime glass. We recommend GlassVac chambers for resin infusion and wood stabilization. The lid may be cleaned with any solvent or cleaning agent.
Ā
Pump Warranty Information:
Customers using solvents such as stabilization resins (MinWaxā¢, Gator Venomā¢ etc.), alcohol and other polar solvents must use the vacuum pumps in conjunctionĀ with a cold trap for evacuations in excess of 5 minutes. (Excludes Cactus Juiceā¢)
- If the consumer is using the pump for prolonged periods of time exceeding 5 minutesĀ we require that a cold trap is used or the pump warranty is void.
- These stabilization resins have the ability to break down the internal components of the pump that are plastic resulting in a seized motorĀ voiding all warranties.
- When evacuation exceeds 5 minutes these solvents begin to vaporize and then re-condense in the vacuum pump reservoir. Once enough solvent re-condenses in the pump displacing the oil the plastic internal components may begin to warp, melt or seize. The use of a cold trap will condense the vaporsĀ priorĀ to making their way to the vacuum pump preventing pump damage due to excessive use. Furthermore, Minwax Wood Hardenerā¢ is not to be used with any vacuum pumps,Ā EVER.Ā (A seized motor will result within the first use.)
- To prevent these issues from happening to your process, change the Oil after each vacuum pump use, Even if the use time is only 5min.
