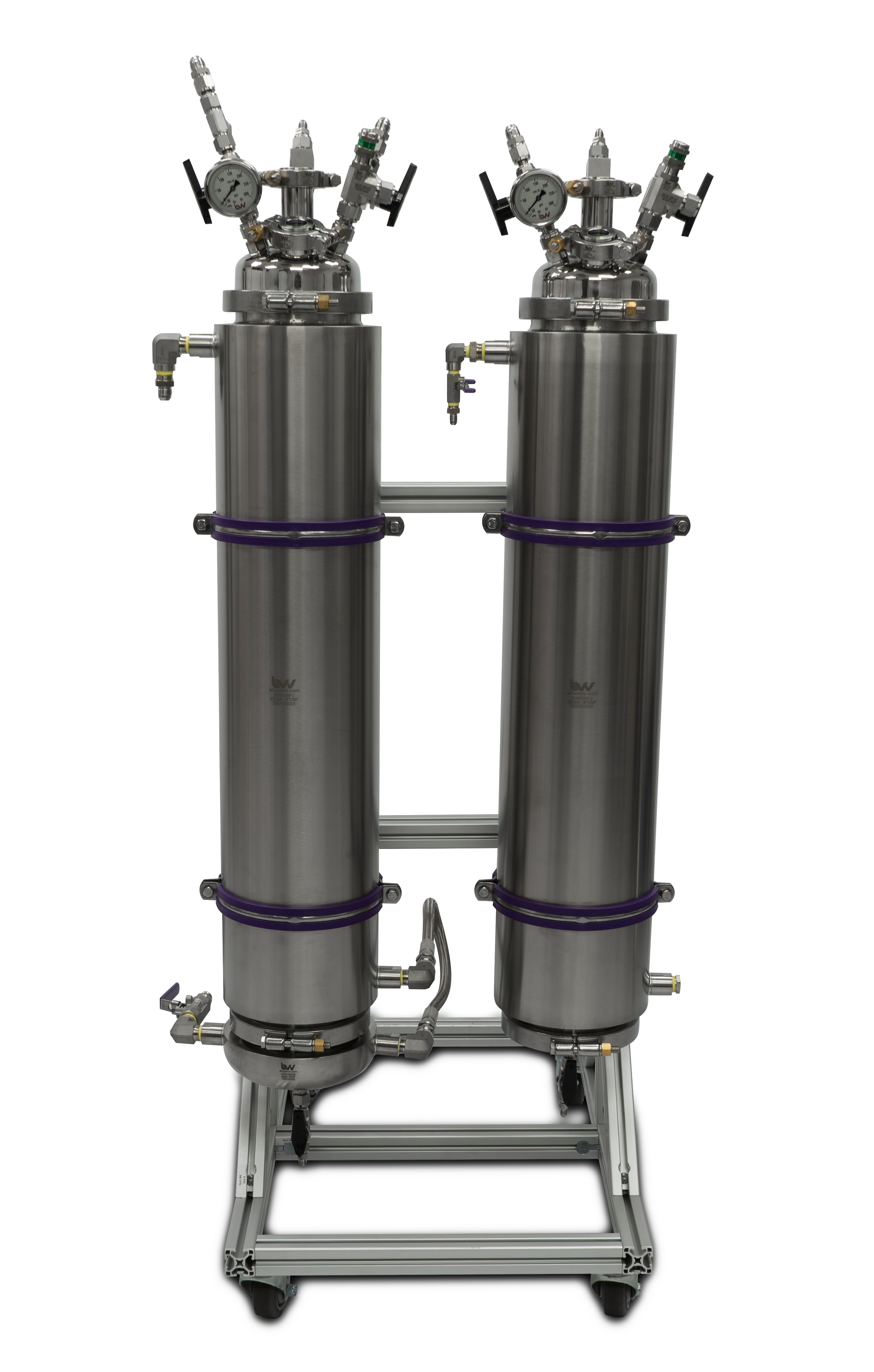

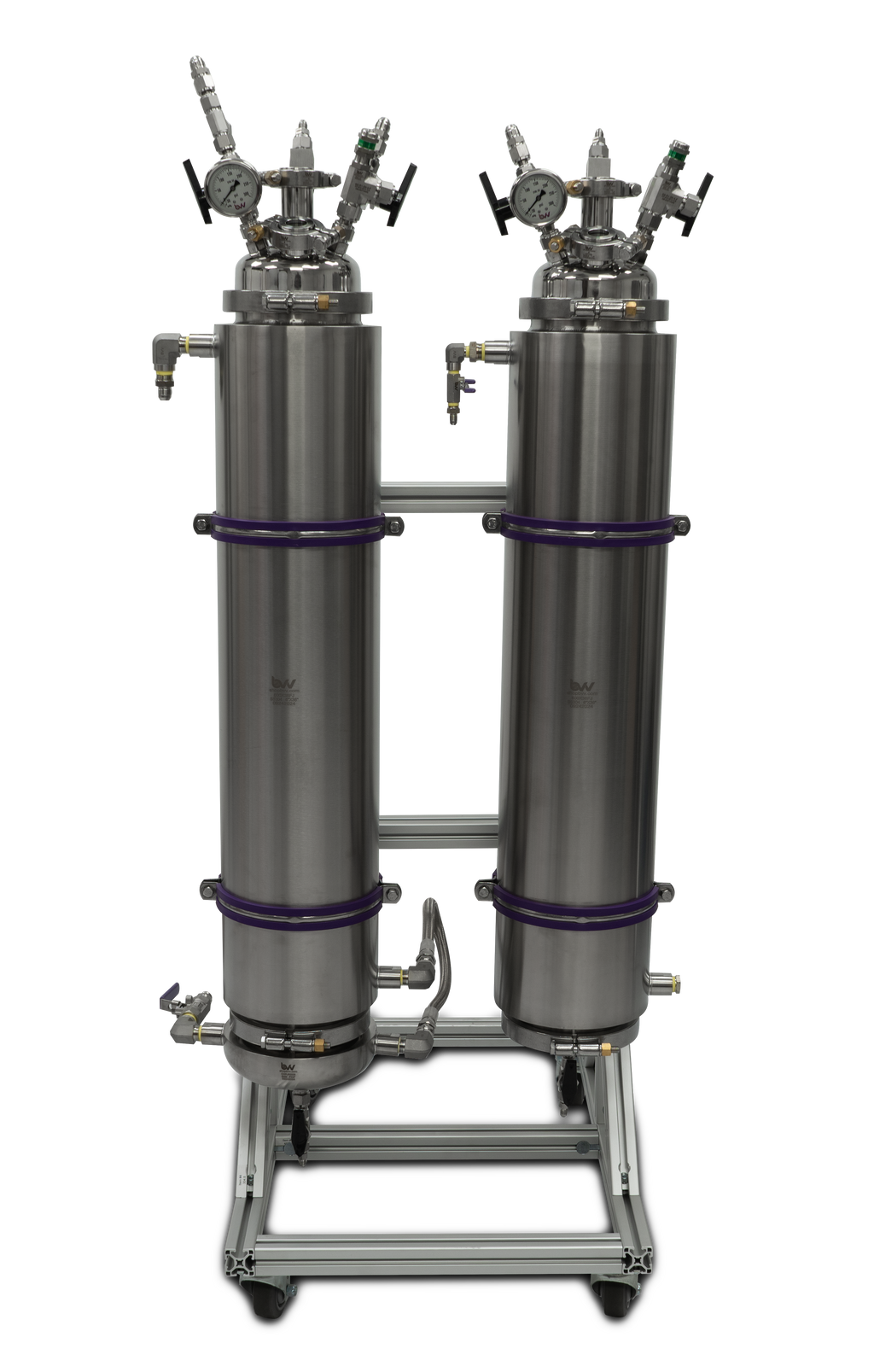

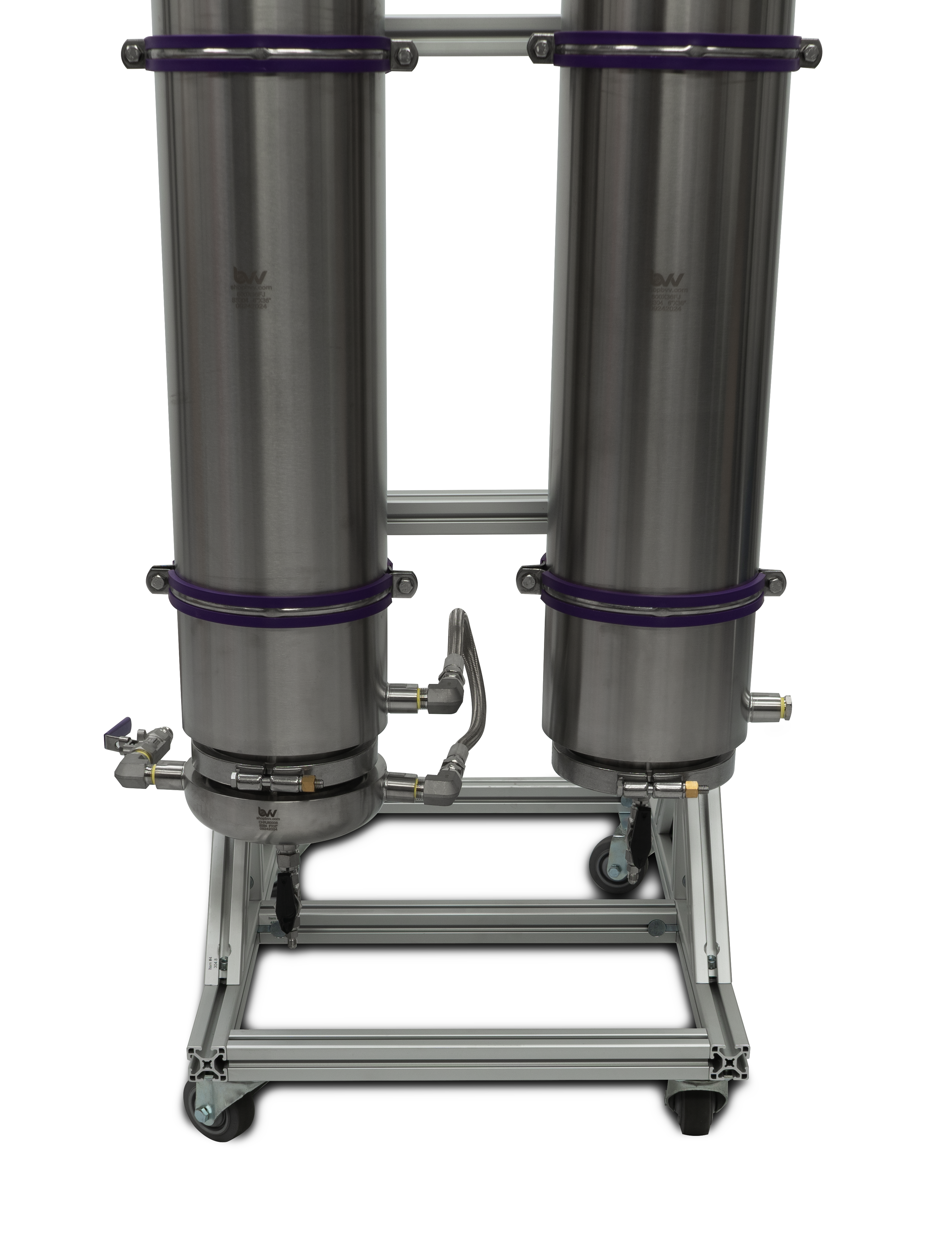

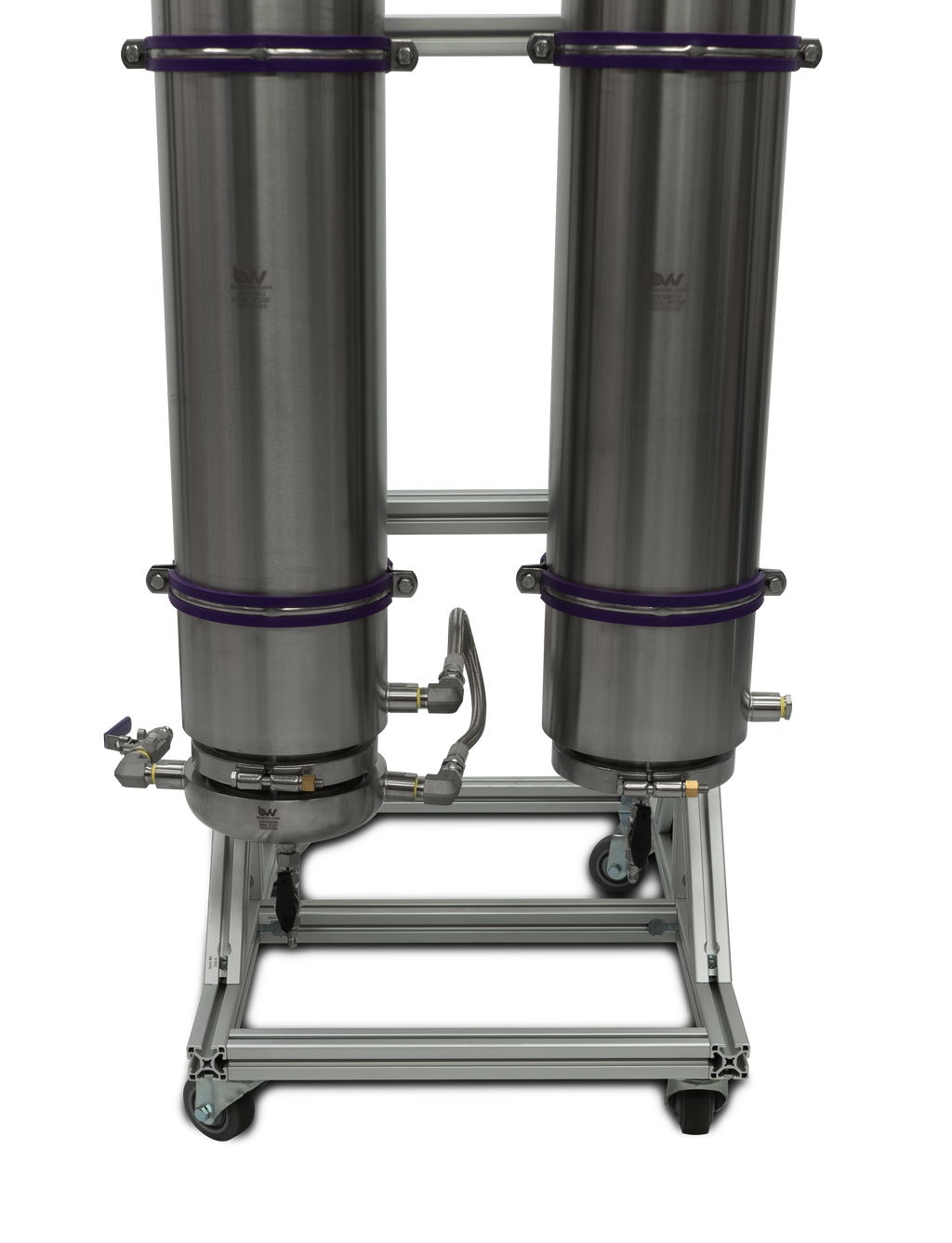

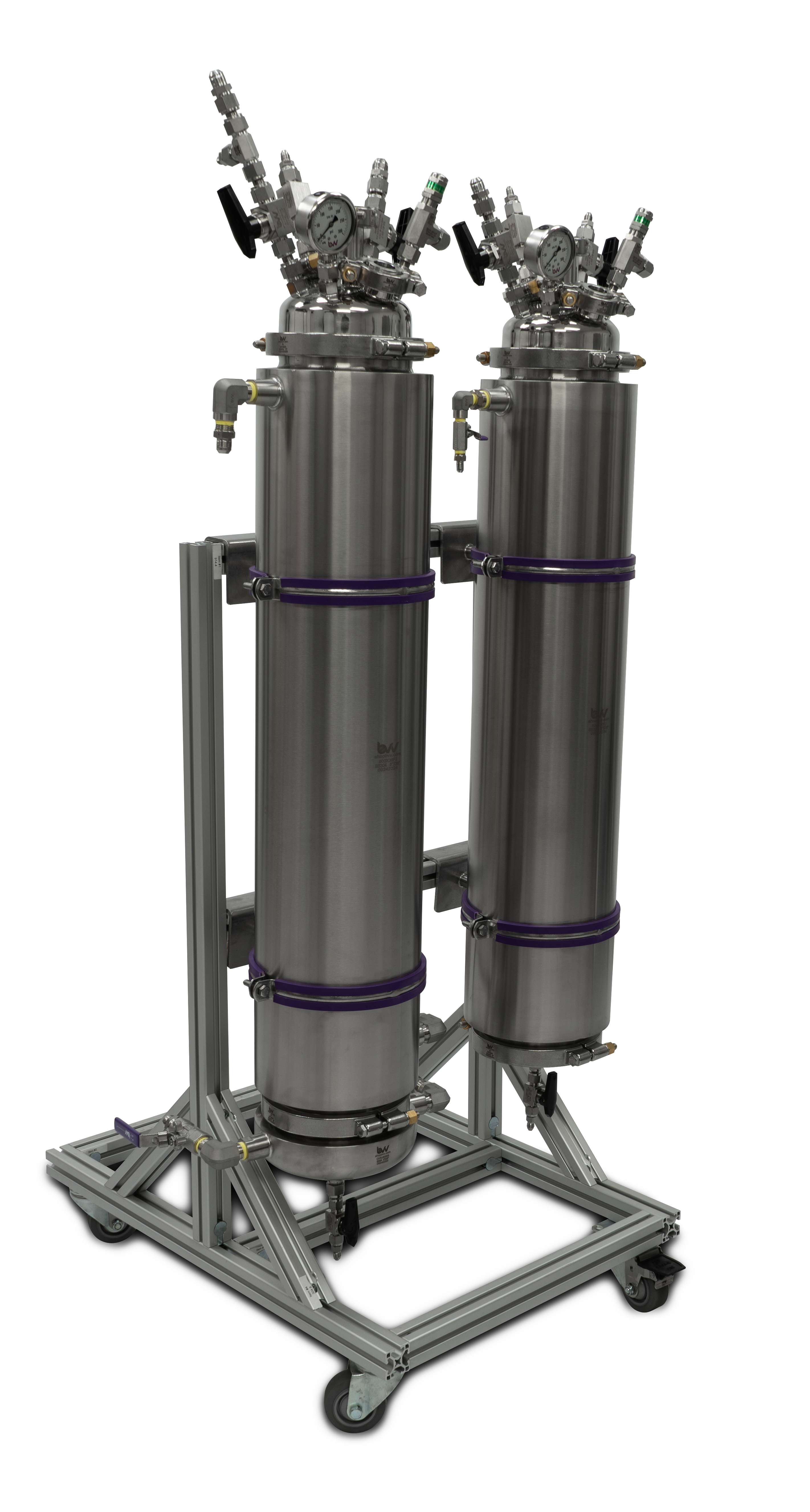

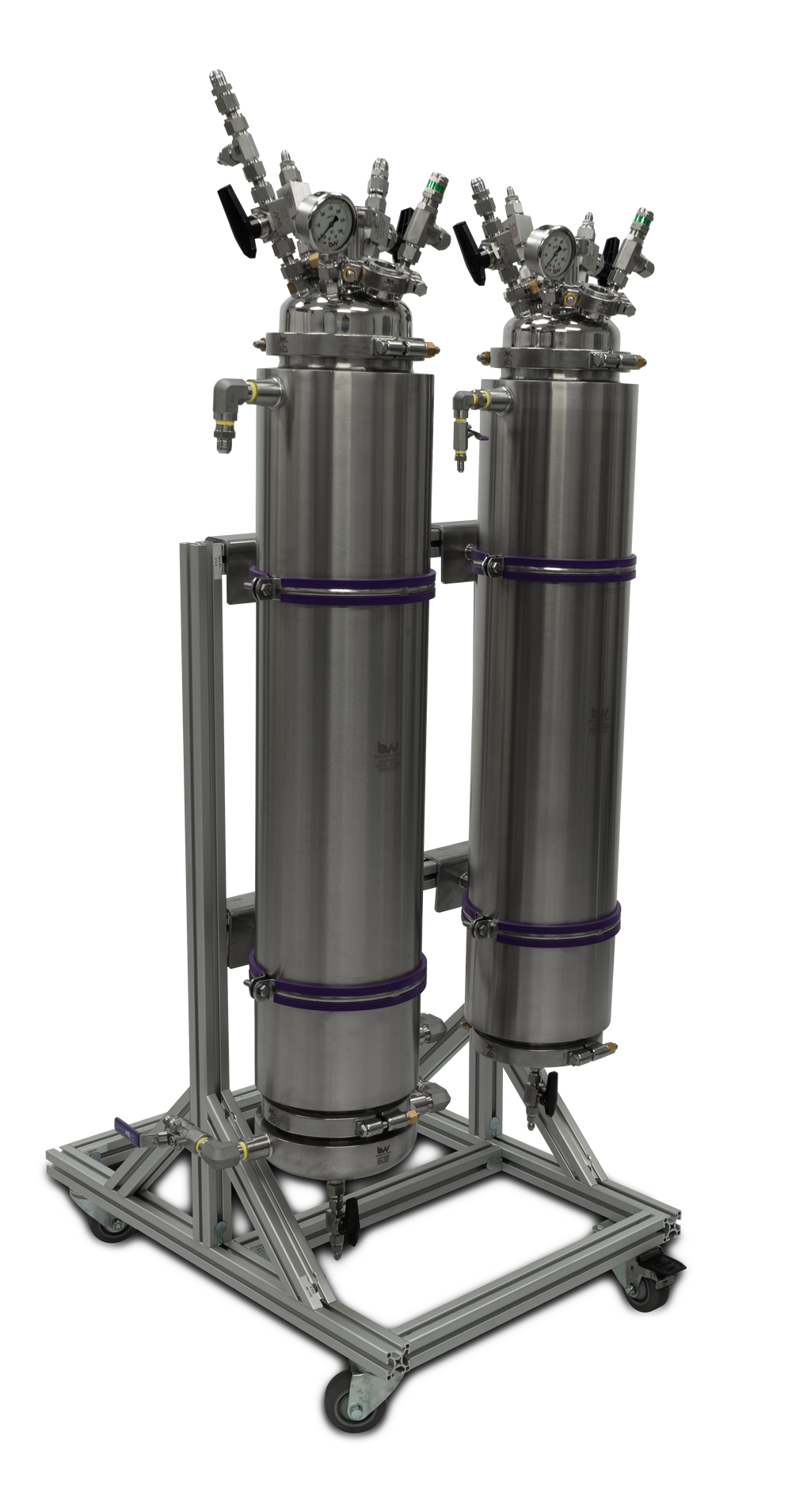

BVV Evaporative Crystallizer
The BVV Evaporative Crystallizer is a simple, cost-effective crystallization solution that utilizes the unique properties of butane to rapidly produce high-purity crystalline isolates without the use of expensive mixers or chillers. With a 5 kilogram batch size and a 30-45 minute run time, the BVV Evaporative Crystallizer punches above its price tag, offering modestly high-throughput with the capability of producing 100% pure isolates. 3P Certz Certified, the BVV Evaporative Crystallizer can integrate with any existing butane extraction systems or can be utilized as a standalone solution to dissolve and crystallize most high-purity extracts.
Key Advantages
- High Speed Dissolution: 17.8L Heating Column allows for the Rapid Dissolution of extracts and allows for the accumulation of extract batches for high volume crystallizations.
-
Evaporative Crystallization: 16.5L Vacuum Jacketed Crystallization Column Utilizes simultaneous volume reduction and evaporative cooling to initiate rapid crystal growth.
-
Precision Crystal Rinsing: Achieve 100% Purity by optimizing the crystallization and rinsing procedure or by performing a secondary recrystallization.
-
Mother Liqour Recovery: Collection and recovery of Mother Liquor and rinse butane, allowing for low-temperature purging and preservation of delicate compounds.
Optimized for a quick and efficient cooling crystallization 2:1 Extract-to-butane ratio, the system includes a 17.8L Jacketed Heating Column, a 16.5L Vacuum Jacketed Crystallization Column,
Engineered for compliance and reliability, the BVV Evaporative Crystallizer is peer-reviewed and 3P-certified to meet or exceed Class 1 Division 1, NFPA 58, and ASME standards, incorporating 3A sanitary compression and Tri-Clamp fittings for durability and precision.
Capable of processing 20+ kilograms of extract per 8-hour shift, this system delivers the scalability, precision, and affordability extractors need to elevate their production capabilities.
Processing Power
- Max Capacity Per Batch: 5KG of Extract
- Initial Solvent Ratio: 2 lbs of Butane per 1 KG of extract
- Cycle Time: 30-45 Minutes*
- Dissolution Time:30-45 Minutes*
- Crystallization Time: 30-45 Minutes*
*Cycle may vary based on operating procedure and compressor pairing*
Specifications
- 1X 6"x36" 17.8L Jacketed Dissolving Column
-
1X 6"x36" 16.5L Vacuum Jacketed Crystallization Column
1X 50lb DOT-approved Recovery Tank -
1X 1um Dutch Weave Sintered disk
- 4X 1.5" Certified Borosilicate Sight Glasses
- 2X 250 PSI ASME Safety Valves
-
2X -30hg-250PSI Compound Pressure Gauges
- Footprint (DxWxH) 30"x22"x58"
- Weight: 220 lb
- Maximum Pressure Rating: 250PSI
Compliance
- Class 1, Division 1 compliant
- Designed to ASME standards
- NFPA 58 LPG compliant
- 3P Certified
