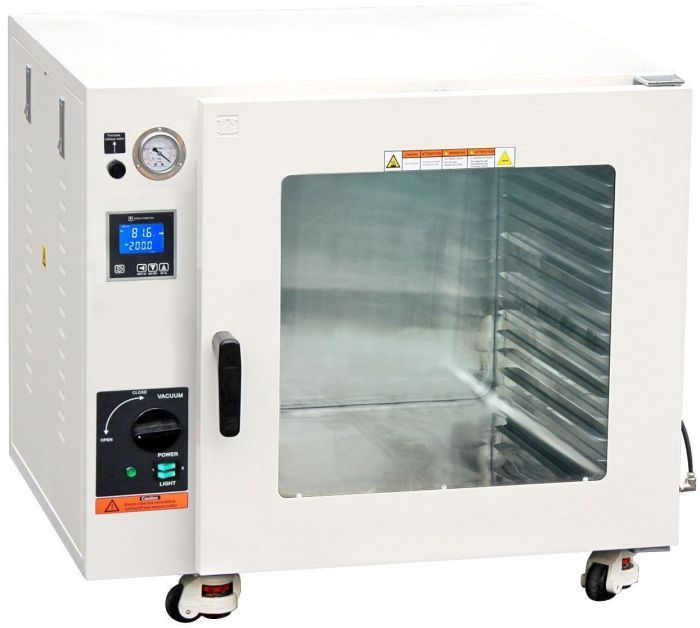

Introducing the new Ai 14-shelf capacity 5.0 cu ft ECO vacuum ovens with LED lights. Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.
Features
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- 3rd gen low proportional gain temperature controllerskeep your oven temperature within +/- 1F accuracy, ineither F or C.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- Dual layer observation window with 3/4" tempered safety glass.
- 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- Built-in swivel casters with leveling feet.
- For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
- All ovens shipped from our New Jersey or Nevada location for quick delivery.
- 2-year warranty and lifetime US-based parts and service support.
-
Guaranteed US based phone and email assistance within 30 minutes from our engineers.
Manufactured in accordance with
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
| Â Electrical requirements |
 110V or 220V +/-10% 50/60Hz 1-PH, 3,000 watts |
| Â Chamber |
 Size: 19.75 x 21.5 x 19.75"  Material: Stainless steel  Capacity: 5.0 cubic feet |
| Â Heater | Â 3-sided heating (left 800W, right 800W, bottom 1,400W) |
|  Temperature control |  Controller: low proportional gain, microcomputer PID controlled  Range: ambient to 150°  Display units: Fahrenheit or Celsius  Uniformity: +/- 7% of setpoint  Dwelling timer range: 1 to 9999 minutes |
| Â Vacuum |
 Ultimate vacuum level: better than 500 microns/millitorrs  (may vary based on your altitude)  Mechanical gauge range: 0 to 30 inch mercury  Vacuum port: KF25 flange x 1  Vent port: KF25 flange x 1  Vacuum pump: Sold separately |
| Â Weight | Â Unit: 390 Lbs, shipping: 620 Lbs |
| Â Dimensions (WxDxH) |
 Unit: 32.25 x 28 x 30"  Shipping: 41 x 40 x 41" |
| Â Shelves |
 Shelf size: 19.25 x 21 x 0.5" (WxDxH)  Material: aluminum  Style: pan-shape  Capacity: 14 shelves max.  Comes standard with oven purchase: 7 shelves  Total area with 14 shelves: 39.3 sq ft or 5660 sq inch  Distance between the most adjacent shelves: 1.25" |
| Â Door gasket material | Â Silicone or Viton |
| Â Observation window | Â 1/2" tempered safety glass |
| Â Safety |
 Built-in circuit breaker  Overheat shutoff protection  Secondary over-temp protection dial |
| Â In-door lights | Â White LED (pre-installed) |
| Â Warranty | Â 1 year |
|
 Part description |
 Quantity |
Part image |
| Â Ai 5 cu ft ECO heating vacuum oven |
1 pc |
|
| Â Aluminum pan shelf | 7 pcs | |
| Â KF25 quick clamp and centering ring | 2 sets |
|
| Â Led Light Cable | 1 pc | |
| Â L5-30P 110V plug (installed on 110V units) |
1 pc | |
| Â 6-20P 230V plug (installed on 220V units) |
1 pc | |
| Â Users manual | 1 pc |
