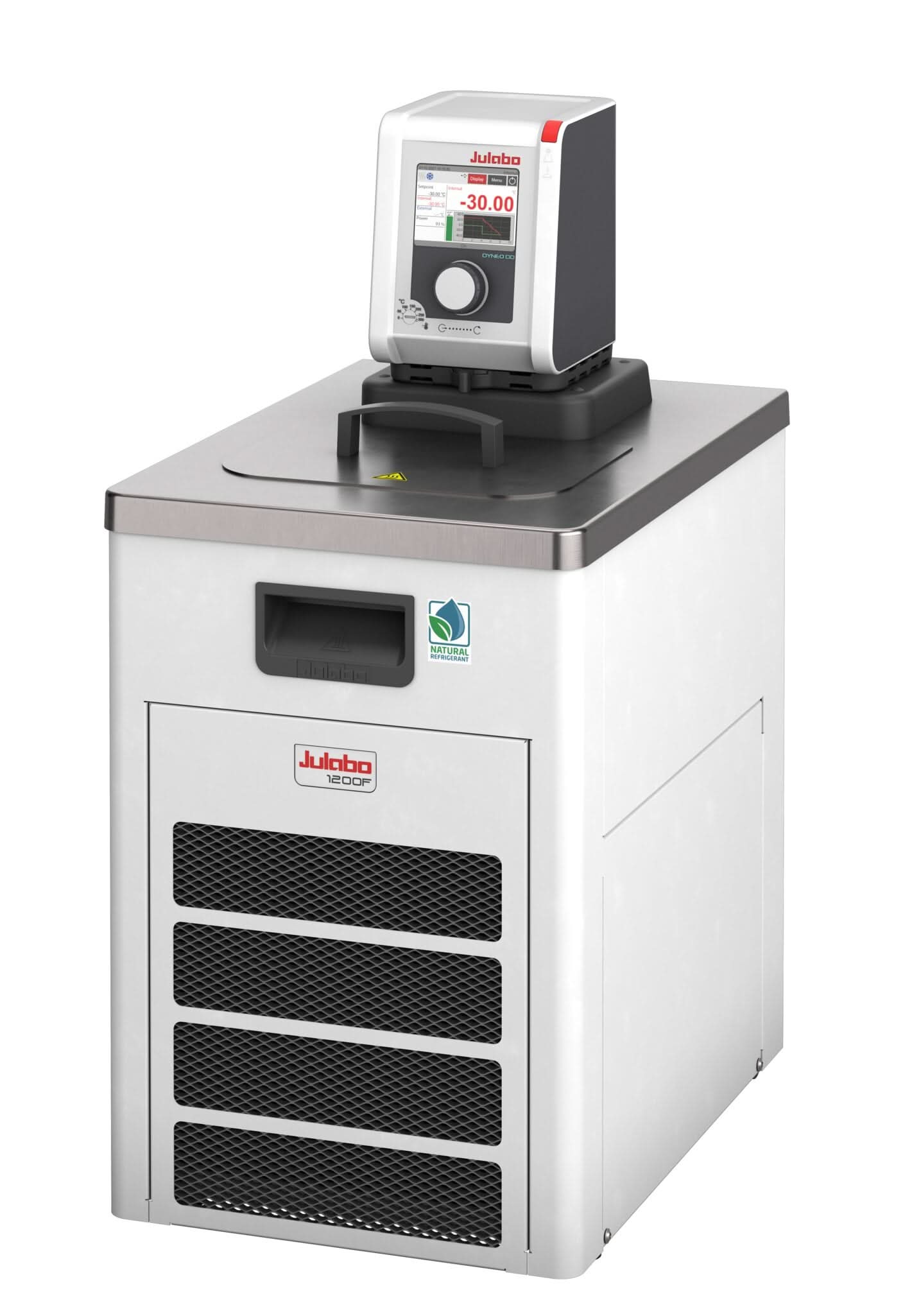

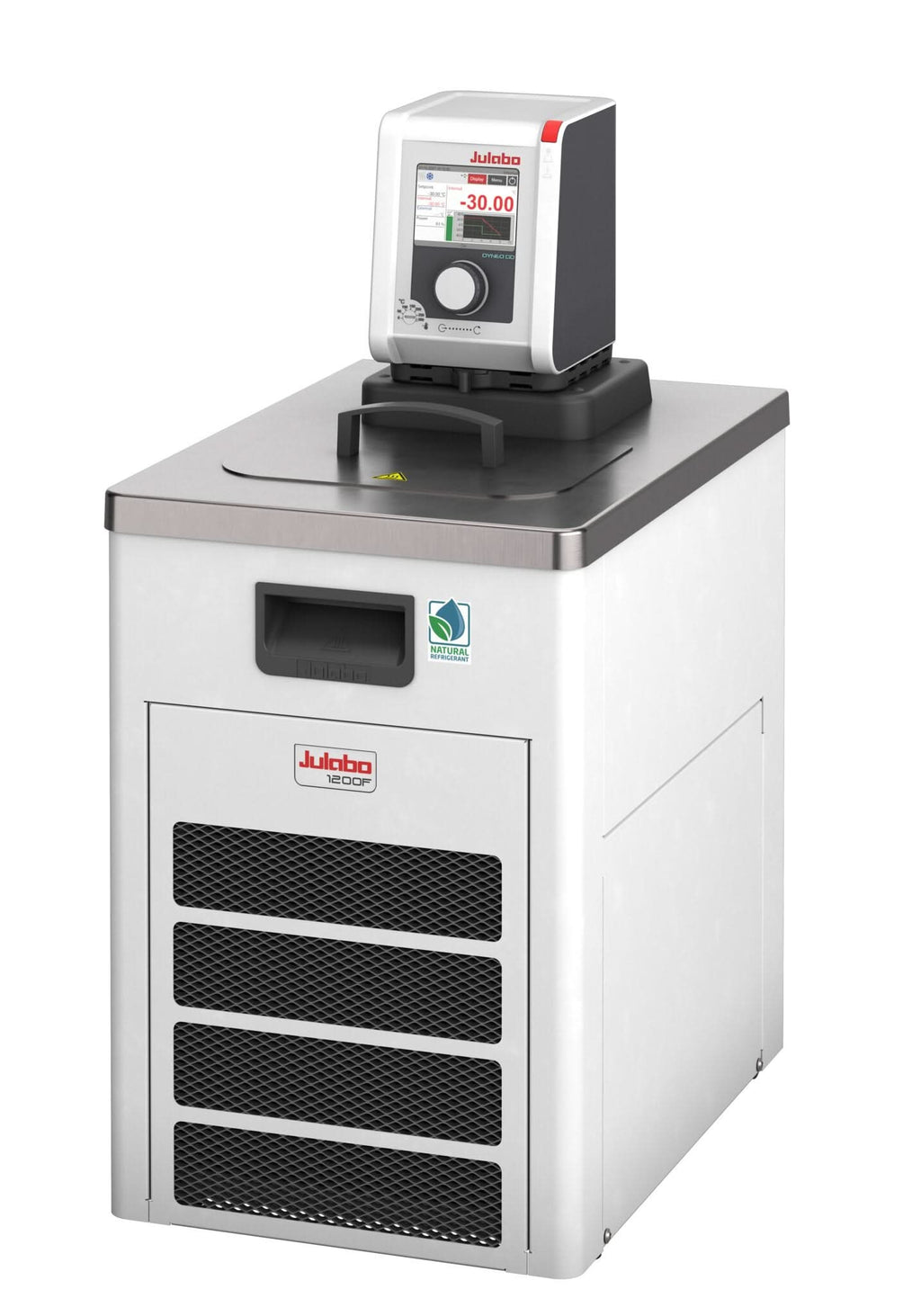

DYNEO DD-1200 Benchtop Refrigerated / heating circulator. Range -50…+200 °C with 1 or 2 kW heating power and 1.24 kW cooling power at 20 °C. Adjustable centrifugal pump with 8…27 L/min flow and 1.5…10.2 PSI with diverter valve to adjust internal / external flow ratio. USB Communication port with options to add Analog or RS232.
Product Specifications:- Voltage Version: 115V/60Hz115V/60Hz115V/60Hz208-230V/50-60Hz208-230V/50-60Hz208-230V/50-60Hz
- Interface: Base
AnalogDigitalBaseAnalogDigital- Heating & Cooling: Both
BothBothBothBothBoth- Working Temp Range (°C): -50...200
-50...200-50...200-50...200-50...200-50...200- PCF Pressure (psi): 1.5...10.2
1.5...10.21.5...10.21.5...10.21.5...10.21.5...10.2- PCF Rate (l/min): 8...27
8...278...278...278...278...27- Working Temp Range (°C): -50...200
-50...200-50...200-50...200-50...200-50...200- Heating Capacity (kW): 1
11222- Voltage Version: 115V/60Hz
115V/60Hz115V/60Hz208-230V/50-60Hz208-230V/50-60Hz208-230V/50-60Hz- Power A: 12A
12A12A11A11A11A- Plug Type: NEMA 6-20P
NEMA 6-20PNEMA 6-20PNEMA 6-20PNEMA 6-20PNEMA 6-20P- Pump Connection: M16x1 male
M16x1 maleM16x1 maleM16x1 maleM16x1 maleM16x1 male- Interface: Base
AnalogDigitalBaseAnalogDigital- PCF Pressure (psi): 1.5...10.2
1.5...10.21.5...10.21.5...10.21.5...10.21.5...10.2- PCF Rate (l/min): 8...27
8...278...278...278...278...27- Bath Fill Volume (L): 5...7.5
5...7.55...7.55...7.55...7.55...7.5- External Devices:
- Fluid Type: Water, Water/Glycol
Water, Water/GlycolWater, Water/Glycolwater, water/glycolwater, water/glycolwater, water/glycol- Heating & Cooling: Both
BothBothBothBothBoth- Dimensions W x L x H (in): 13x18.5x27.6
13x18.5x27.613x18.5x27.613x18.5x27.613x18.5x27.613x18.5x27.6- Weight (lbs): 93
9393939393 Key Benefits:- DYNEOâ„¢ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank
- A color TFT display with central rotary knob controller includes a multi-lingual interface, integrated programmer
- Pt100 port for external temperature control
- USB connection for external PC control and data-logging with digital options including RS232 port or an analog module interface for voltage or current control
- PID temperature control provides ±0.01 °C stability
- Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi
- Stainless steel bath tank with integrated drain port
- Class III (FL) according to DIN 12876-1
- R1270 natural refrigerant with 85g charge. GWP = 2, Carbon dioxide equivalent = 0.00017 t
- Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
