Description

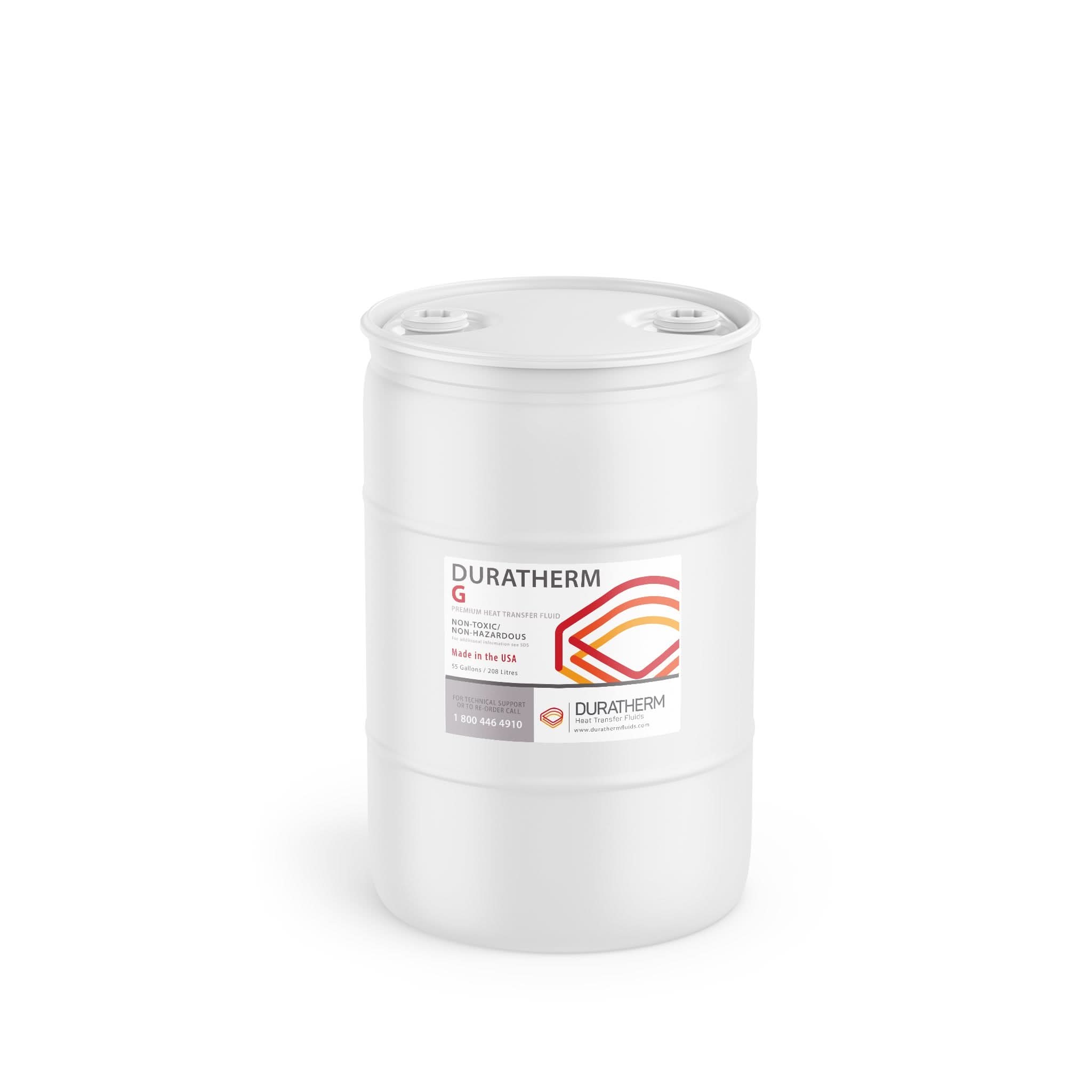

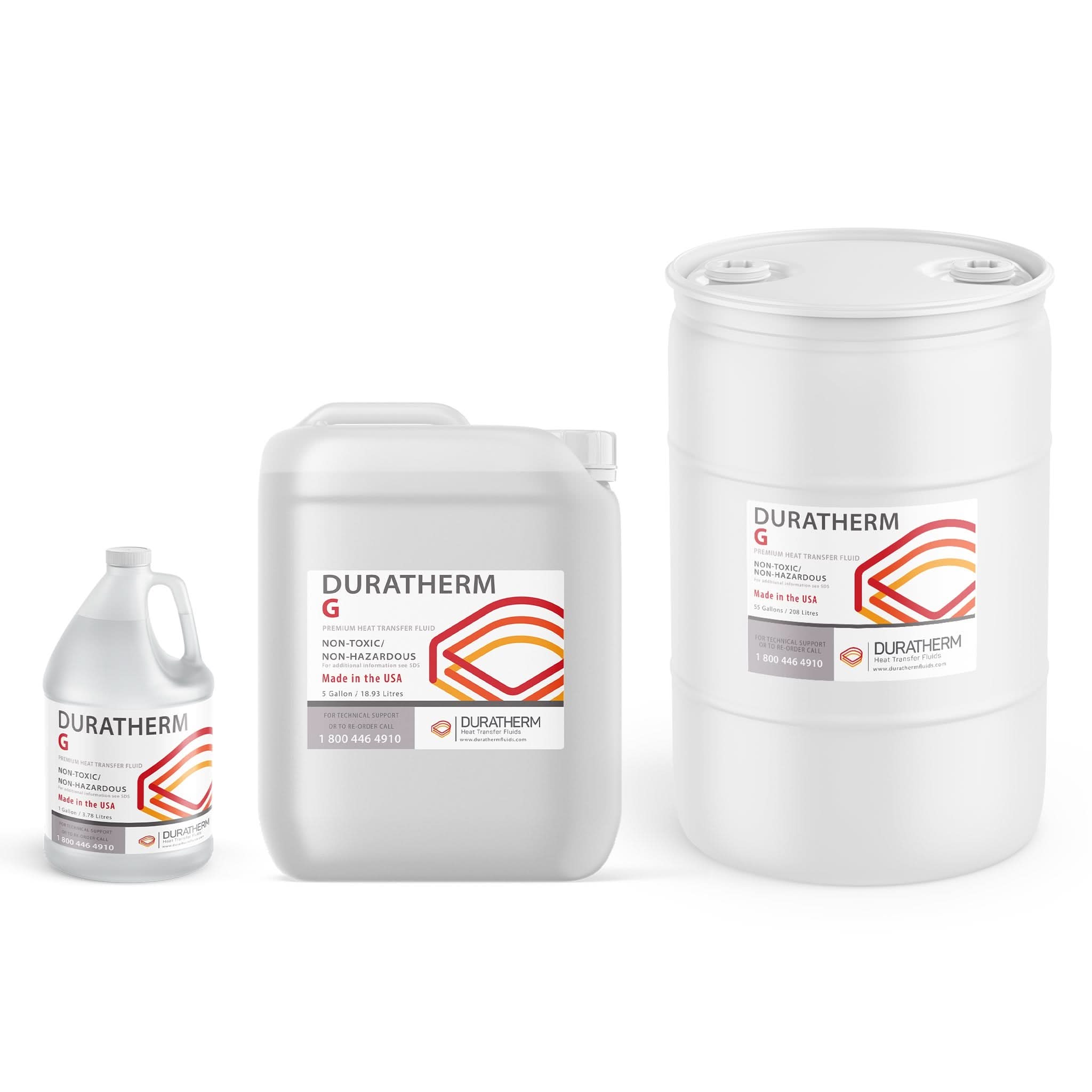

DURATHERM G
Duratherm G is a glycol based thermal fluid rated to 260°C (500°F), a proprietary additive system that not only helps the fluid last longer and run cleaner, it makes it the ideal choice for extreme oxidation environments including demanding, open bath applications.
- 260°C (500°F) maximum operating temperature
- High flash point of 249°C (480°F)
- Ideal for use in extreme oxidation environments like open baths
- Polyalkylene glycol based thermal fluid with enhanced performance
TEMPERATURE RATINGS |
|
|---|---|
| Max Bulk/Use Temp | 260°C |
| Max Film Temp. | 288°C |
| Pour Point ASTM D97 | -40°C |
SAFETY DATA |
|
|---|---|
| Flash Point ASTM D92 | 249°C |
| Fire Point ASTM D92 | 263°C |
| Autoignition ASTM E-659-78 | 366°C |
THERMAL PROPERTIES |
|
|---|---|
| Thermal Expansion Coefficient | 0.0679 %/°C |
| Thermal Conductivity | W/m·K |
| 38°C | 0.182 |
| 100°C | 0.175 |
| 204°C | 0.165 |
| 204°C | 0.164 |
| 260°C | 0.159 |
| Heat Capacity | kJ/kg·K |
| 38°C | 1.976 |
| 100°C | 2.043 |
| 204°C | 2.153 |
| 204°C | 2.152 |
| 260°C | 2.211 |
PHYSICAL PROPERTIES |
|
|---|---|
| Viscosity ASTM D445 | cSt |
| 40°C | 42.16 |
| 100°C | 7.43 |
| 204°C | 1.88 |
| 204°C | 1.87 |
| 260°C | 1.23 |
| Density ASTM D1298 | kg/l |
| 38°C | 0.92 |
| 100°C | 0.90 |
| 204°C | 0.87 |
| 204°C | 0.87 |
| 260°C | 0.86 |
| Vapor Pressure ASTM D2879 | kPa |
| 38°C | 0.28 |
| 100°C | 0.88 |
| 204°C | 2.40 |
| 204°C | 2.41 |
| 260°C | 3.52 |
| Distillation Range ASTM D2887 | |
| 10% | 368°C |
| 90% | 514°C |
| Specific Gravity @ 16°C | 0.963 |
Note: The values quoted in the table above are typical of normal production.
They do not constitute a specificatio
