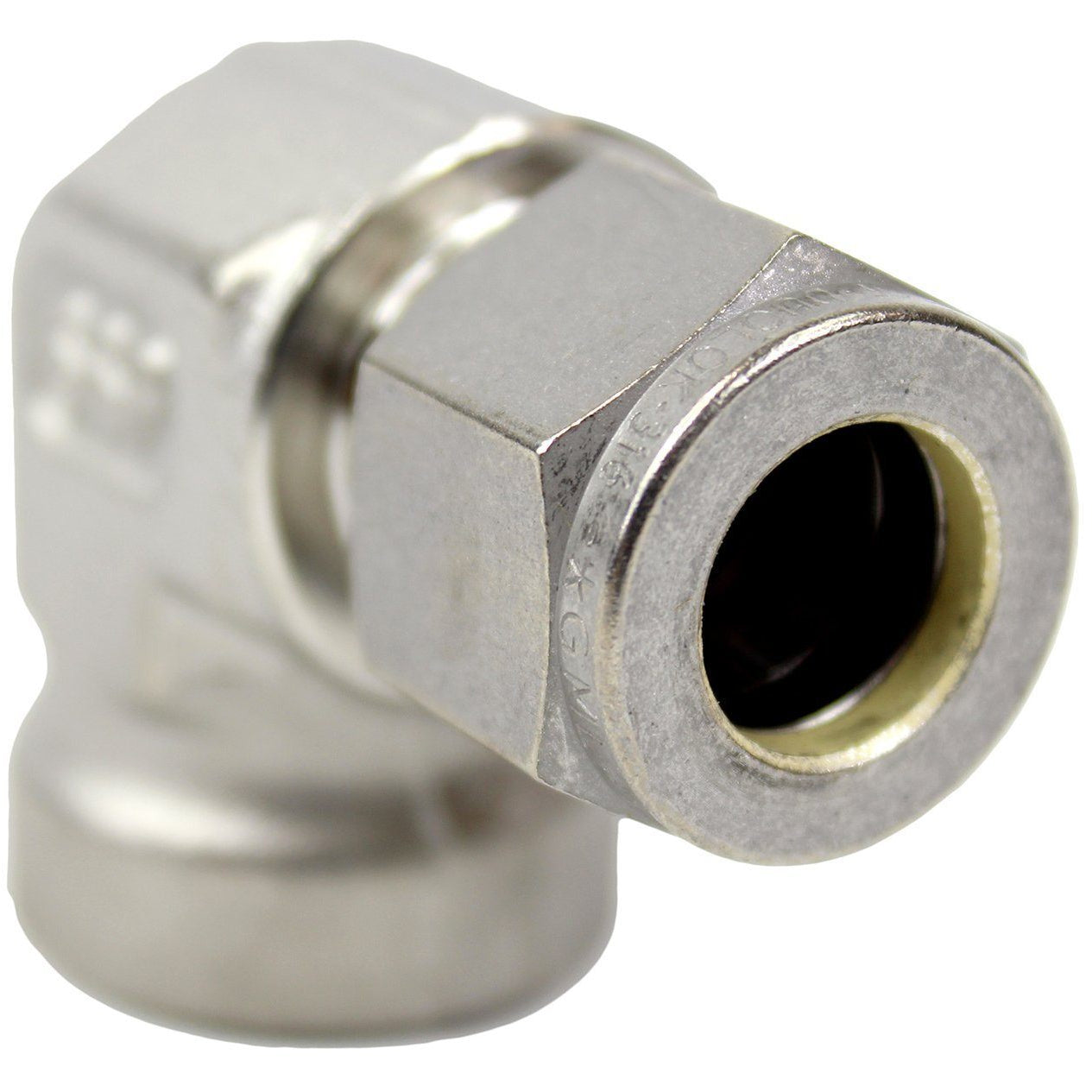

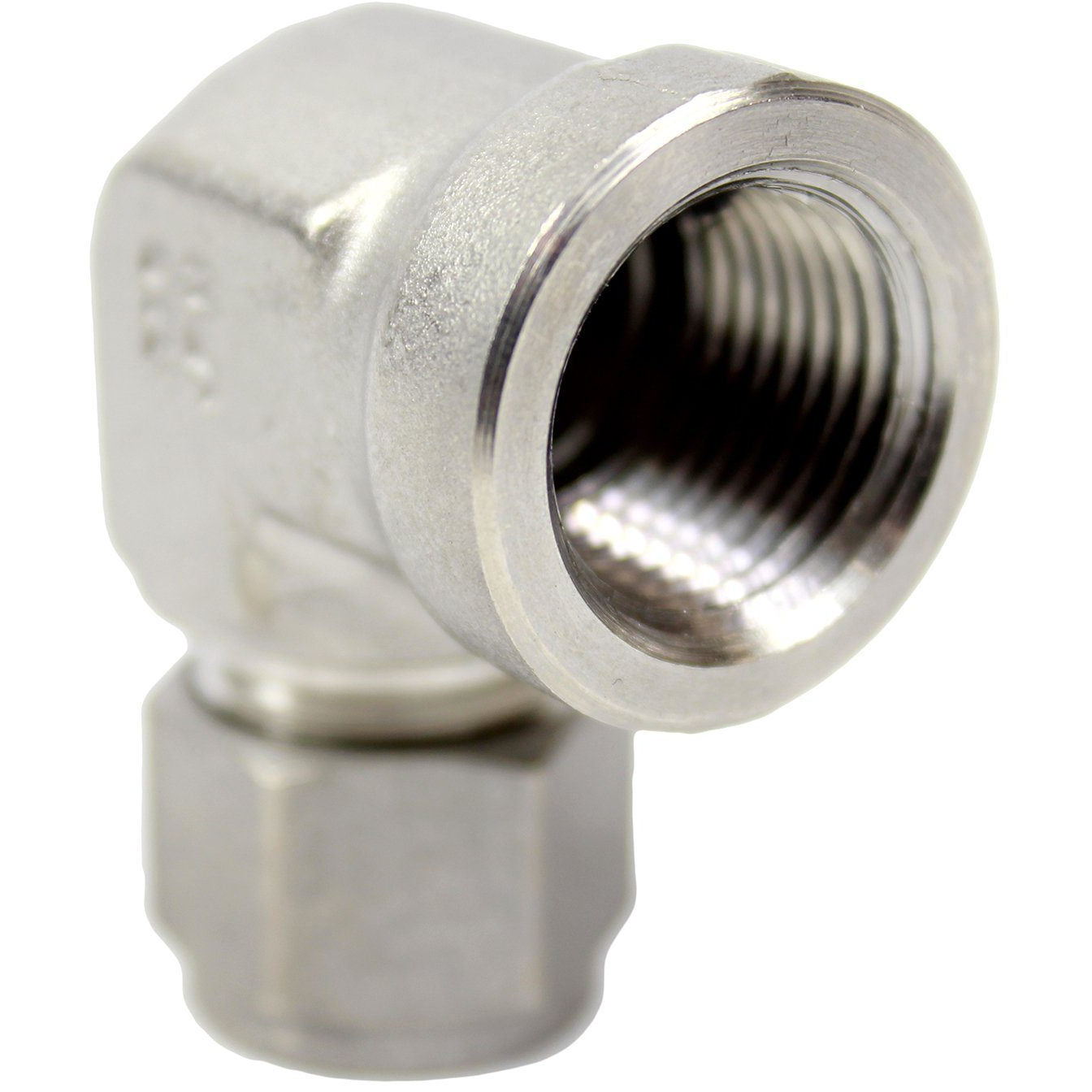

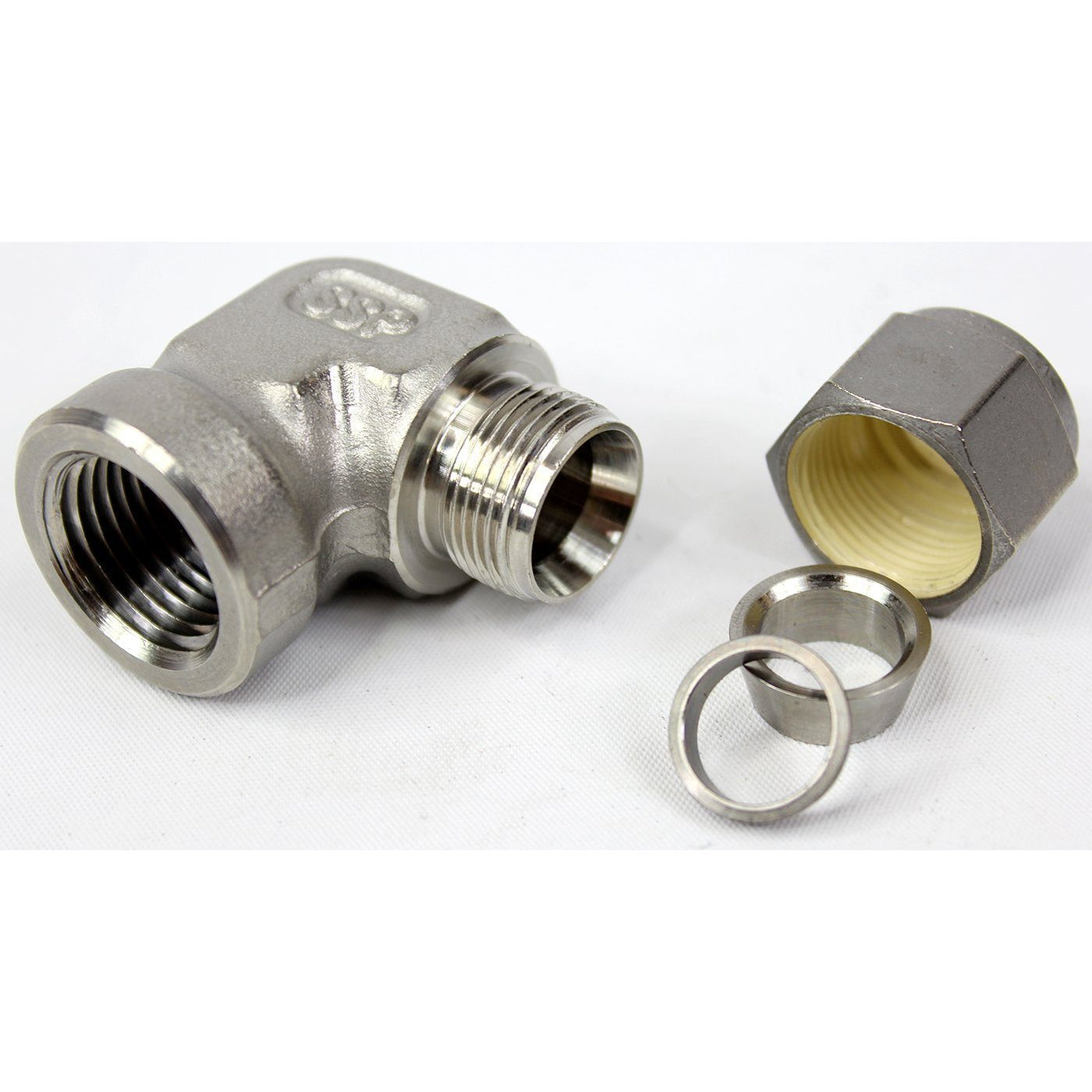

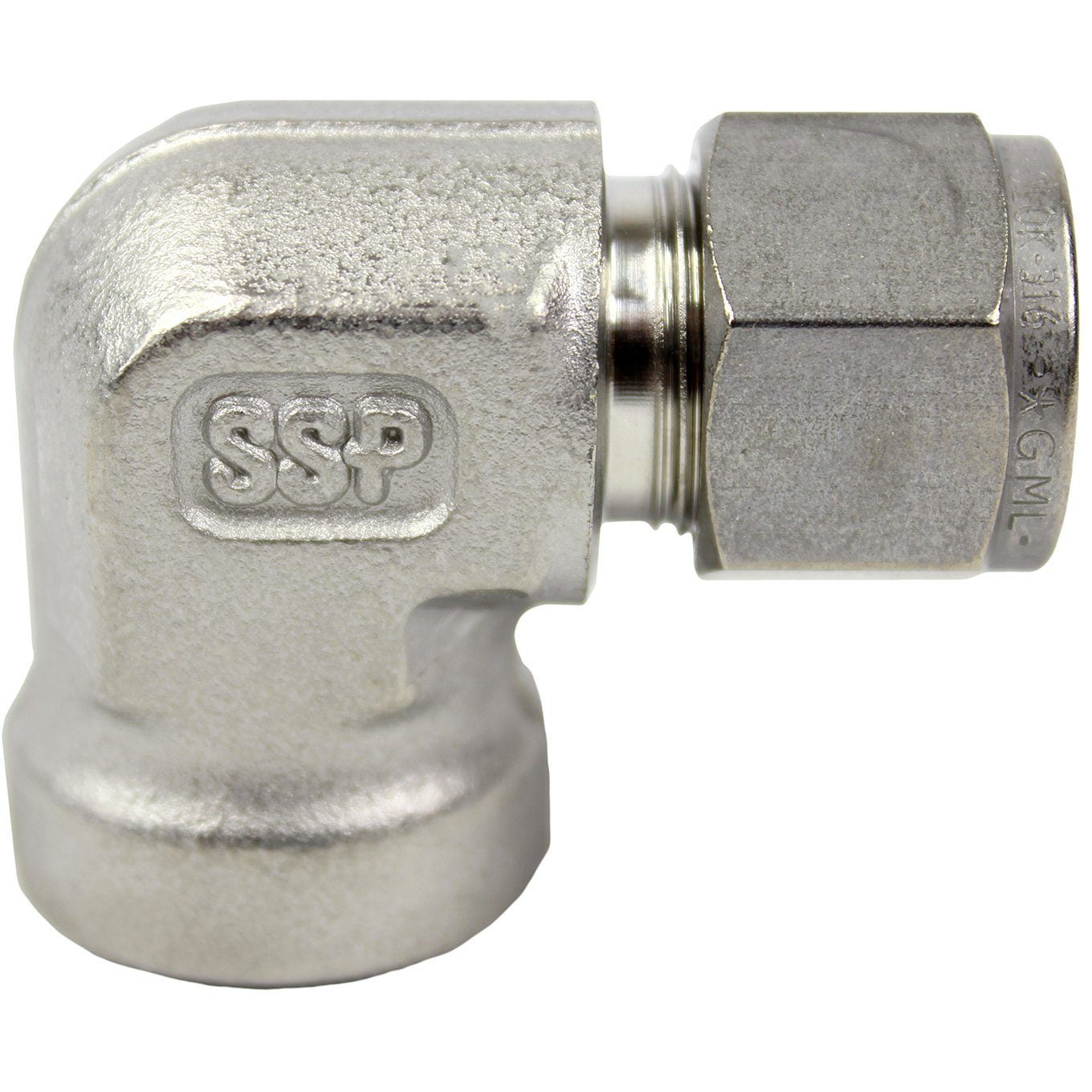

SSP - Female Elbow
SSP Instrumentation TruFitĀ® is manufactured from fully-traceable raw material to close tolerances and superior surface finishes. TruFitĀ® provides optimal performance when installed in accordance with SSPās recommendations and the design parameters appropriate for each type of connection ā tapered thread, straight thread, and weld & braze. TruFitĀ® components are cleaned in accordance with SSP documented work instructions using equipment calibrated to NIST standards with environmentally-safe and stable agents, ultrasonics, and heat/ temperature to remove all residual oil, grease, and loose particles. Stainless steel components are passivated to the requirements of MIL QQ-P-35 and ASTM A 967.
***Note: ALL NPT Threads REQUIRE the user to properly install the fitting by using a thread sealant to prevent leaks. BVV recommends
Ā
| Specifications | |
|---|---|
| Connection Type 1 | Female NPT |
| Connection Size 1 | Specified by User |
| Material | 316 Stainless Steel |
| ASTM A-276 and A-479 bar stock, A-182 forgings. | |
| Working Pressure (PSIG) | 1/4" - 7750 |
| ASME B31.3 | |
Ā
Ā
SSP proudly makes DuolokĀ®, TruFitĀ®, FloLokĀ® and hundreds of other products 100% in the USA!
Ā

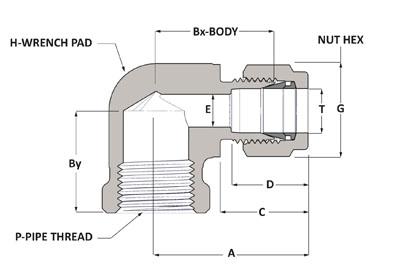

| Dimensions | |
|---|---|
| A | 1.17 in |
| Bx | 0.89 in |
| By | 0.89 in |
| C | 0.70 in |
| D | 0.60 in |
| E | 0.19 in |
| G | 9/16 in |
| H | 11/16 in |
| P | 1/4 in |
| T | 1/4 in |
