Across International DigiVac StrataVac Vacuum Regulation Kit for 1-Head Distillation

Power Lab Supply 2SKU: StrataVac-1HeadKit

Title: Please Select
Price:
Sale price$2,112.00 USD
Description

The StrataVac is one of DigiVac's leading products for customers looking to both measure and maintain pressure. It is a more complex device that offers a number of different configurations, making it possible for every customer to get exactly what they need.




Vacuum Regulation

One of the unique features of the StrataVac is that in addition to having the ability to communicate the pressure that your system is maintaining, the gauge can be ordered with a regulator card and valve which opens and closes as needed in order to control your system at a specific pressure, for example, 2 Torr. This configuration of the gauge which gives you the ability to control, is useful for those conducting experiments that require consistent pressure readings. It is also a common request for those who work in industries where processes require stable pressure to ensure that the final product was held to a particular vacuum level during a process, an example being the StrataVac maintaining a predetermined pressure in a chamber that is vacuum drying products for the medical industry.

Capacitance Manometers

Having compatibility with capacitance manometers gives you another configuration to look for. With the use of a capacitance manometer that measures a specific pressure with more reliable accuracy than a thermal sensors, you can more easily control your system at a pressure that is suitable for your experiment. This pairing of the StrataVac and capacitance manometer is often utilized by those in labs doing research, as a calibration standard for other instruments, or as an in-house standard when performing tests. It seems that many in the vacuum field choose capacitance manometers whenever possible because it is isolated and particles cannot contaminate the sensor.

Features

  • Vacuum Controller - Drive and combine up to 3 of your sensors | Save space, money, and avoid confusion by combining multiple tasks into one device. Can control vacuum with bleed or throttle valves from 10mT - 760T.
  • Modular - Can be configured with up to 4 expansion boards to control multiple gauges at one time | Accepts different inputs based on driver board and sensor election | Possible different outputs including: analog recorder, RS232, Ethernet, SPDT relays and VLC
  • Wide Range Accuracy - Configured with sensors based on the accuracy and range required to sense vacuum and display the pressure reading in user selectable units of Torr, mbar, or kilopascal
  • Calibrated - Every STRATAVAC is calibrated and pretested under actual vacuum against a NIST standard
  • Applications - Transfer Standard for calibrating other vacuum instruments, main reference gauge, research, and in-house standard
  • Optional Bleed Type Vacuum Control - Controls vacuum level at a particular set-point between 30 milliTorr and 2000 milliTorr.

Overview of Upstream Vacuum Regulation


DigiVac Calibration

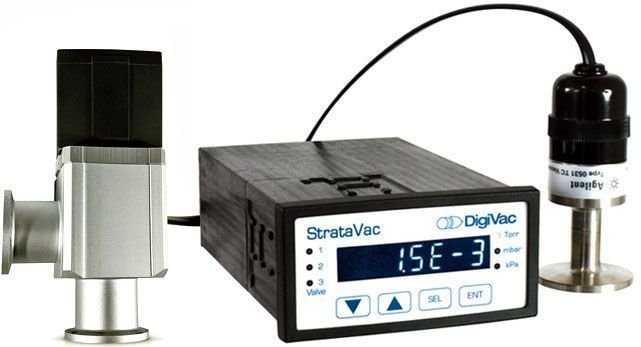

Included in this package

Part description

P/N

Quantity

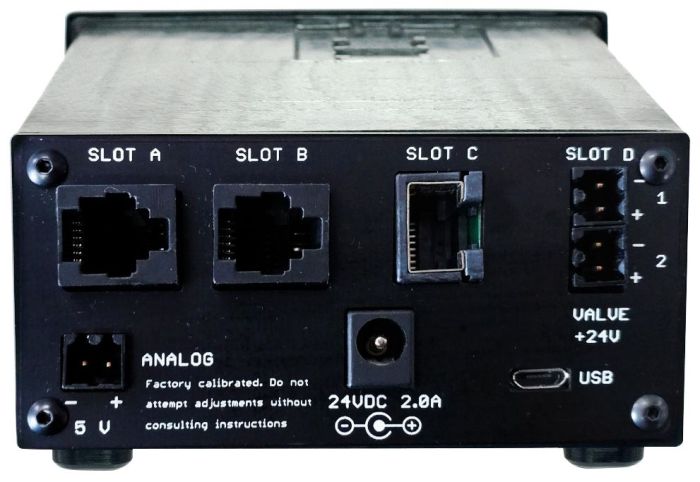

StrataVac gauge with white 6 segment white LED display, indicator lights,
4 touch buttons, USB, 5V analog output, and 4 card slots

STR 1 pc
StrataVac card to drive Agilent 531, 536 and equivalent gauge tubes
531-STR 1 pc
StrataVac card to drive up to 2 24 volt valves directly for isolation and throttle control
THR-VAL-STR 1 pc
Varian/Agilent type 536 thermocouple vacuum gauge tube with baffle, 'TC Gauge',
NW-25KF, Stainless Steel, LASER WELD
SEN-536-KF25 1 pc
KF25 bellows electromagnetic Aluminum Valve used for isolation and vacuum
valve control
VAL-BELL-KF25 1 pc
User's manual
1 pc

Specifications
Specifications



 Model  StrataVac Single-Head Distillation Kit
 Units
 Torr, mbar, kPa
 Power  100-240VAC 50/60Hz
 Output  5V
 Vacuum range  5E-9 - 1000 Torr
 Range with Accuracy  5E-4 - 1000 Torr
 Vacuum interface
 1/8" male NPT or KF/NW
 Vacuum reference  Absolute
 Display  .38 inch high 6 digit red LED
 Controls  7 amp, 250 Volt (If applicable)
 Telemetry options
 RS232, ethernet
 Mount  1/8 DIN or bench top
 Panel mount  Yes
 Unit dimensions
 1.7 x 3.52 x 5.35 inches (HxWxDeep)
 Shipping dimensions  11 x 10 x 4 inches
 Weight  2 lbs
 Product brochure
 Operators manual
Standard Packages
Standard package



 Part description

 Quantity

Part image

DigiVac StrataVac With Bracket 1 pc

Desktop AC Adapters 60 W 24 V 2.5A with power cord 1 pc

Agilent 536-KF25 sensor with Cable 1 pc

KF25 bellows electromagnetic Aluminum Valve 1 pc

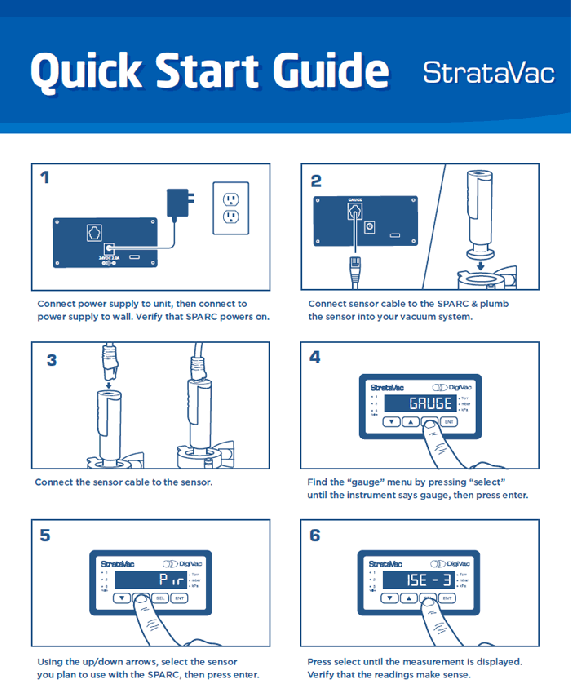

Quick Start Guide 1 pc
