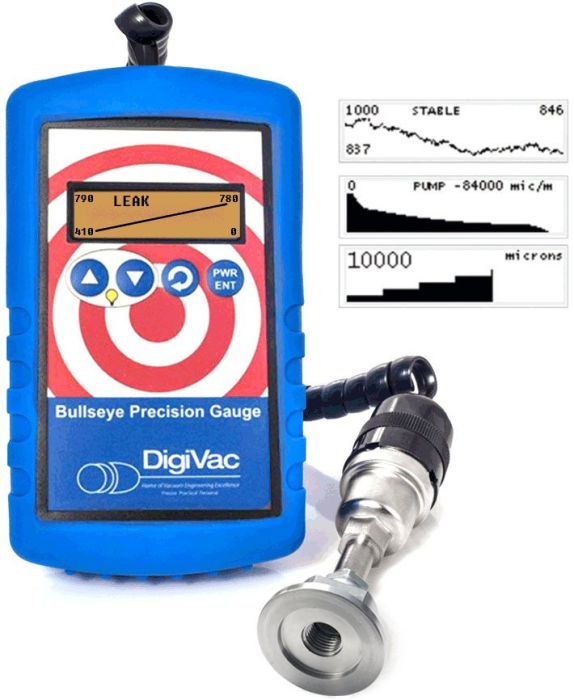

The DigiVac Bullseye precision vacuum gauge is rugged and portable vacuum gauge features visual graphing to pinpoint problems in real time (leak, pump, outgas, stable). Includes a powerful magnet and kickstand to enable hands-free operation.
Features
- Visual graphing feature right on the display
- Vacuum analytics to quickly identify vacuum pressure trends
- Graphical display for quick determination of vacuum level
- Hands-Free with a hang up your overalls strong magnet
- Long battery life and versatility with 12 different measuring units including micron, Torr, and inches of mercury
Â
Â
Â
Numeric & Graphical Displays
See vacuum readings in either numbers or easy-to-read graphs
Calibrated & Precise
Delivered pretested and  with thermocouple sensor under actual vacuum against a  standard (
Extended Battery Lifespan
Solid state electronics are built into the Bullseye Precision Gauge. The portable vacuum gauge operates using AA batteries and lasts 70 hours. Do you need to power your Bullseye without batteries? Choose .
Applications
Vacuum pump monitoring, , baseline vacuum pump performance, & transformer dry-out,Â
Bullseye Precision Gauge Accuracy
Remember to choose your vacuum gauge that gives you the accuracy you need for your application. This Bullseye comes with a thermocouple sensor, which has better accuracy in the millitorr up to 6 Torr. If you need better accuracy between 1 Torr up to atmosphere, then choose theÂ
If you need your Bullseye Gauge to have CE rating then choose either the  orÂ
Â
| 1 to 99 millitorr | +/- 2 millitorr or 20% |
| 100 to 2000 millitorr | +/- 10% |
| 2Â to 6 Torr | +/- 25% |
| Above 6 Torr | Continuous and monotonic (increasing reading indicates increasing pressure) |
Â
Â
Â
| Â Model | Â BPG |
| Â Units |
 Torr, mbar, bar, kPa, Inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa |
| Â Range | Â 1E-4 - 1000 Torr |
|  Accuracy |  0.001 – 5 Torr |
| Â Vacuum level |
 1 micron |
| Â Vacuum reference | Â Absolute |
| Â Sensor |
 SEN-VGT500, Thermocouple Plus |
| Â Vacuum connector | Â FK25/NW25 |
| Â Panel mount | Â No |
| Â Portable | Â Yes |
| Â Shipping weight |
 2 Lb |
| Â Unit dimensions | Â 6.2 x 3.7 x 1.3 inches |
|  Shipping dimensions |
 11 x 10 x 4 inches |
| Â Certifications | Â ROHS and CE |
| Â Operators manual | Â |
|
 Part description |
 Quantity |
Part image |
| DigiVac BPG with KF25 Adapter Attached | 1 pc | |
| Quick Start Guide | 1 pc |
