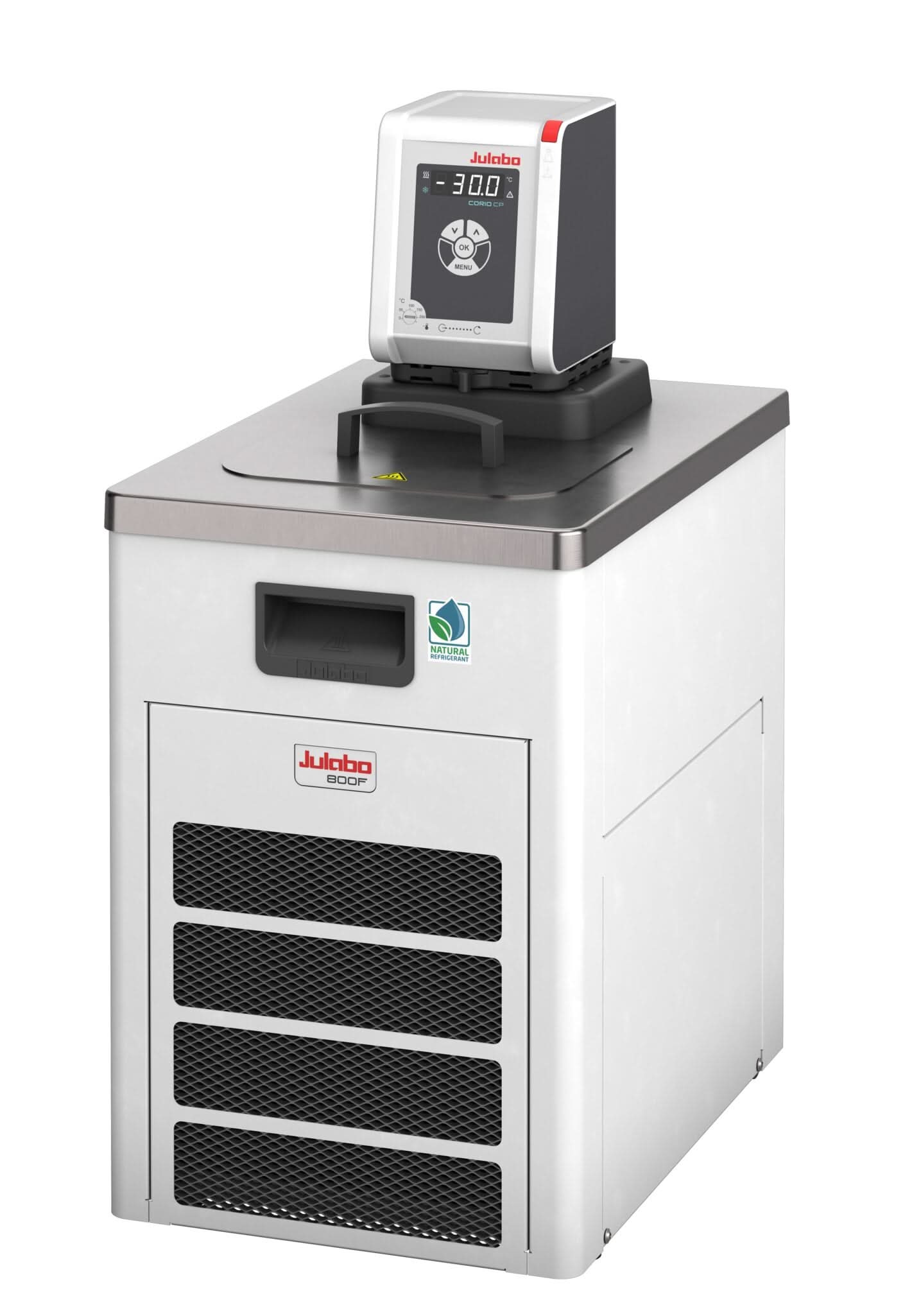

CORIO CP-800F Benchtop Refrigerated / heating circulator. Range -40…+200 °C with 1 or 2 kW heating power and 840 W cooling power at 20 °C. Adjustable centrifugal pump with 8…27 L/min flow and 1.5…10.2 PSI with diverter valve to adjust internal / external flow ratio.
Product Specifications:- Voltage Version: 115V/60Hz208-230V/50-60Hz
- Heating & Cooling: Both
Both- Working Temp Range (°C): -40...200
-40...200- PCF Pressure (psi): 1.5...10.2
1.5...10.2- PCF Rate (l/min): 8...27
8...27- Working Temp Range (°C): -40...200
-40...200- Heating Capacity (kW): 1
2- Voltage Version: 115V/60Hz
208-230V/50-60Hz- Power A: 12A
11A- Plug Type: NEMA 5-20P
NEMA 6-20P- Pump Connection: M16x1 male
M16x1 male- PCF Pressure (psi): 1.5...10.2
1.5...10.2- PCF Rate (l/min): 8...27
8...27- Bath Fill Volume (L): 5...7.5
5...7.5- External Devices:
- Fluid Type: Water, Water/Glycol
water, water/glycol- Heating & Cooling: Both
Both- Dimensions W x L x H (in): 13x18.5x27.6
13x18.5x27.6- Weight (lbs): 93
93 Key Benefits:- CORIOâ„¢ CP refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank
- The CORIOâ„¢ CP circulator incorporates easy change-over for control of fluid circulation internally or externally
- USB and RS232 connections for external PC control and data-logging
- Bath lid and drain tap included
- PID temperature control provides ±0.03 °C stability
- Adjustable centrifugal pump capacity of 8…27 L/min with pressures 1.5…10.2 psi
- R1270 natural refrigerant with 85g charge. GWP = 2, Carbon dioxide equivalent = 0.00017 t
- Stainless steel bath tank. Class III (FL) according to DIN 12876-1
- Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
