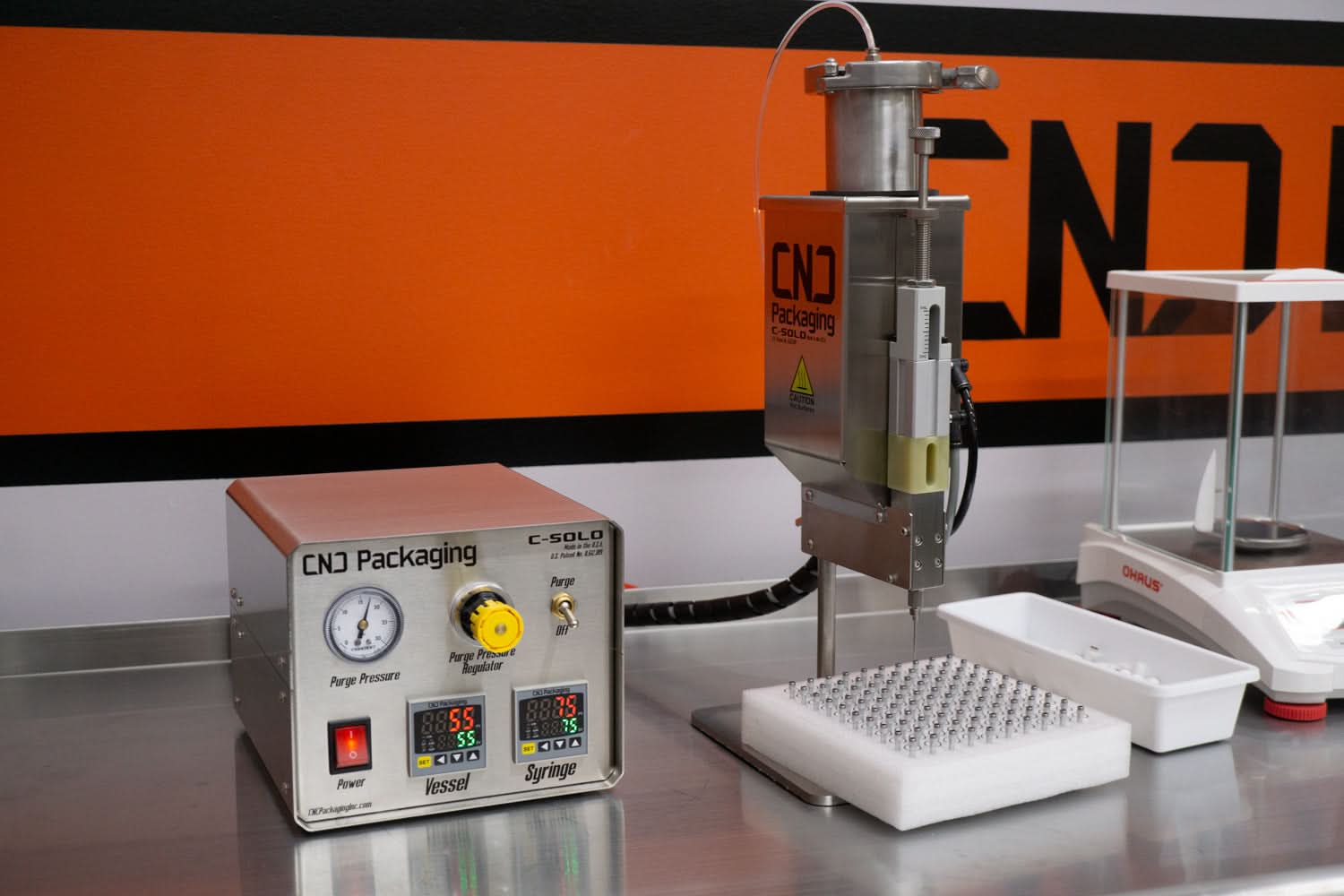

CNC Packaging C- Solo Cartridge Filliing Machine

C- Solo Cartridge Filliing Machine

 C-SOLO KEY FEATURES:

• Hands Free Foot Pedal Operation
• Fills up to 2200 units per hour

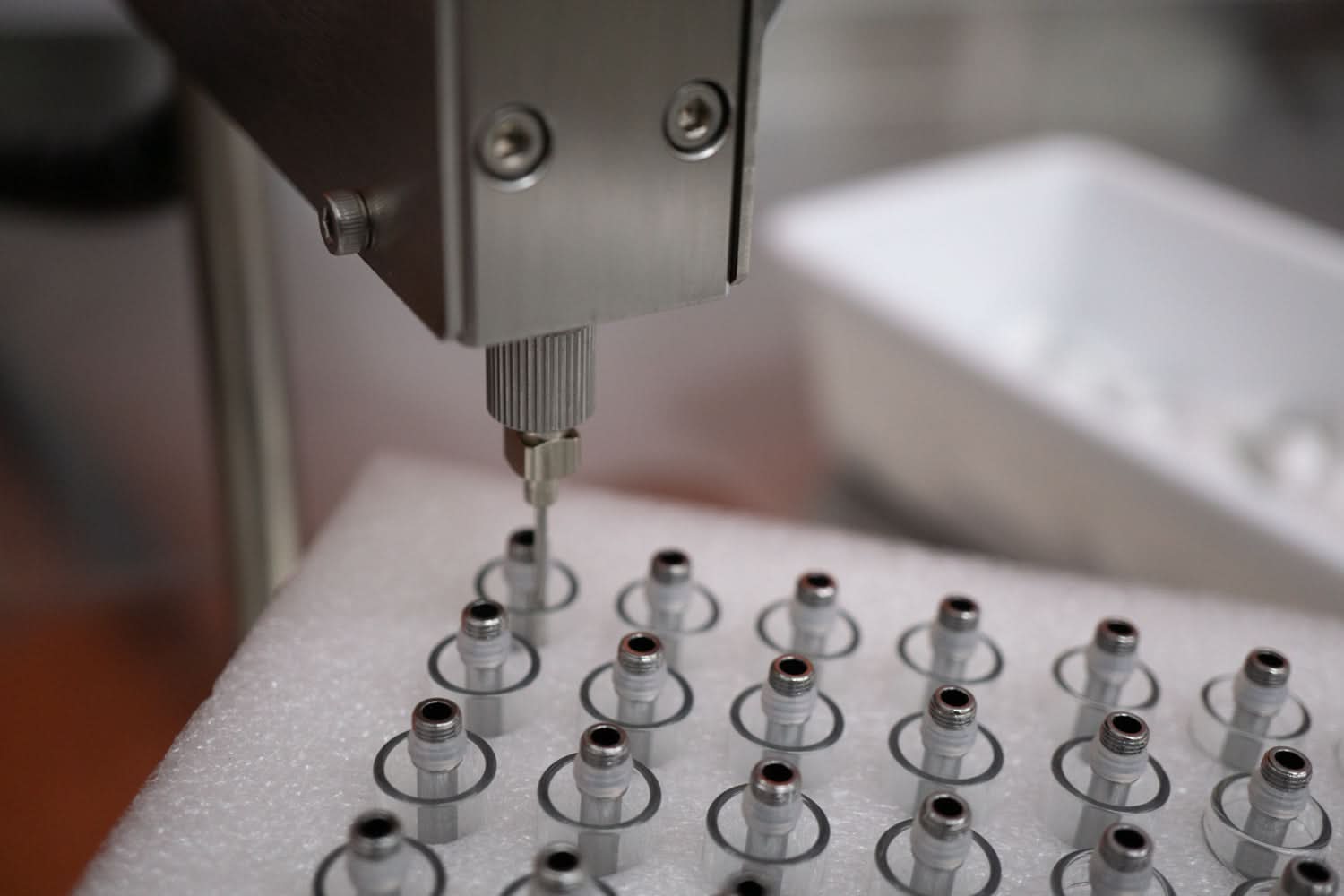

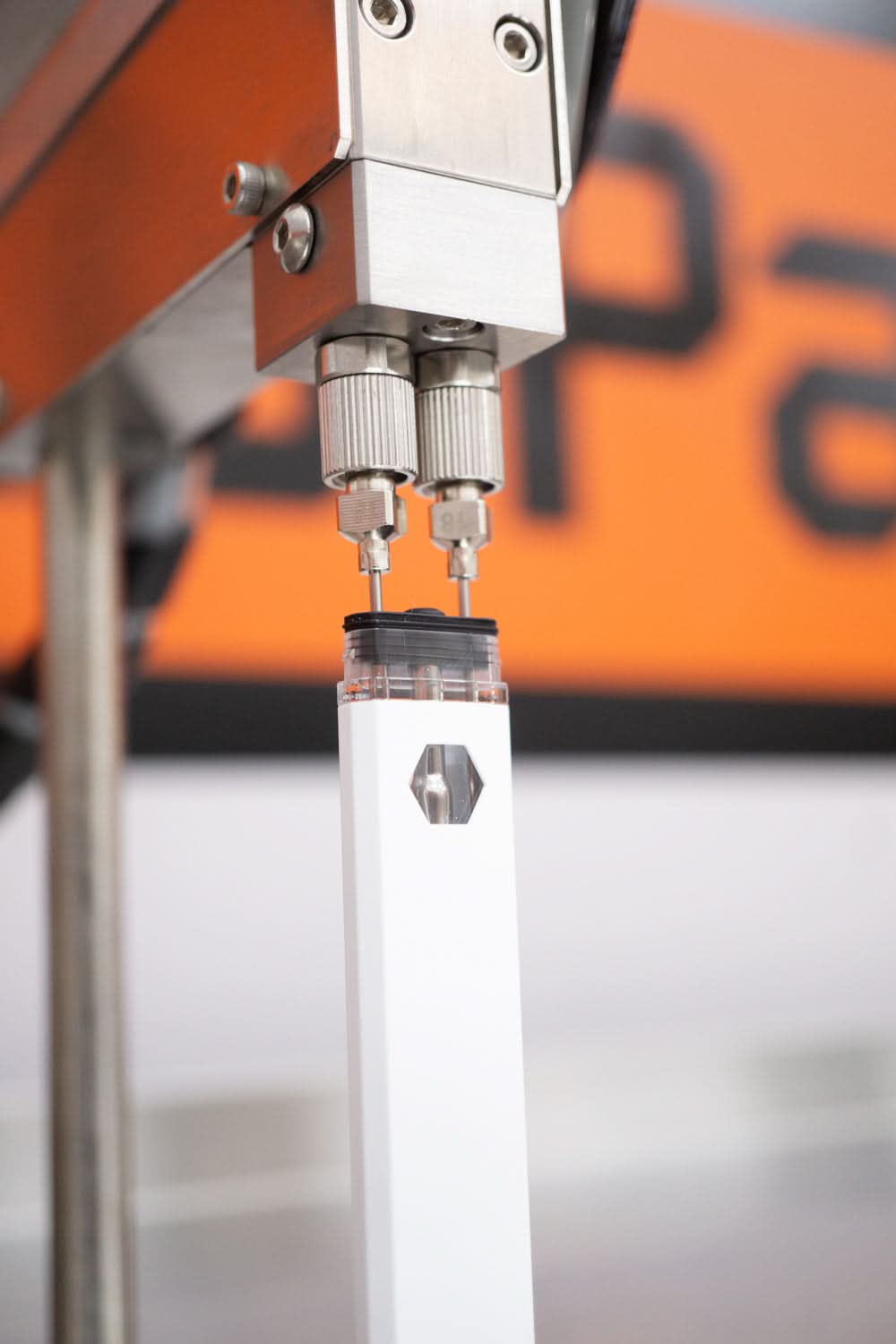

• Fills pods, disposables, carts, and luer lock syringes
• Internally Integrated Heating System
• Fill Volume from 0.1mL to 1.1mL *available in 3ml upon request*
• Low Maintenance Design
• Designed and Manufactured in the USA

C-SOLO SPECIFICATIONS:

• 0.1-1.1mL Filling Volume

OR

• 0.3-3.1mL Filling Volume
• Filling Accuracy +/- 0.02mL
• 500mL Capacity

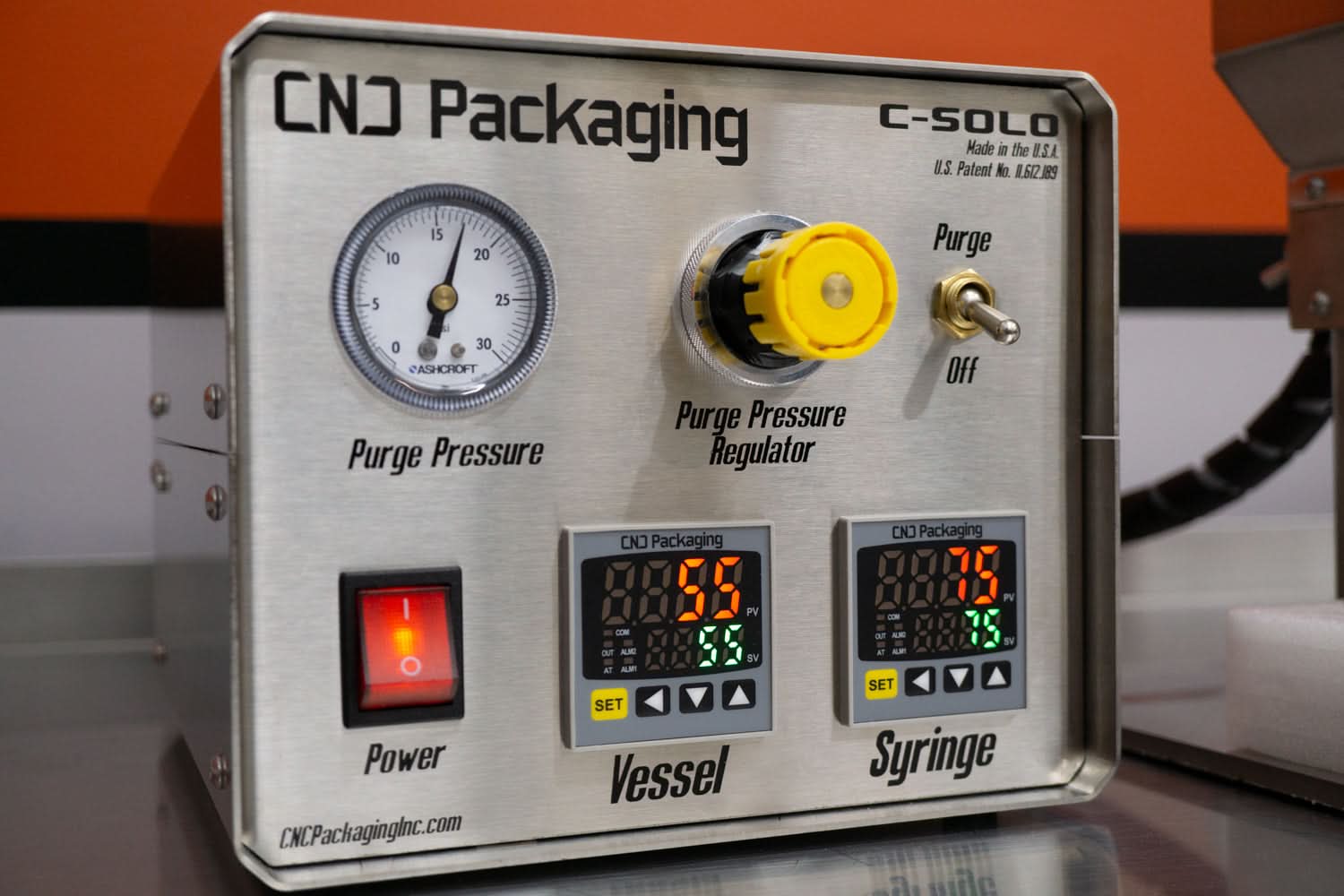

• 2 zone PID Temperature Control
• Vessel Temperature from 10° to 75° C
• Syringe Temperature from 10° to 90° C
• 0-30psi System Purge
• Up to 750 psi Injection Pressure

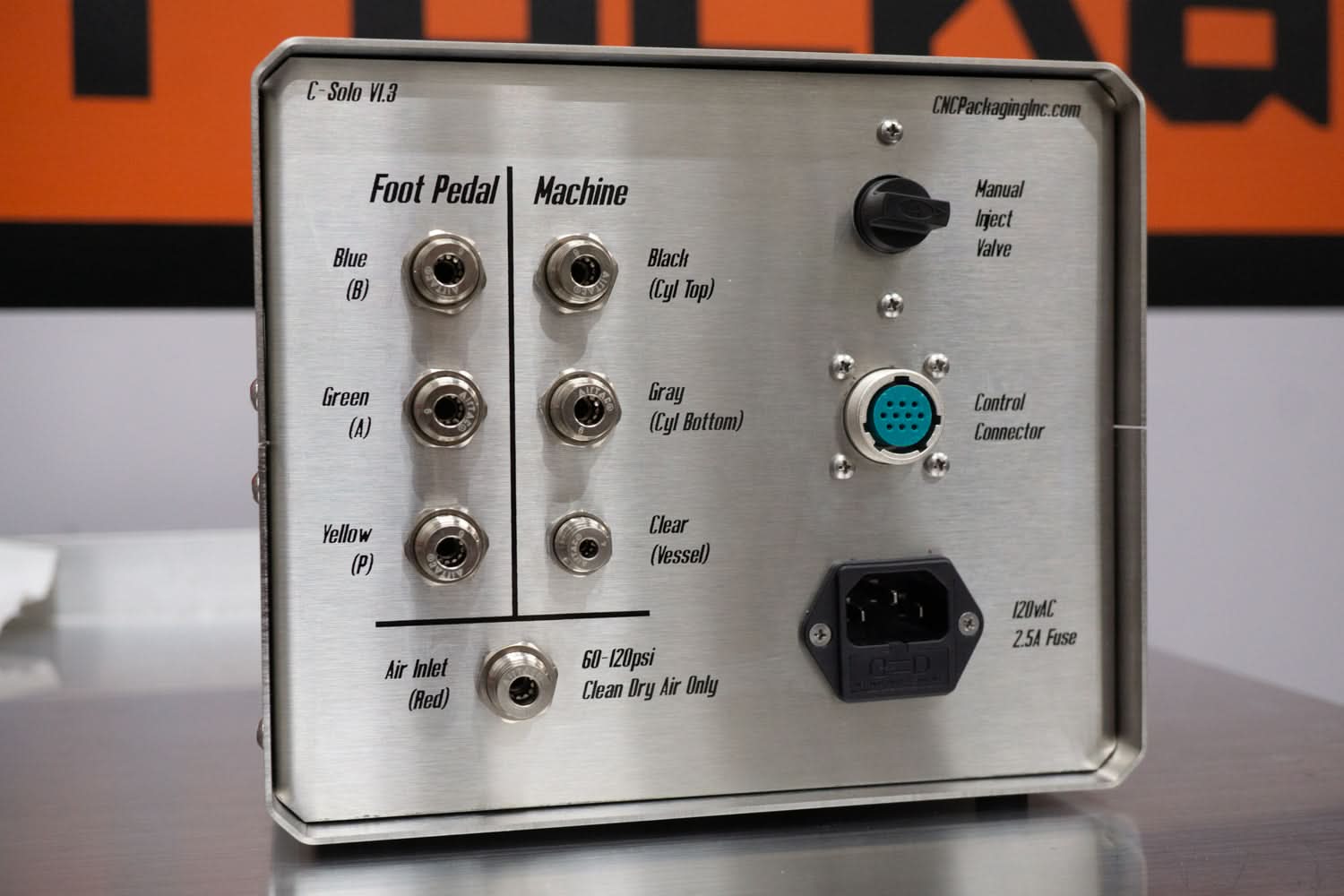

REQUIREMENTS:

• 120vAC 3A Single Phase
• Filtered, Dry and Oil Free Compressed Air, 80psi
• 20x20x24” Table Area (LxWxH) Plus Foot pedal
