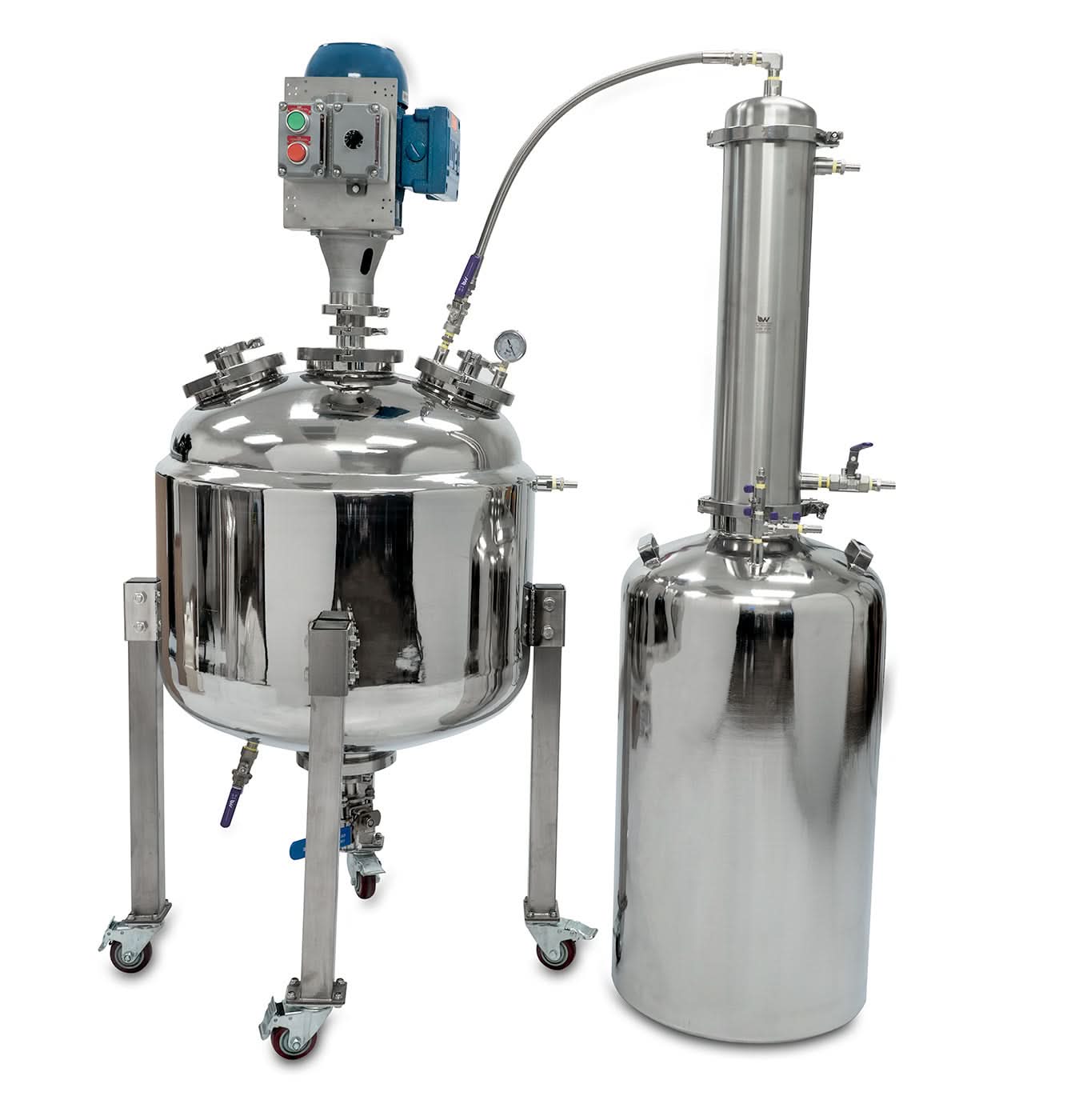

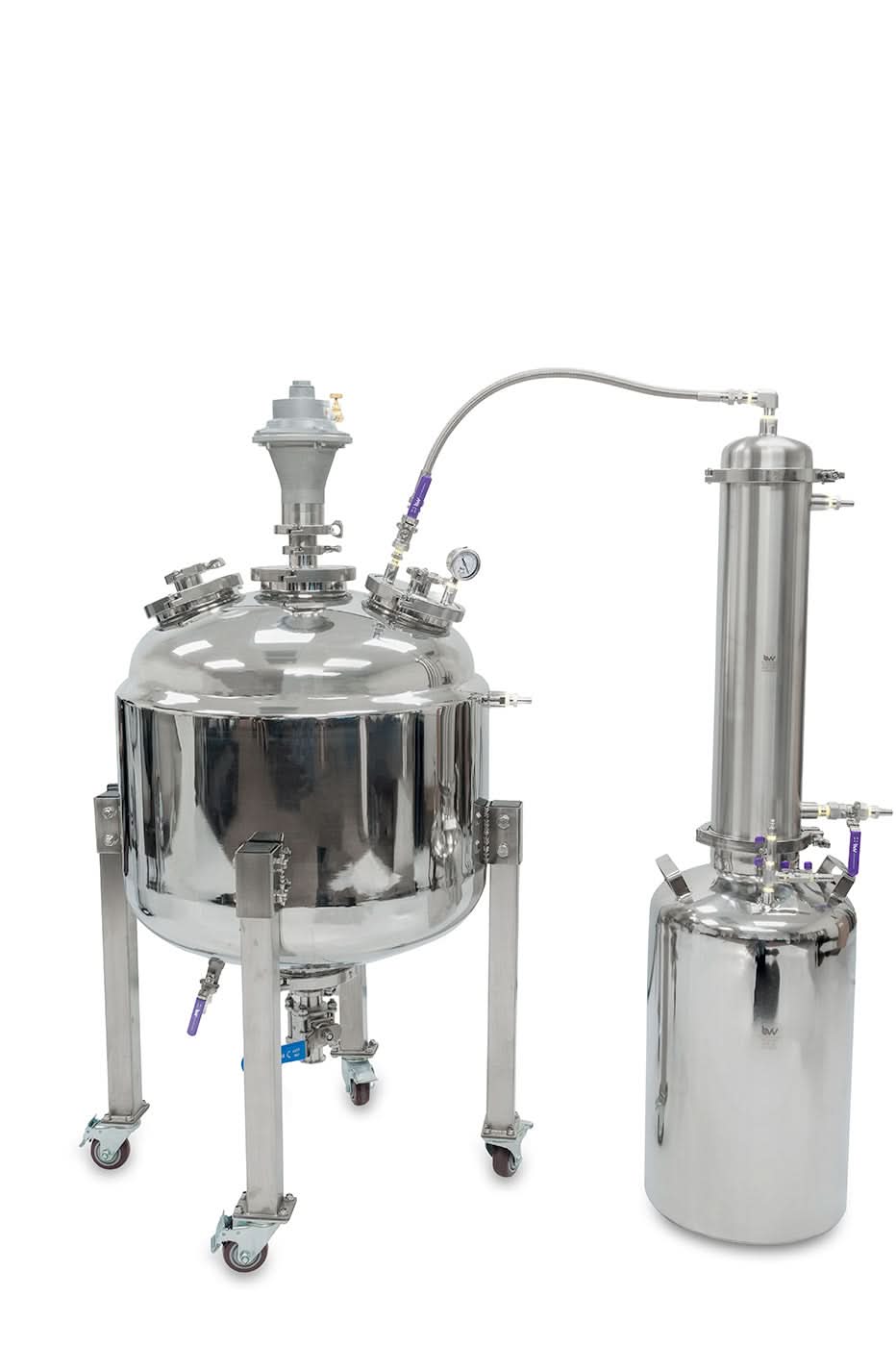

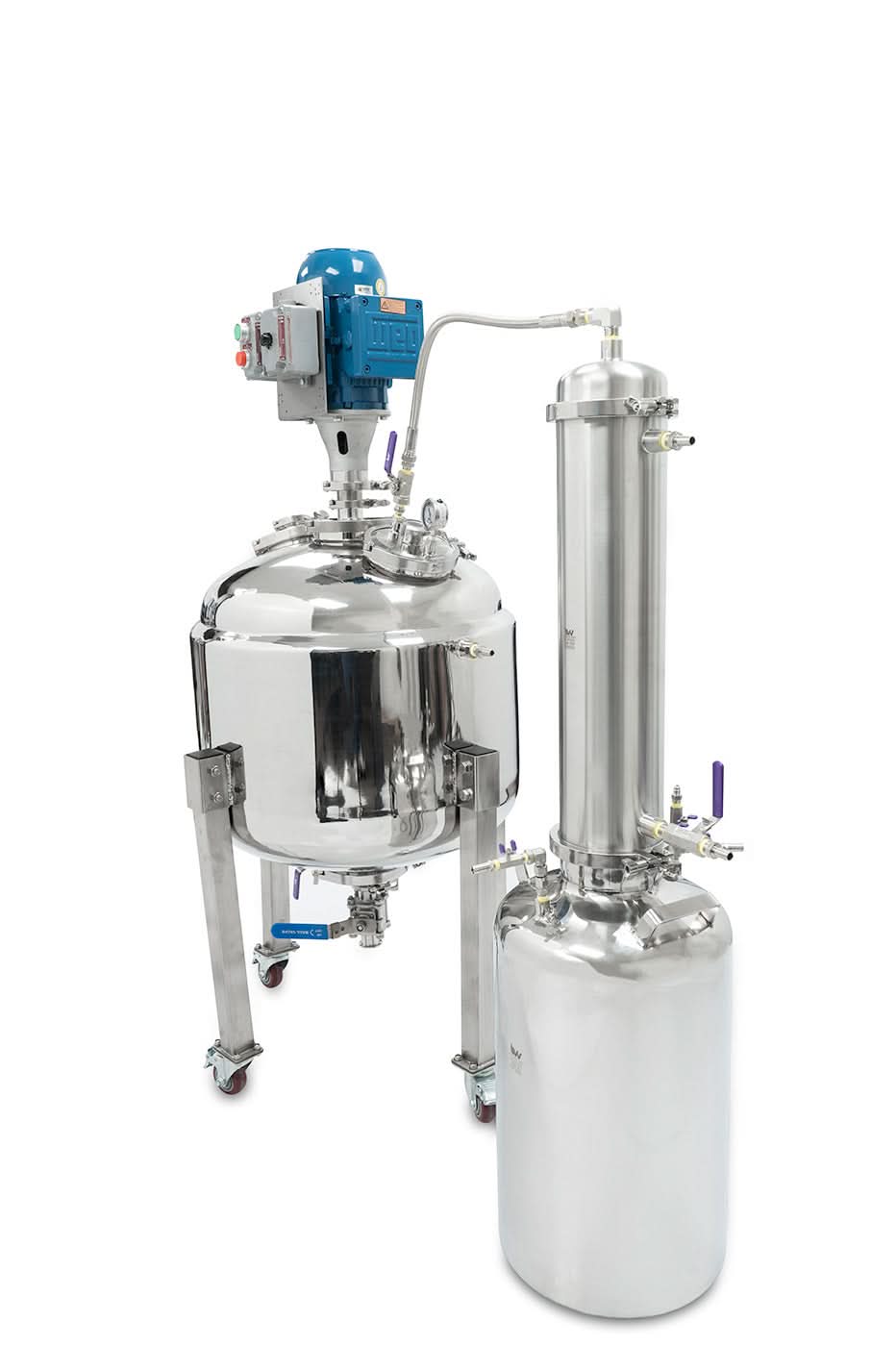

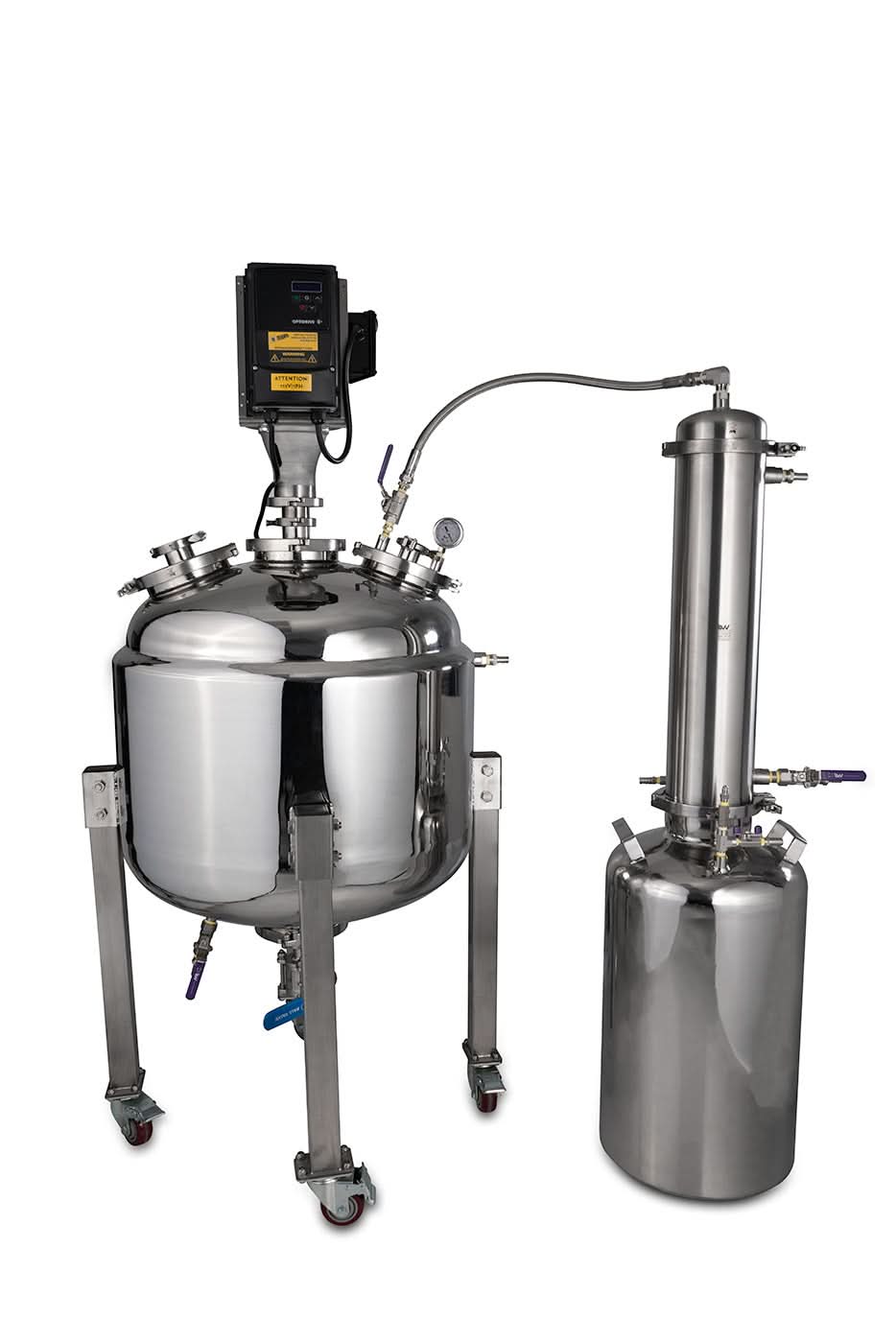

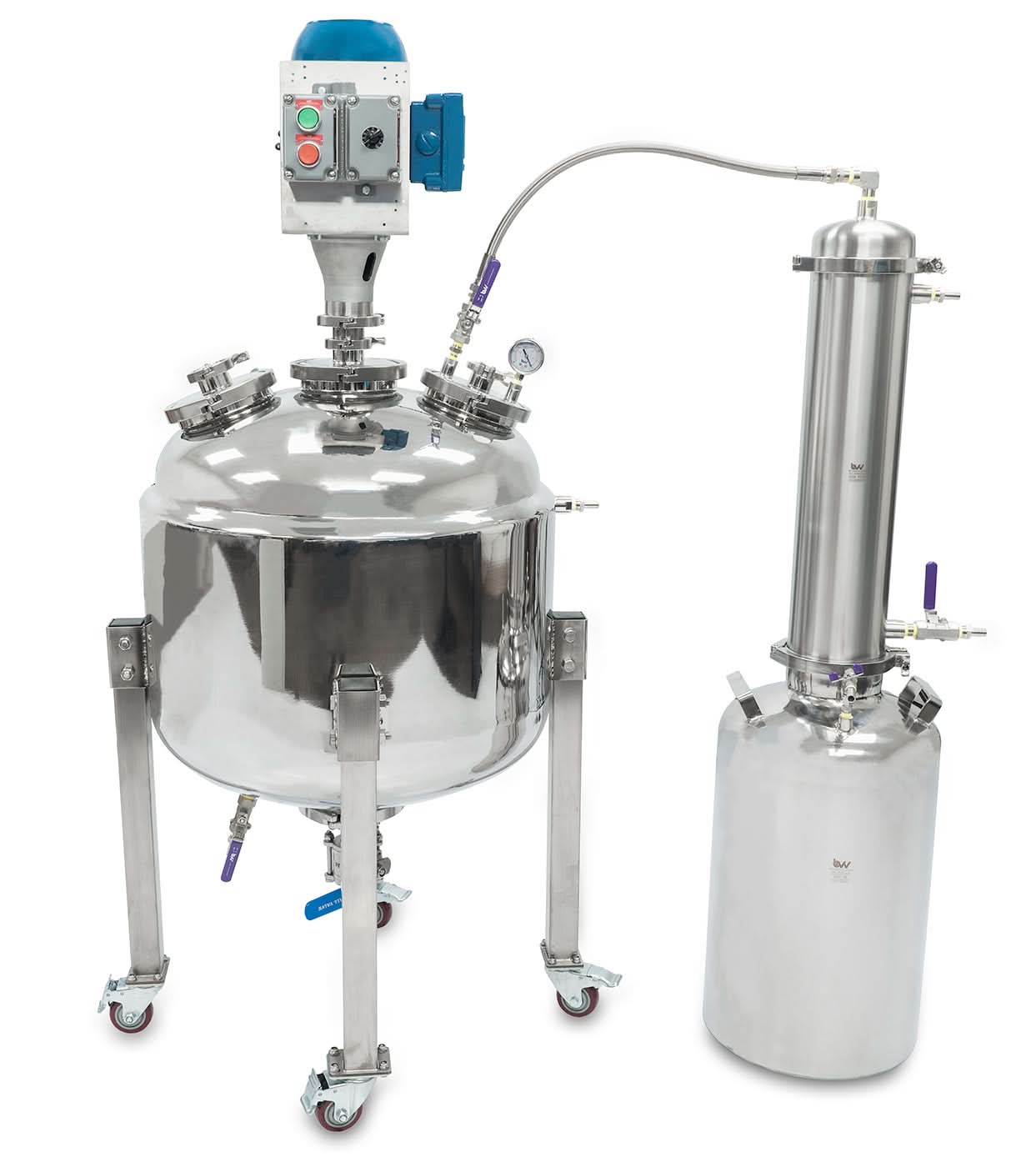

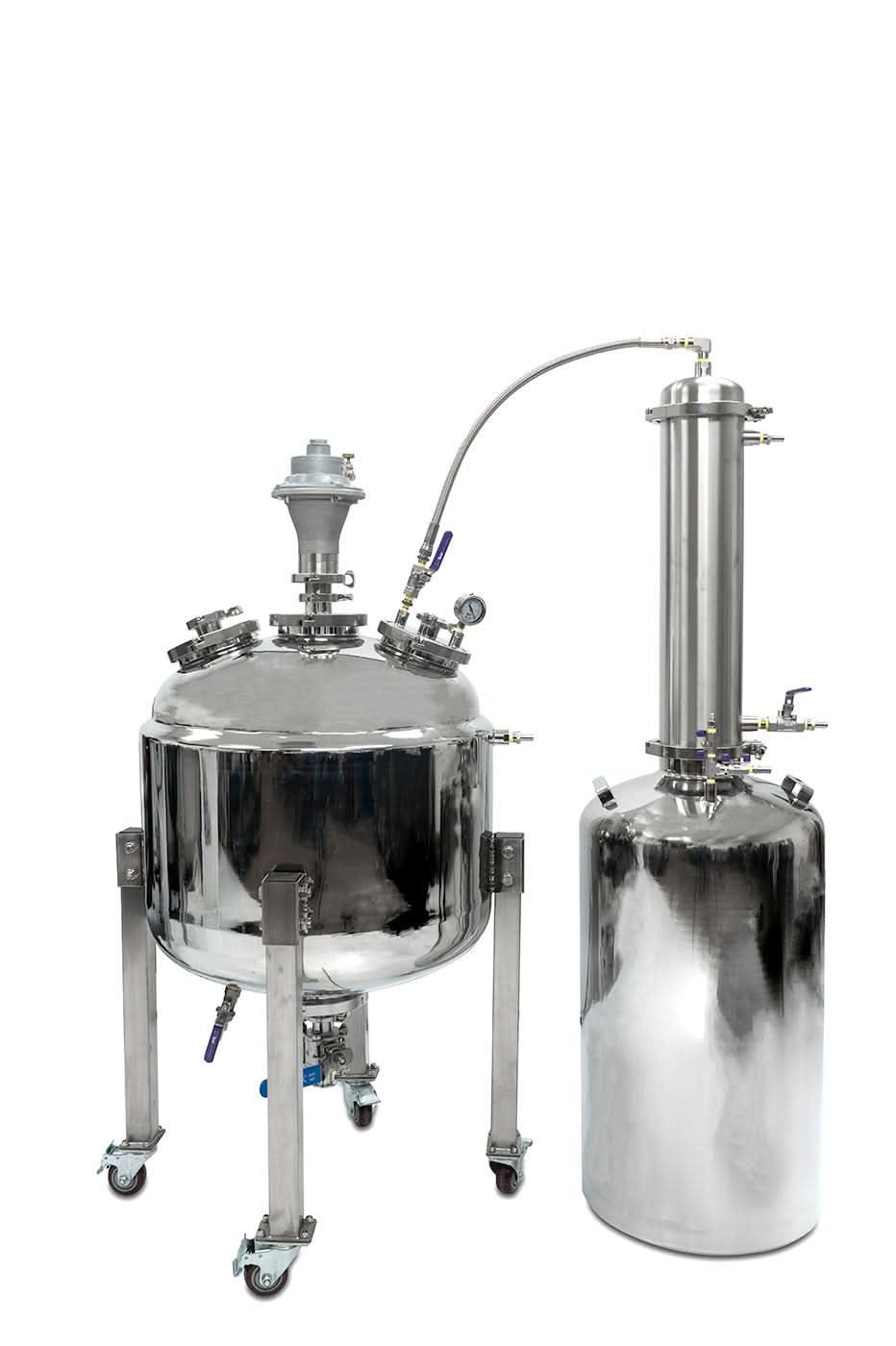

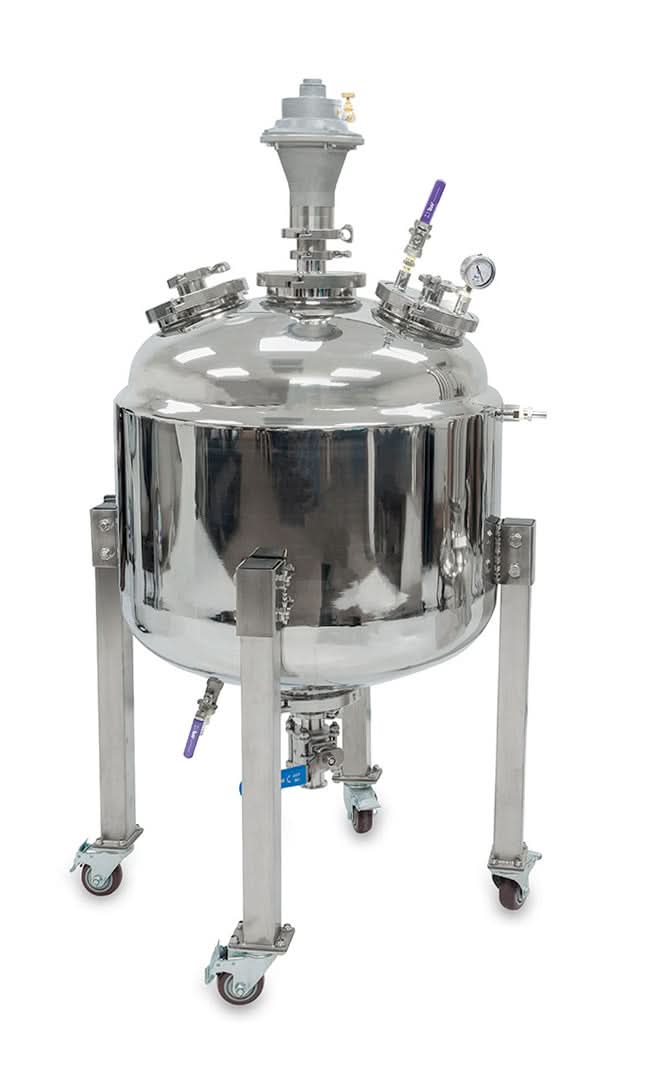

Jacketed Reactor with Motor and Collection Vessel

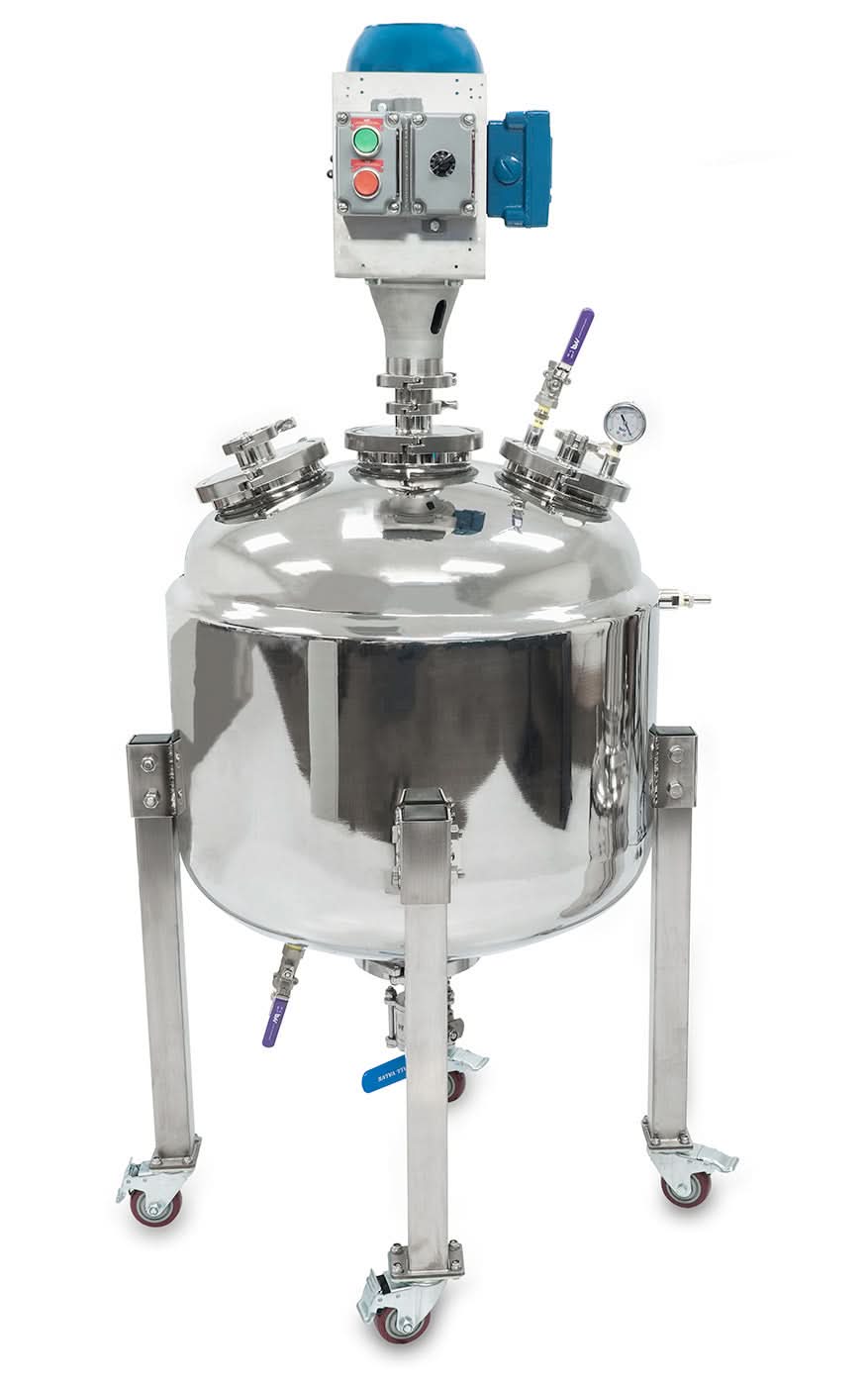

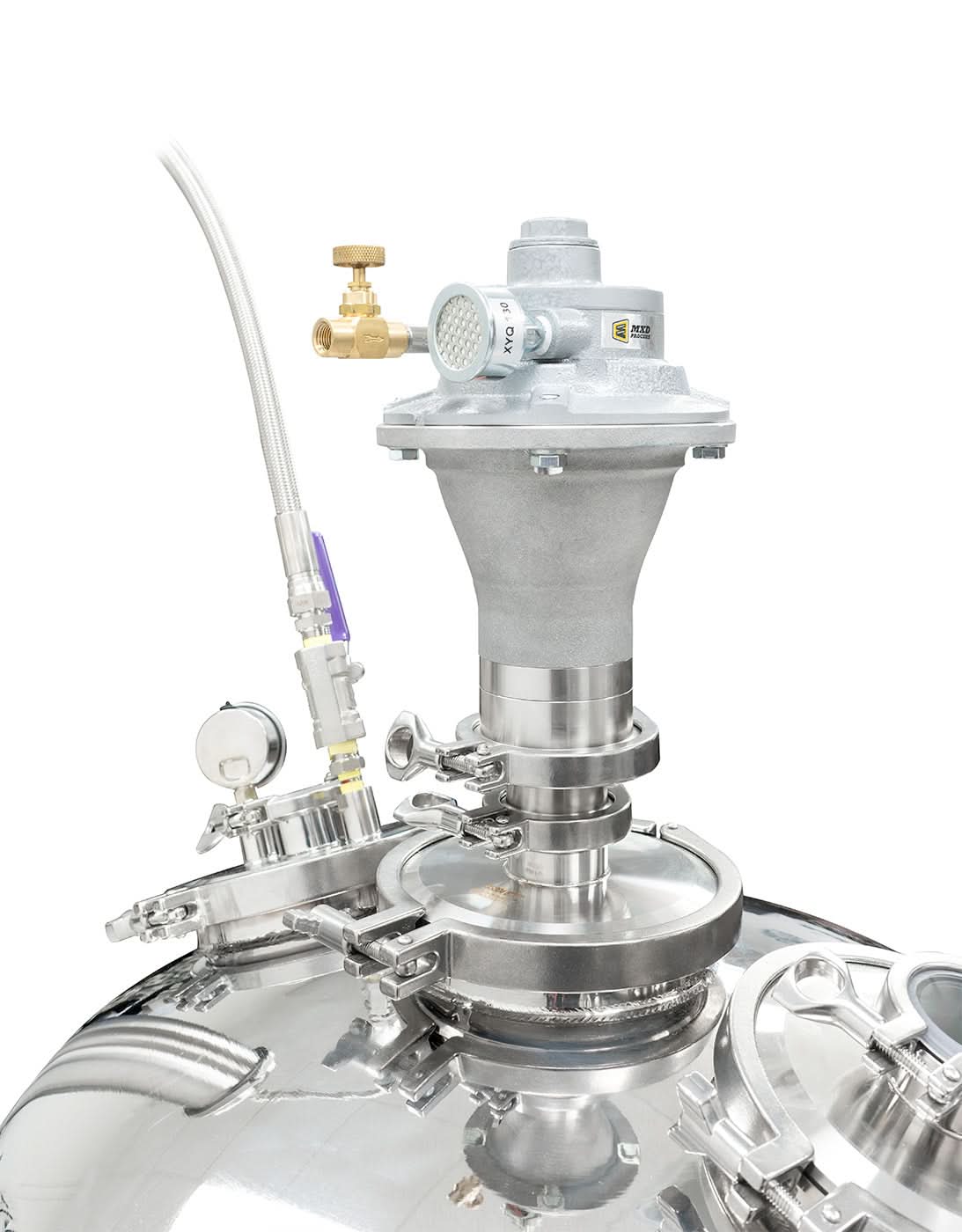

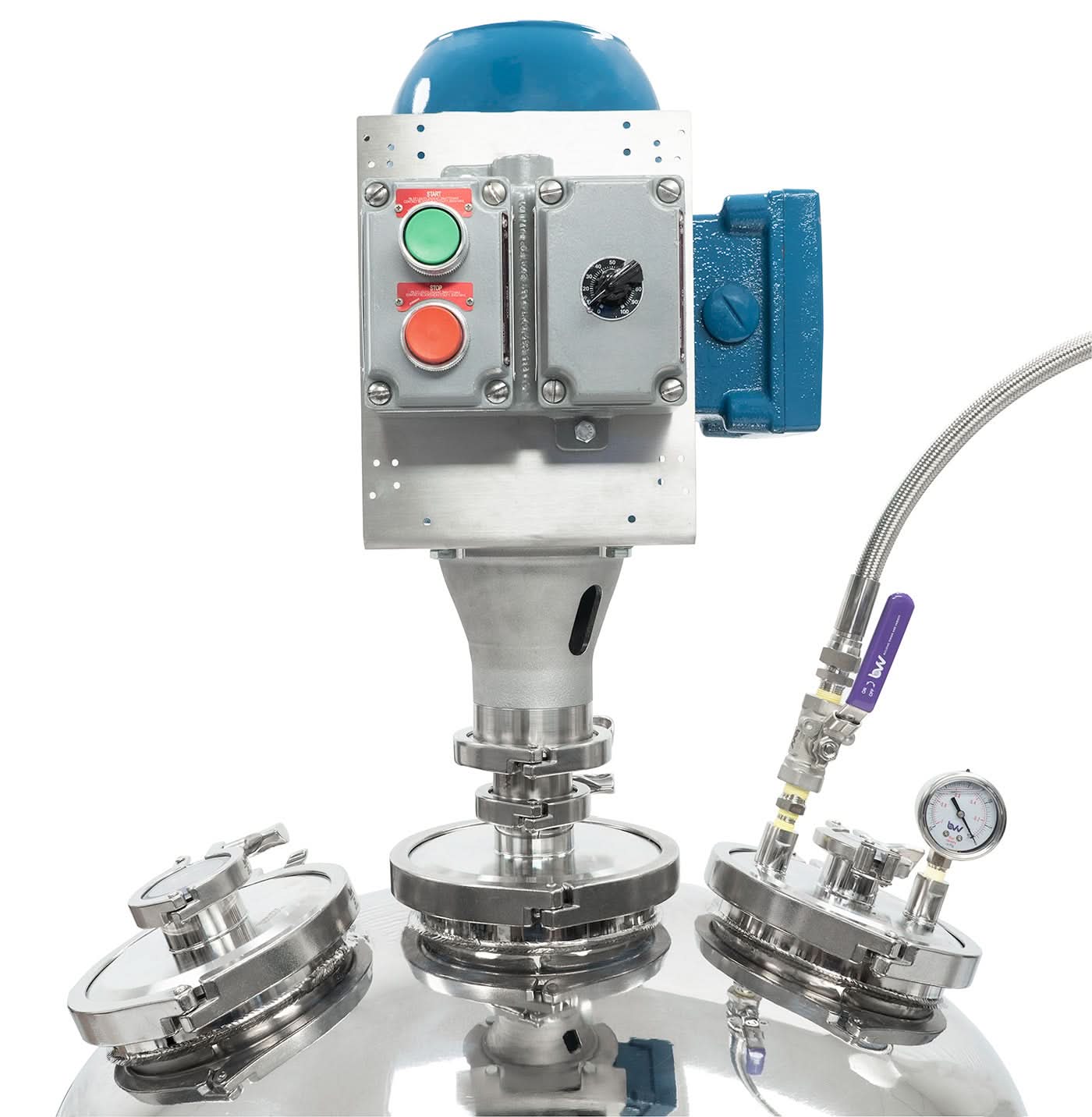

This jacketed reactor kit includes your choice of a C1D1 motor, standard motor, or non-electric air powered motor (air compressor required). If using an electric motor it will require wiring to the included speed controller.

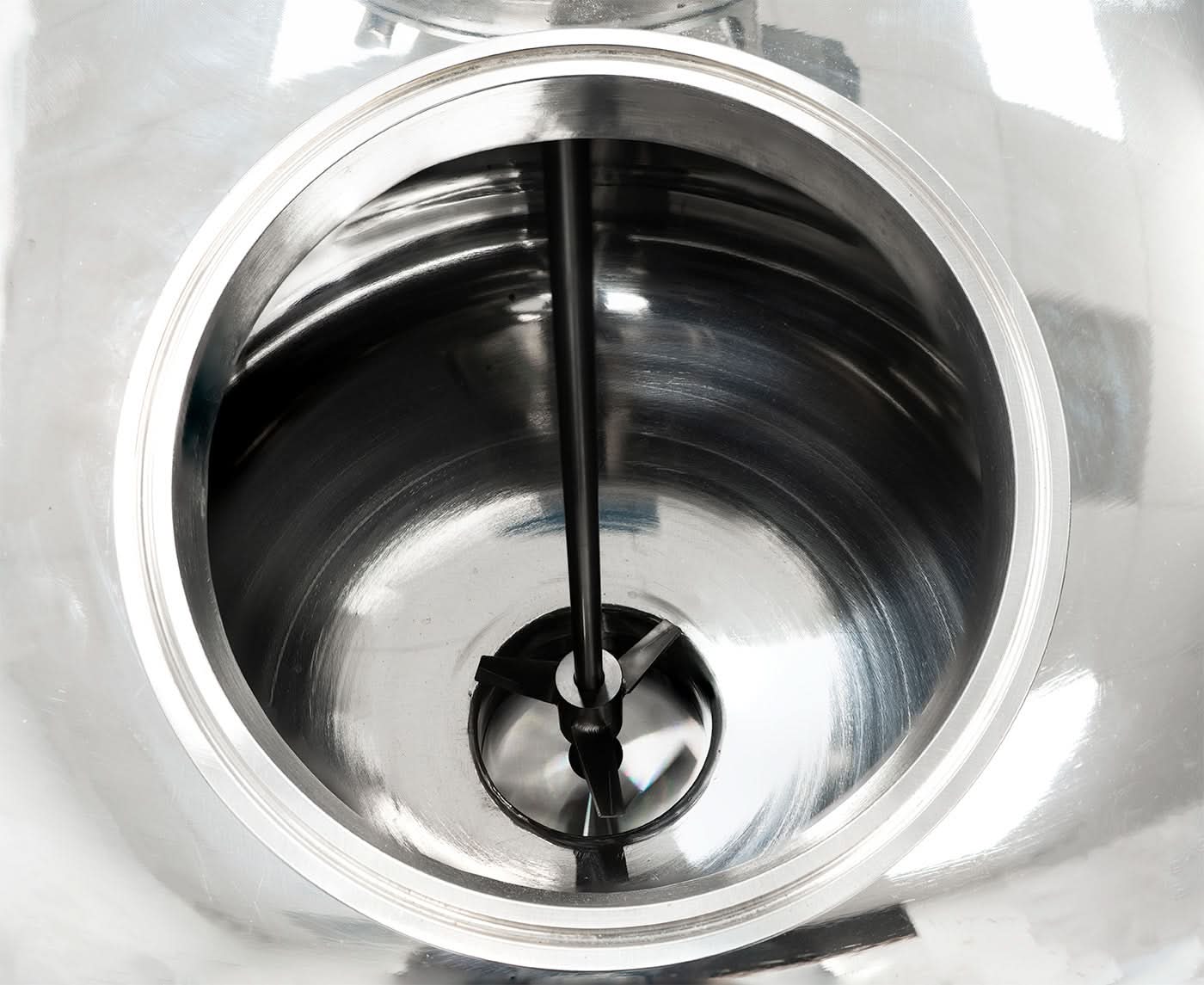

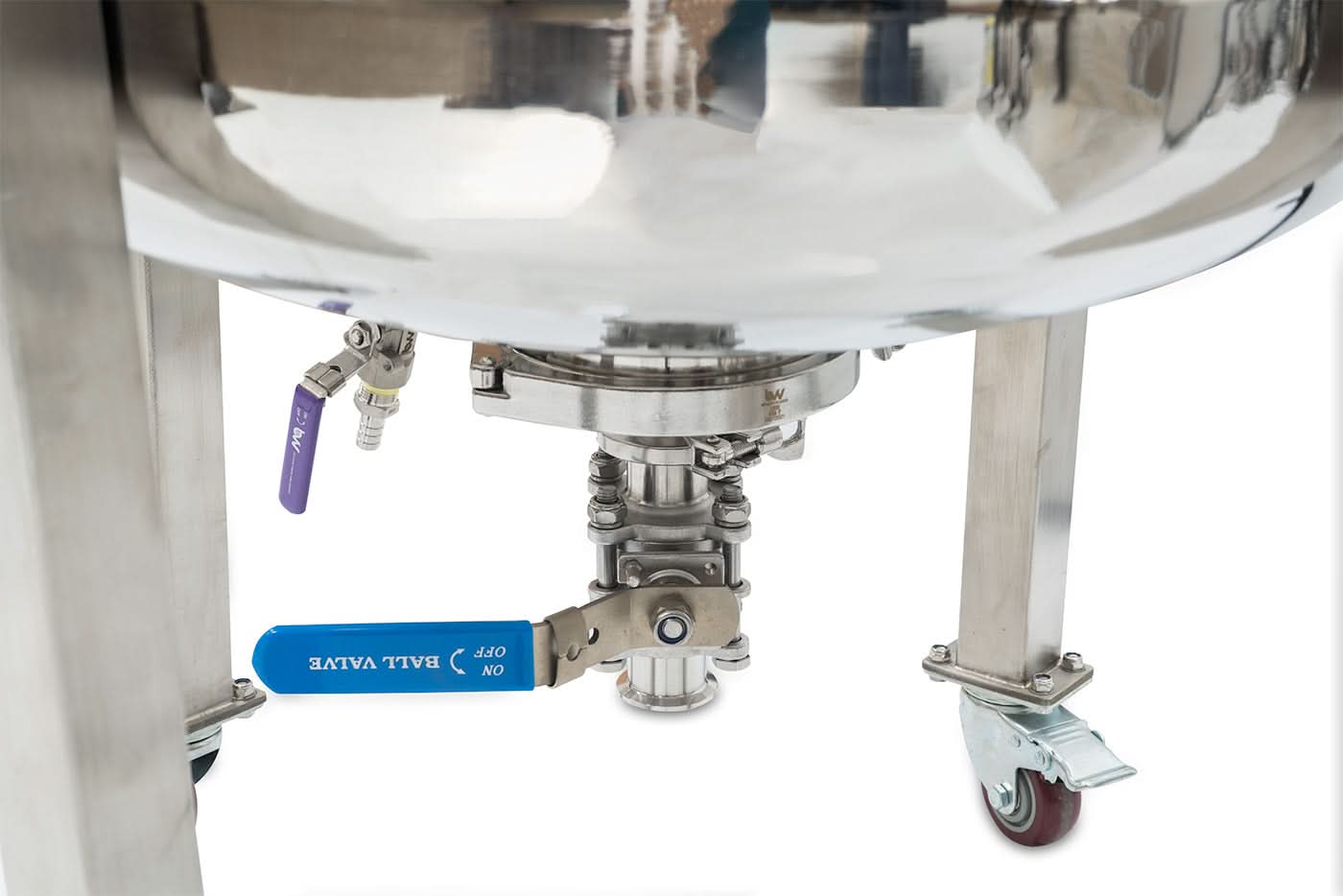

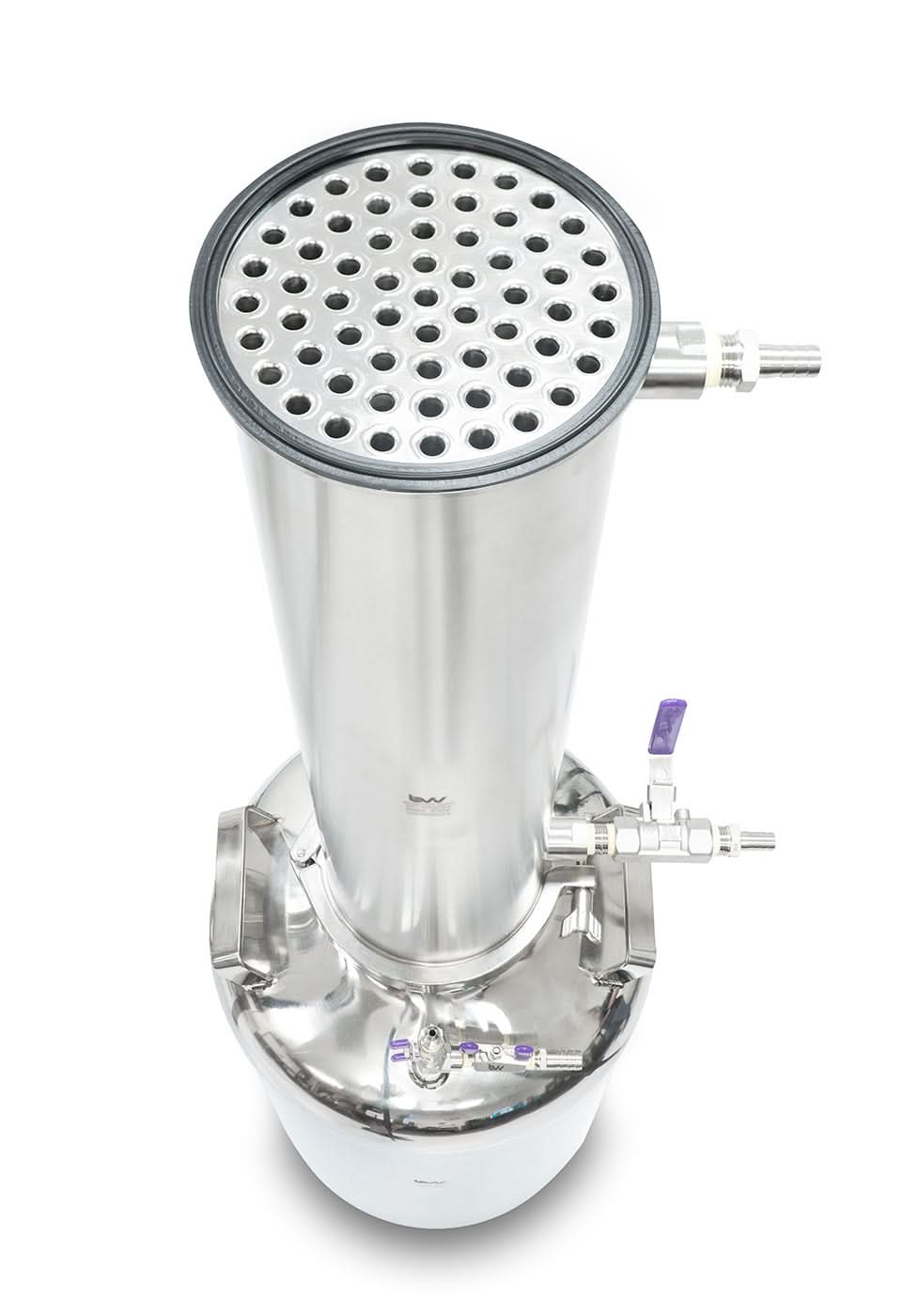

Using the jacketed reactor to heat your solution, use your reactor to mix your solutionĀ during the heating process. The condenser and collection vessel allow you to recover residual solvents up to 100L. The collection vessel includes a dip tube to empty the vessel and a 1/4" JIC flare to input pressure into the base to assist in emptying the tank through the dip tube.Ā
This system does NOT include a heater or chiller, please inquire with your account representative for recommendations based on your application! Jacket connections are 1/2" hose barbs.
Ā
Ā
| Mixer Type | Pneumatic | Electric | C1D1 Electric |
|---|---|---|---|
| Horsepower | 3/4 HP | 3/4 HP | 1 HP |
| Power | Air Compressor | 120V | 220V 1ph |
| Reactor Size | 150L | ||
| Collection Size | 50L / 100L | ||
| Jacket Connections | 1/2" Hose Barb | ||
