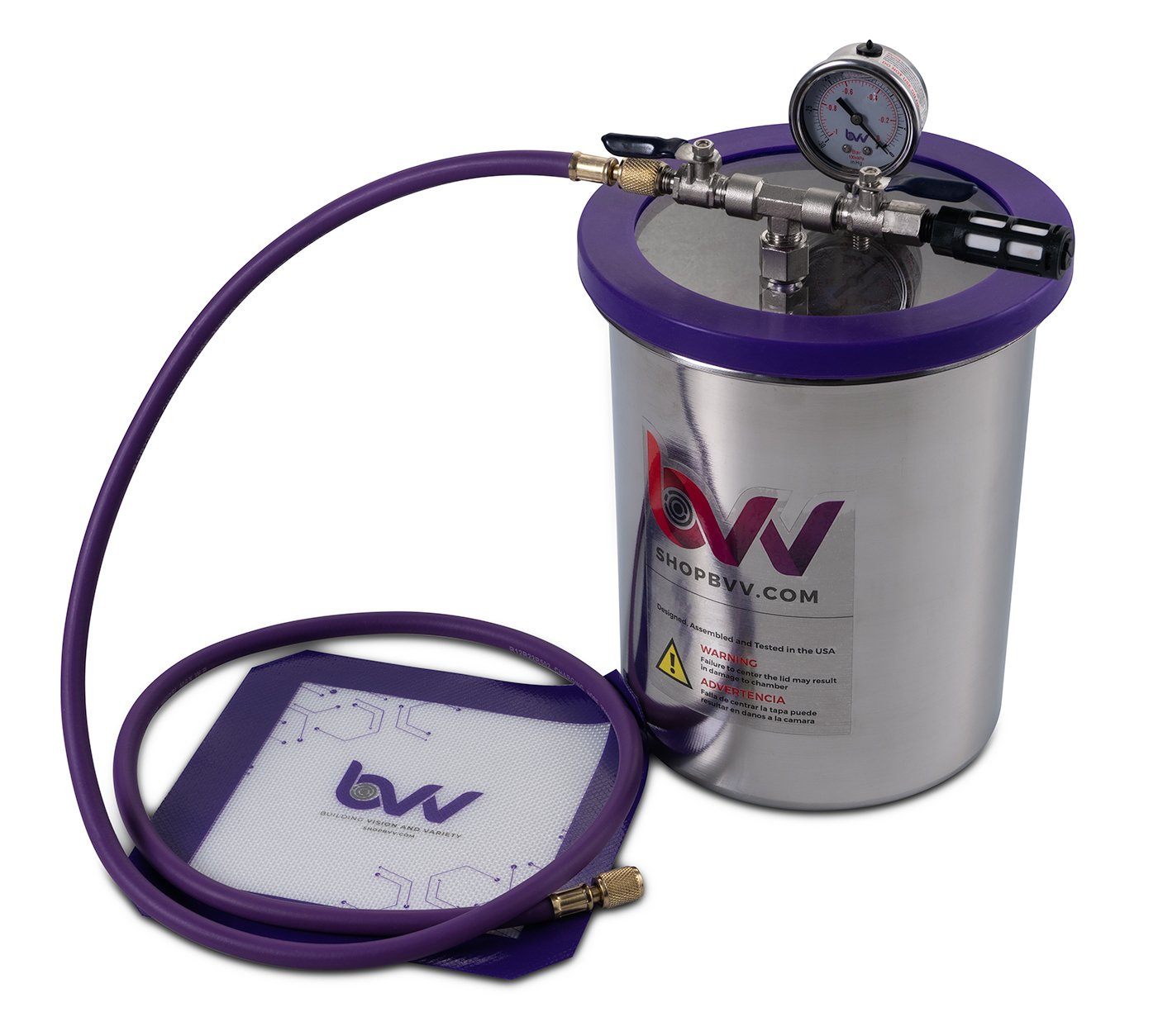

Best Value Vacs 1.5 Gallon Tall Stainless Steel Vacuum Chamber - W/GLASS LID

Power Lab Supply 1SKU: BVV15GT-G

Price:
Sale price$113.00 USD
Description

Best Value Vacs 1.5 Gallon Tall Stainless Steel Vacuum Chamber - W/GLASS LIDĀ

Ā

This is a complete BestValueVacĀ® vacuum chamber setup designed built and 100% tested in Naperville, Illinois. With our unique patent pending gasket design (Patent #9475627) this chamber is sure to last 10,000 uses with proper care and maintenance. The gasket itself is reversible (doubling the life of our system) allowing customers to instantly take it off and flip it over. Every chamber is tested prior to shipping to lose no more than 2.5Hg/24hrs.

Ā

-Please Refer to these charts for vacuum specifications at altitude and conversions:

Ā

Ā

    Key Features:
    • High Strength Stainless Steel Chamber
    • Highly Durable and Reversible Silicone Gasket

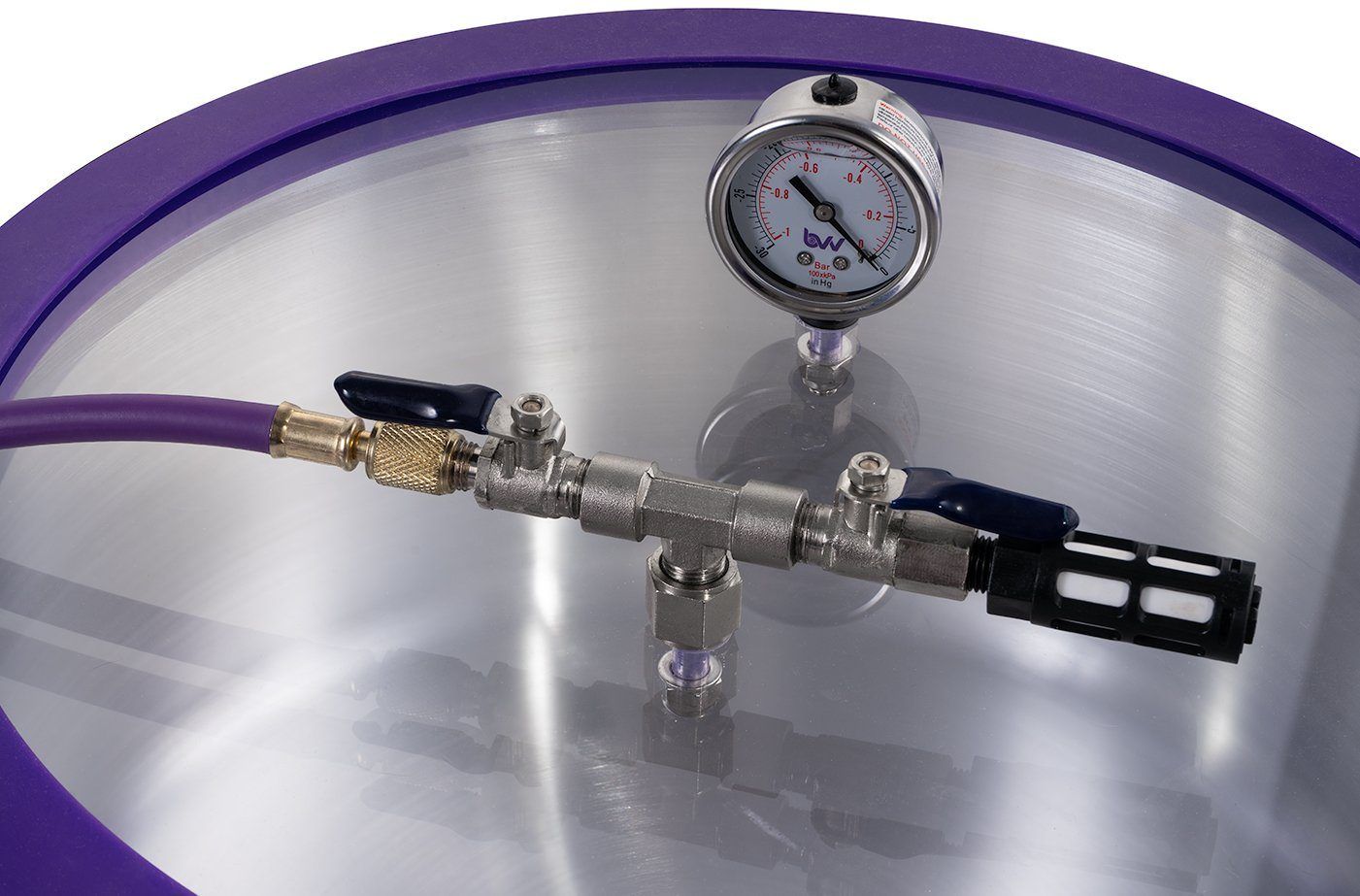

    • Glycerin filled vacuum gauge
    • User-friendly vacuum connections that fit most vacuum pumps on the market
    • 50 Micron Air filter for reducing airborne contaminants when releasing the vacuum
    • Silicone vacuum pad
    • 5' of vacuum rated HVAC hose to pull a vacuum.

    Ā


    Specification
    Chamber Material 304 - 2B Stainless Steel
    Gasket Material Silicone
    Lid Material Glass
    Internal Dimensions (ID) 8-5/8" Tall x 7-1/8" Diameter
    Vacuum Gauge (Glycerin Filled) InHG (0)-(-30)
    Manifold Connections 1/4" SAE and 1/4" FNPT
    Temperature Rating 150Ā°F (65Ā°C)

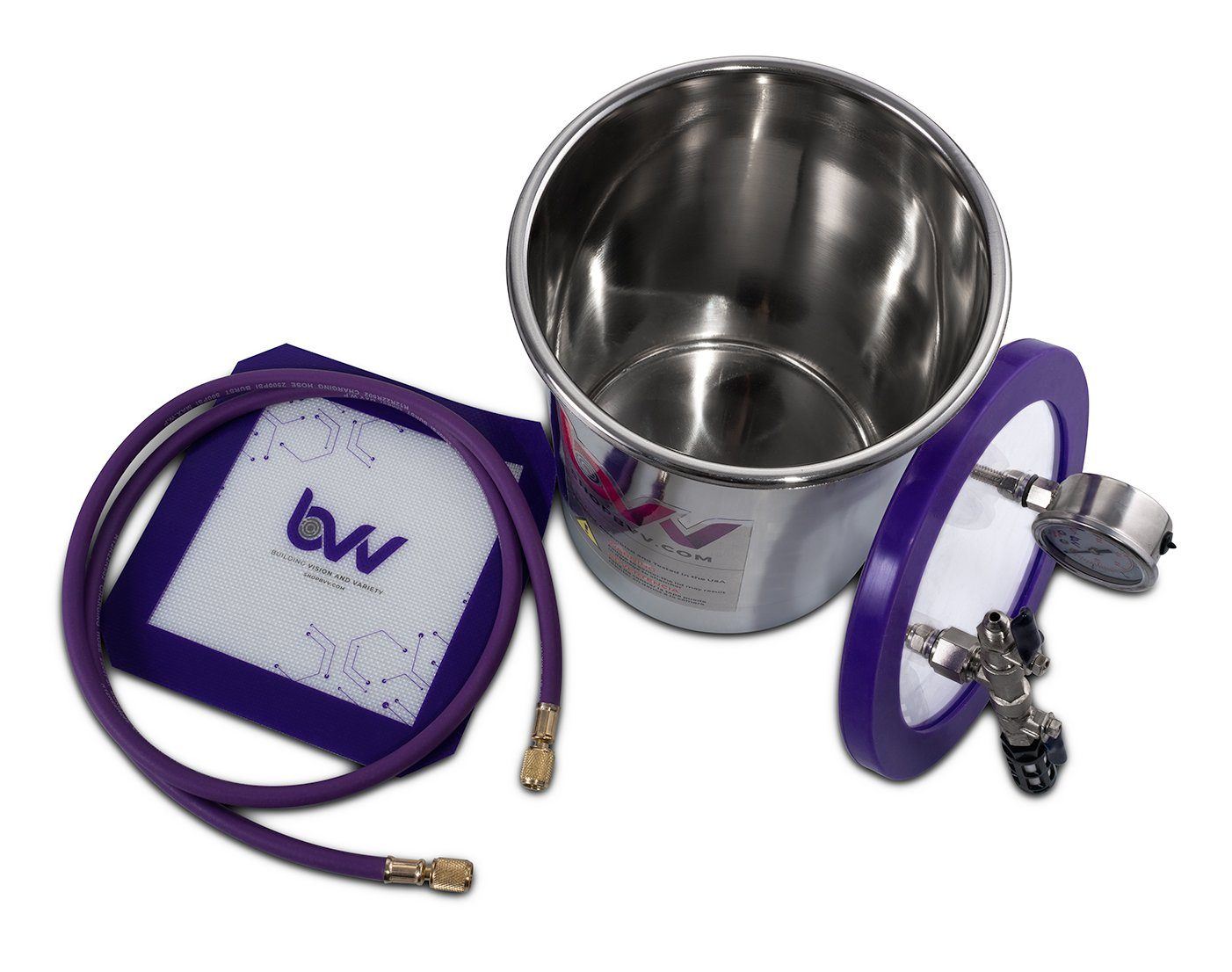

    Additional Included Items
    • 5'Ā Purple Vacuum Rated HVAC Hose
    • Platinum Cured Silicone Pad
    • Black 50 Micro Air Filter

    Ā

    Ā

    Compatibility Explanation:

    • BestValueVacĀ®Ā Chambers are not compatible with stabilization resin (i.e. Cactus Juiceā„¢, Gator Venomā„¢, Minwaxā„¢ etc.), alcohol, ethanol, acetone and acrylic based monomers or polymers.The lid may only be cleaned with soapy water. DOES NOT APPLY TO GLASS LID VERSIONĀ
    • ShatterVacĀ®Ā chambers are not compatible with stabilization resin (i.e. Cactus Juiceā„¢, Gator Venomā„¢, Minwaxā„¢ etc.), acetone, acrylic based monomers or polymers. The lid may be cleaned with soapy water and low strength cleaning agents.
    • GlassVacĀ®Ā chambers are compatible with all solvents and stabilization resins. We only recommend and warranty GlassVacĀ® chambers for resin infusion and wood stabilization.The lid may be cleaned with any solvent or cleaning agent.

    Ā

    See FAQ at the top for product safety warnings.



    Pump Warranty Information:



    Customers using solvents such as stabilization resins (MinWaxā„¢, Gator Venomā„¢ etc.), alcohol and other polar solvents must use the vacuum pumps in conjunctionĀ with a cold trap for evacuations in excess of 5 minutes. (Exludes Cactus Juiceā„¢)

    • If the consumer is using the pump for prolonged periods of time exceeding 5 minutesĀ we require that a cold trap is used or the pump warranty is void.
    • These stabilization resins have the ability to break down the internal components of the pump that are plastic resulting in a seized motorĀ voiding all warranties.
    • When evacuation exceeds 5 minutes these solvents begin to vaporize and then re-condense in the vacuum pump reservoir. Once enough solvent re-condenses in the pump displacing the oil the plastic internal components may begin to warp, melt or seize. The use of a cold trap will condense the vaporsĀ priorĀ to making their way to the vacuum pump preventing pump damage due to excessive use. Furthermore, Minwax Wood Hardenerā„¢ is not to be used with any vacuum pumps,Ā EVER.Ā (A seized motor will result within the first use.)
    • To prevent these issues from happening to your process, change the Oil after each vacuum pump use, Even if the use time is only 5min.
