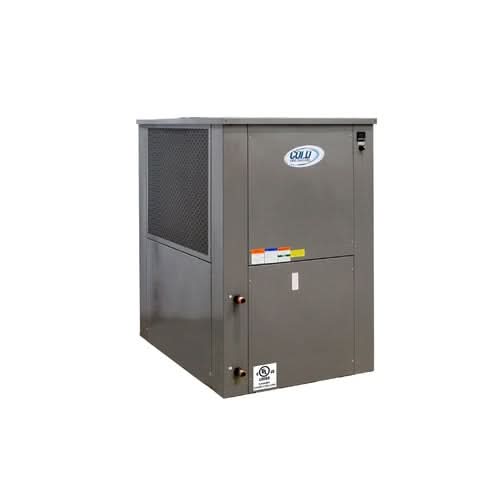

BVV 5 Ton Low Temp Glycol Chiller

Discover the Cold Shot Chillers® advantage.  Crafted for reliability and user-friendly operation,  These portable air-cooled chillers are proudly manufactured in the USA, utilizing proven components and backed by round-the-clock support from a network of technicians in the US.

Engineered for a lifetime of service, these chillers ensure precise temperature control. Robust compressors paired with a generous reservoir deliver impressive cooling capacities, keeping your operations smooth even during the hottest months.

Choose Cold Shot Chillers® for a reliable, long-lasting cooling solution.

Key Features:

1. Integrated Controls:

   • PLC controlled with self-diagnostics.
   • WIFI/LAN/LTE connectivity for predictive maintenance through Guardian™ app.
   • Email/text notifications for predictive maintenance milestones, technical alarms, fault codes, and alerts.

2. Quality Construction:

   • Copeland Scroll technology for efficiency.
   • Stainless Steel/Copper Braze Plate for durability.
   • External Brass Service Valves for easy maintenance.
   • Large Copper Condensing Coil with Aluminum Fins or Micro Channel for effective cooling.
   • Powder-Coated, Heavy-Gauge Steel Cabinet for rugged protection.

3. Additional Specifications:

   • Rugged Stainless Steel Centrifugal Pumps for high flow and dependability.
   • Oversized Magnetic Contactors for longevity.
   • Lifetime Warranty for peace of mind.

Benefits:

• Long Life – Dependable – Economical to Operate.
• Compact Efficiency for space-saving installations.
• Easy Maintenance and Repair for user-friendly operation.
• Rugged Protection while allowing for easy maintenance and wash down.
• High Flow – Long Life – Dependable performance.
• Rugged Dependability with a Lifetime Warranty.

Specifications:

• 5 tons (60,000 BTU/17.5KW)
• 25 Gallon Stainless Steel Reservoir Tank with Lid
• This Low Temp Model has a leaving fluid temperature range of 20F-70F/-6C-21C.
• Rated to 0°F ambient temperature*
• 1” MNPT Inlet and Outlet
• Stainless Steel 1 HP Centrifugal Pump outputs 30 GPM at 30 PSI
• Single Phase (230V/1P/60HZ/47.2A) and Three Phase (230V/3P/60HZ/35.1A) power available
• Casters Included (two swivel locking and two fixed)
• Large Reservoir easily filled from outside, and level indicated with sight gauge
• 1-Year Parts Warranty
• 5-Year Warranty on Compressor
• Welded steel powder-coated frame and full metal cabinet with copper piping connections
• Digital Temperature controller with Self-Diagnostic control system
• Rugged Protection, while still easy to maintain and Wash Down
• High Flow Pump, Long Life, Dependable units!
• Stainless Steel Plate Evaporators Vacuum brazed with Copper
• Dependable Copeland Welded hermetic Scroll Compressors
• 50.5"x38.5"x57"
• 500 lb
• UL Certified

Please Note:  This unit REQUIRES  a qualified electrician to wire the necessary plug to the cord.

*Please Note: This unit is rated for indoor use only. If you require a chiller rated for outdoor use, please contact our customer service department to request a special order. Cold Shot Chillers are available suitable for outdoor use with ambient temperature ratings as low as -20F.
