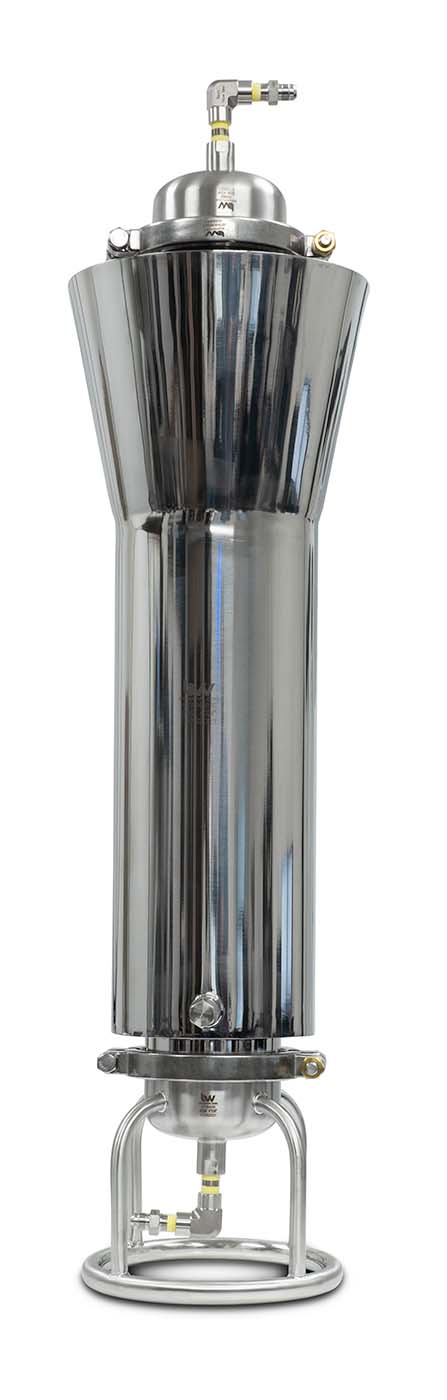

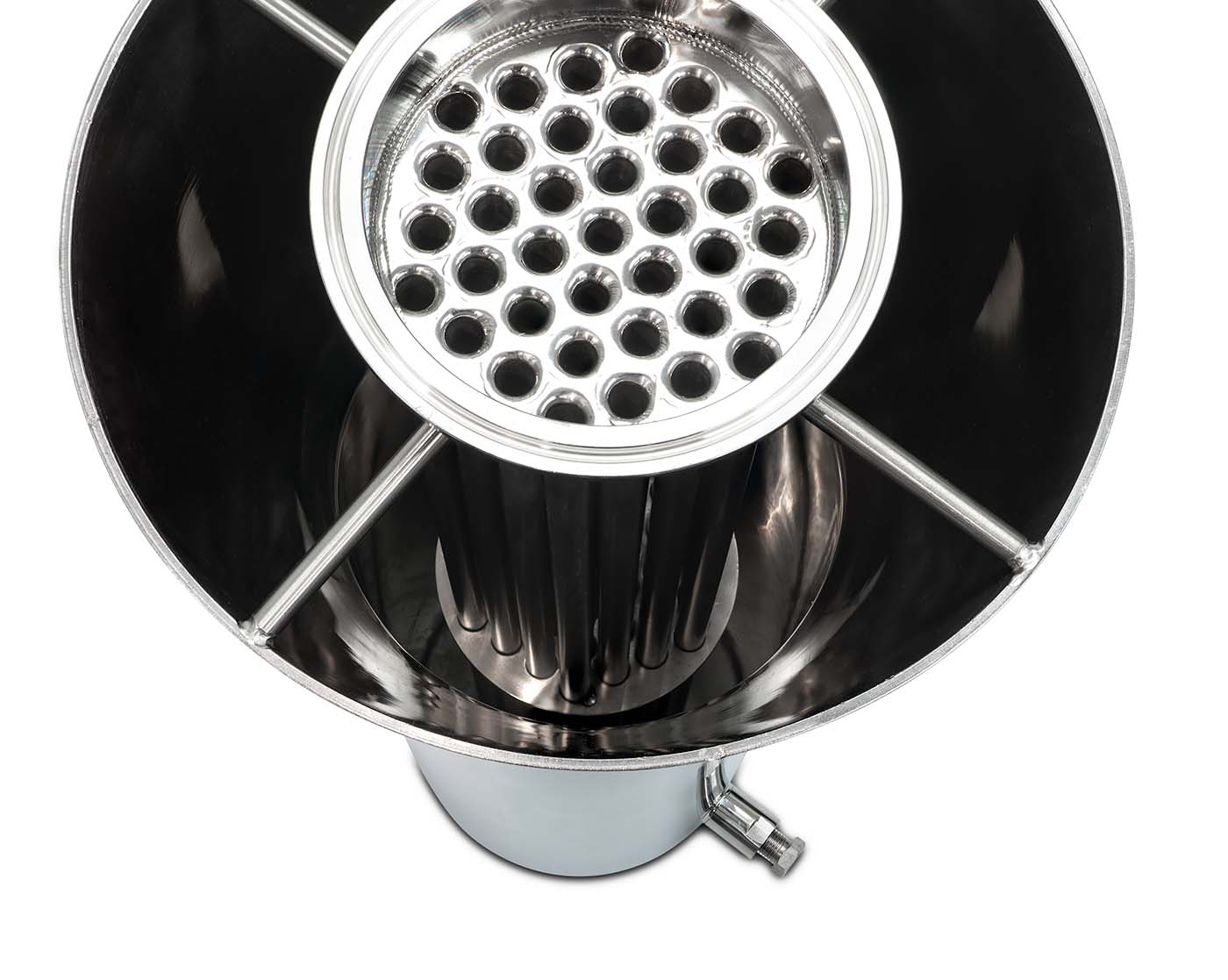

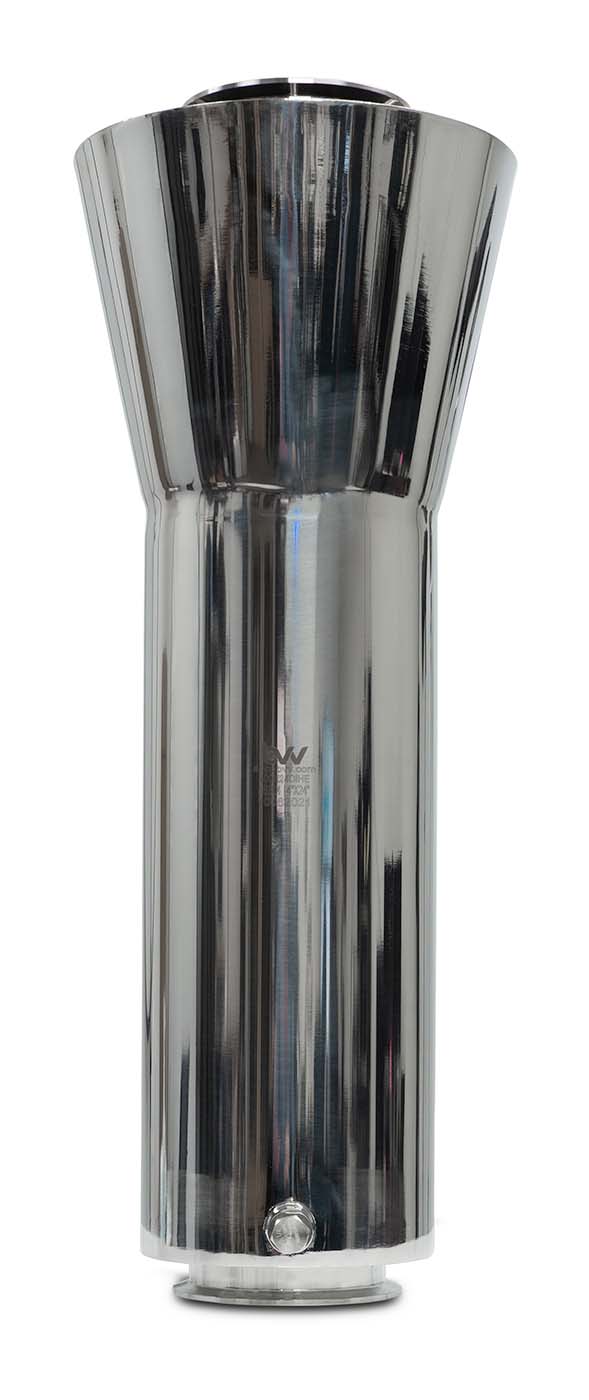

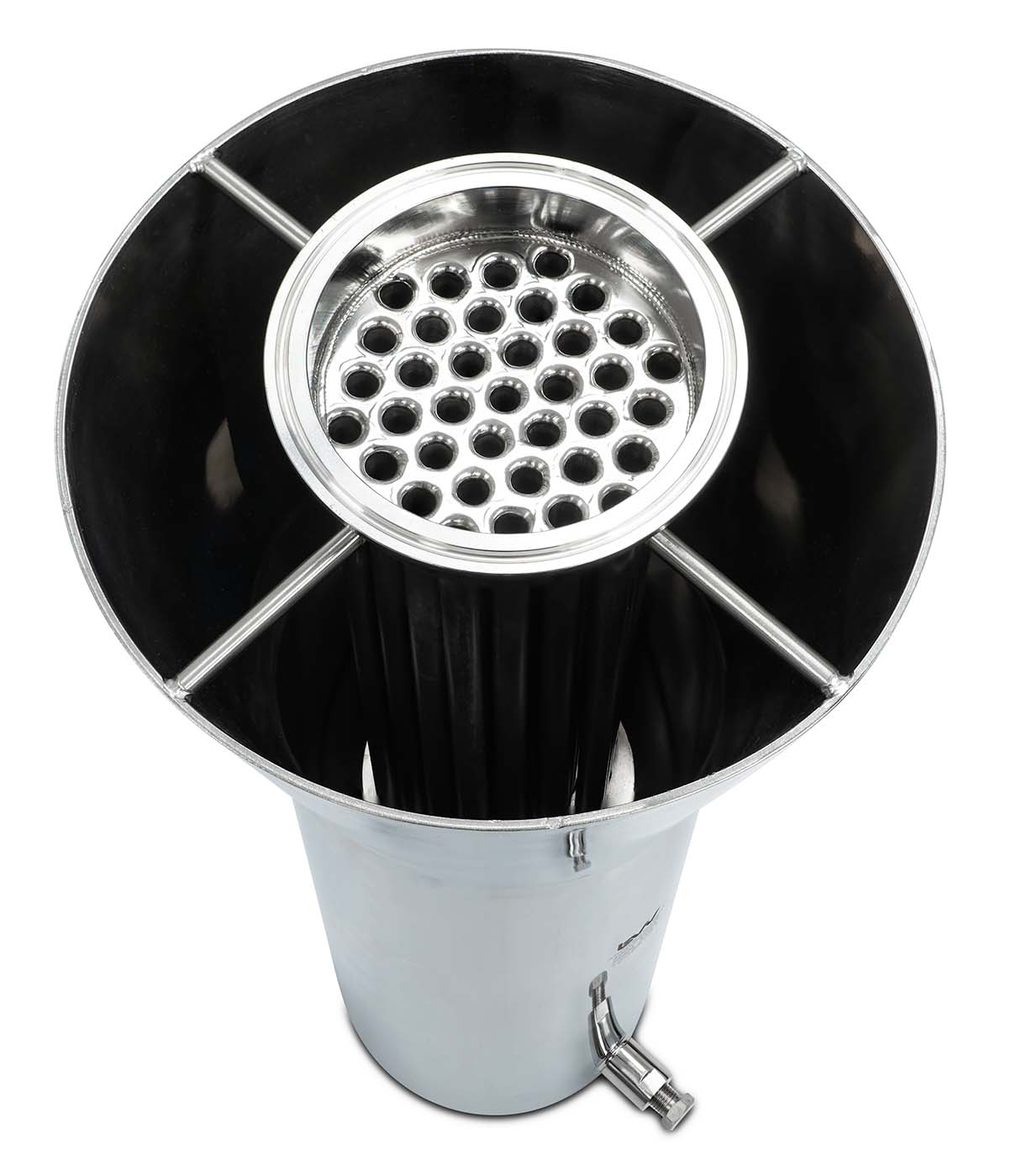

This 304 stainless steel heat exchanger is used as a condenser for your extractor setup. It has a sleeve around the heat exchanging tubes and a wide opening at the top to allow users to pour in dry ice to super chill the exchanger. For best results, use dry ice mixed with ethanol to get the most possible contact across the surface area of the tubes. The bottom of the sleeve has a 1/4" NPT drain plug that can be removed to drain ethanol.

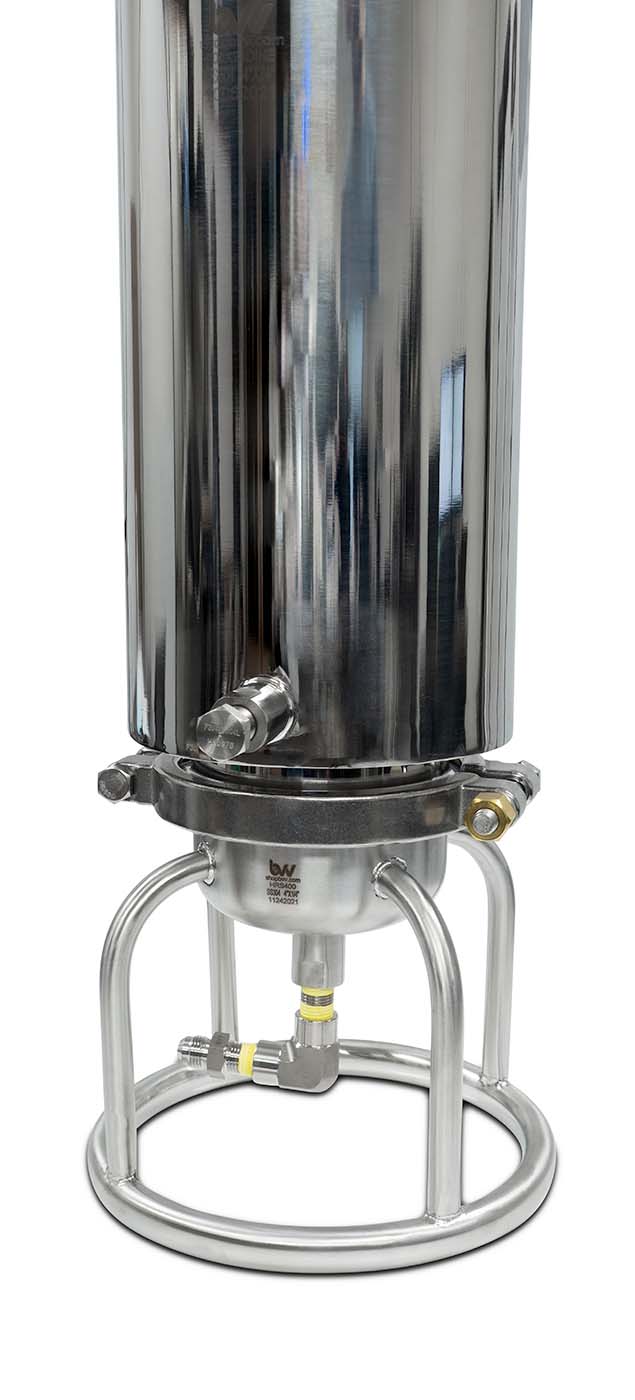

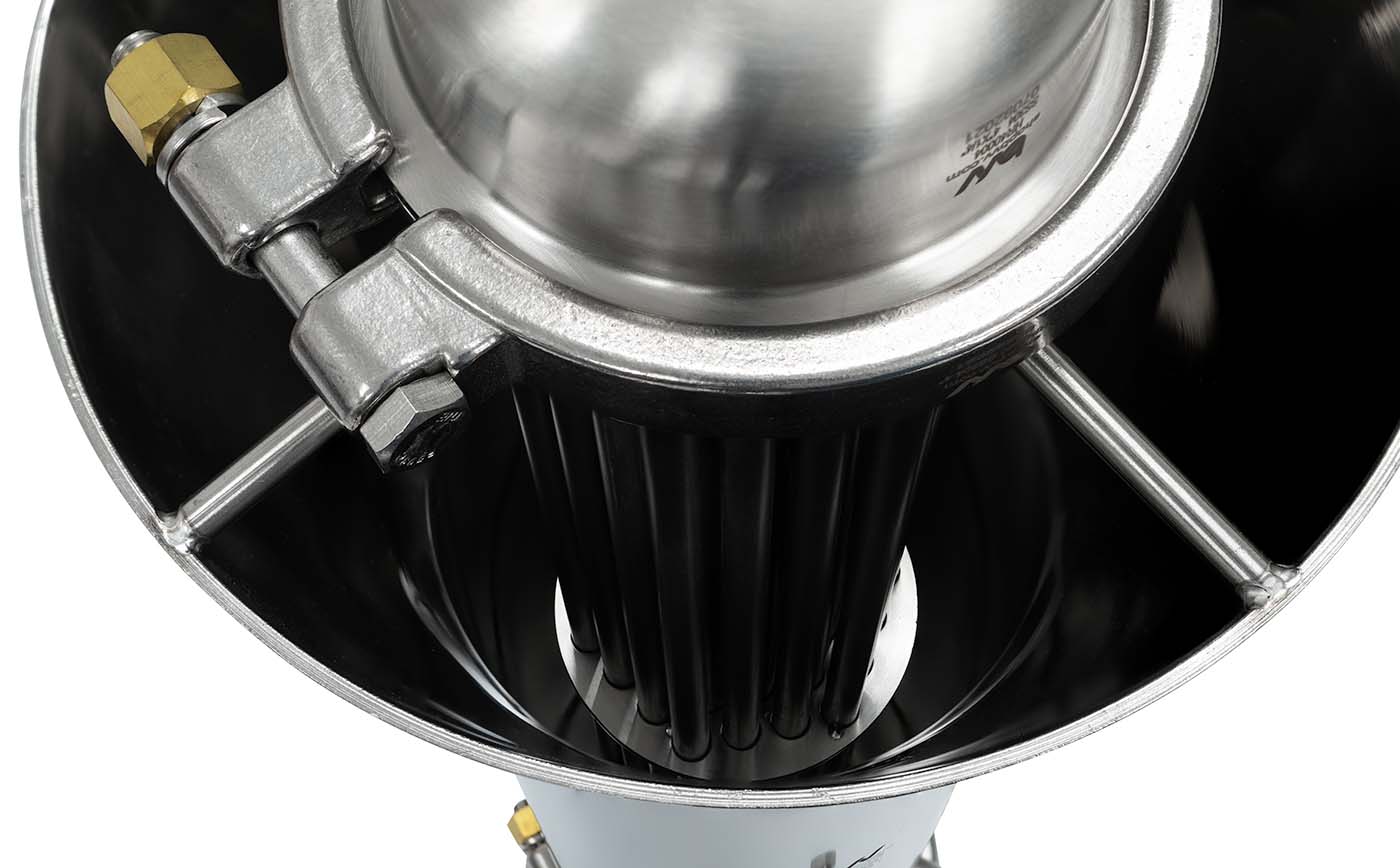

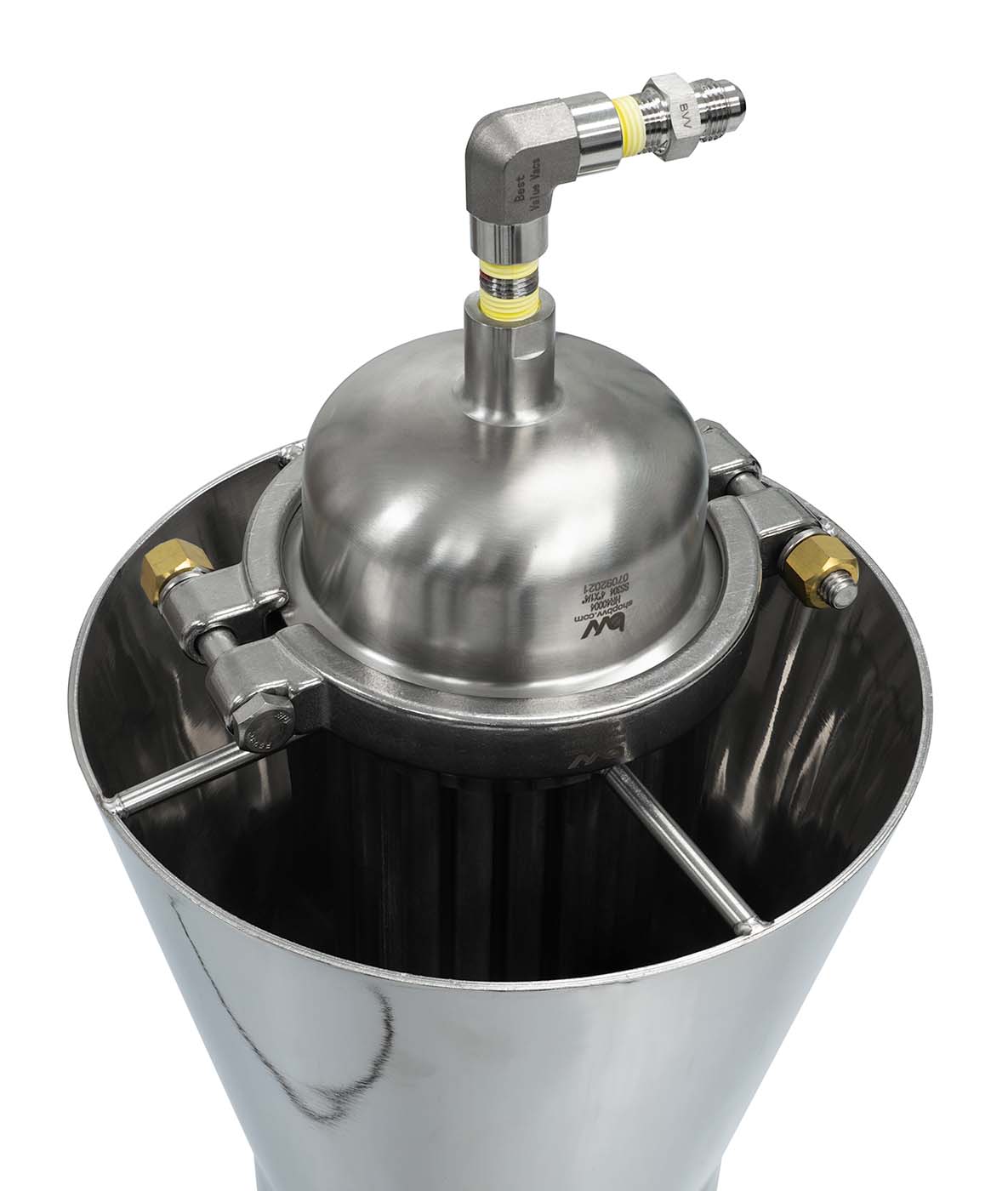

Connection flanges on top and bottom are 4" Tri-Clamp. We offer a pre built stand alone version that comes with hemispherical caps and JIC connections, but we will be happy to help you configure it any way that you want!
