BVV 1LB Inline CRC Kit

1LB Inline CRC Kit

BVV's 1lb Inline CRC Kit can be utilized to adapt any of our 3" diameter 1lb material columns for inline adsorbent filtration. This kit includes a 3"x6" media column with a 300-gram media capacity and a filter stack including a 5 micron & 1 micron Dutch Weave Sintered Filter Discs. This 3" color remediation column is meant to be plumbed between the 3" 1lb material column and the existing hemispherical reducer of any of our 1lb closed loop hydrocarbon extractors.

Assembly starts with placing the 1 micron sintered disk and gasket between the extracts hemispherical reducer and the included filter plate securing both with one of the included high-pressure clamps. Next, take the 5-micron sintered disk and the included ashless filter paper and rip around the circumference of the sintered disk, placing both atop the filter plate placing the sintered disc gasket and 3"x6" spool over top before securing both with the remaining high-pressure clamp. Since the spool secures the filter paper in place a filter plate ring is not required.

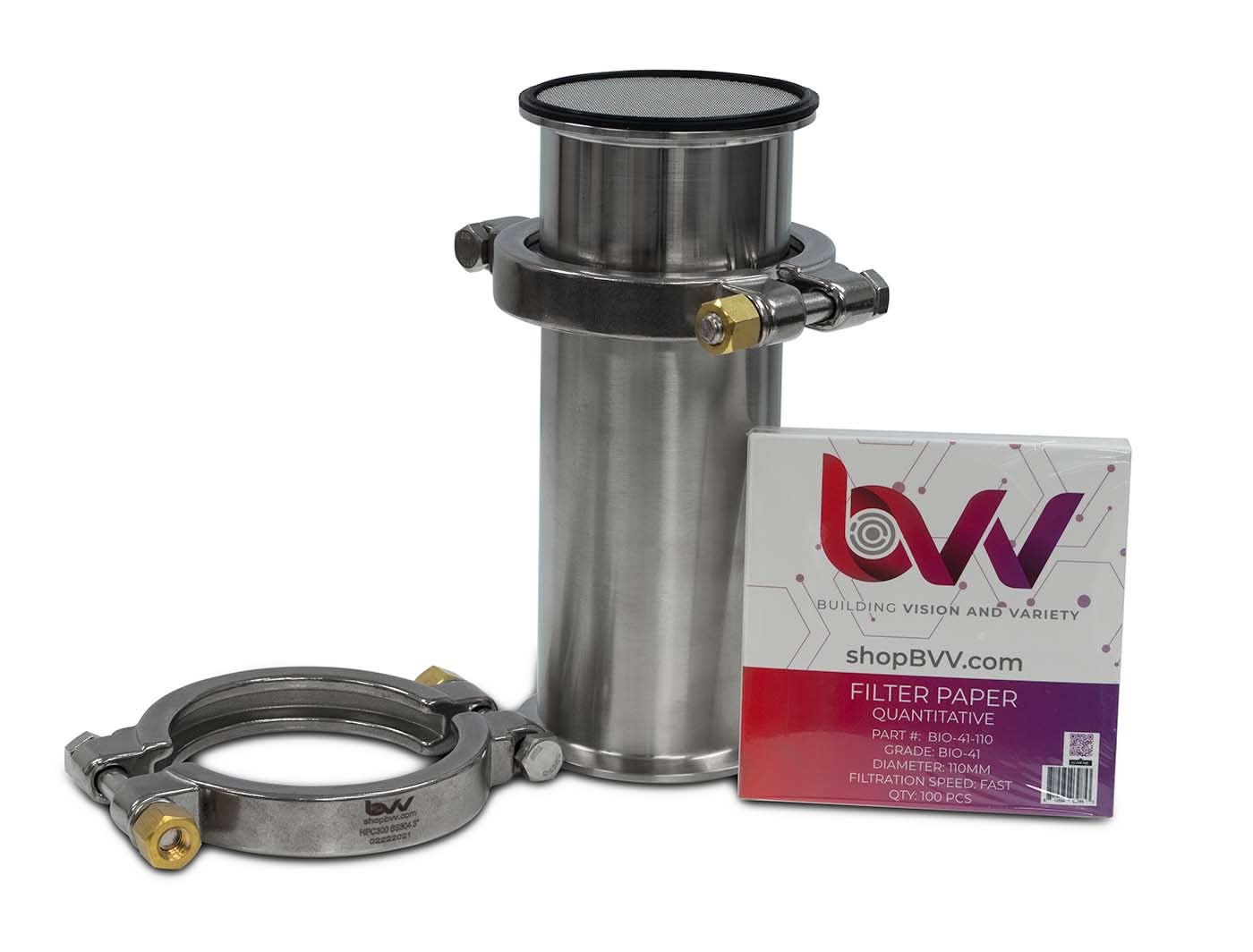

This Kit includes:

• 3"x6" Tri-clamp Spool (300 gram capacity)
• 3" V3 Filter Plate
• 3" 5 Micron Sintered Disk
• 3" 1 Micron Sintered Disk
• 2x 3" Buna-N Sintered Disc Gaskets
• 2x 3" High-pressure Clamp
• 110MM 25 Micron Ashless Filter Paper (100qty)
• Your choice of 1000g of UltraClear, B80, Perform 5000 or 500g of Chemtek W1,W2, or W3.

Sample Choices:

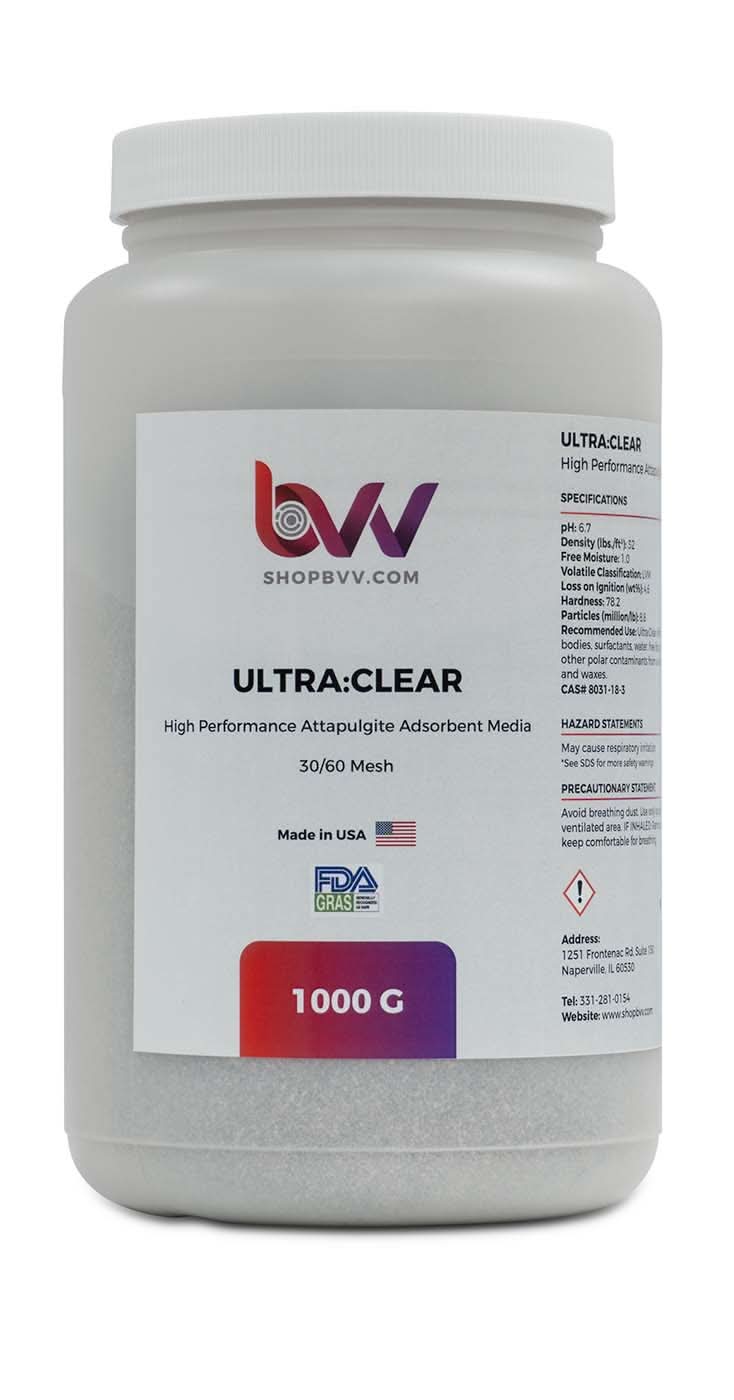

• Ultraclear: High-performance granular attapulgite

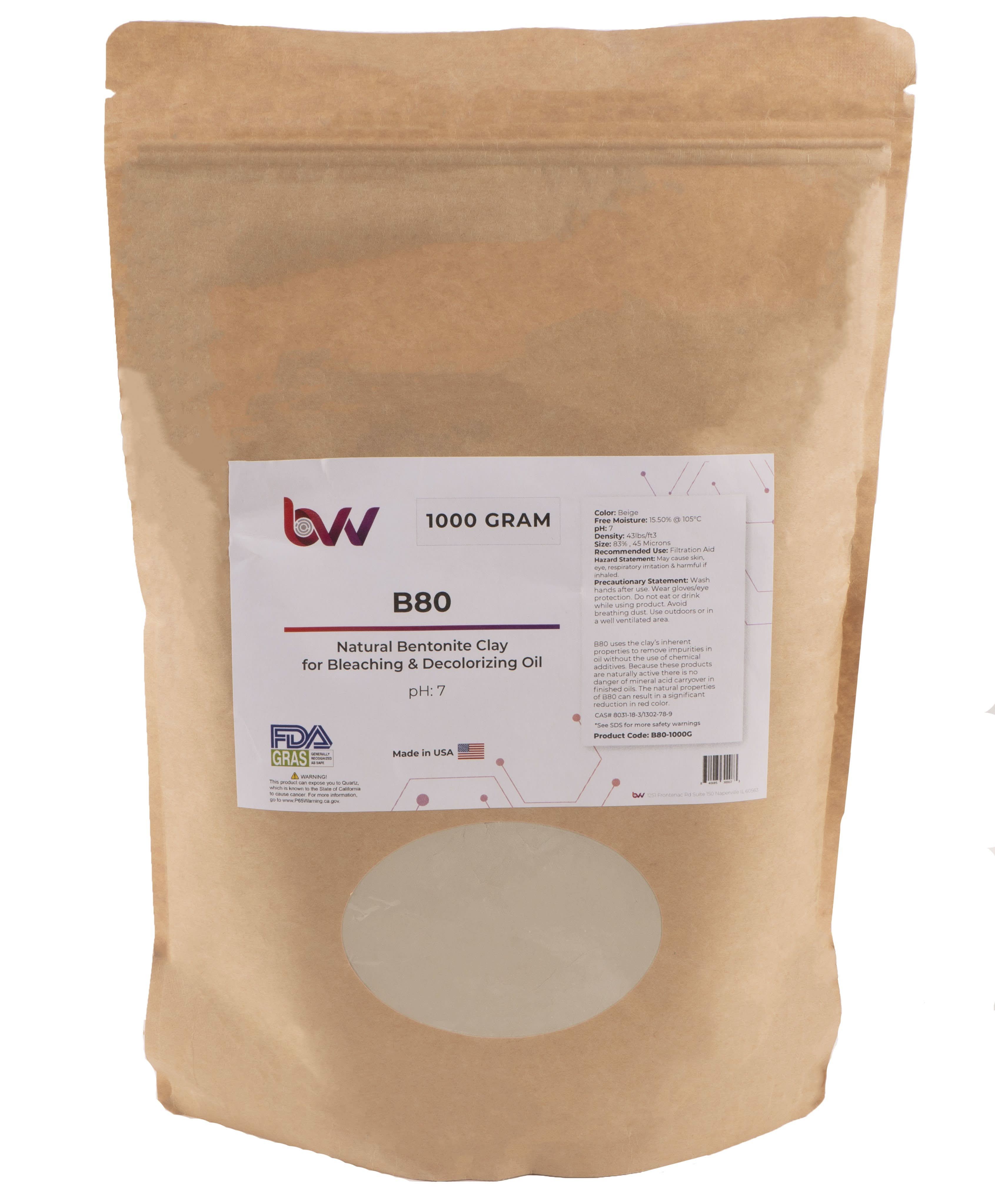

• B80: Naturally active attapulgite clay powder
• Perform 5000: Highly activated attapulgite clay for hard to bleach oils

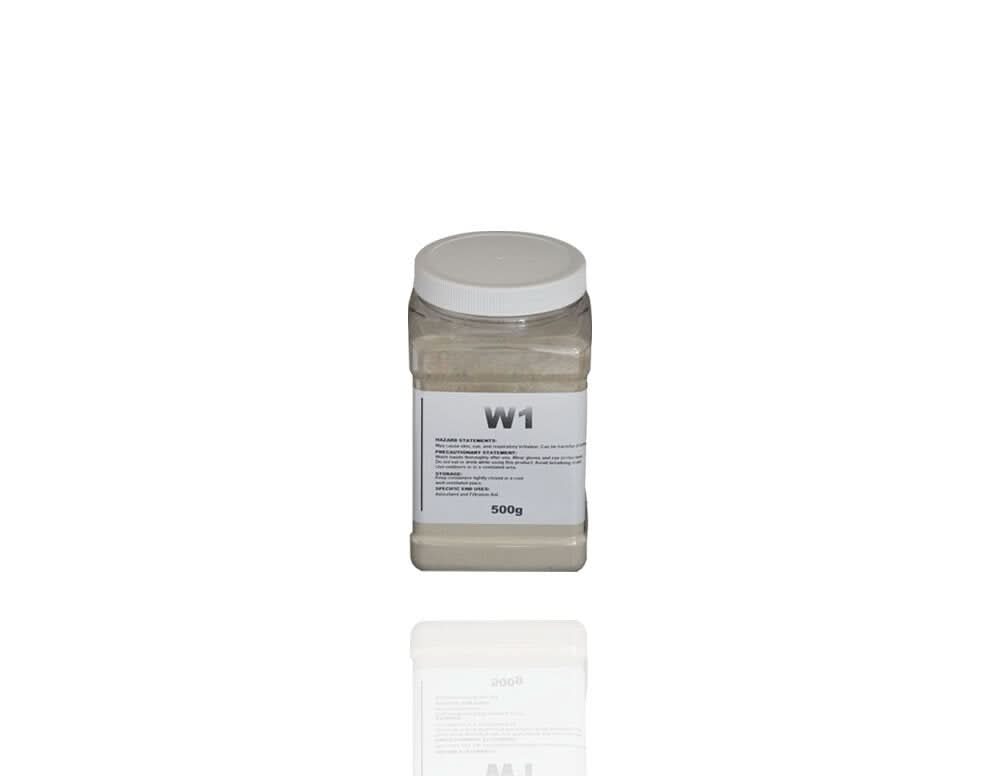

• W1: Top-tier Acid activated bentonite clay perfect for preserving terpenes.

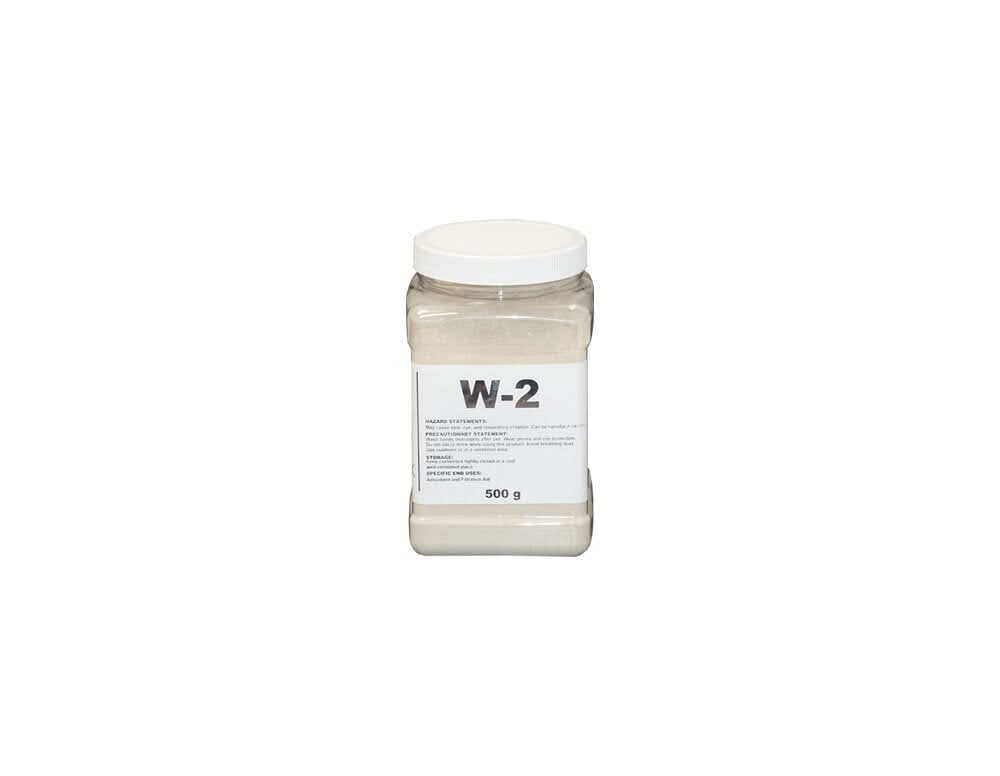

• W2: Natural bleaching clay that prevents oil isomerization
• W3: Highly active adsorptive clay designed for difficult to bleach oils
