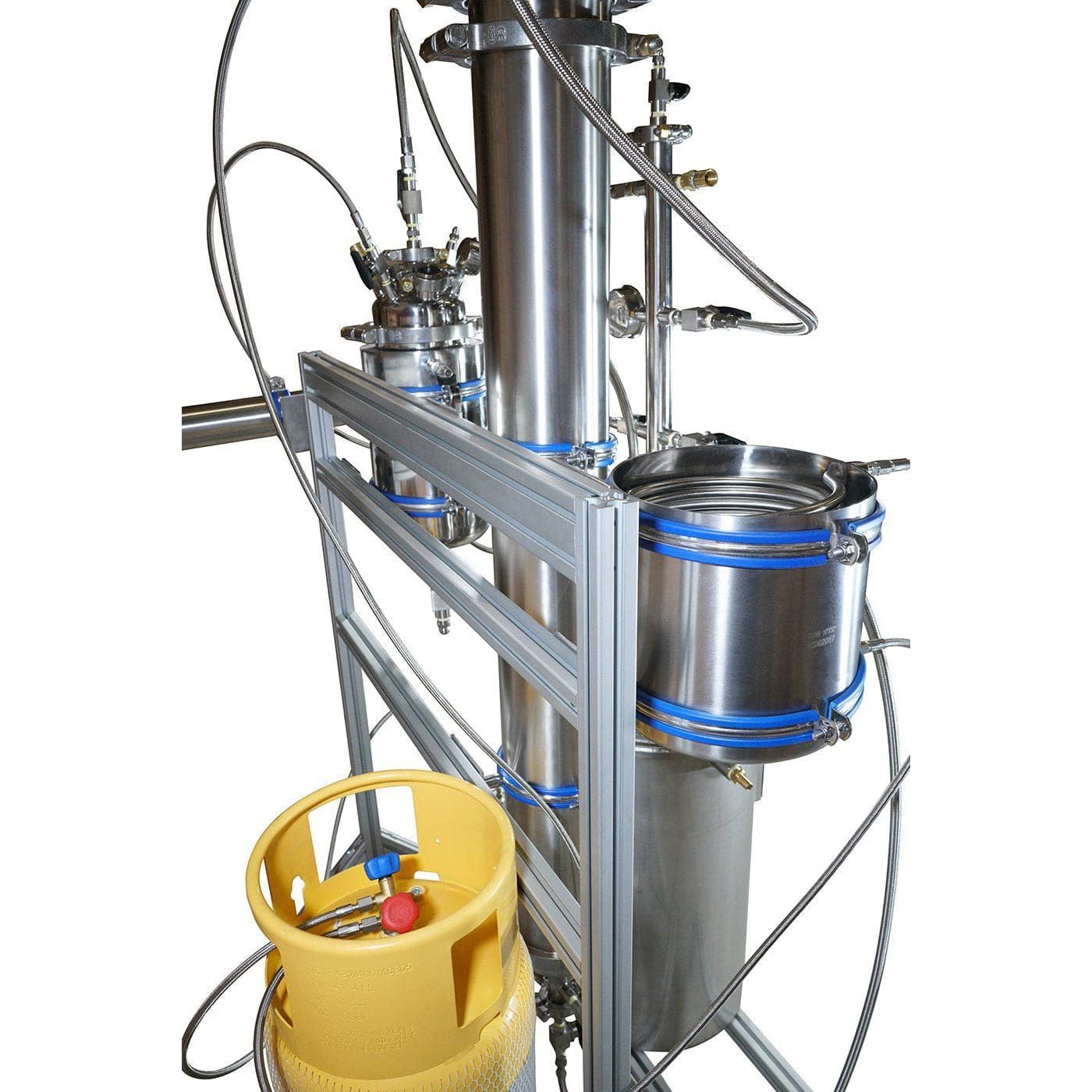

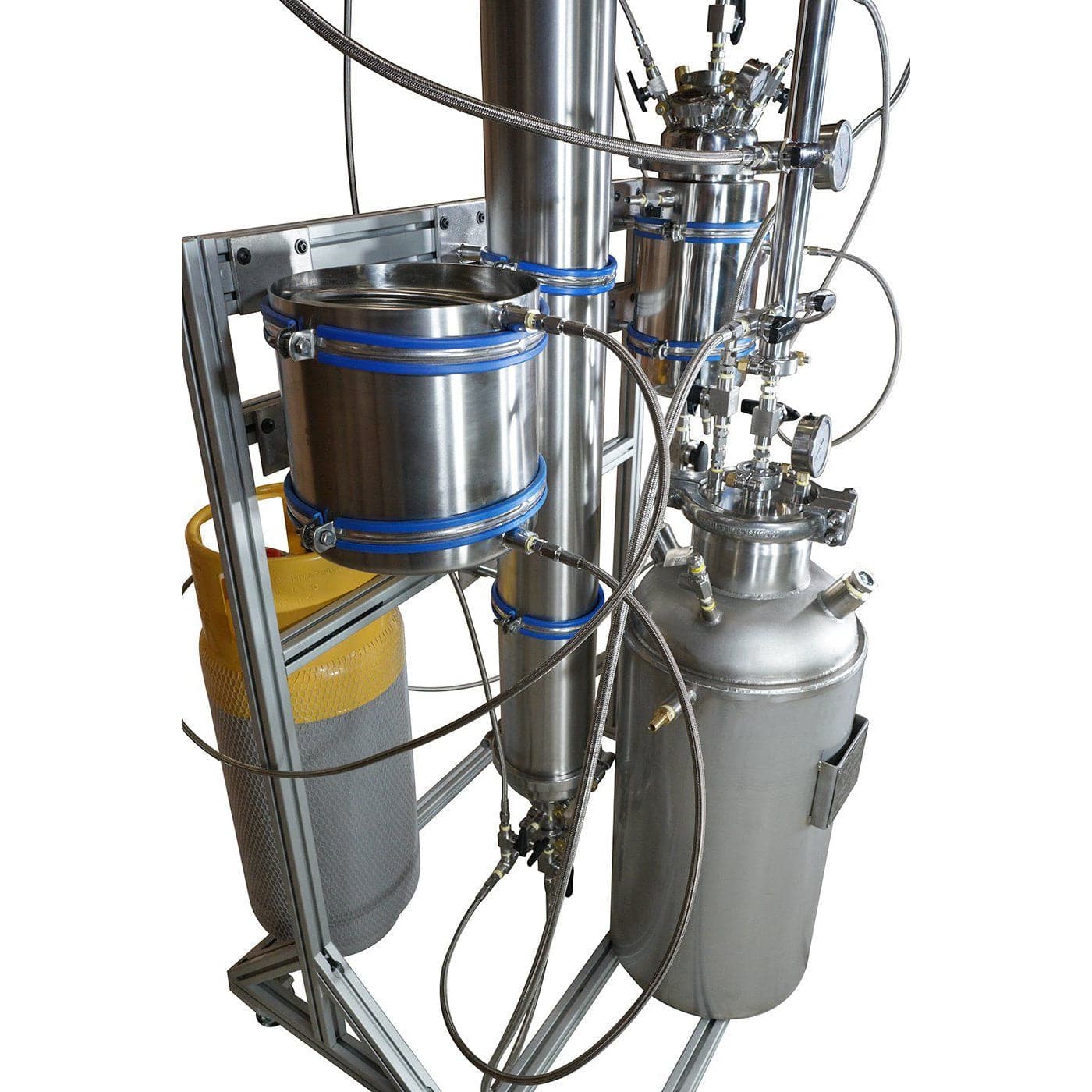

10LB Active PSI Certified Closed Loop Extraction System

Save $8,352.00 USD
Power Lab Supply 1SKU: 10ACERT

Price:
Sale price$35,280.00 USD Regular price$43,632.00 USD
Description

PSI Certified 10 Lb. Active Closed Loop Extraction System

 This system includes a lifetime warranty from BVV™
(warranty excludes consumable items and moving parts)



This Item will ship via Freight only and will carry a 1-2 week lead time
Note: Requires a C1D1 or Pneumatic Drive Pump.



The 10lb Active by ™ comes fully assembled, tested, and certified in AZ/CA/CO/FL/HI/MA/MD/ME/MI/NV/PA/OH/OR/WA. The 10lb Active hydrocarbon extraction system for use with butane and propane.

The 10lb Active unit provides efficient extraction on a small footprint. Bi-directional flow helps maximize yield by preventing channeling. The 10lb system is capable of full dewaxing by utilizing both the evaporative cooling and an injection coil to keep material and solvent cold during the extraction process. Using the manifold on the collection base, all sections of the extractor can be recovered. The 10lb Active is equipped with a sucker pot, allowing easy removal of extract from the unit. This unit comes standard with an MVP-6 cfm diaphragm recovery



The 10lb Active requires a Field Verification from PSI in order to be used in a certified lab. This is an additional cost after purchase. Verification can be set up with PSI. Contact information will be provided with purchase.



The 10lb Active has been reviewed using the following codes:

International Fire Code 2015 Edition

NFPA 58 Liquefied Petroleum Gas Code 2014 Edition

ASME Boiler and Pressure Vessel Code, Section VIII 2013 Edition



Details:

4”x24” or 6”x48” Material Column

6”x36” Jacketed Sucker Pot

6”x44” ASME Jacketed Collection Base

Third Party Engineer Peer Review

304 Stainless Steel

100# LPG Rated DOT Storage Tank

Fully Encapsulated Ball Valves

High-Pressure Clamps

High-Pressure Sight Glass

Buna-N Gaskets

PTFE Lined High-Pressure Hoses

UL Listed Pressure Relief Valves



Additional Equipment Included:

MVP 6cfm Diaphragm Recovery Pump

Polyscience 45L Refrigerated Circulator

UL Listed Pro Series 21.1 Cfm Vacuum Pump



Operating Conditions:

200 PSI @ -40F to 110F

Max Allowed Working Pressure:

350 PSI @ 110F

For use Butane and Propane



Note: This item will ship via Freight ONLY.

  • 10LB Active PSI Certified Closed Loop Extraction System
  • MVP-6CFM Explosion Proof Recovery Pump
  • Polyscience 45 Liter Advanced Digital Refrigerated Circulator (-25°C/135°C)
  • UL Listed Pro Series 21.2CFM Corrosion Resistant Two Stage Vacuum Pump



*Note:  Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity.  Low density, uncut, and/or lightly packed material can reduce capacity by 50%.
For best results, we recommend to tightly pack coarse ground material.





Cylinder Volume



Select Material

How Much Will Fit in Cylinder

Formula
Volume x Weight of Water x Specific Gravity

Constants
Weight of Water = 0.0360 (lbs / in3)
Specific Gravity of =


Account for an 80% fill to avoid a hydraulic lock

How Much Material Will Fit in the Cylinder

Packing Density (g) 2.5 3 3.5 4.3
Grams of Material
Lbs. of Material

Cans of Butane by Size


mL fl oz lbs # of Cans
420 14.2
300 10.1
200 6.7
150 5.07
