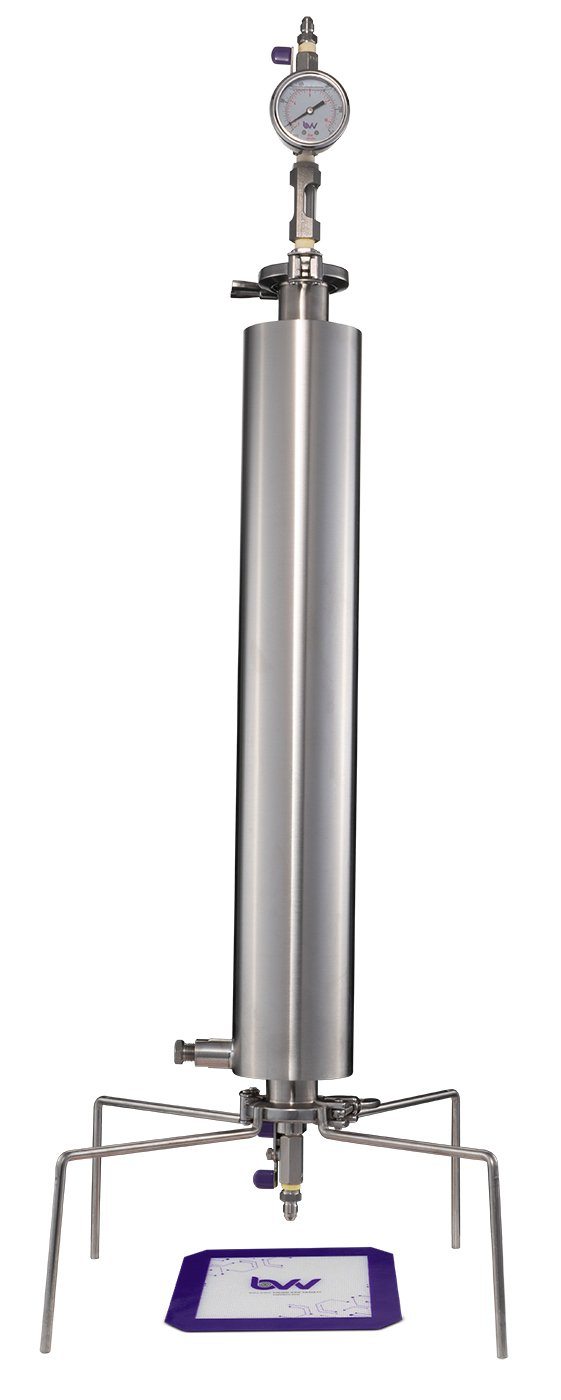

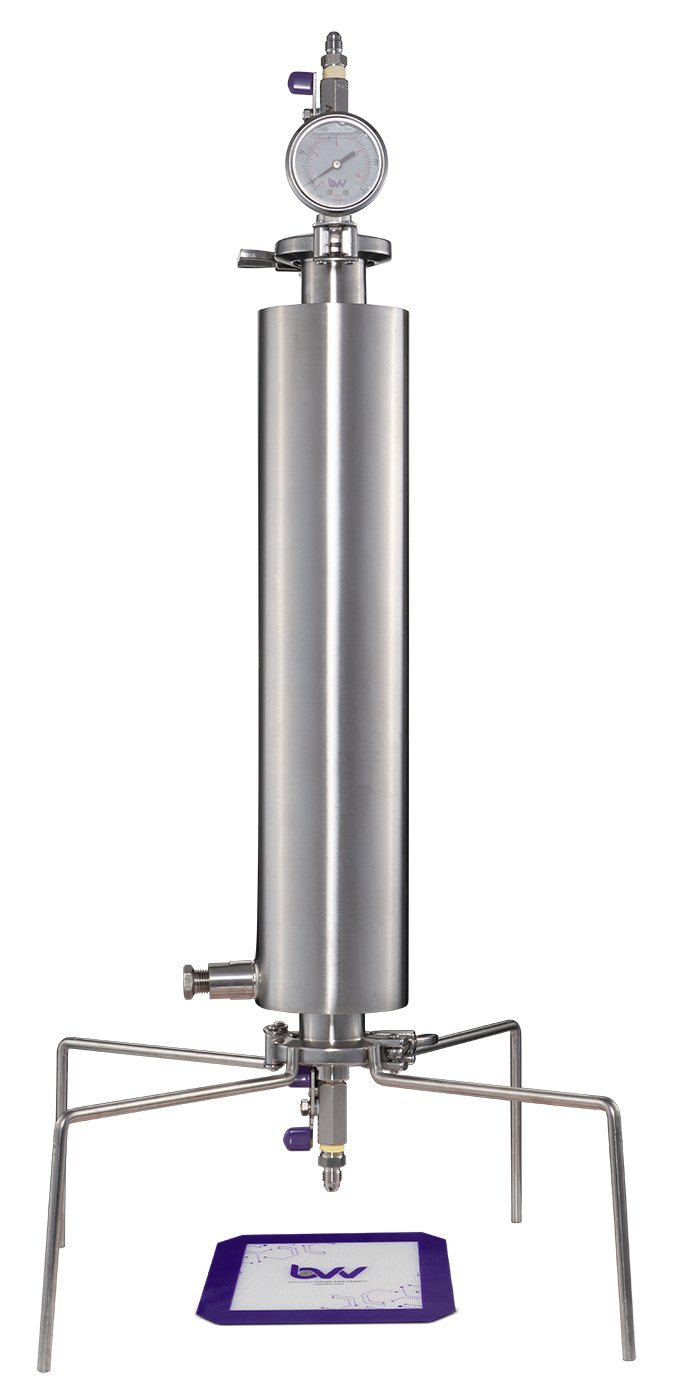

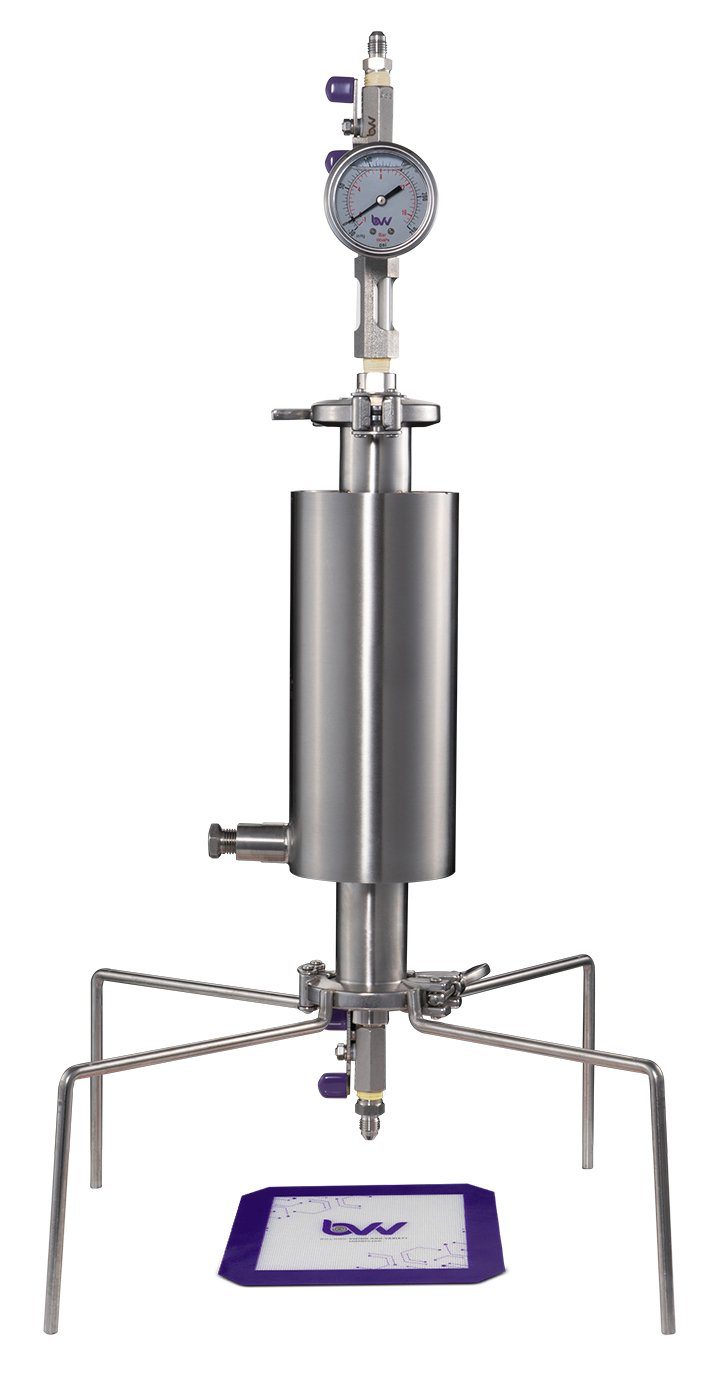

BVV 1.5" Dewaxing Closed Column Extractor 90-270g

Power Lab Supply 1SKU: CCE15012D-V1
No reviews

Column Capacity: 90 Gram
Select Configuration: Explorer
Price:
Sale price$188.10 USD
Description

DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. DO NOT USE INDOORS

*Note:  Column capacity may vary depending on the biomass density, moisture content and column packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity.  Low density, uncut, heavily dried, and/or lightly packed material can reduce capacity by 50%.
For best results, we recommend to tightly pack coarse ground material.

Shop Dewaxing Closed Column Extractor

Key Features and Description:


    • Dewaxing Spool Included for filter out and coagulating waxes and lipids.

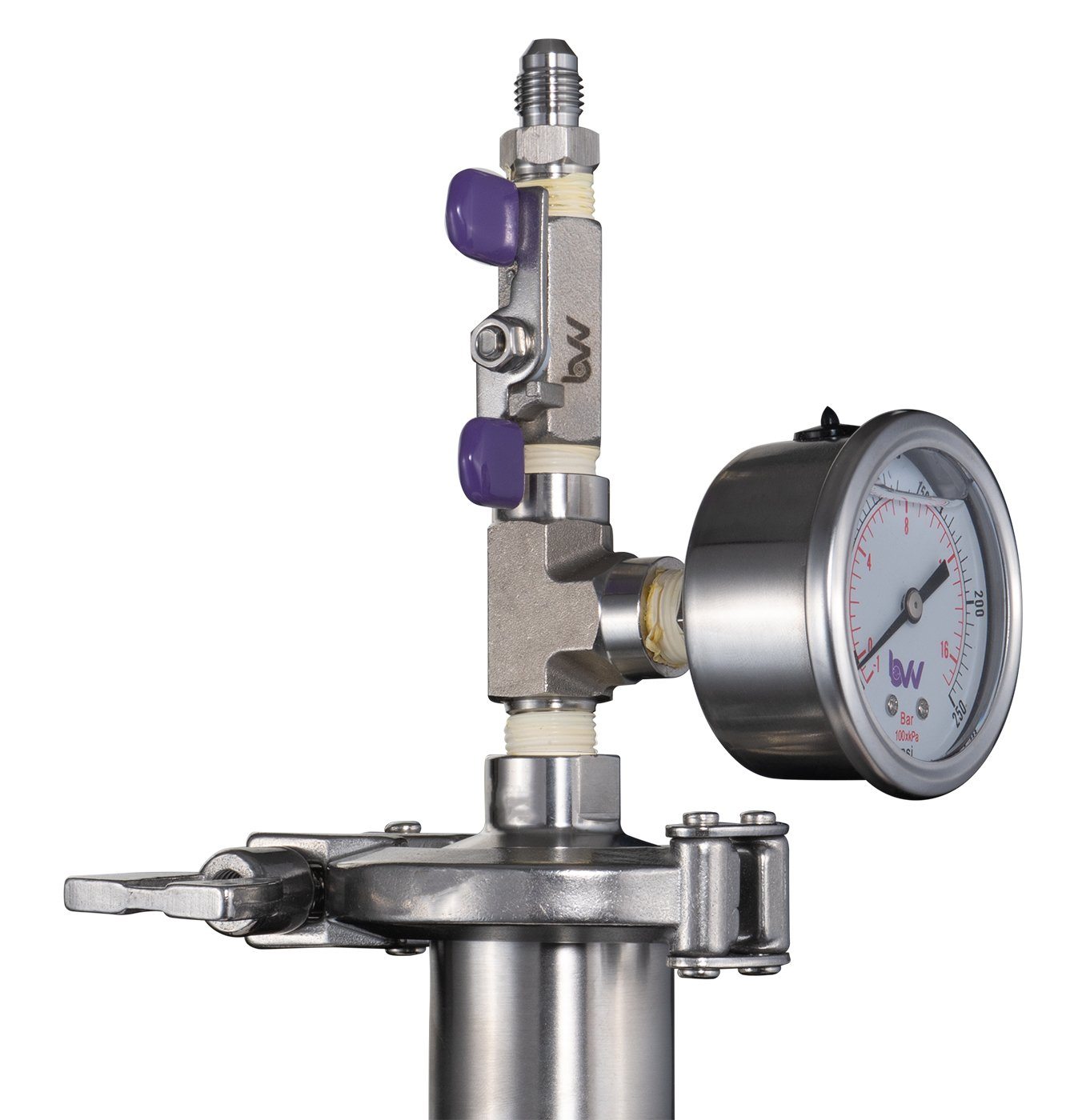

    • Compound Gauge with (-30)-160 PSI readout.

    • Closed Column Pressure Extractor (Comes with 1 yr. Limited warranty, excludes gaskets and screens)

    • This system allows the user to build up solvent pressure by closing the valve, pulling a vacuum and filling the extractor, Extractor will fill about 85% with solvent before the internal pressure will equal the pressure of the can propellant.

    • The solvent can will fit into either port with a tip adapter supplied with some butane cans, tip adapter required, not included

    • Solvent Soak is expected to be between 30-90 min, but this all depends on material, starting with frozen cans of solvent is recommended

    • This system allows the user to soak the material before opening the bottom valve to release the solvent and oil.



Professional Kit Adds the following:

  • Compound Gauge

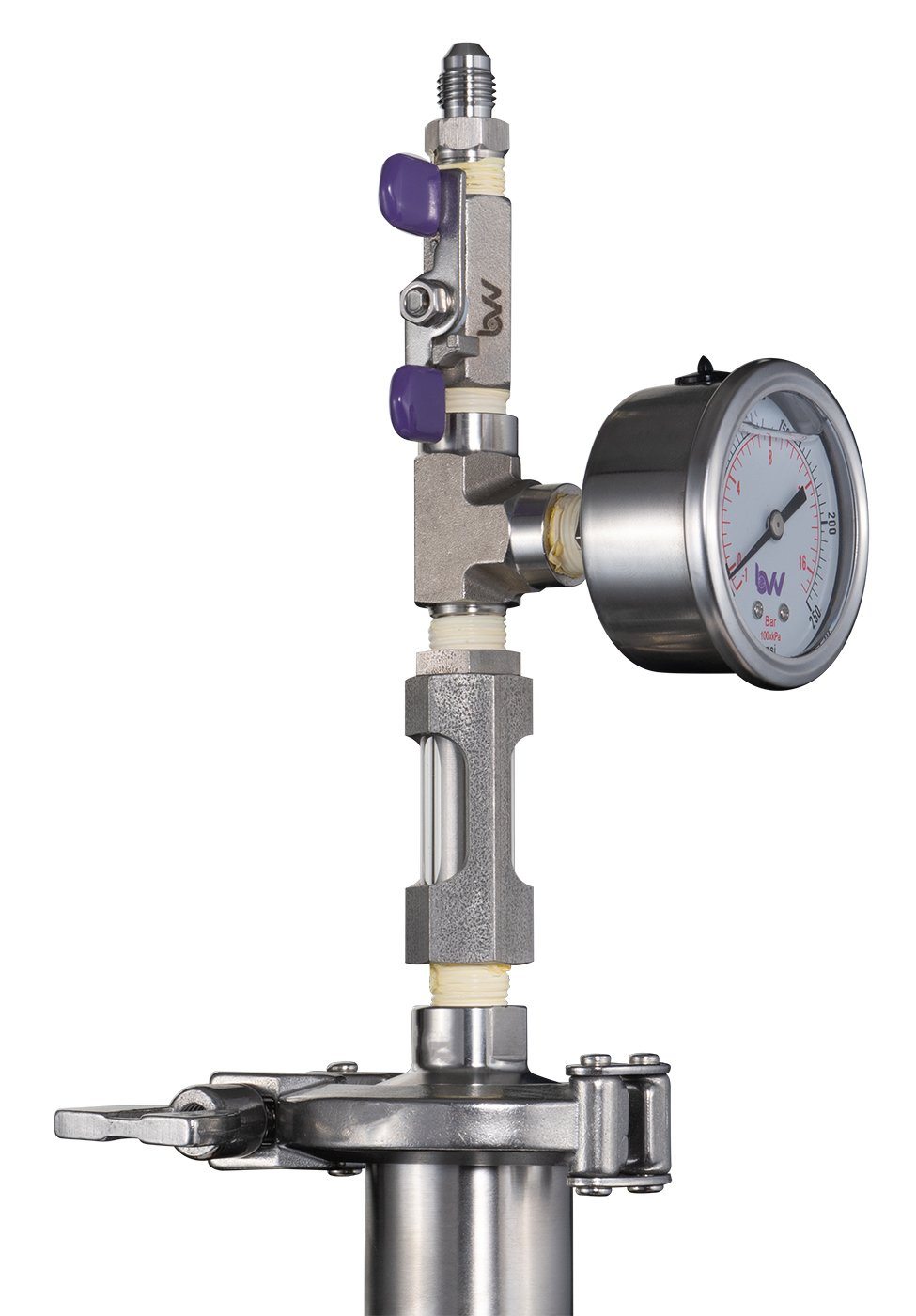

  • Sight Glass
  • Shower Head

Explorer Kit Automatically Includes:






      • Dewaxer Spool Sizes Specifications:


        • 1.5" x 12" Dewaxer = 90G

        • 1.5" x 18" Dewaxer= 135G

        • 1.5" x 24" Dewaxer= 180G

        • 1.5" x 36" Dewaxer = 270G











***Note: Parts and components can be subject to substitutions. Any substituted parts will have the same function and will be of equal or greater value.****


Cylinder Volume



Select Material

How Much Will Fit in Cylinder

Formula
Volume x Weight of Water x Specific Gravity

Constants
Weight of Water = 0.0360 (lbs / in3)
Specific Gravity of =


Account for an 80% fill to avoid a hydraulic lock

How Much Material Will Fit in the Cylinder

Packing Density (g) 2.5 3 3.5 4.3
Grams of Material
Lbs. of Material

Cans of Butane by Size


mL fl oz lbs # of Cans
420 14.2
300 10.1
200 6.7
150 5.07
