Description

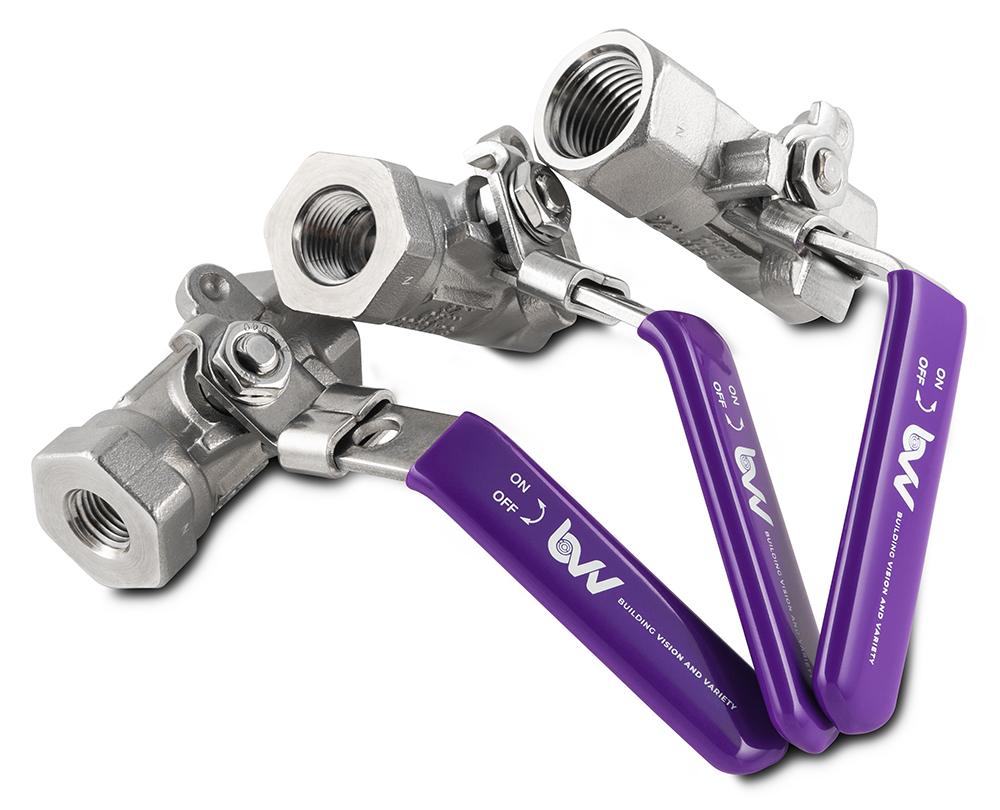

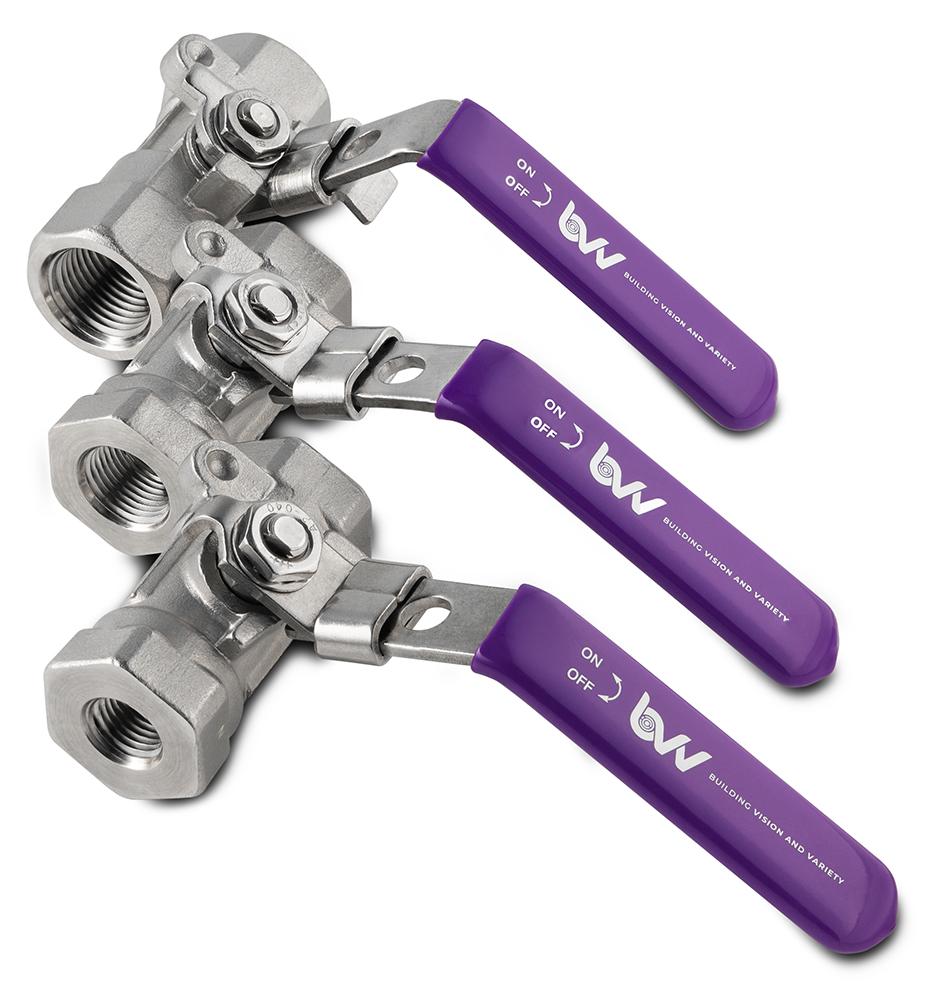

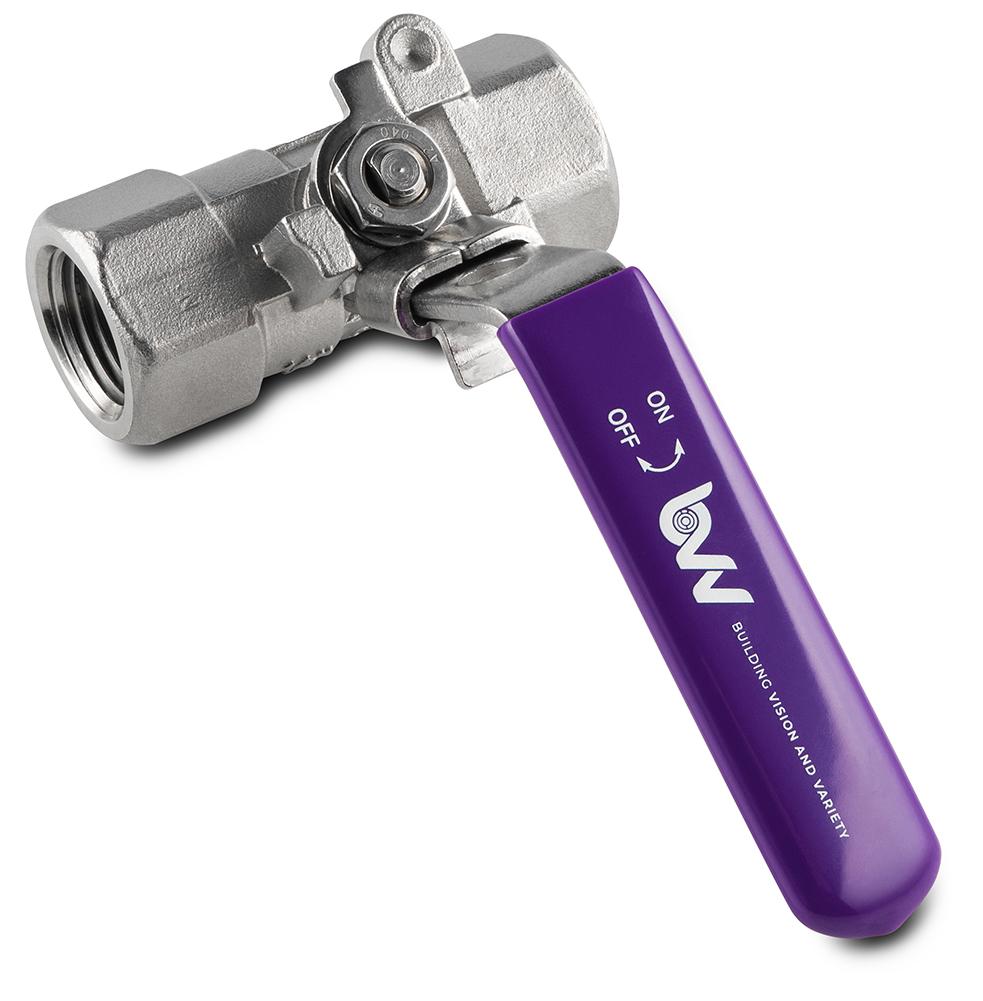

BVV™ 316SS FNPT Full Bore Ball Valve
(Compare to Milwaukee 10 Series Ball Valves)
This BVV™ 316 stainless steel full bore ball valve is a fire safe ball valve and is 1 piece ball valve construction. It also features a straight body style with Female NPT x Female NPT threaded connections with one side being pinned into place for zero movement during installation. The fire safe ball valve features a maximum pressure rating of 2000 PSI CWP and has a blowout proof stem made of 316SS and the temperature range of this ball valve is -40F° to 450F°.
Standard: ASTM A351
Pressure Tested in compliance with API 598 Ninth Edition 2009: Sec.5 and Sec.6
| Valve Specifications | |
|---|---|
| Sizes Available: |
|
| Pressure Rating | 2000 WOG |
| Temperature Range | -40 to 450F° |
| Sizes Available: | 1" (Fits 1.5" Tri-Clamp) |
| Torque Specifications | Do not Exceed 14.46ft-lbs when tightening. (Note: Overtightening the valve can cause damage to the pin. Doing this will void the valve warranty.) |
| Valve Materials: | |
| Body | 316SS / CF8M |
| Ball | 316 Stainless Steel |
| Stem | 316 Stainless Steel |
| Stem Nut | 304 Stainless Steel |
| Insert | 316 Stainless Steel |
| Seat | PTFE / Dyneon TFM1600 |
| Thrust Washer | PTFE / Dyneon TFM1600 |
| Stem Packing | PTFE / Dyneon TFM1600 |
| Handle | 304 Stainless Steel |
| Handle Cov | VINYL GRIP |
| Handle Washer (1/2") | 304 Stainless Steel |
| Handle Nut | 304 Stainless Steel |
| Belleville Washer | 304 Stainless Steel |
| PIN | 304 Stainless Steel |
