V4D 4CFM Two Stage Vacuum Pump

Save $3.40 USD

Price:
Sale price$336.60 USD Regular price$340.00 USD
Description

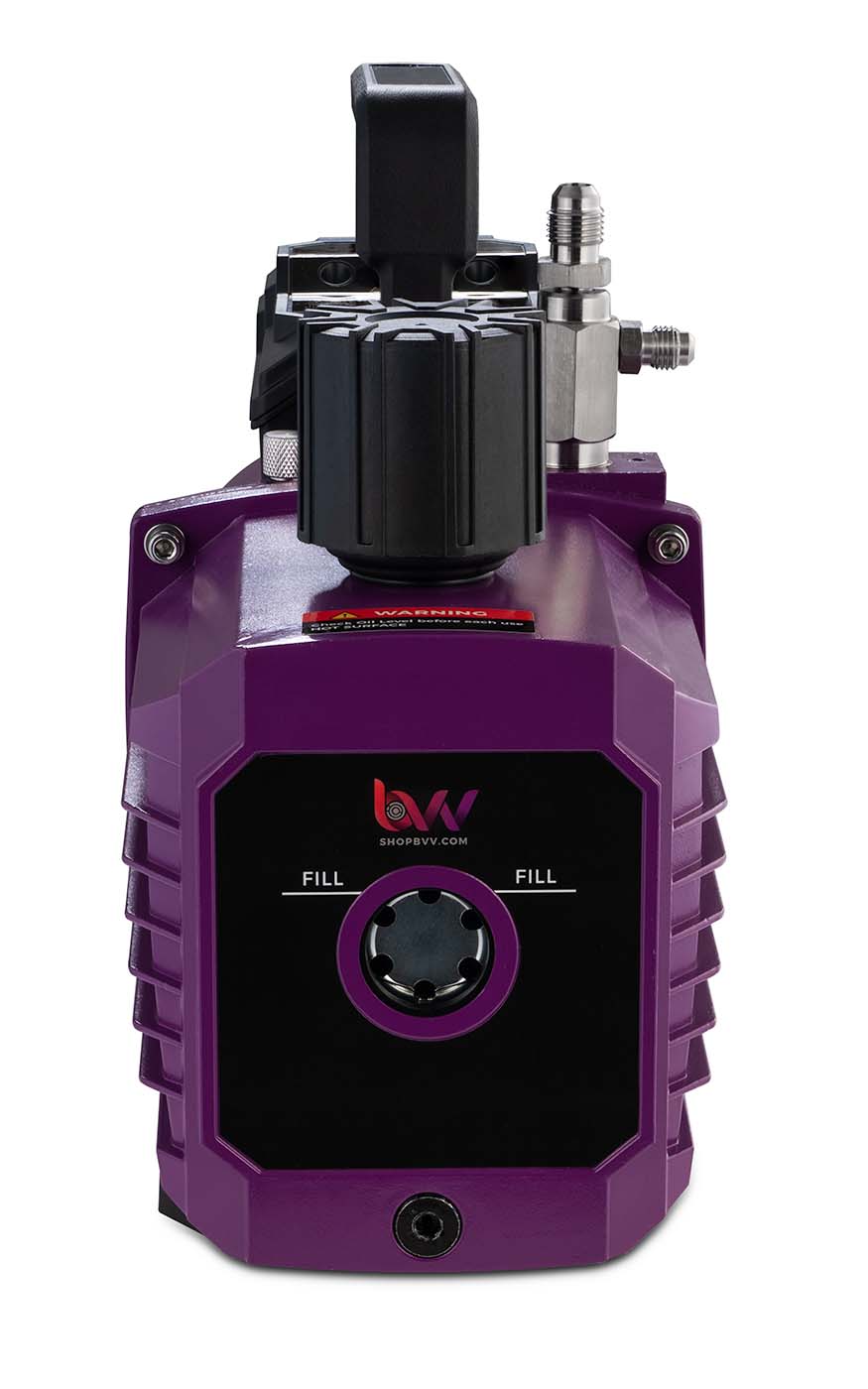

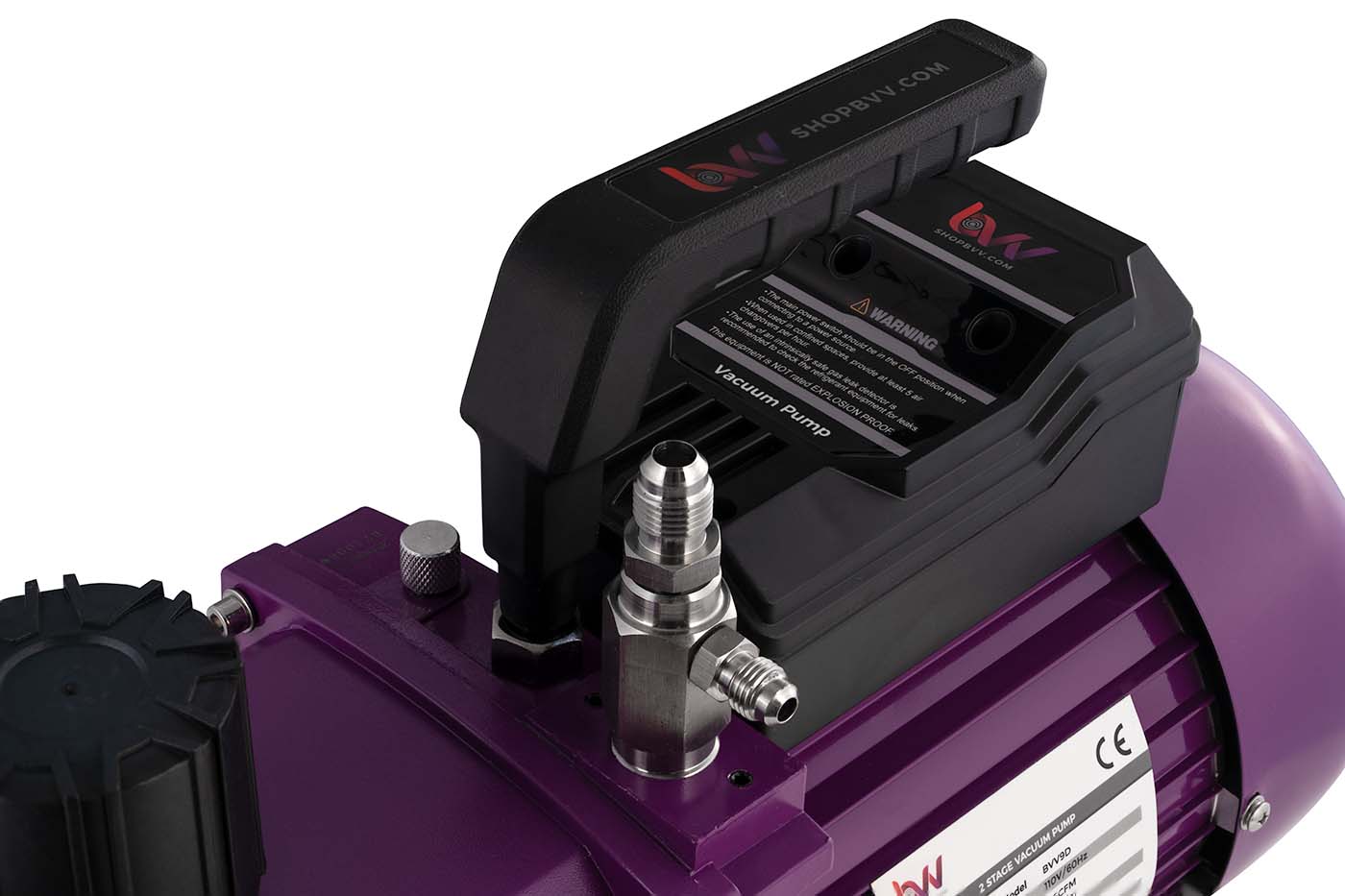

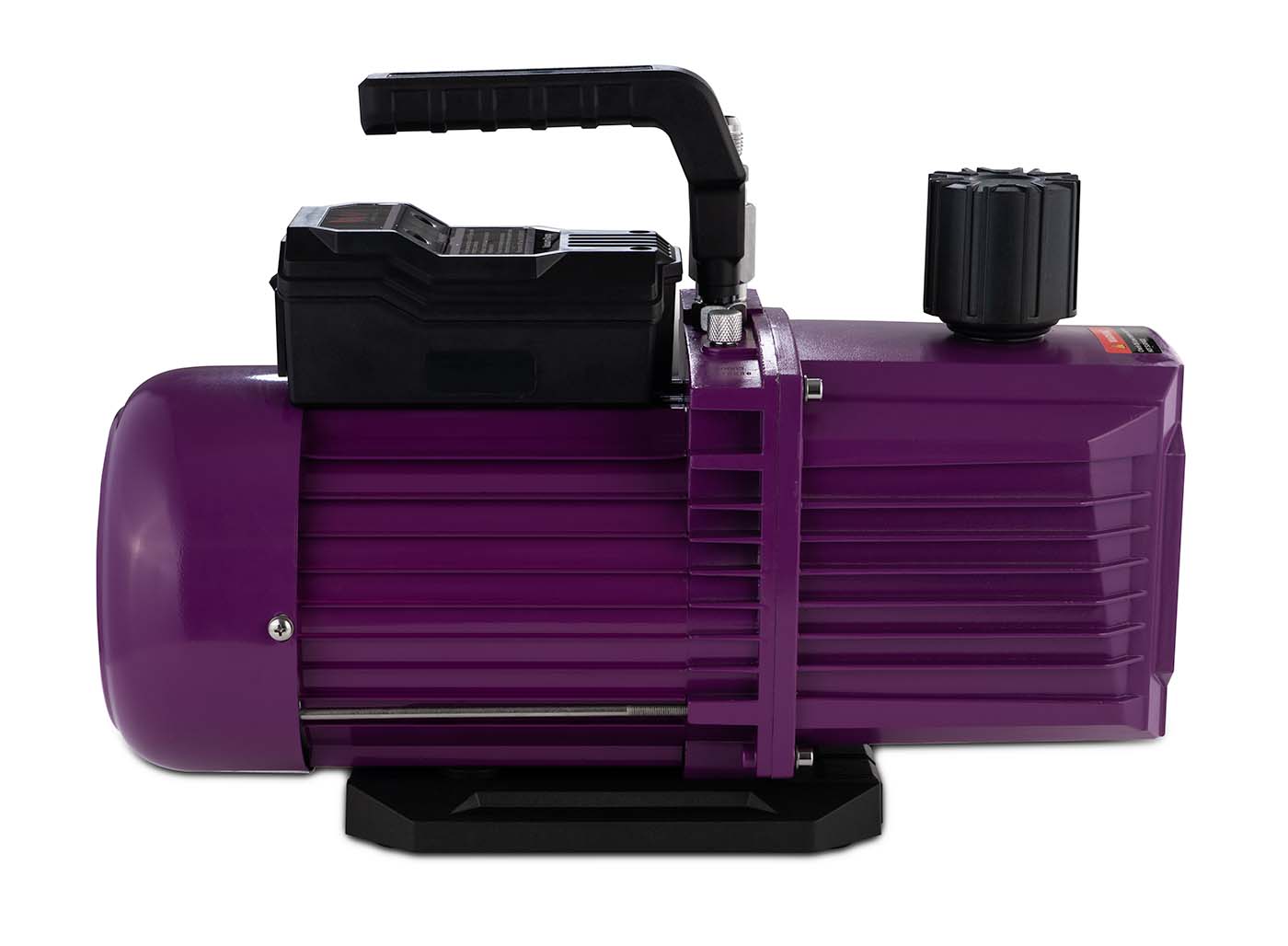

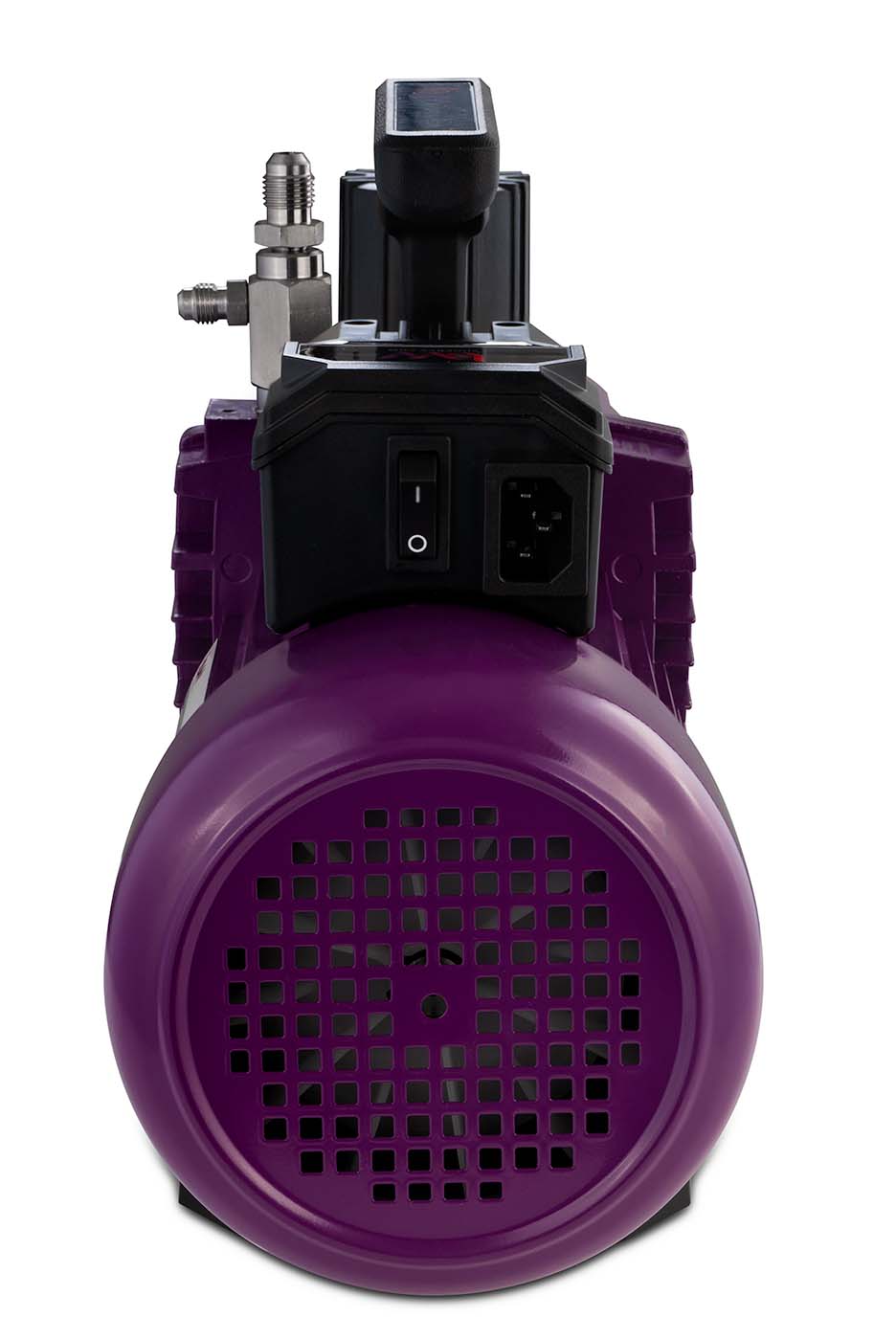

BVV™ V4D 4CFM Two Stage Vacuum Pump



This is the BVV™ V4D 4CFM Two Stage Vacuum Pump used in botanical extraction.

Please refer to these charts for vacuum specifications at altitude and conversions:





Key Feature

  • Internal Check Valve
  • Oil Mist Filter Cap
  • Larger Oil Reservoir for longer oil life
  • Lightweight
  • Rubber Feet for noise dampening
  • Reliable, economical, and efficient



Models BVV4D BVV7S BVV9D
Stage 2 1 2
Ultimate Vacuum (Microns) 15 75 15
Refrigerant Classes A1 Non-Toxic, Non Flammable
Dimensions (in) 12.4 x 4.8 x 10.16 12.4 x 4.8 x 10.16 15 x 6.3 x 11.22
Weight (lbs) 19.4 16.5 32
Free Air Displacement 4.3 CFM 6.4 CFM 8.5 CFM
Motor Size (HP) RPM 1 HP 3440 RPM
Oil Capacity 10oz / 300ml 14.5oz / 410ml 24oz / 680ml
Voltage 110V 60 Hz
Power Cord Hard Wired 3m / 9.8' Power Cord
Power Switch Standard On / Off
Operating Temperature Range 32F to 125 F (0C to 52C)
Gas Ballast Valve Yes No Yes
Intake Fittings Stainless Steel Inlet Fitting with 1/4" SAE & 3/8" JIC Male Ports



Pump Warranty Information

  • Customers using solvents such as , rotaries (MinWax™, Gator Venom™ etc.), alcohol and other polar solvents must use the vacuum pumps in conjunction with a cold trap for evacuations in excess of 5 minutes. (Excludes Cactus Juice™)

  • If the consumer is using the pump for prolonged periods of time exceeding 5 minutes we require that a cold trap is used or the pump warranty is void.

  • These stabilization resins have the ability to break down the internal components of the pump that are plastic resulting in a seized motor voiding all warranties.

  • When evacuation exceeds 5 minutes these solvents begin to vaporize and then re-condense in the vacuum pump reservoir. Once enough solvent re-condenses in the pump displacing the oil the plastic internal components may begin to warp, melt or seize. The use of a cold trap will condense the vapors prior to making their way to the vacuum pump preventing pump damage due to excessive use. Furthermore, Minwax Wood Hardener™ is not to be used with any vacuum pumps, EVER. (A seized motor will result within the first use.)

  • To prevent these issues from happening to your process, change the Oil after each vacuum pump use, Even if the use time is only 5min.
