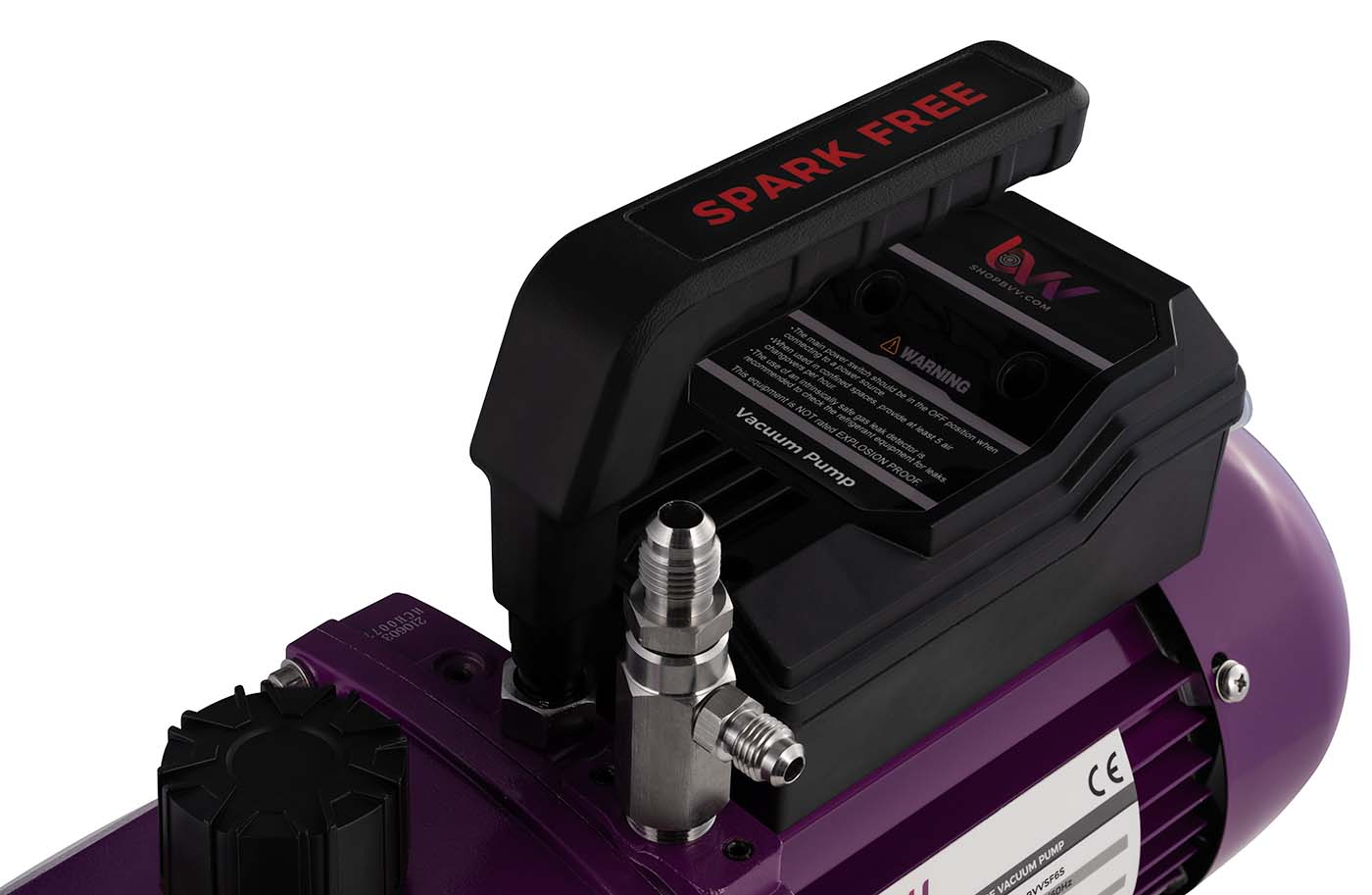

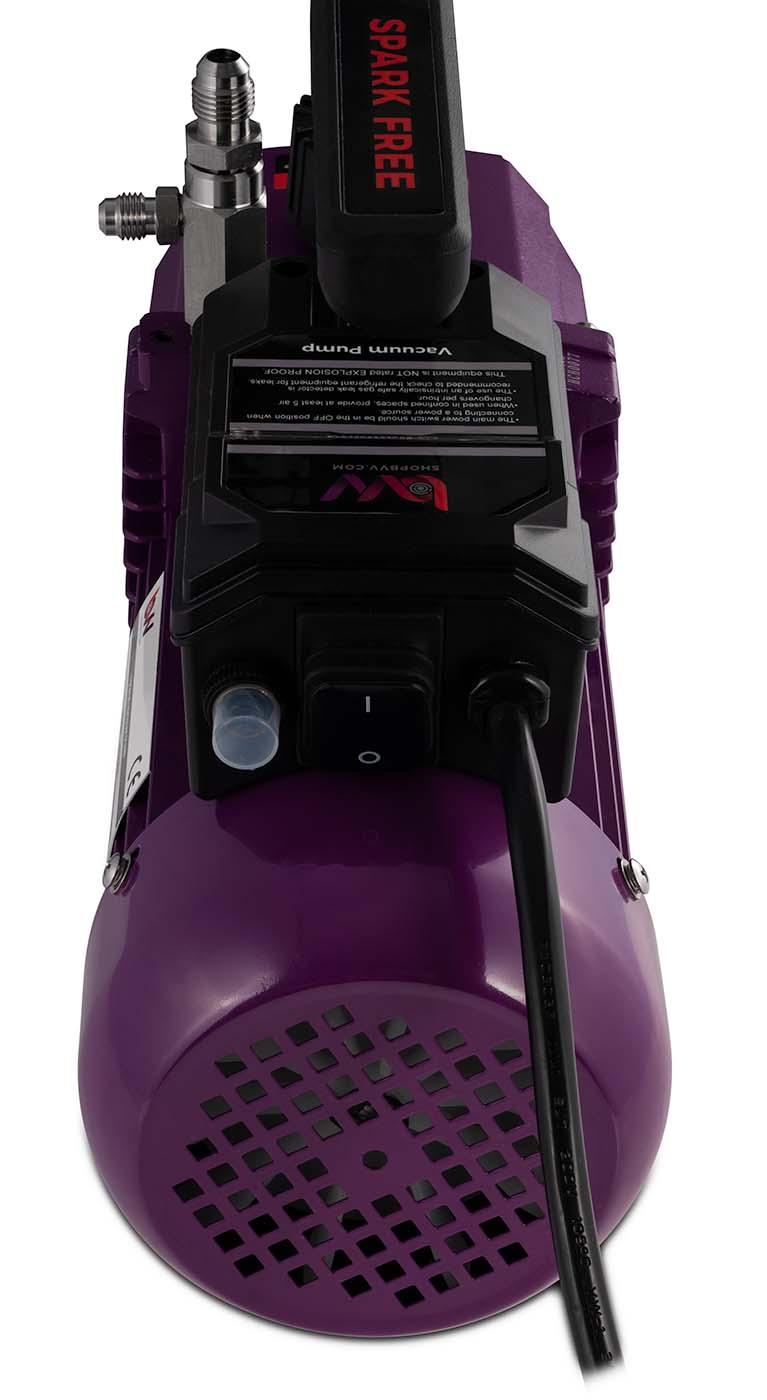

SF6S 6CFM Single Stage Spark Free Vacuum Pump

Power Lab Supply 1SKU: BVVSF6S

Price:
Sale price$207.00 USD
Description

BVV™ SF6S 6CFM Two Stage Spark Free Vacuum Pump






This is the BVV™ SF6S 6CFM Two Stage Spark Free Vacuum Pump


Please Refer to these charts for vacuum specifications at altitude and conversions:








Key Features:


    • Internal Check Valve
    • Spark Free Construction

    • Oil Mist Filter Cap

    • Larger Oil Reservoir for longer Oil life

    • Lightweight

    • Rubber Feet for noise dampening

    • Reliable, Economical and Efficient.




Models BVVSF6S BVVSF6D BVVSF12D
Stage 1 2 2
Ultimate Vacuum (Microns) 75 15 15
Refrigerant Classes A1 Non-Toxic, Non Flammable A2 Non-Toxic, Low Flammability A3 Non-Toxic, High Flammability
Dimensions (in) 12.4 x 4.8 x 10.16 13 x 5.5 x 10.7 15 x 6.3 x 11.22
Weight (lbs) 16.5 24.3 33.6
Free Air Displacement 6.4 CFM 6.4 CFM 12.8 CFM
Motor Size (HP) RPM 1 HP 3440 RPM
Oil Capacity 14.5oz / 410ml 19oz / 410ml 20.6oz / 680ml
Voltage 110V 60 Hz
Power Cord Hard Wired 3m / 9.8' Power Cord
Power Switch Ignition Proof On / Off Switch
Operating Temperature Range 32F to 125 F (0C to 52C)
Gas Ballast Valve No Yes Yes
Intake Fittings Stainless Steel Inlet Fitting with 1/4" SAE & 3/8" JIC Male Ports

Pump Warranty Information



• Customers using solvents such as stabilization resins (MinWax™, Gator Venom™ etc.), alcohol and other polar solvents must use the vacuum pumps in conjunction with a cold trap for evacuations in excess of 5 minutes. (Excludes Cactus Juice™)
• If the consumer is using the pump for prolonged periods of time exceeding 5 minutes we require that a cold trap is used or the pump warranty is void.
• These stabilization resins have the ability to break down the internal components of the pump that are plastic resulting in a seized motor voiding all warranties.
• When evacuation exceeds 5 minutes these solvents begin to vaporize and then re-condense in the vacuum pump reservoir. Once enough solvent re-condenses in the pump displacing the oil the plastic internal components may begin to warp, melt or seize. The use of a cold trap will condense the vapors prior to making their way to the vacuum pump preventing pump damage due to excessive use. Furthermore, Minwax Wood Hardener™ is not to be used with any vacuum pumps, EVER. (A seized motor will result within the first use.)
• To prevent these issues from happening to your process, change the Oil after each vacuum pump use, Even if the use time is only 5min.
