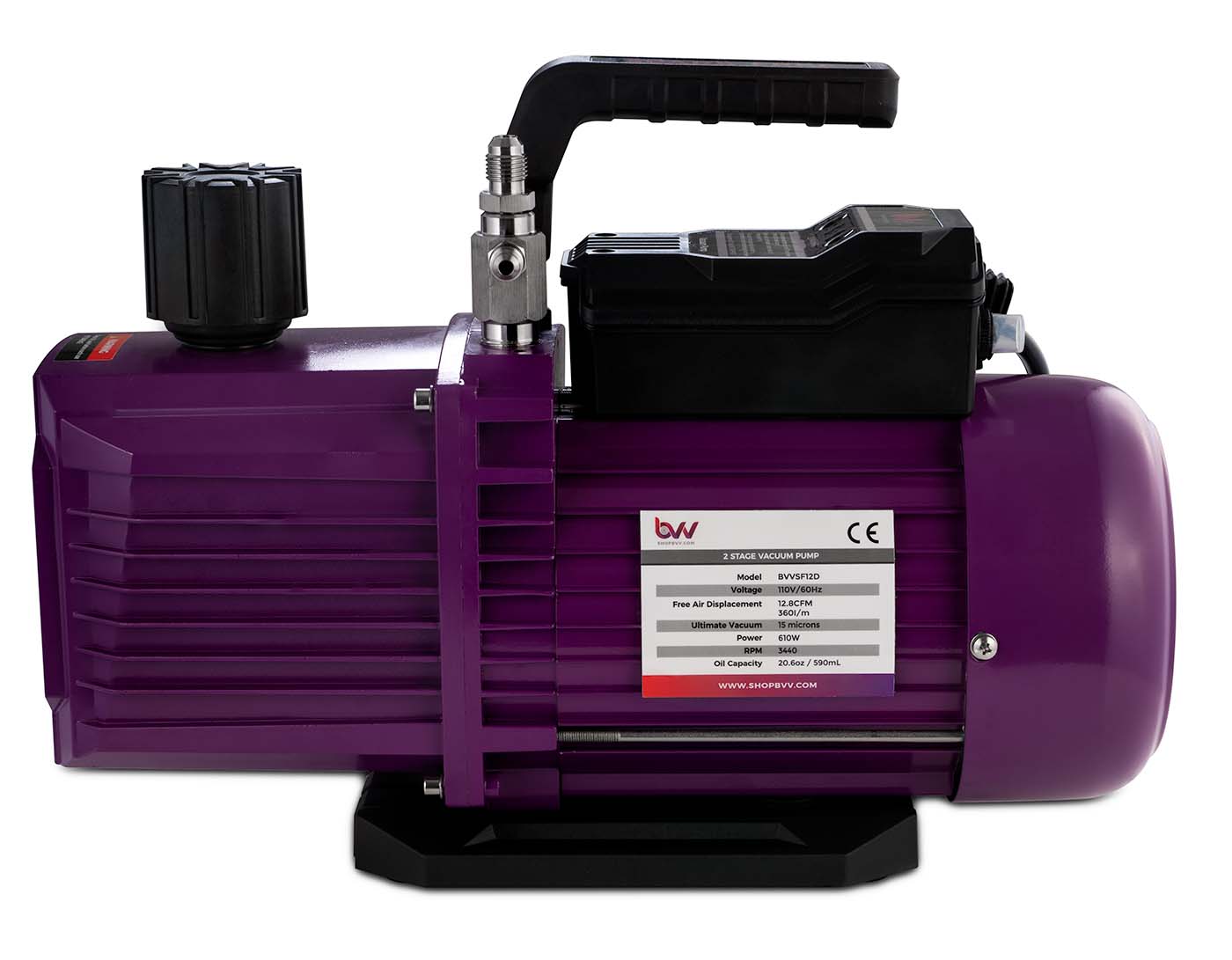

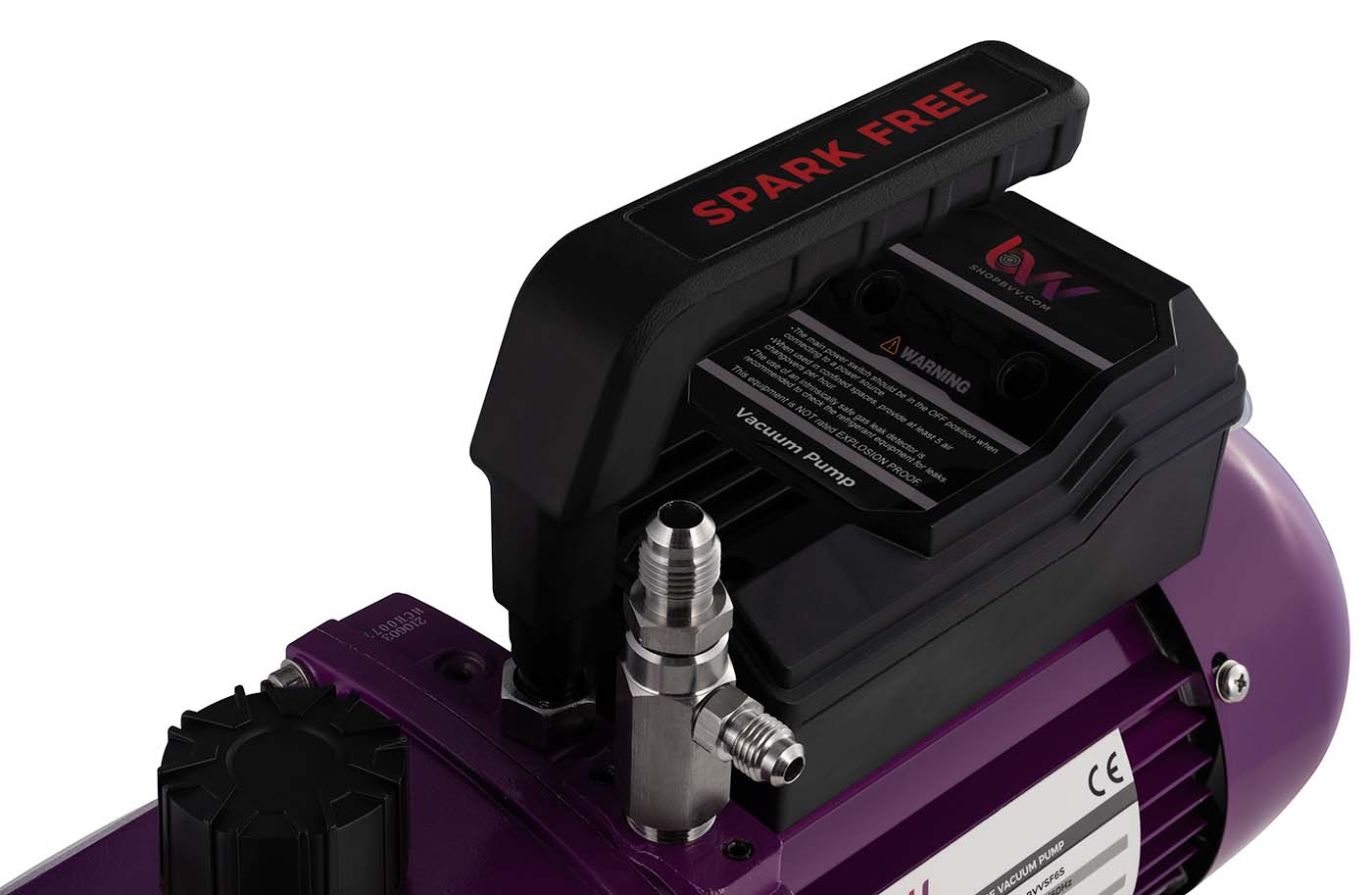

BVV™ SF12D 12CFM Two Stage Spark Free Vacuum Pump
- Internal Check Valve
- Spark Free Construction
- Oil Mist Filter Cap
- Larger Oil Reservoir for longer Oil life
- Lightweight
- Rubber Feet for noise dampening
- Reliable, Economical and Efficient.
Models | BVVSF6S | BVVSF6D | BVVSF12D |
---|---|---|---|
Stage | 1 | 2 | 2 |
Ultimate Vacuum (Microns) | 75 | 15 | 15 |
Refrigerant Classes | A1 Non-Toxic, Non Flammable | A2 Non-Toxic, Low Flammability | A3 Non-Toxic, High Flammability |
Dimensions (in) | 12.4 x 4.8 x 10.16 | 13 x 5.5 x 10.7 | 15 x 6.3 x 11.22 |
Weight (lbs) | 16.5 | 24.3 | 33.6 |
Free Air Displacement | 6.4 CFM | 6.4 CFM | 12.8 CFM |
Motor Size (HP) RPM | 1 HP 3440 RPM | ||
Oil Capacity | 14.5oz / 410ml | 19oz / 410ml | 20.6oz / 680ml |
Voltage | 110V 60 Hz | ||
Power Cord | Hard Wired 3m / 9.8' Power Cord | ||
Power Switch | Ignition Proof On / Off Switch | ||
Operating Temperature Range | 32F to 125 F (0C to 52C) | ||
Gas Ballast Valve | No | Yes | Yes |
Intake Fittings | Stainless Steel Inlet Fitting with 1/4" SAE & 3/8" JIC Male Ports |
Pump Warranty Information
• Customers using solvents such as stabilization resins (MinWax™, Gator Venom™ etc.), alcohol and other polar solvents must use the vacuum pumps in conjunction with a cold trap for evacuations in excess of 5 minutes. (Excludes Cactus Juice™)
• If the consumer is using the pump for prolonged periods of time exceeding 5 minutes we require that a cold trap is used or the pump warranty is void.
• These stabilization resins have the ability to break down the internal components of the pump that are plastic resulting in a seized motor voiding all warranties.
• When evacuation exceeds 5 minutes these solvents begin to vaporize and then re-condense in the vacuum pump reservoir. Once enough solvent re-condenses in the pump displacing the oil the plastic internal components may begin to warp, melt or seize. The use of a cold trap will condense the vapors prior to making their way to the vacuum pump preventing pump damage due to excessive use. Furthermore, Minwax Wood Hardener™ is not to be used with any vacuum pumps, EVER. (A seized motor will result within the first use.)
• To prevent these issues from happening to your process, change the Oil after each vacuum pump use, Even if the use time is only 5min.
