Description

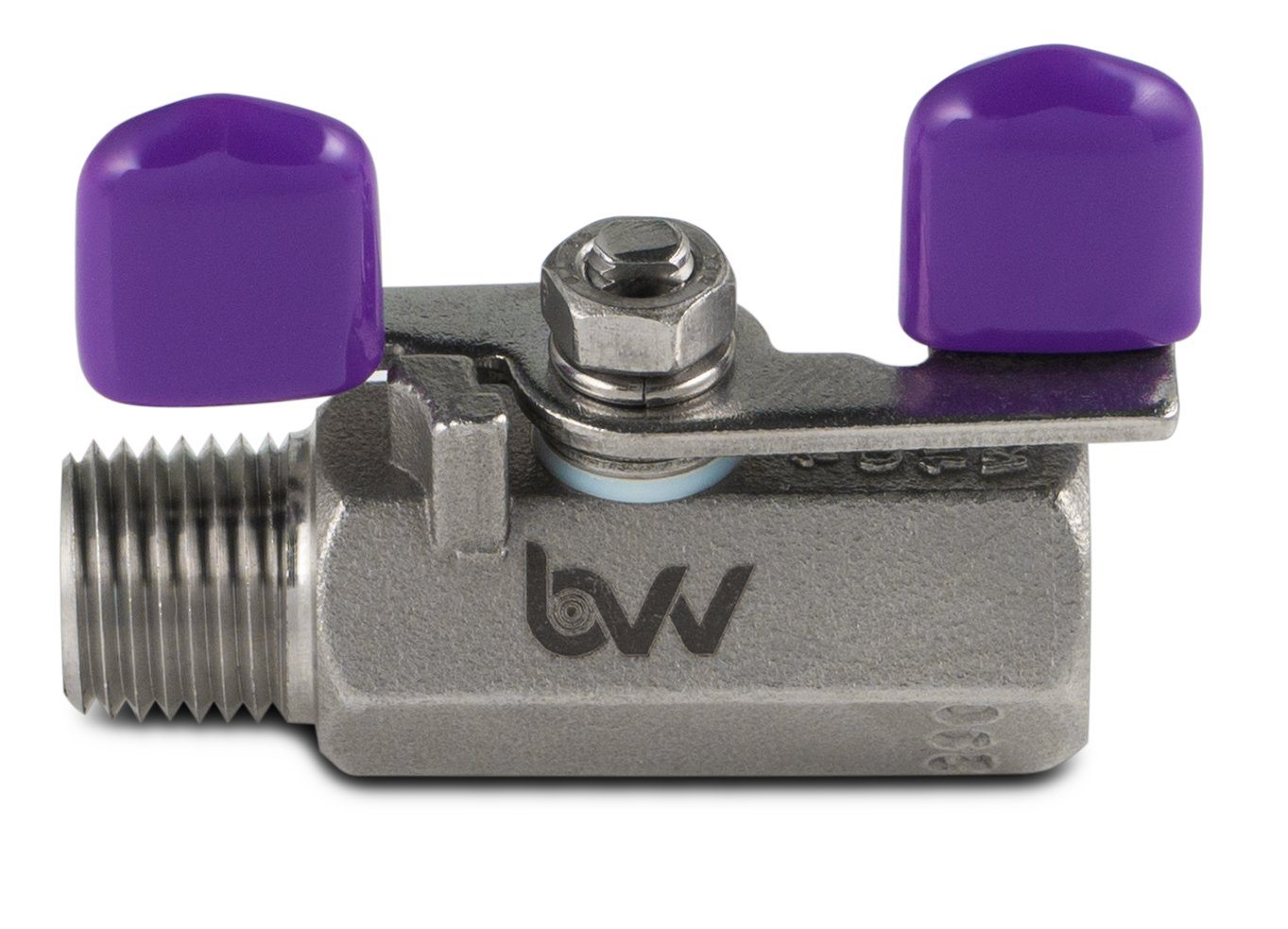

BVV™ 1/4" MNPT x 1/4" FNPT Stainless Steel Miniature Butterfly Handle Ball Valve
This 316 Stainless Steel Miniature Ball Valve features a stainless steel ball and Modified PTFE (Dyneon™ TFM1600) seats and packing on the inside. It has an overall length of 2-3/4" and has a 1/4 turn butterfly style valve.
Pressure Tested in compliance with API 598 Ninth Edition 2009: Sec.5 and Sec.6
| Specification | |
|---|---|
| Standard: | ASTM A351 |
| Stem: | 316 Stainless Steel |
| Seat: | PTFE |
| Temperature Rating: | -20C - 230C |
| Pressure Rating: | 1000 PSI (W.O.G. Water, Oil, Gas) |
| Body: | Cast 316 / CF8M Stainless Steel |
| Cap: | Cast 316 / CF8M Stainless Steel |
| Ball | Cast 316 / CF8M Stainless Steel |
| Heat Treatment: | Solutiom Annealed 1050-1100C |
| Stem Packing: | PTFE |
| Thrust Washer: | PTFE |
