Description

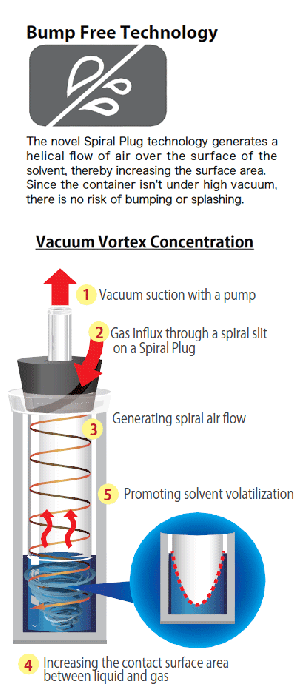

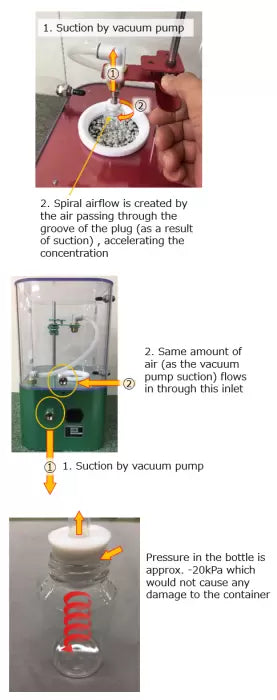

Smart Evaporator with its unique spiral plug design makes it possible to evaporate solvents bump free utilizing revolutionary vacuum assisted vortex technology.
- Fast and easy to setup
- Aluminum beads included with the C1 can be heated up to 100 °C
This system is ideal for evaporating high boiling point solvents, such as DMSO or DMF, hands-free by using air purging feature (inert gas required)
Â
Applications include concentrating samples after organic synthesis, solvent removal after NMR, concentrating samples after fractionation and purification. Ideal for research fields such as organic chemistry, material science, polymer chemistry, environmental analysis, biochemistry.
Tapered spiral plugs are compatible with many different
Features
- DMSO, DMF, water can be evaporated with no bumping
- Solvent removal directly from HPLC/LC/GC vials
- Sample concentration after fractionation, NMR measurement, etc.

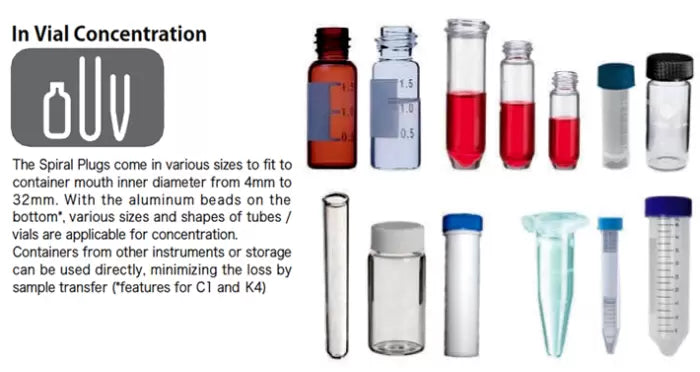

- In-vial concentration
- Aluminum beads as heat media, compatible with vials with various bottom shapes
- Heating and inert gas functions allow faster concentration
- Made and imported from Japan
Application
- Solvent removal (for substitution) after HPLC, LC/MS, GC/MS
- Sample concentration after preparative fraction
- Solvent removal after NMR measurement
- Concentration after solid phase extraction
- Concentration of natural product extract, radioisotope labeled compounds and surfactant solutions
- Pretreatment for multiple sample in drug and photosynthetic pigment analysis
A Day of Evaporation with BioChromato
Â
Smart Evaporator Quick Start
How to Start Evaporation with Smart Evaporator
How to Set Temperature
Â
Â
Â
