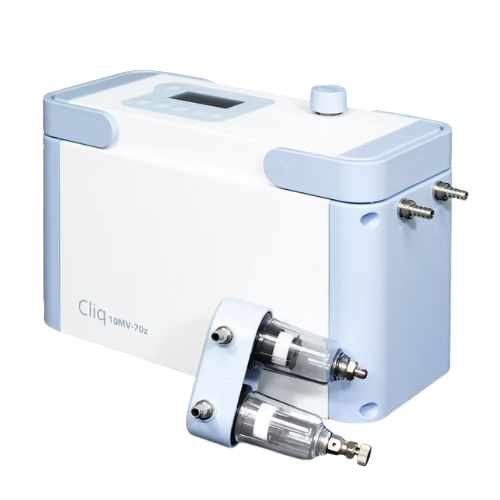

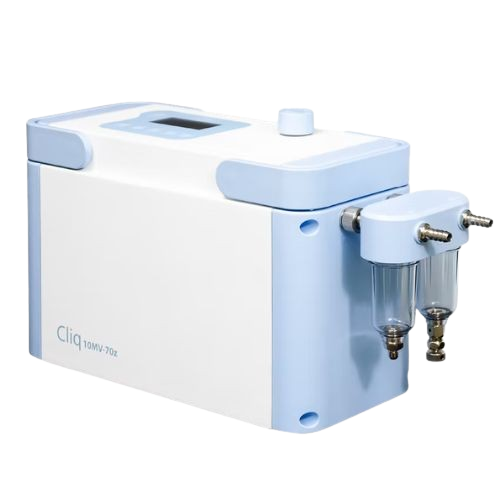

10MV-70z is an oil-free diaphragm pump ideal for a wide range of laboratory uses.
To ensure superior chemical resistance, a PTFE coating is applied to all pump head components that come into contact with the media. This makes our pumps highly resistant to corrosive chemicals.
Designed with both functionality and aesthetics in mind, 10MV-70z features sleek housings and user-friendly characteristics. It operates with quiet efficiency, minimal vibration, and feature flat, easy-to-clean surfaces for effortless maintenance. It is also equipped with two collapsible handles for effortless transport.
10MV-70z features a top-mounted digital display for precise control and readability. It provides flow adjustment and a countdown timer that can automatically turn off the vacuum to conserve energy. It also includes a cleaning function to prevent the buildup of water or chemical gases in the machine.
Ā
Ā
Ā
CHEMISTRY DIAPHRAGM PUMPS Chemically resistant, user friendly, custom control
Cliq Lab offers trustworthy vacuum pumps ideal for a wide range of laboratory uses. Our diaphragm pumps are oil-free, eliminating the risk of contaminating the vacuum chamber.
To ensure superior chemical resistance, we apply a PTFE coating to all pump head components that come into contact with the media. This makes our pumps highly resistant to corrosive chemicals.
Designed with both functionality and aesthetics in mind, our diaphragm pumps feature sleek housings and user-friendly characteristics. They operate with quiet efficiency, minimal vibration, and feature flat, easy-to-clean surfaces for effortless maintenance. Each pump is also equipped with two collapsible handles for effortless transport.
Our Basic Models feature a top-mounted one-touch on/ off button. They also come with a detachable filter and an analog gauge. For advanced needs, our Advanced Models feature a top-mounted digital display for precise control and readability. These models provides flow adjustment and a countdown timer that can automatically turn off the vacuum to conserve energy. It also includes a cleaning function to prevent the buildup of water or chemical gases in the machine.
Ā
Ā

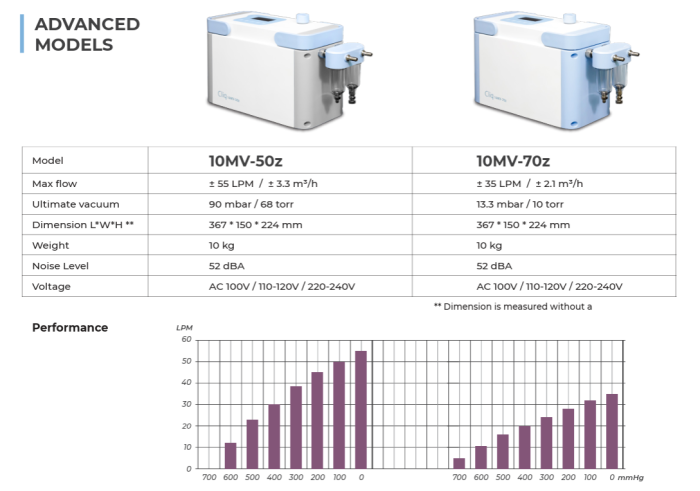

| Max flow | ± 35 LPM / ± 2.1 m³/h |
| Ultimate vacuum | 13.3 mbar / 10 torr |
| Dimension (LWH) | 367 * 150 * 224 mm 14.4ā * 5.9ā * 8.8ā inch (Measured without the detachable filter) |
| Weight | 10Kg / 22 lbs |
| Noise Level | 52 dBA |
| Voltage | AC-100V AC110-120V AC220-240V |
| Certification | ISO 9001:2015 ISO 14001:2015 EN ISO 13485:2016 TUV Rheinland Certified |
