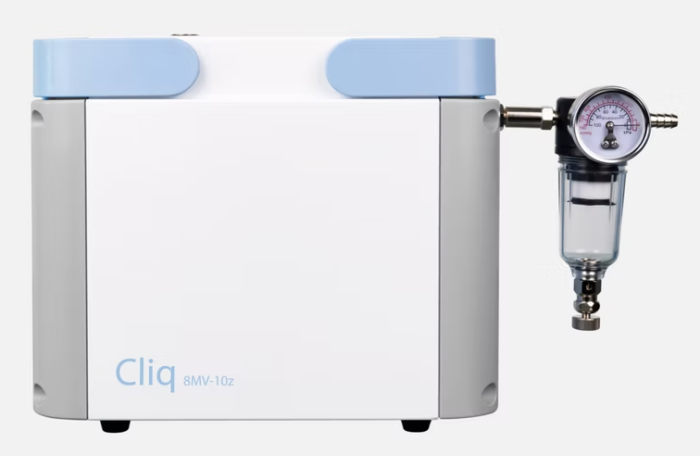

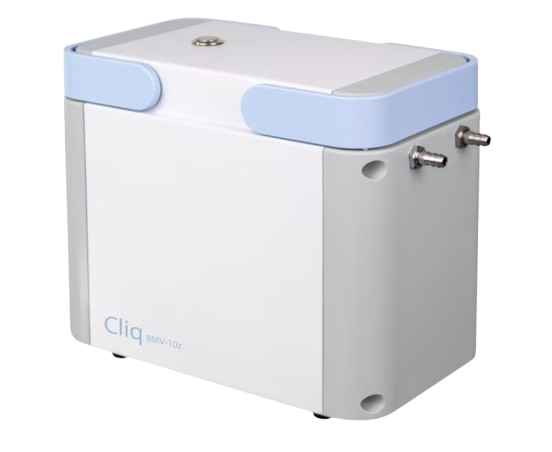

8MV-10z is an oil-free diaphragm pump ideal for a wide range of laboratory uses.
To ensure superior chemical resistance, a PTFE coating is applied to all pump head components that come into contact with the media. This makes our pumps highly resistant to corrosive chemicals.

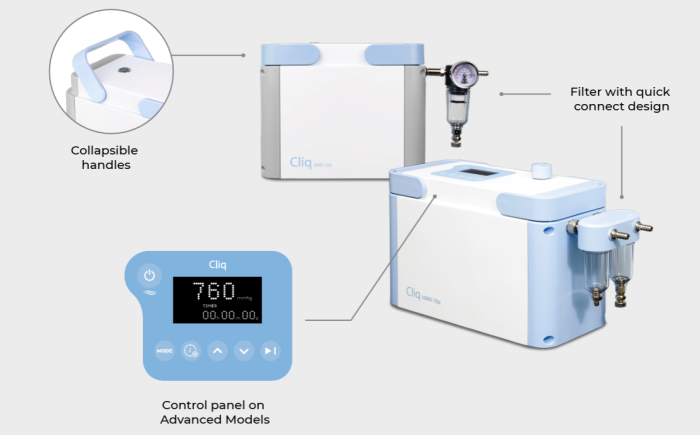

Designed with both functionality and aesthetics in mind, 8MV-10z features sleek housings and user-friendly characteristics. It operates with quiet efficiency, minimal vibration, and feature flat, easy-to-clean surfaces for effortless maintenance. It is also equipped with two collapsible handles for effortless transport.

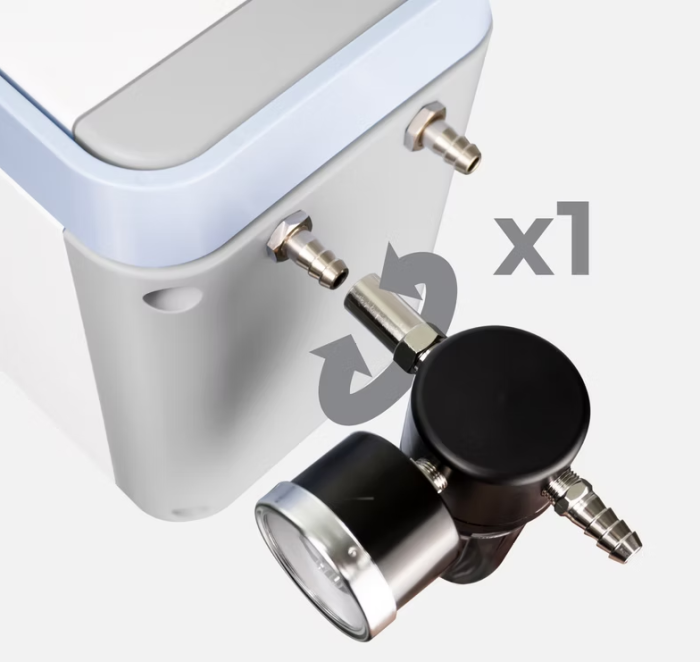

8MV-10z features a top-mounted one-touch on/ off button. It also comes with a detachable filter and an analog gauge.
Â
Â
Â
Â
Â
Â
Â

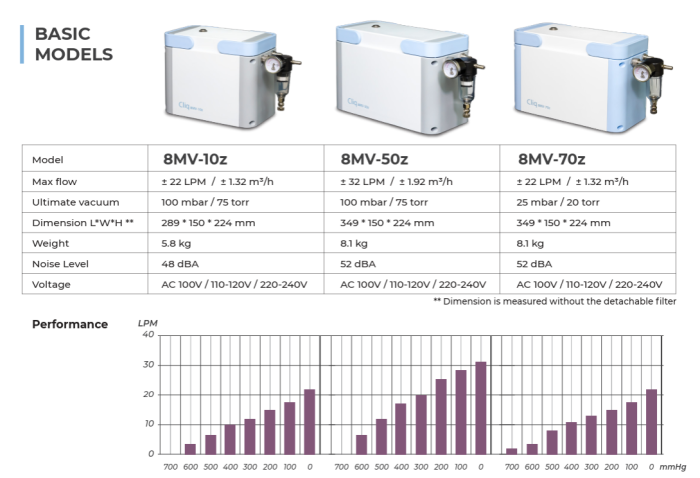

| Max flow | ± 22 LPM / ± 1.32 m³/h |
| Ultimate vacuum | 100 mbar / 75 torr |
| Dimension (LWH) | 289 × 150 × 224 mm (11.38" × 5.91" × 8.82") *without detachable filter |
| Weight | 5.8 kg / 12.8 lbs |
| Noise Level | 48 dBA |
| Voltage | AC-100V, AC 110-120V, AC 220-240V |
| Certification | ISO 9001:2015 ISO 14001:2015 EN ISO 13485:2016 TUV Rheinland Certified |
