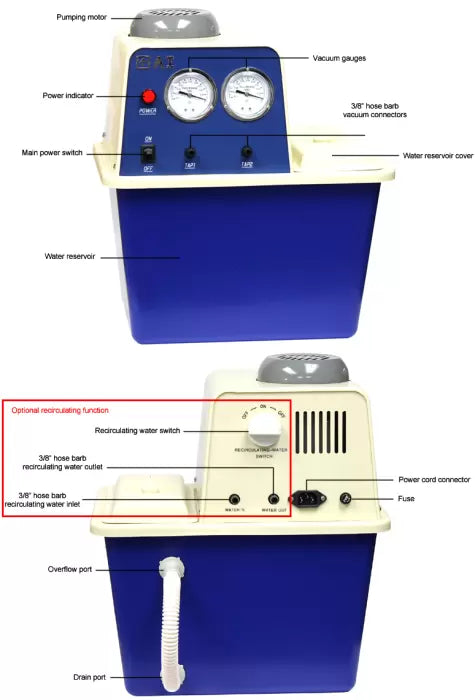

Ai WaterVac 0.7 cfm is an oil-free, portable, chemical resistant, 2-head recirculating water aspirator pump, with simplified maintenance, and no frequent and costly oil change. All major parts are made of PTFE, these economical vacuum pumps are perfect for tough lab applications.
Free three feet ($19.99 value) included.
Features
Features
- Long life, corrosion resistant, reliable
- All major valves and parts made of PTFE
- Whisper quiet operation
- Chemically resistant
- No oil changes, no cold trap required for water/alcohol solutions
- Virtually maintenance-free solution for laboratory environment
- Smaller footprint than oil pump saves lab space
- Designed to work with rotary evaporators
|
Specifications
Specifications
Electrical requirements
|
110 Volts 60Hz single phase, 180 watts
|
Pumping rate
|
0.7 cfm
|
Ult. vacuum pressure
|
735 torr
|
Vacuum inlet (vacuum connection)
|
3/8" hose barb x 2
|
| Water reservoir |
Capacity: 4 gallons / 15 liters |
| Recirculating water |
Flow rate: 21 gallon/min
Max head: 33 feet
|
| Adjustable vac./gas ballast |
No |
| Safety |
Back-flow check valve |
| Material |
Housing, water reservoir, 3 way tee: plastic
Water jet: copper + PTFE
Check valve: plastic + copper
Pump body, pump vane: type 304 stainless steel
Vacuum tubing: fluorine rubber
|
Pump dimensions (WxDxH)
|
15 x 12 x 17"
|
Shipping dimensions (LxWxH)
|
17 x 14 x 20"
|
Pump weight
|
24 Lb
|
Shipping weight
|
28 Lb |
| Warranty |
One year |
|
Standard Packages
Standard package
Part description
|
Quantity
|
Part image |
Ai WateVac 0.7 cfm 2-Head Recirculating Water Vacuum Pump
|
1 pc
|
|
| 3-way glass 3/8" hose barb Y adapter
|
1 pc |
|
|
6 ft
|
|
Users manual
|
1 pc
|
|
|
