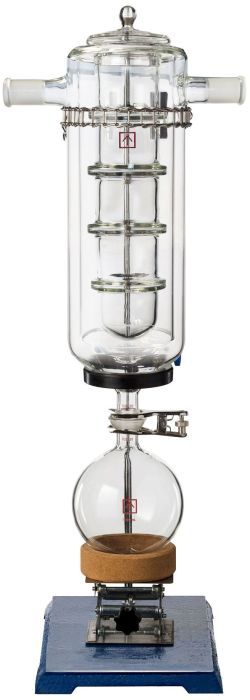

Across International Ai T1 Jackhammer Dual-Layer Glass Vacuum Cold Trap

Power Lab Supply 2SKU: T1-Jackhammer
No reviews

Title: Please Select
Sale price$783.02 USD

In vacuum applications, a cold trap is a device that condenses all vapors except the permanent gases into a liquid or solid. The most common objective is to prevent vapors being evacuated from an experiment from entering a vacuum pump where they would condense and contaminate it. Particularly large cold traps are necessary when removing large amounts of liquid as in freeze drying.

Pumps that use oil either as their working fluid (diffusion pumps), or as their lubricant (mechanical rotary pumps), are often the sources of contamination in vacuum systems. Placing a cold trap at the mouth of such a pump greatly lowers the risk that oil vapors will back stream into the vacuum cavity.

Care should be taken when using a cold trap not to condense liquid oxygen (a light blue liquid) into the cold trap. Liquid oxygen is potentially explosive, and this is especially true if the trap has been used to trap solvent. Liquid oxygen can be condensed into a cold trap if a pump has sucked air through the trap when the trap is very cold.

T1-Jackhammer features

  • Dual-jacketed design gives you 2X condensing areas
  • Jackhammer style connectors allows multiple cold traps to be connected on the same platform (level)
  • Heavy duty lab stand for stability
  • Utilizes dry ice for optimal efficiency
  • Comes with scissor jack for easy collection flask removal
  • Easy to clean all glass construction
  • Small footprint

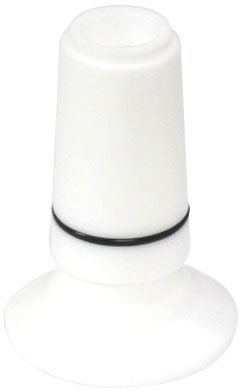

  • PTFE 24/40 to KF25 adapter NOT included

Note: We do not offer warranty on glassware. Please contact us if you see any imperfections on the glassware once you received your package.







 Vacuum inlet/outlet
 24/40 joint
 Collection flask capaclity
 One liter
 Setup dimensions (WxDxH)
 7 x 12 x 28"
 Shipping dimensions (WxDxH)  30 x 18 x 9"
 Shipping weight  17 lbs
Standard Packages
Standard package

 Part description


Part image

 Cold trap with lid, gasket, two 24/40 joint vacuum connectors,
 and one 35/20 joint drain port

1 set

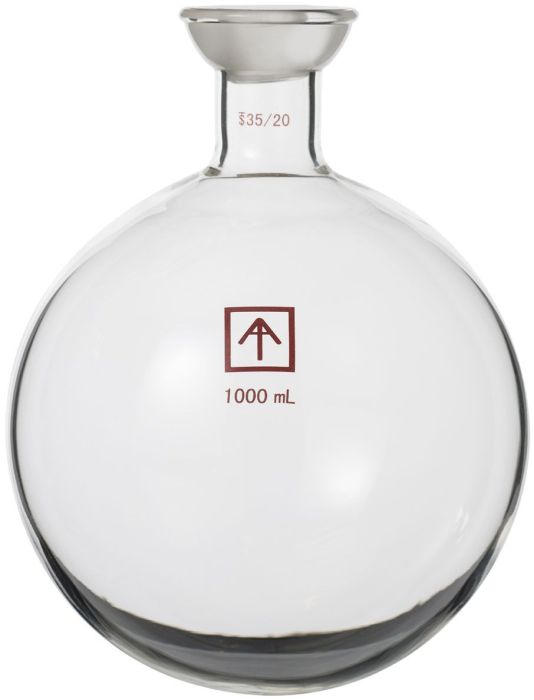

 1L collection flask with 35/20 joint
1 pc
 Heavy duty lab stand
1 pc

 Boss head clamp
2 pcs
 Lab scissor jack
1 pc

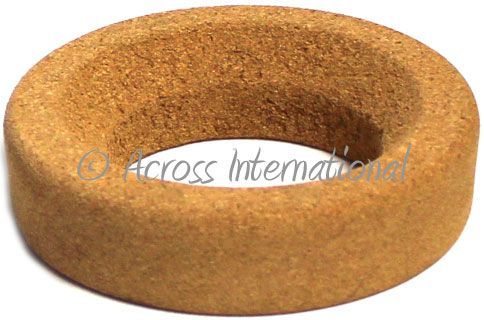

 Collection flask cork ring stand 1 pc
 Stainless steel ball joint clamp 1 pc
 Cold trap support  1 pc
 Lab chain clamp 1 pc
 Users manual
1 pc
