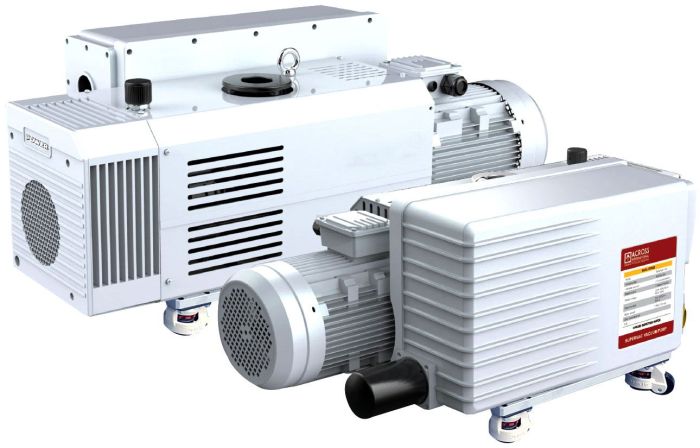

Across International Ai SuperVac 194 cfm 2-Stage High Capacity Vacuum Pump

Save $179.80 USD

Price:
Sale price$8,810.20 USD Regular price$8,990.00 USD
Description





The new Ai SuperVac 194 cfm dual-stage commercial grade high capacity vacuum pumps are designed for reliable long time continuous operation, they will take your equipment's vacuum down to 0.5 micron in minutes. Comes standard with all necessary fittings and a high capacity exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run.

Multi-level gas ballast is designed to allow purposefully pull a less deep and slower vacuum by opening the gas ballast, allowing dry air to go directly into the pump and diluting the vacuum pull, and it also helps keep moisture, solvent, and other contaminants from getting stuck in the pump, and instead passing through to the exhaust.

It is important to note that pumps should always be ran in a well ventilated area.












Features
Features
  • Adjustable gas ballast
  • Built-in oil back-flow prevention check valve
  • Internal forced oil cycling system
  • Integrated cylinder structure
  • Exhaust filter with easy-to-change replaceable filter element
  • Heavy duty structure and designed for reliable long time operation
  • 2-year warranty
Specifications
Specifications



 Electrical requirements
 220V/480V 50/60Hz Three phase, 7,500 watts

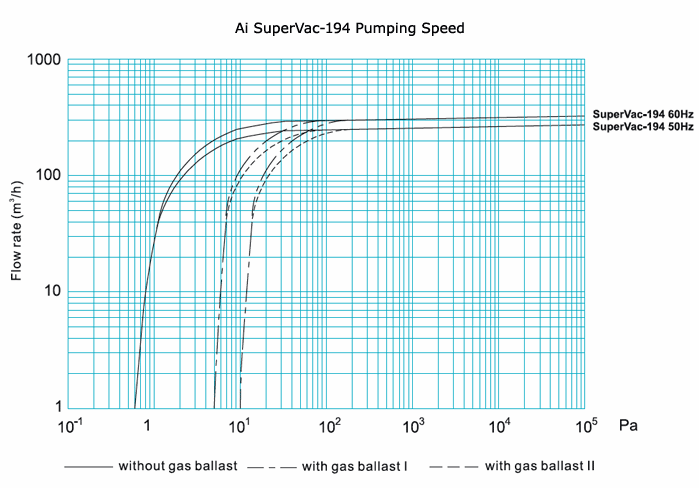

 Pumping rate
 194 cfm
 Ultimate vacuum without gas ballast
 0.5 micron/millitorr
 Ultimate vacuum with gas ballast
 6 micron/millitorr
 Inlet/outlet connection
 ISO-63 (ISO-63 to KF50 adapters included)
 Oil volume
 7-9 liter
 Motor rate  1720 rpm (60Hz)
 1440 rpm (50Hz)
 Working temperature  20C to 40C
 Shipping dimensions (LxWxH)
 46 x 21 x 20" / 51 x 29 x 30"
 Unit/shipping weight
 485 Lb / 620 Lb
 Recommended oil
 Noise level  < 80 dB
 Warranty  Two years
Standard Packages
Standard package



 Part description

 Quantity

Part image

 Ai SuperVac 194 cfm vacuum pump with exhaust oil mist filter
1 set

 KF50 flexible bellow - 6.5 ft 1 pc
 KF50 quick clamp 2 pcs
 KF50 centering ring 2 pcs
 Ai premium vacuum pump oil - 4 liters
2 pcs
 Users manual 1 pc
