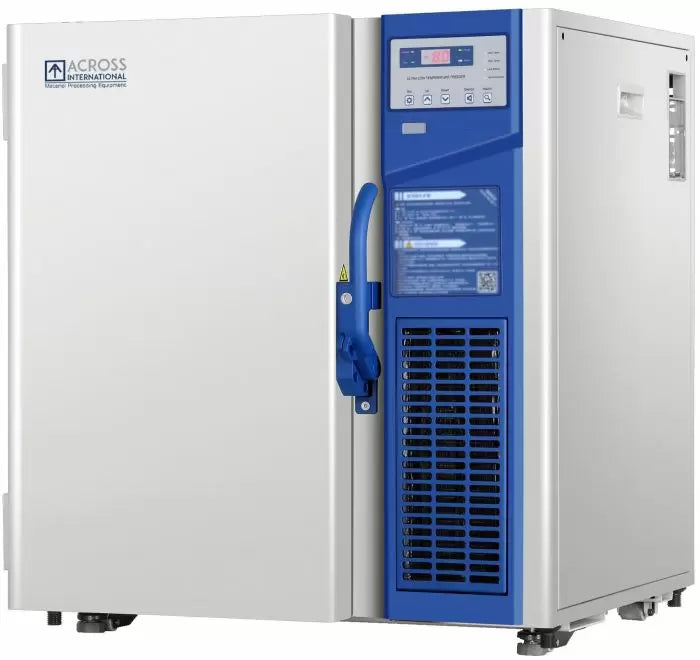

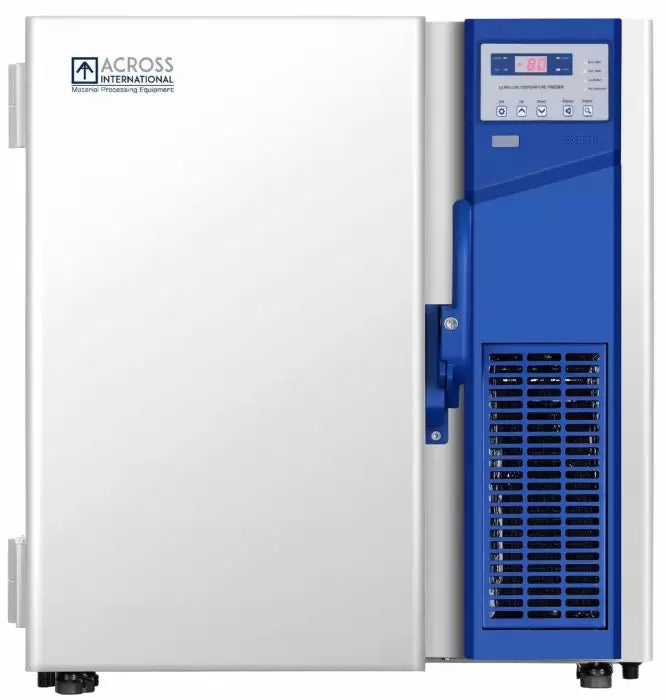

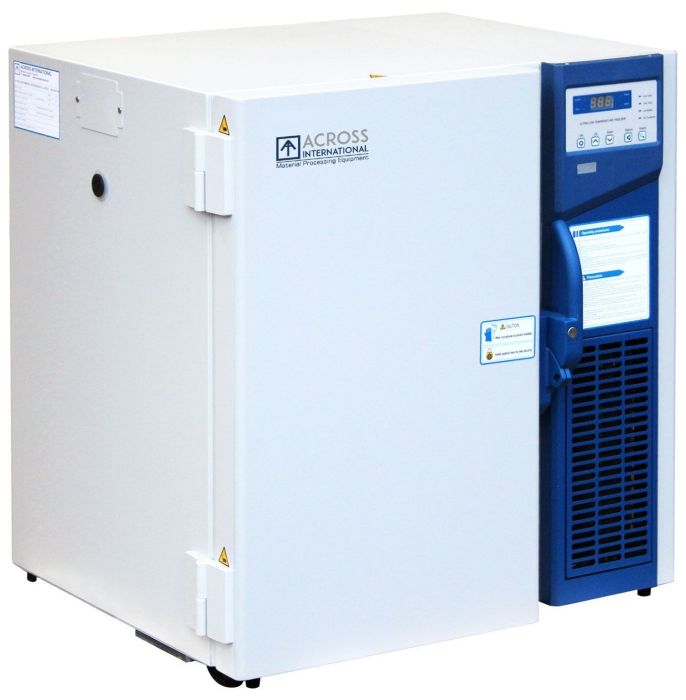

Across International Ai RapidChill 4 CF -86°C Stackable Ultra low Freezer UL 110V

Roll over image to zoom in Click on image to zoom

The Ai RapidChill series -86C ultra-low upright ULT freezers is designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL certified.

Features

CDC and VFC compliant, great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs, and serum
State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
Safe, environmentally friendly, energy efficient, and easy-to-acquire HC refrigeration system
Remote alarm, RS-485 and optional 4-20mA transmitter
Door lock, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
Digital temperature display with microprocessor-based temperature controller
All stainless steel interior for clean operation, durability, and ease of maintenance
Dual silicon sealing gaskets for ultra airtight operation
48-hour battery backup for controller and alarm
Extremely quiet and reliable
Built-in swivel casters with leveling feet

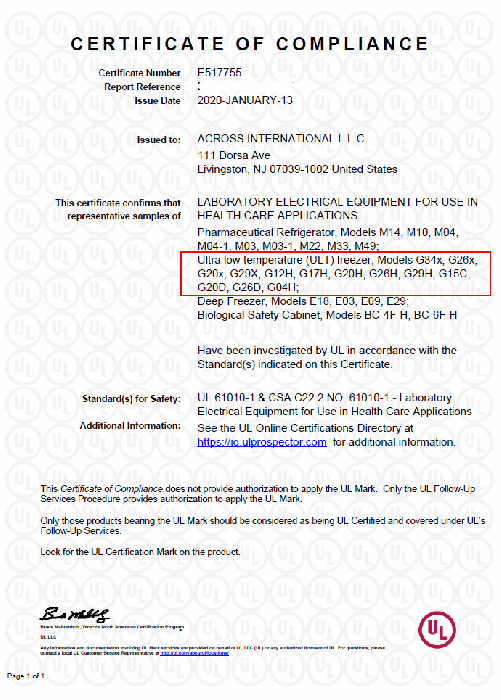

Compliant to UL 61010-1 and CSA C22.2 standards

Important!

Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
This unit is NOT designed to be used on a mobile platform.

Specifications

Specifications

Model	G04h
Electrical requirements	110V (+/-10%) 60Hz 1-Phase 680W 6A
Power consumption	5.5 kW/day
Performance	Temperature range: -40°C to -86°C Time from ambient to -86°C: 4 hours Uniformity: ±4°C Time from -86°C to -50°C with door close (ambient 25°C): 2 hours
Controller	- Style: microcomputer controlled with analog display - Range -40°C to -86°C - Step: 1°C - Thermo sensor: PT100 - Displays: internal temperature, ambient temperature, input voltage, error code - Indicators: Locked, running, power, alarm, door open, over temperature battery low, condenser clean
Compressor	Make: SECOP (formerly known as Danfoss), Germany Style: direct cooling Power: 115V 60Hz 1-PHASE, 0.54HP Number of compressors: one HC refrigerants: R600A, R1150 and R50

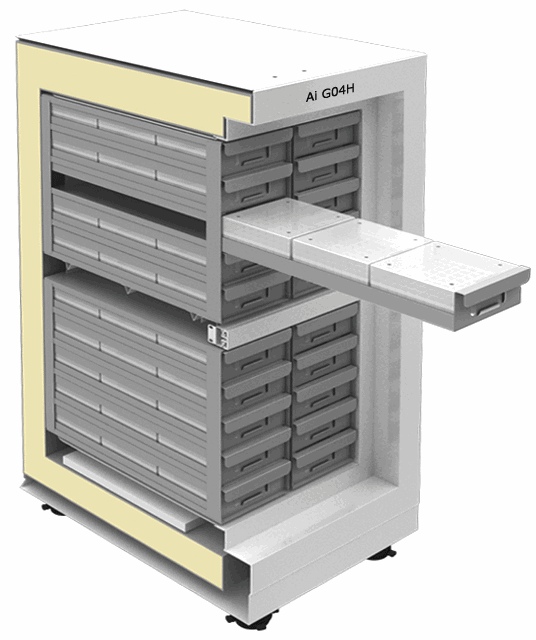

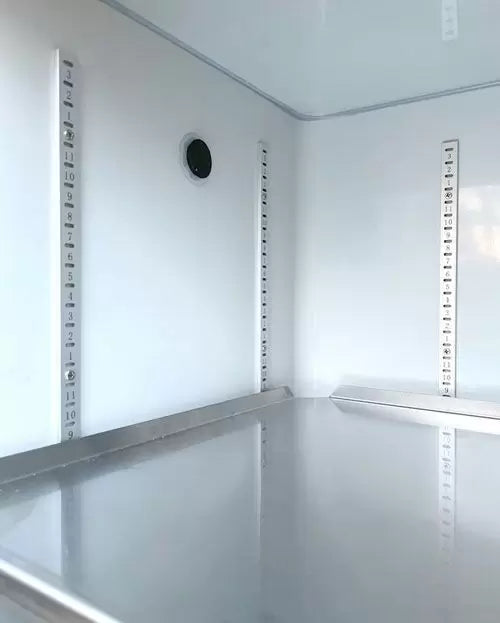

Chamber	Dimensions: 13 x 19.5 x 24.5" (WxDxH) Material: powder coated steel Effective capacity: 3.5 Cu Ft Insulation: VIP (Vacuum Insulated Panel)
Shelf	Come with unit: one adjustable shelf (2 compartments) Material: 304 stainless steel

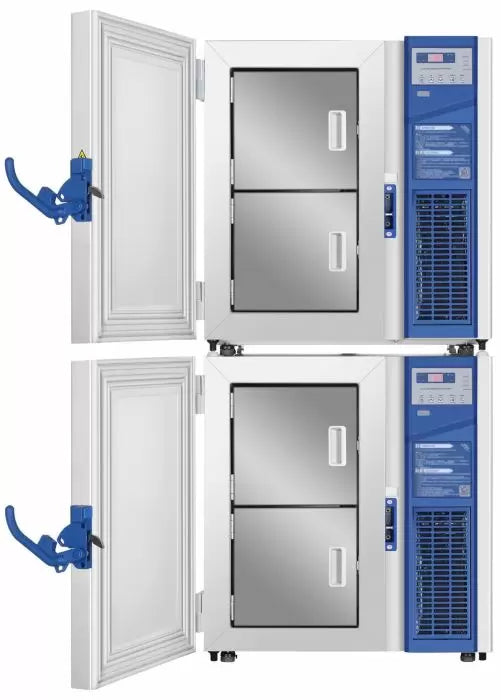

Door and gasket	Inner door: two, stainless steel External door: one, with four layers of silicone sealing gaskets, lock-able
Access port	One
Noise level	46 dBA
Communication	Standard: RS-485, USB (stores 15 years of data for compliance purpose) Optional: 4-20mA transmitter
Working environment	- Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) - Humidity: <80% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery backup system	48 hours (for controller display and alarms only)

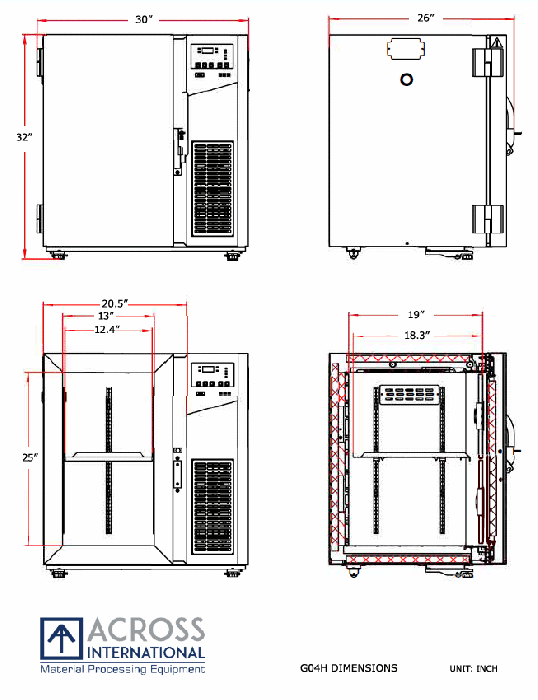

Unit/shipping weight & dimensions	240 Lbs / 300 Lbs 30 x 26 x 32" / 33 x 29 x 35" (WxDxH)
Safety	Compressor over-temp protection Ambient over-temp protection Compressor power surge delay protection Password protection Sensor failure protection Over-temperature and low-temperature protection Power failure protection Low battery, door open, condenser clogging, system failure alarms External door with lock Ground protection
Compliance	UL 61010-1 CSA C22.2
Warranty	2-year full service, 3-year parts, 5-year compressor

Standard Packages

Standard Package

Part description	Quantity	Part image
Ai RapidChill 4 CF -86°C Stackable Ultra low Freezer UL 110V	1 pc
Shelf	1 pc
Top Panel Support	4 pcs
Keys	2 sets
Feet	4 pc
Ice Scrapper	1 pc
Wall Brackets	2 pc
User's manual	1 pc
